Model # PF1MNC036000AAAA Official Payne air handler

Here are the diagrams and repair parts for Official Payne PF1MNC036000AAAA air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Central Air Conditioner Air Handler Fan Control Board HK61EA006
#29

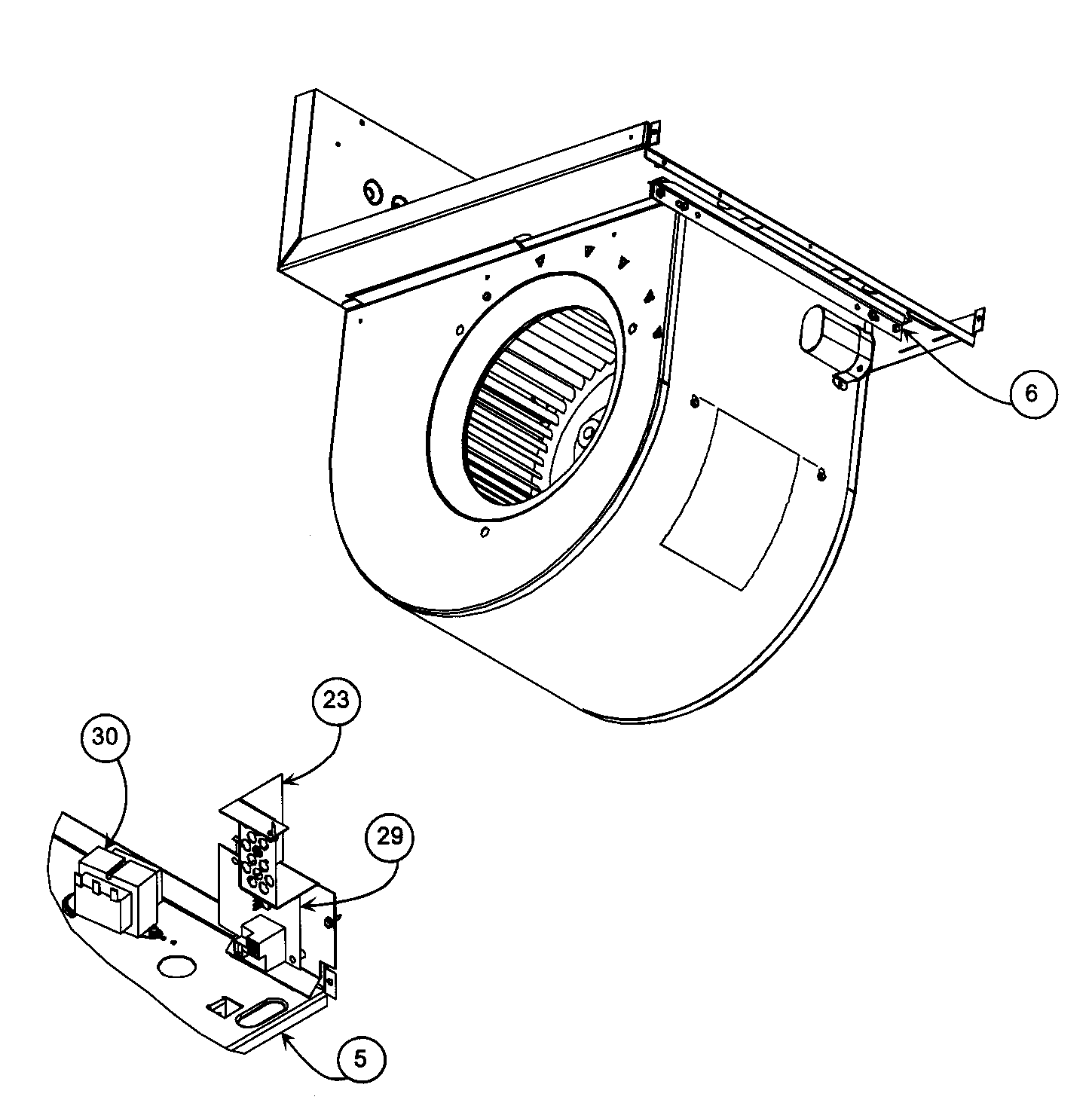

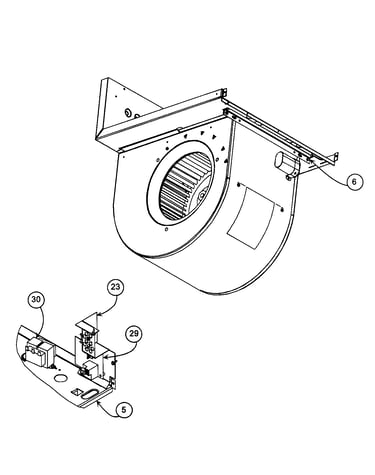

Blower assy diagram

Central air conditioner air handler fan control board

Part #HK61EA006

This item is not returnable
$93.96 |
6% OFF Phone Price : $99.96
In Stock
Diode Board HK61EA003
#NI

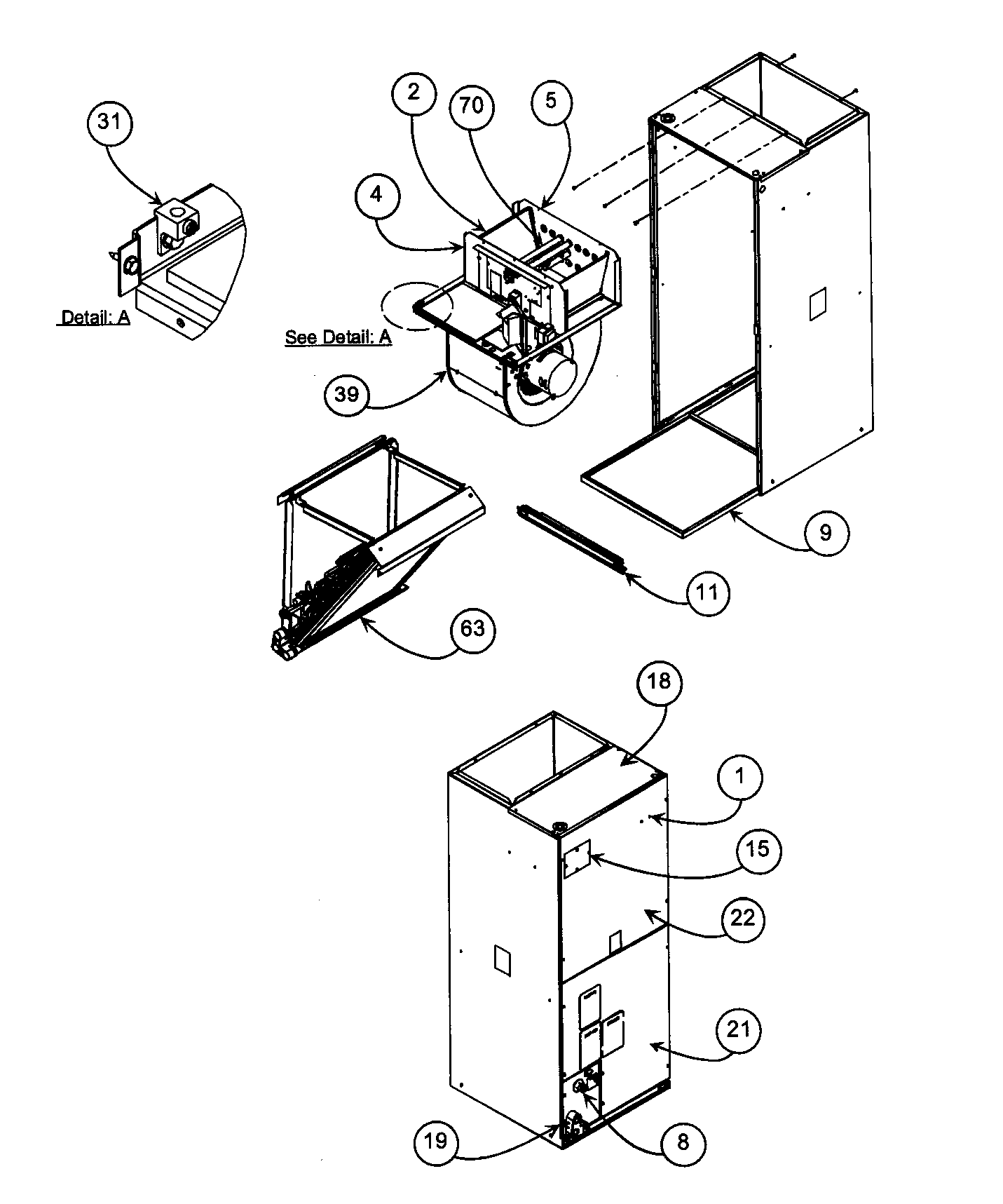

Cabinet parts diagram

Diode board

Part #HK61EA003

The manufacturer no longer makes this part, and there's no substitute part

Latch 314875-201
#NI

Cabinet parts diagram

Latch

Part #314875-201

This item is not returnable
$2.16
In Stock
Central Air Conditioner Air Handler Blower Motor Relay (replaces Hn61pc003) HN61PC002
#NI

Cabinet parts diagram

Central air conditioner air handler blower motor relay (replaces hn61pc003)

Part #HN61PC002

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Air Handler Transformer (replaces Ht01bd208) HT01CN241
#30

Blower assy diagram

Central air conditioner air handler transformer (replaces ht01bd208)

Part #HT01CN241

$104.52
In Stock
Furnace Blower Fan Wheel LA22RA100
#NI

Cabinet parts diagram

Furnace blower fan wheel

Part #LA22RA100

$198.48 |
6% OFF Phone Price : $210.48
In Stock
Furnace Air Filter, 19-3/4 X 21-1/2 X 1-in (replaces 317659-403) KFAFK0312LRG
Furnace air filter, 19-3/4 x 21-1/2 x 1-in (replaces 317659-403)

Part #KFAFK0312LRG

$65.79 |
8% OFF Phone Price : $71.79
In Stock
Filter 317659-403
#9

Cabinet parts diagram

Filter

Part #317659-403

Replaced by #KFAFK0312LRG

?
Manufacturer substitution
This part replaces 317659-403. Substitute parts can look different from the original.
$65.79 |
8% OFF Phone Price : $71.79
In Stock
Carrier 15kw3ph Non-fused Electric Htr KFCEH1601315
#NI

Cabinet parts diagram

Carrier 15kw3ph non-fused electric htr

Part #KFCEH1601315

$761.60
In Stock
Fuse Block HY11UM601
#NI

Cabinet parts diagram

Fuse block

Part #HY11UM601

$325.76
In Stock
