Kenmore
Canister Vacuum

Model # 1162643580 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162643580 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 62 parts  |

Suction Control 4147159
#9

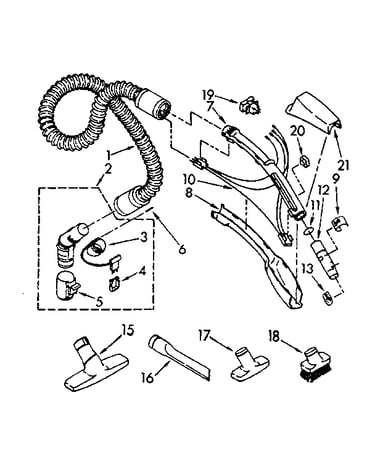

Hose and attachment parts diagram

Suction control

Part #4147159

The manufacturer no longer makes this part, and there's no substitute part

Screw 681697
#10

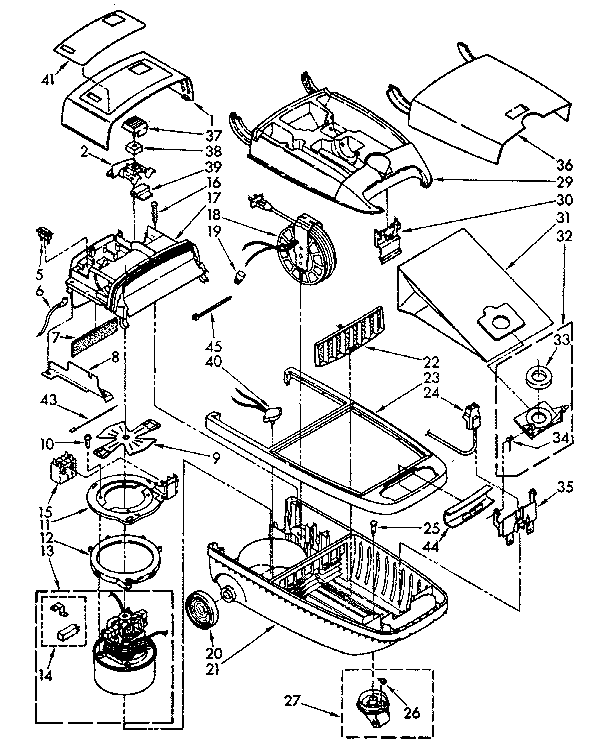

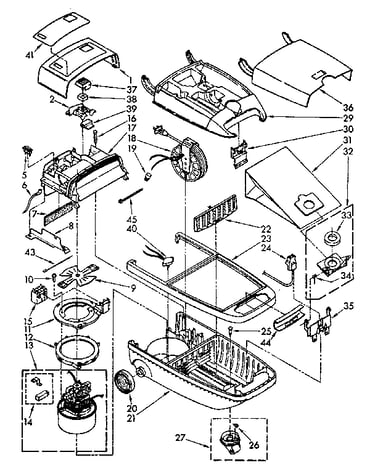

Vacuum cleaner parts diagram

Screw

Part #681697

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 706389
#7

Vacuum cleaner parts diagram

Vacuum filter

Part #706389

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT748042

#NI

All parts diagram

Parts list

Part #LIT748042

The manufacturer no longer makes this part, and there's no substitute part

Lock Cord 747314
#39

Vacuum cleaner parts diagram

Lock cord

Part #747314

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wire Harness 747090
#10

Hose and attachment parts diagram

Vacuum wire harness

Part #747090

The manufacturer no longer makes this part, and there's no substitute part

Center Tube 747339
#7

Hose and attachment parts diagram

Center tube

Part #747339

The manufacturer no longer makes this part, and there's no substitute part

Canopy 4148034
#17

Vacuum cleaner parts diagram

Canopy

Part #4148034

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bag 676246
#32

Vacuum cleaner parts diagram

Mounting bag

Part #676246

The manufacturer no longer makes this part, and there's no substitute part

Grip 4147255
#44

Vacuum cleaner parts diagram

Grip

Part #4147255

The manufacturer no longer makes this part, and there's no substitute part
