Model # HBLG1000C Official LG room air conditioner

Here are the diagrams and repair parts for Official LG HBLG1000C room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

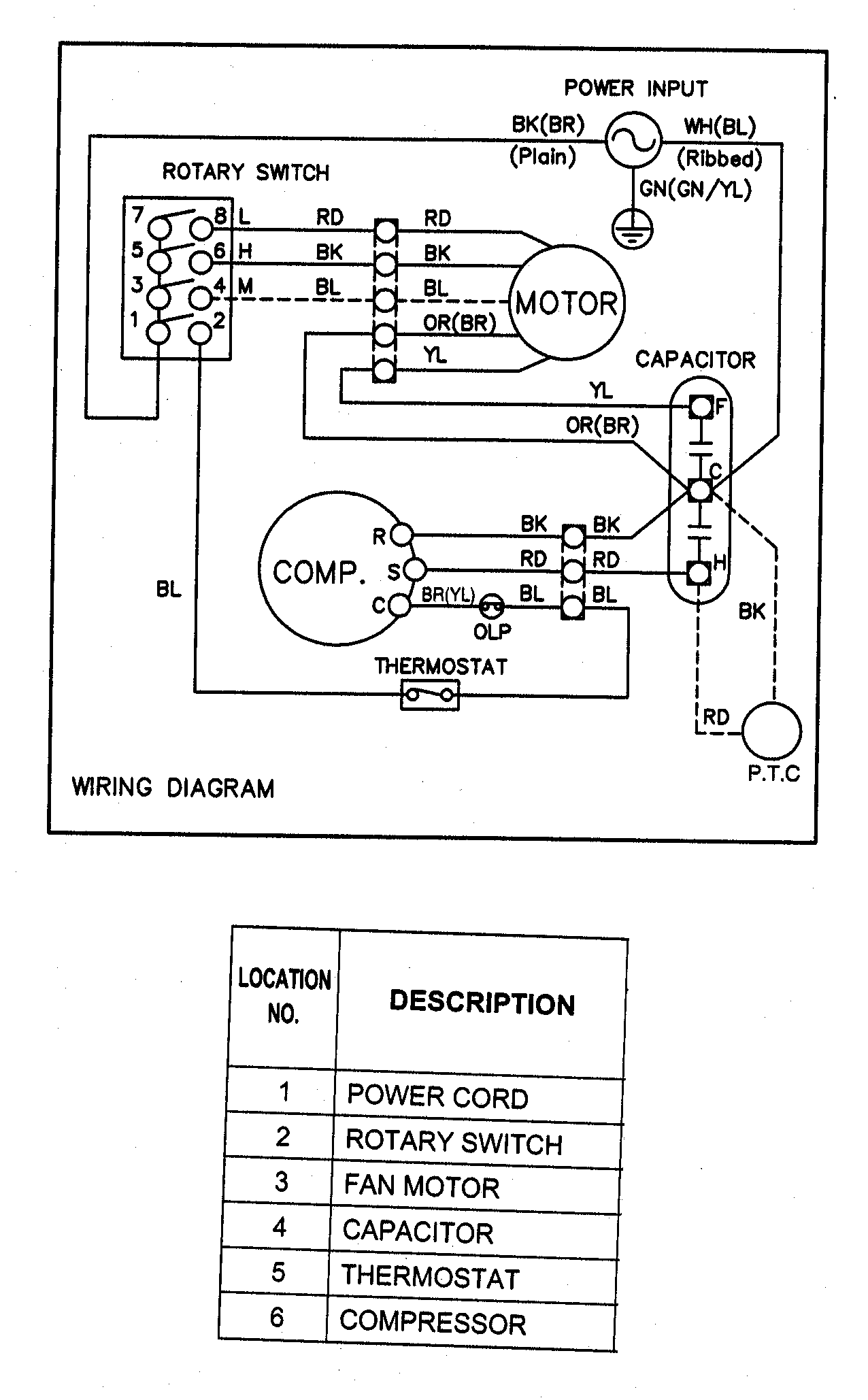

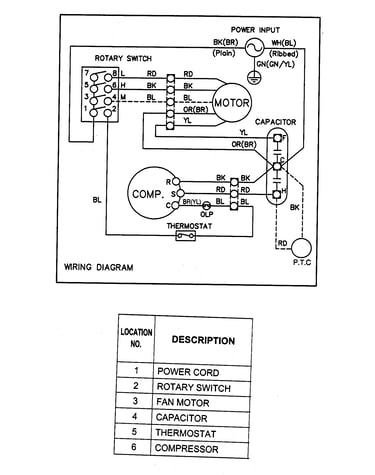

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#8602

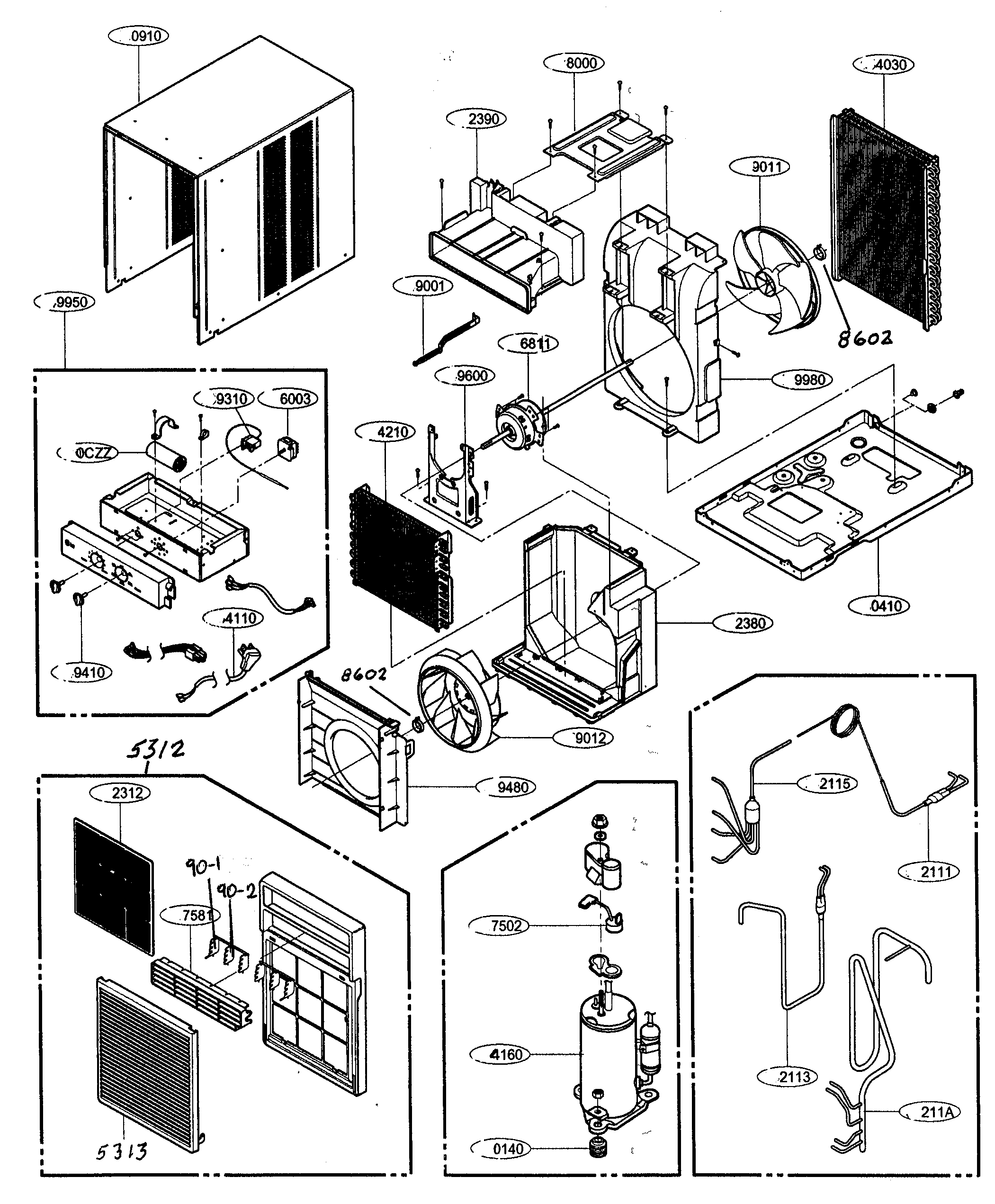

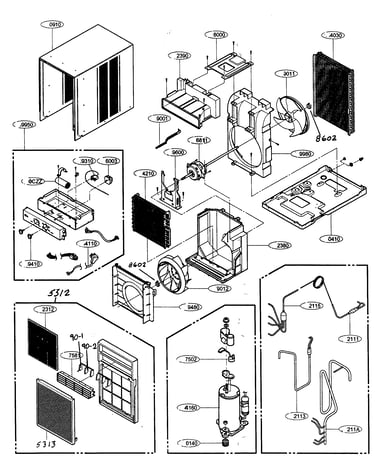

Cabinet parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Bushing 4830AR4335A
#140

Cabinet parts diagram

Bushing

Part #4830AR4335A

This item is not returnable
$4.51
In Stock
Rotary Switch 2H00598E
#6003

Cabinet parts diagram

Rotary switch

Part #2H00598E

$27.47
In Stock
Louvr Vert 4758A20017A
#90-1

Cabinet parts diagram

Louvr vert

Part #4758A20017A

This item is not returnable
$3.99
In Stock
Comfort-aire Brace 4800A20001A
#8000

Cabinet parts diagram

Comfort-aire brace

Part #4800A20001A

$10.60
In Stock
Friedrich Room Air Conditioner Compressor Overload Protector 6750U-L031A
#7502

Cabinet parts diagram

Friedrich room air conditioner compressor overload protector

Part #6750U-L031A

$24.09
In Stock
Motor Mount 4960A20034A
#9600

Cabinet parts diagram

Motor mount

Part #4960A20034A

This item is not returnable
$24.09
In Stock
Friedrich Room Air Conditioner Fan Motor Capacitor 6120AR2194K
#CZZ

Cabinet parts diagram

Friedrich room air conditioner fan motor capacitor

Part #6120AR2194K

$38.30 |
14% OFF Phone Price : $44.30
In Stock
Louvr Vert 4758A20017B
#90-2

Cabinet parts diagram

Louvr vert

Part #4758A20017B

This item is not returnable
$3.99
In Stock
Lg Owner's Manual 3828A20201E
#NI

Cabinet parts diagram

Lg owner's manual

Part #3828A20201E

$44.58
In Stock
