Amana
Countertop Microwave

Model # ER1/P7107905M Official Amana microwave

Here are the diagrams and repair parts for Official Amana ER1-P7107905M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Head Screw M0211217
#133

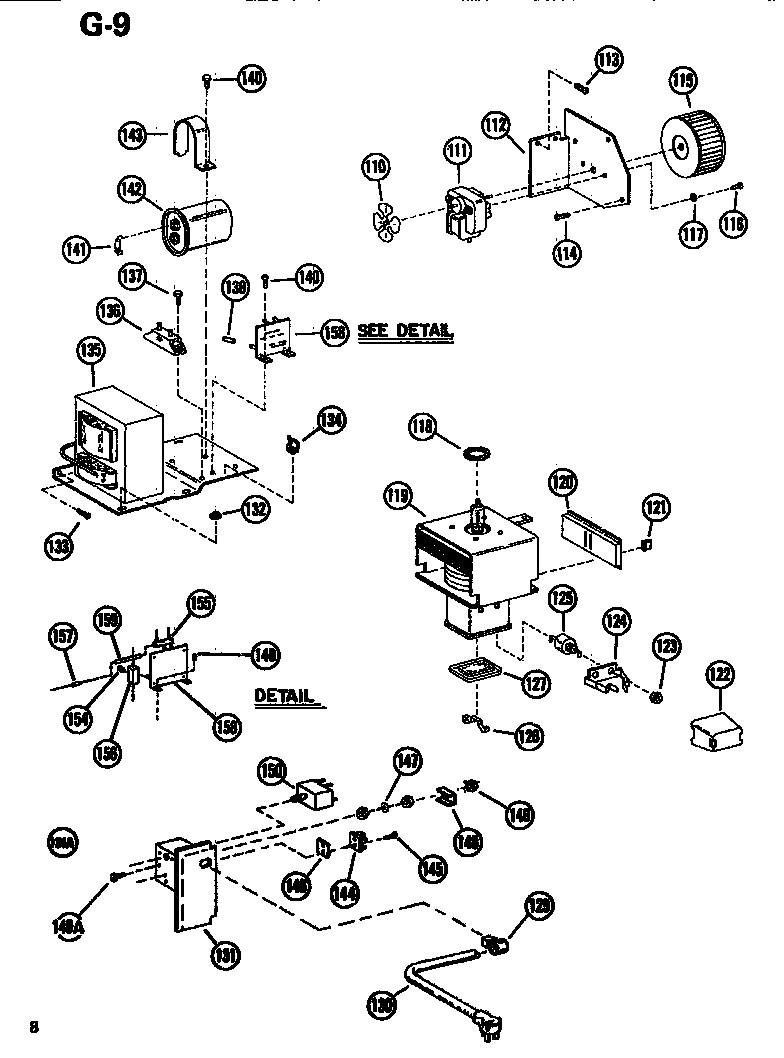

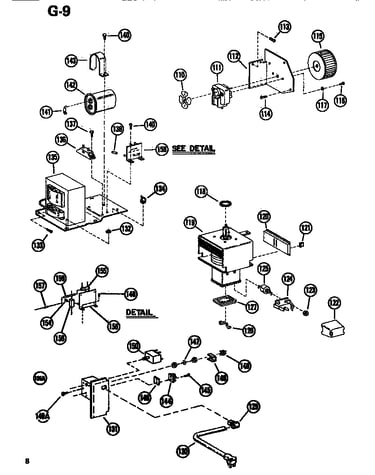

Electrical diagram

Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Nut M0282005
Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Screw M0229916
#7

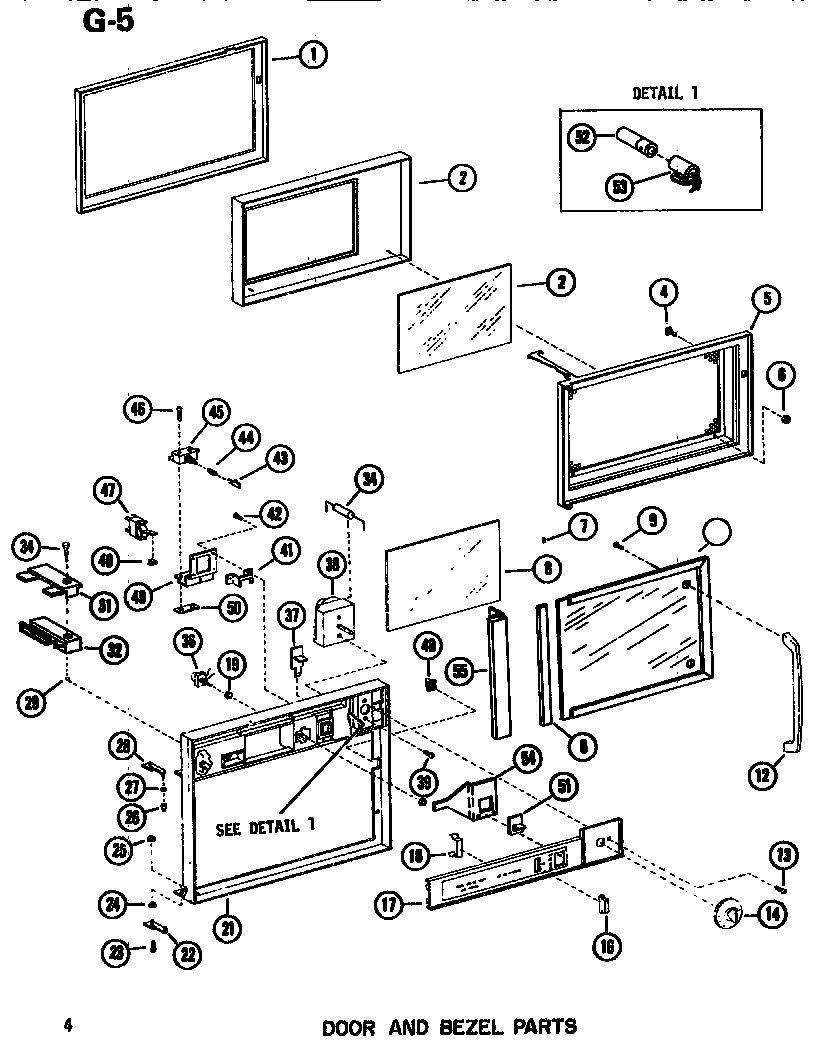

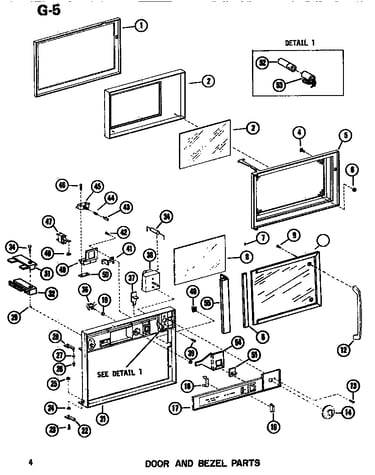

Door & bezel diagram

Screw

Part #M0229916

Replaced by #M0229916

?
Manufacturer substitution
This part replaces M0229916. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Weldment, Outer Case Wrapper D7110608
#63

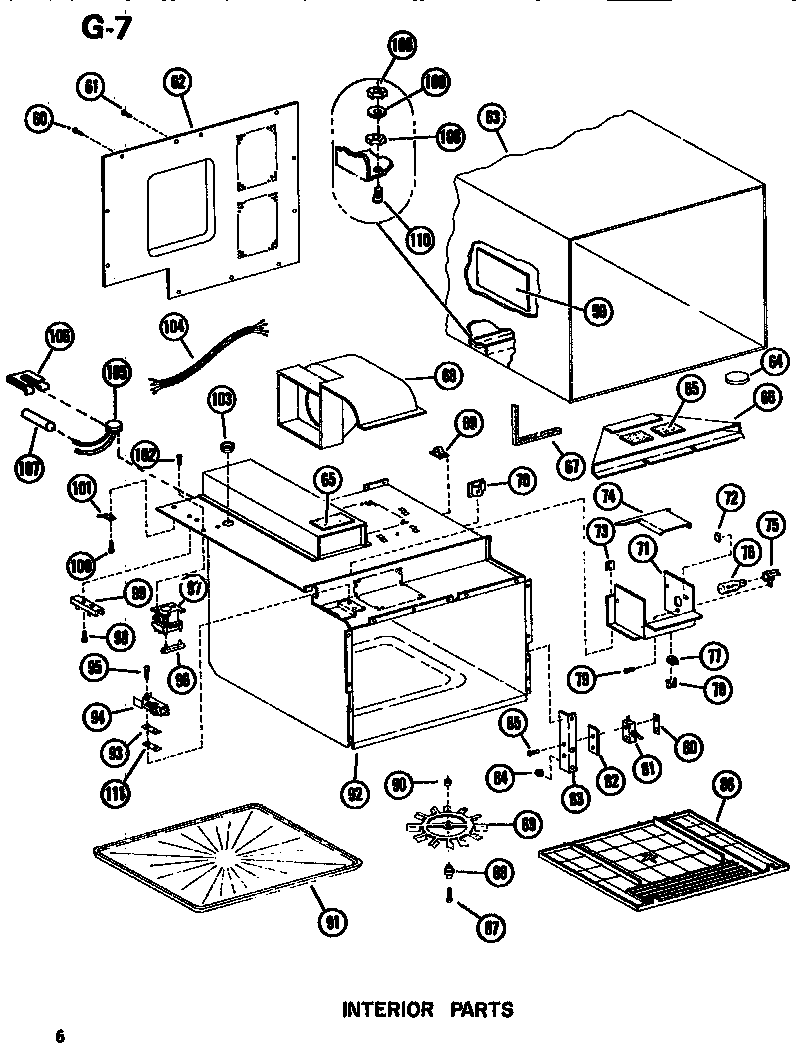

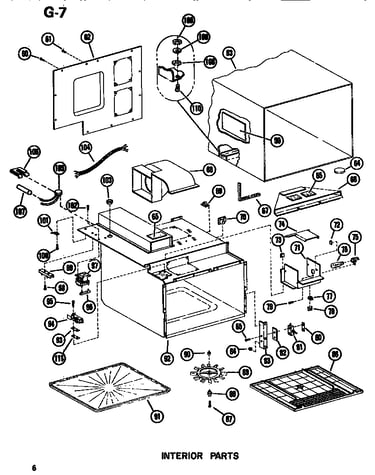

Interior diagram

Weldment, outer case wrapper

Part #D7110608

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Lower Right Interlock B5665701
#83

Interior diagram

Bracket, lower right interlock

Part #B5665701

The manufacturer no longer makes this part, and there's no substitute part

Clip, H.v. Shield B5655902
#124

Electrical diagram

Clip, h.v. shield

Part #B5655902

The manufacturer no longer makes this part, and there's no substitute part

Terminal M0320901
#101

Interior diagram

Terminal

Part #M0320901

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Ferrite B5679101
#120

Electrical diagram

Baffle, ferrite

Part #B5679101

The manufacturer no longer makes this part, and there's no substitute part

Asembly, Magnetron And Permanent Magnets D7157002
#119

Electrical diagram

Asembly, magnetron and permanent magnets

Part #D7157002

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor M0306702
#111

Electrical diagram

Blower motor

Part #M0306702

The manufacturer no longer makes this part, and there's no substitute part
