Model # MD14F51 Official Toshiba tv/dvd combo

Here are the diagrams and repair parts for Official Toshiba MD14F51 tv/dvd combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 95 parts  |
Coil,deg BZ310116
#NI

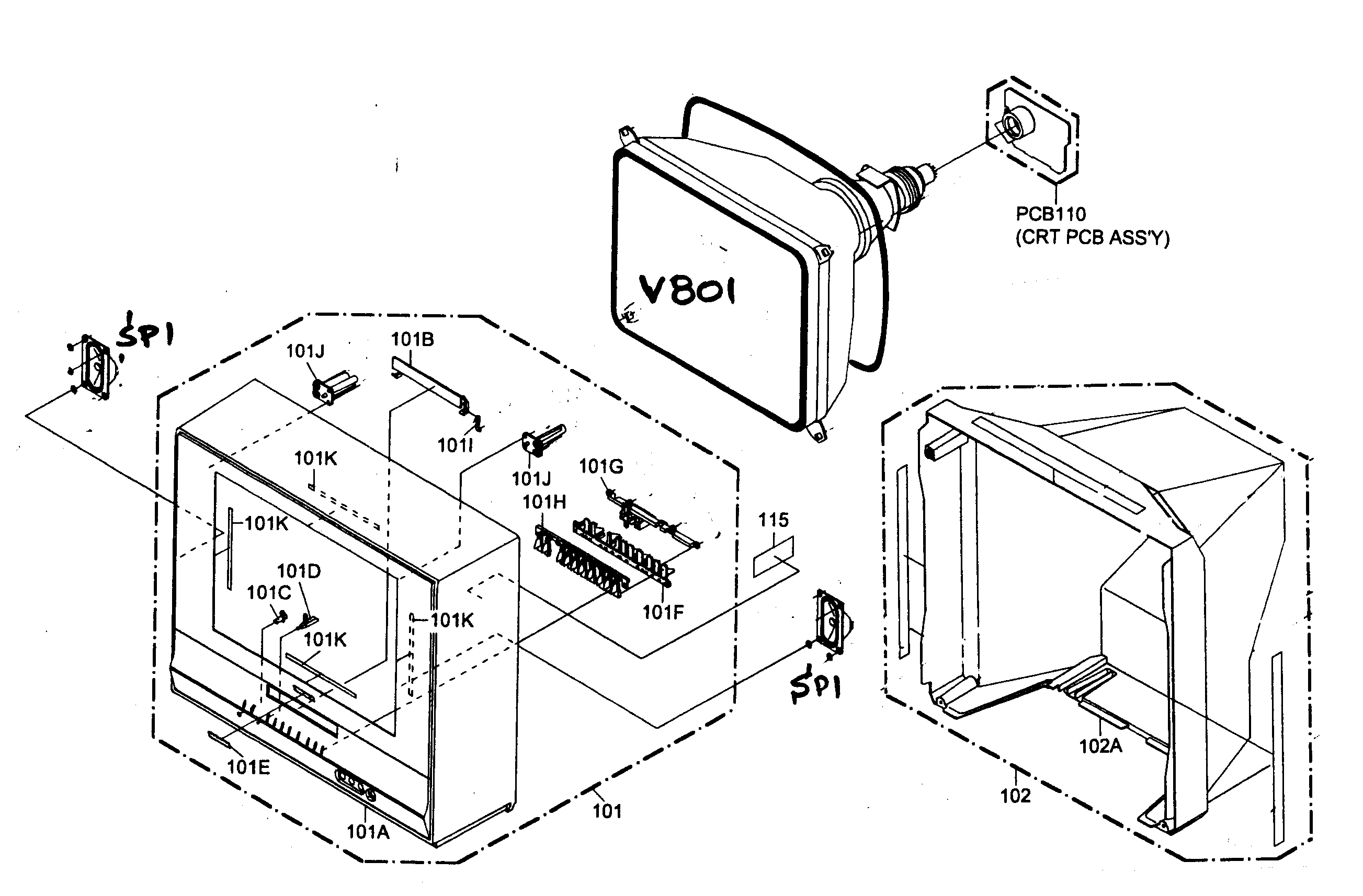

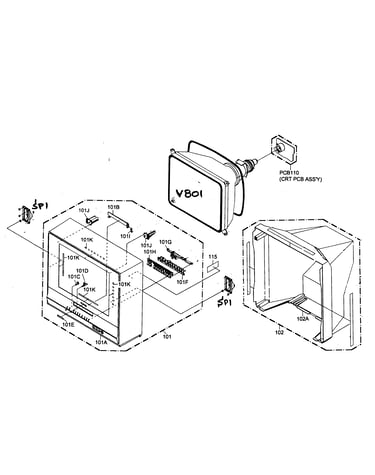

Cabinet parts diagram

Coil,deg

Part #BZ310116

The manufacturer no longer makes this part, and there's no substitute part

Diode BZ410062
#NI

Cabinet parts diagram

Diode

Part #BZ410062

The manufacturer no longer makes this part, and there's no substitute part

Connector BZ614283
#NI

Cabinet parts diagram

Connector

Part #BZ614283

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Stopper AE007104
#101G

Cabinet parts diagram

Toshiba stopper

Part #AE007104

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Cabinet Back AE006254
#102A

Cabinet parts diagram

Toshiba cabinet back

Part #AE006254

The manufacturer no longer makes this part, and there's no substitute part

Capacitor BZ110065
#NI

Cabinet parts diagram

Capacitor

Part #BZ110065

The manufacturer no longer makes this part, and there's no substitute part

Capacitor BZ110101
#NI

Cabinet parts diagram

Capacitor

Part #BZ110101

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Button AE007103
#101F

Cabinet parts diagram

Toshiba button

Part #AE007103

The manufacturer no longer makes this part, and there's no substitute part

Transistor BZ510004
#NI

Cabinet parts diagram

Transistor

Part #BZ510004

The manufacturer no longer makes this part, and there's no substitute part

Connector BZ614303
#NI

Cabinet parts diagram

Connector

Part #BZ614303

The manufacturer no longer makes this part, and there's no substitute part
