Model # DC220A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon DC220A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

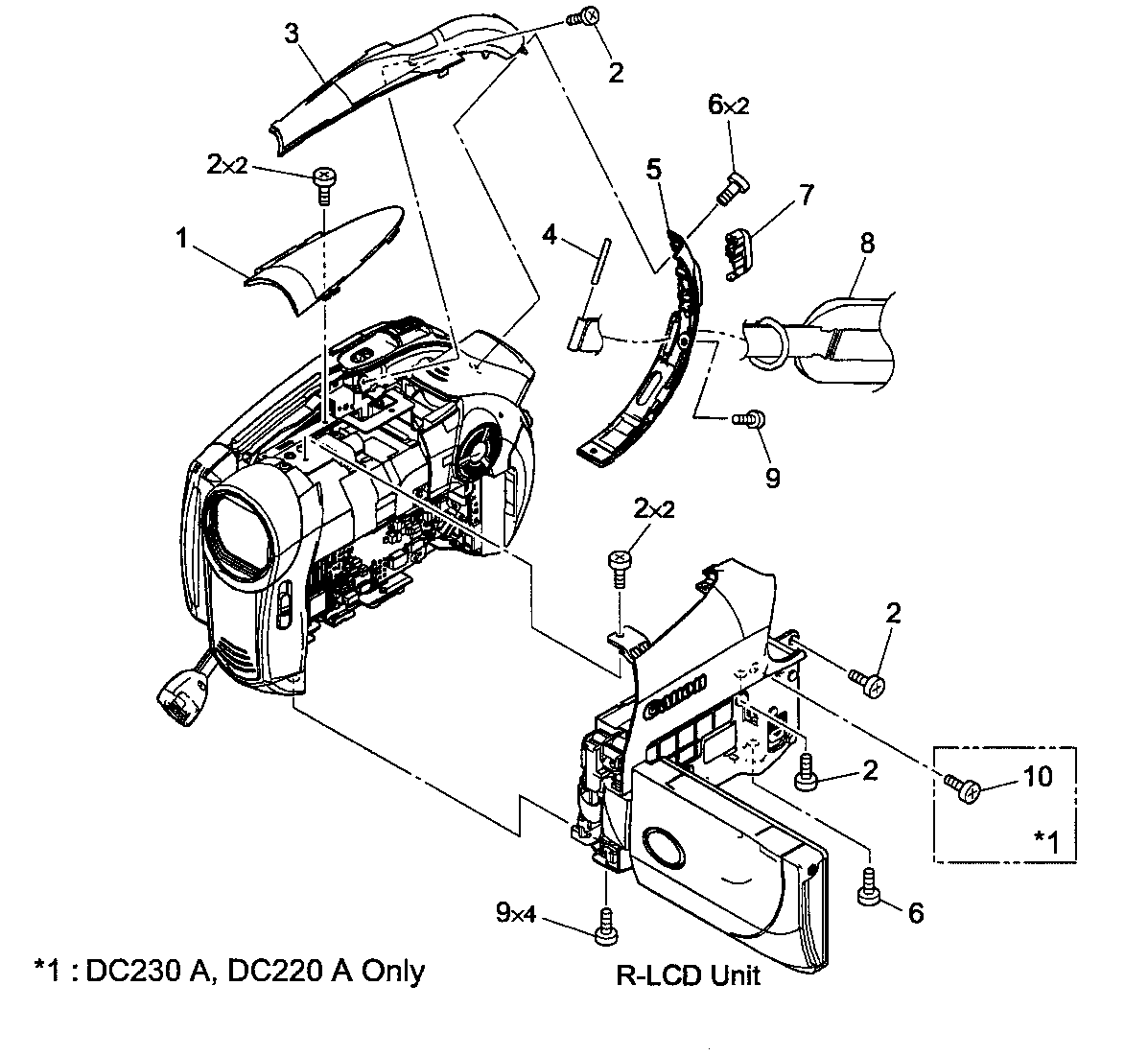

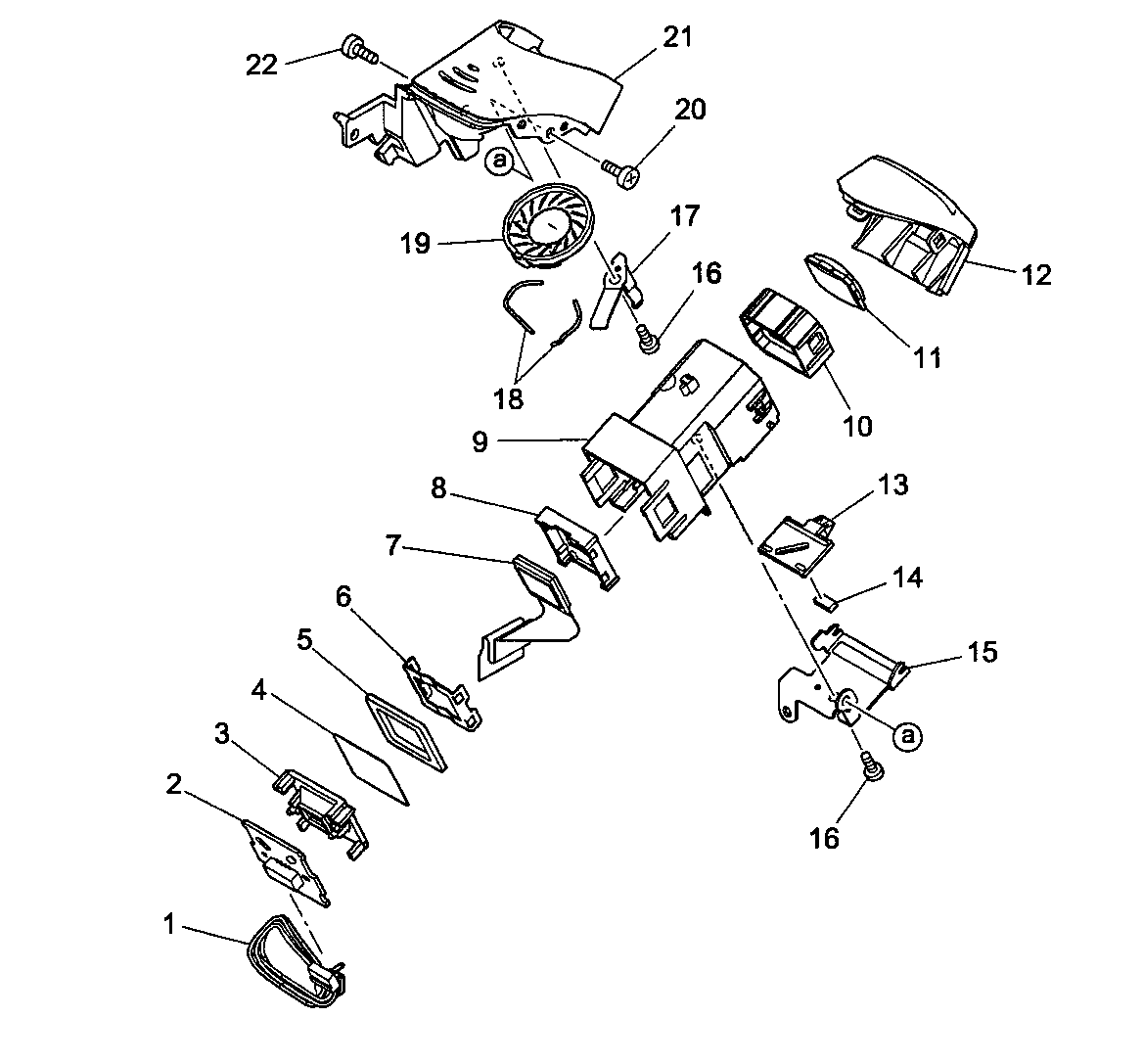

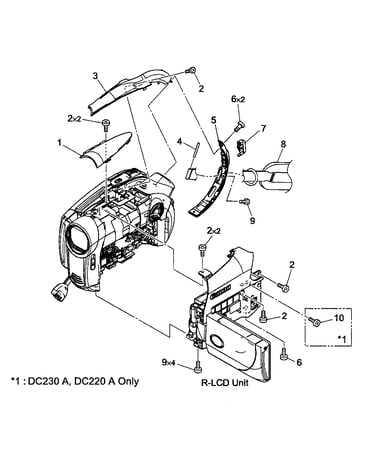

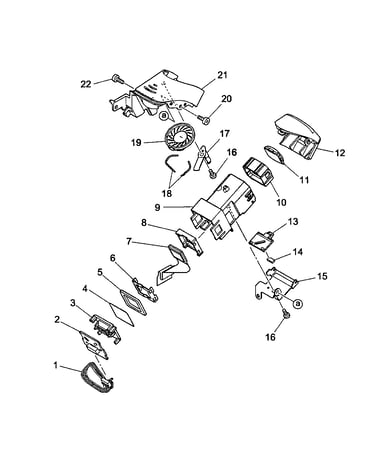

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Pcb Assembly DG3-2033-000
#3

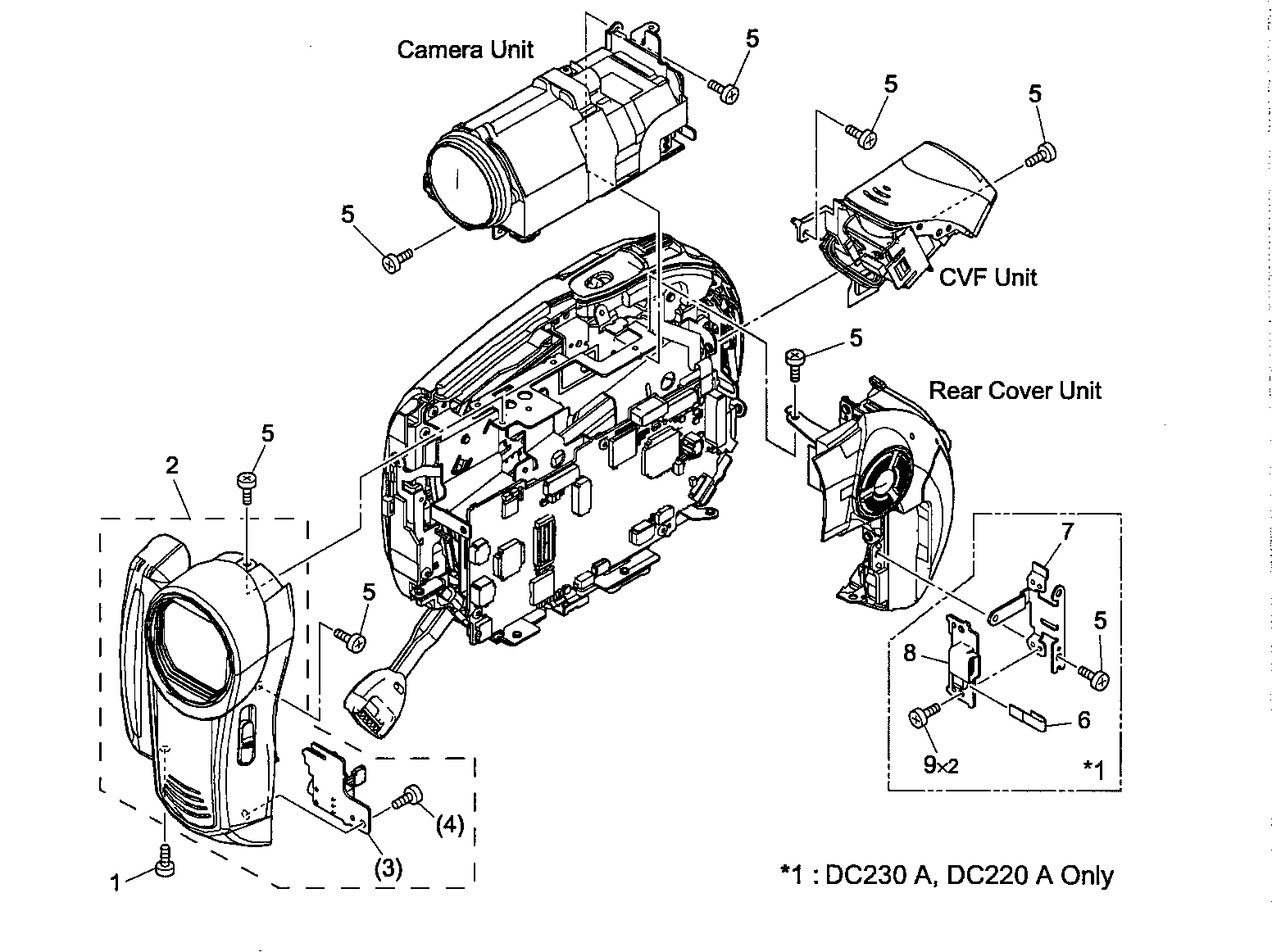

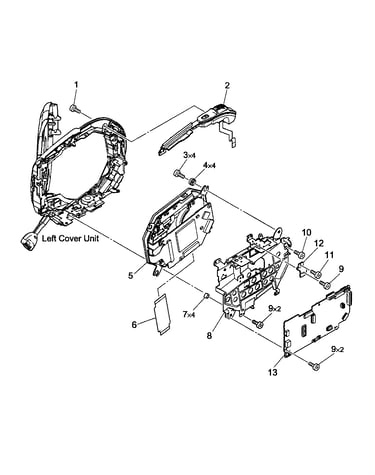

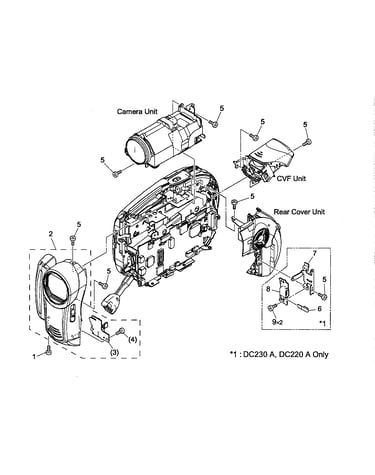

Casing parts 2 diagram

Pcb assembly

Part #DG3-2033-000

The manufacturer no longer makes this part, and there's no substitute part

Switch DG3-1897-000
#14

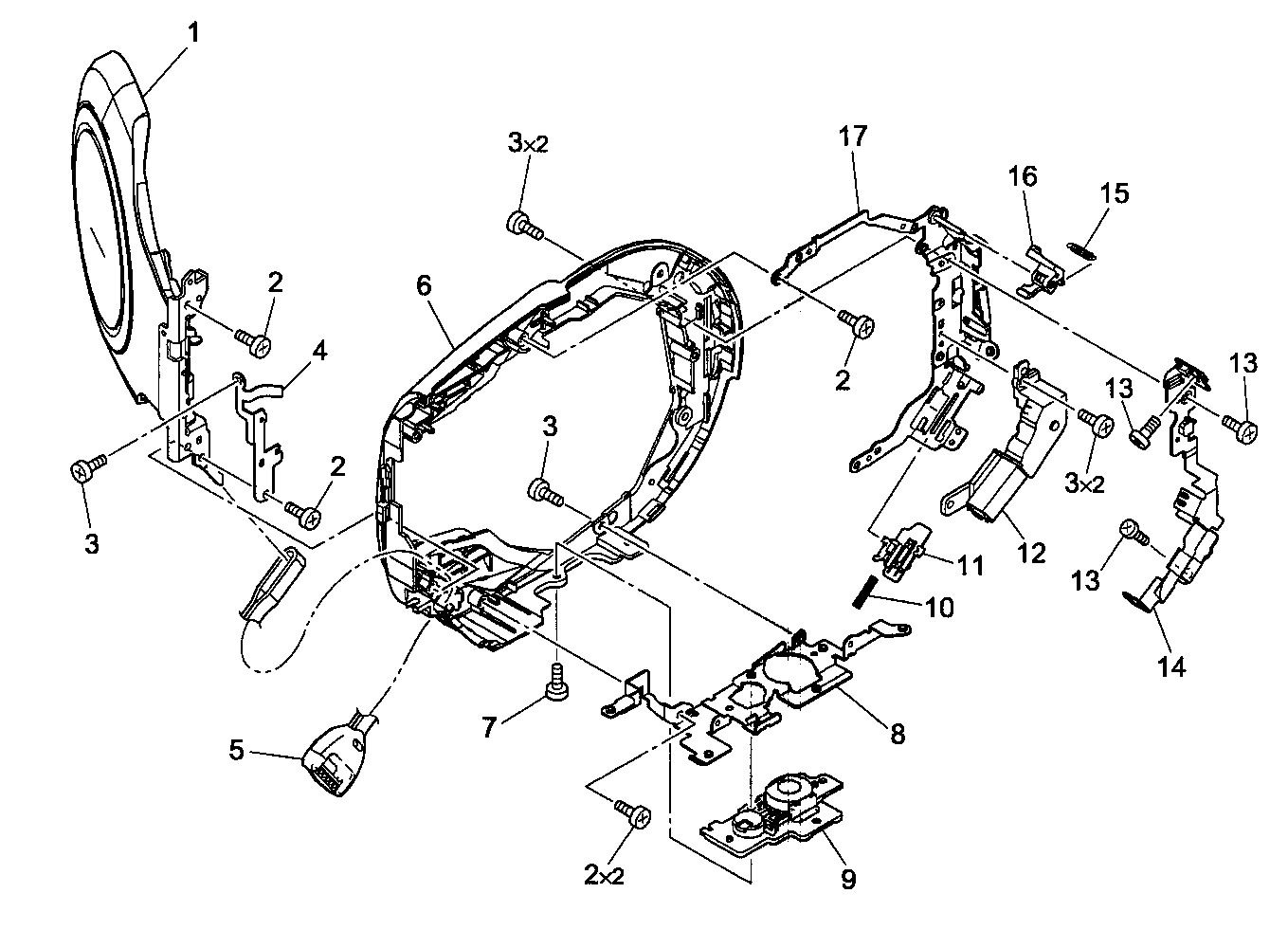

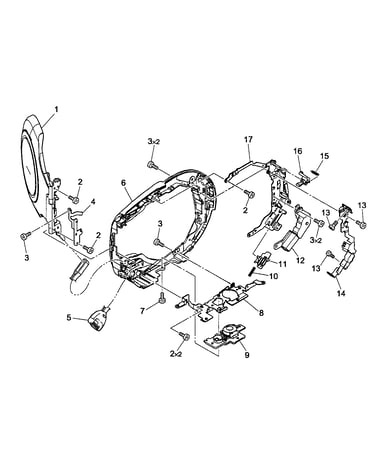

Lt cover unit diagram

Switch

Part #DG3-1897-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA3-6512-000
#15

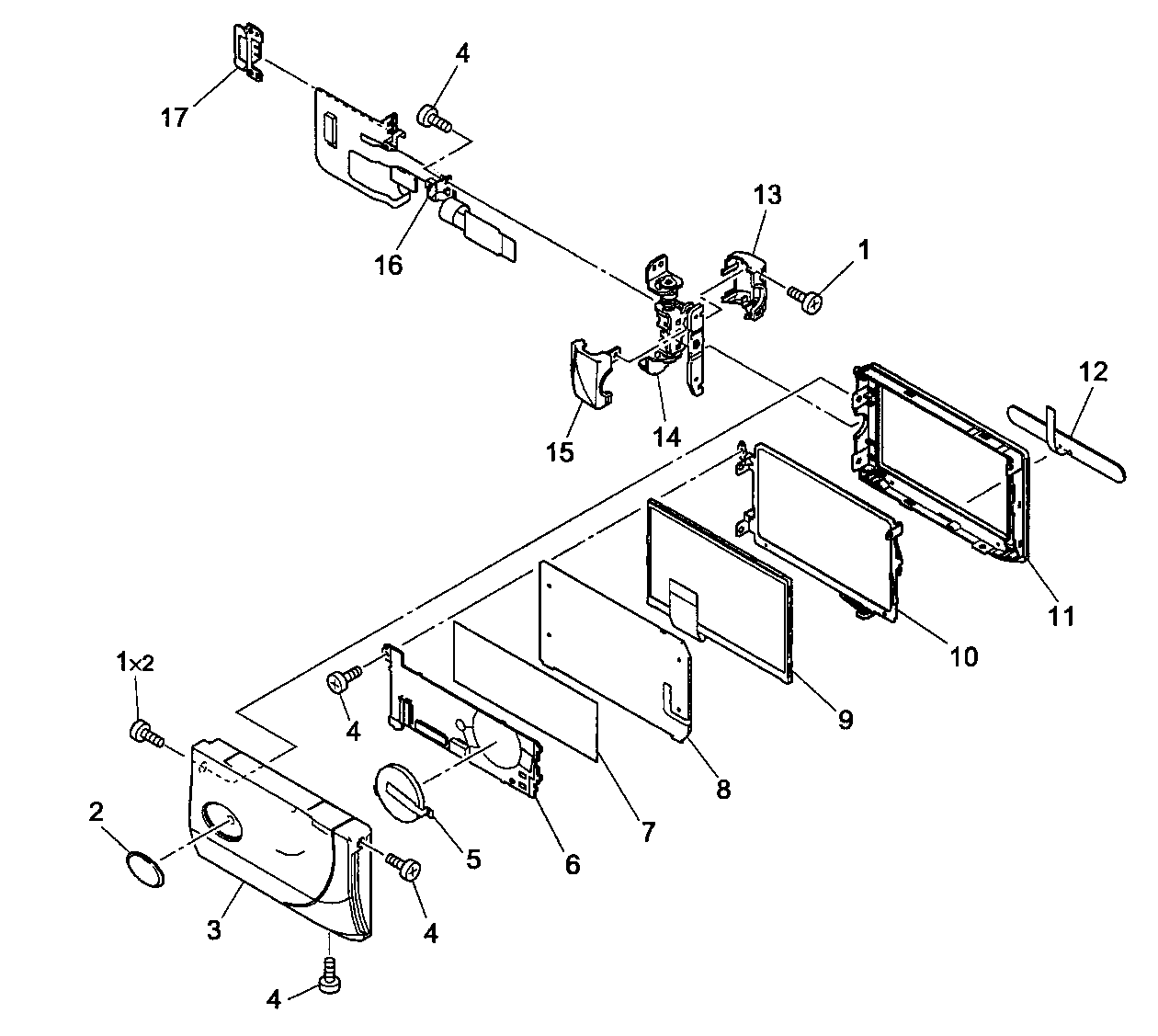

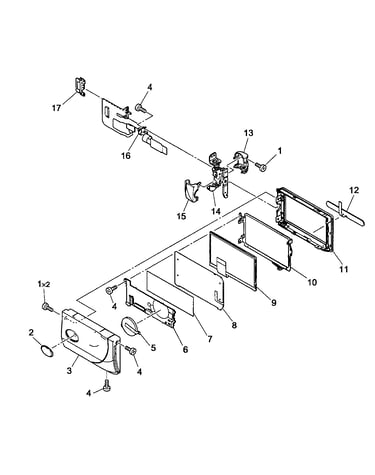

Lcd unit diagram

Cover

Part #DA3-6512-000

The manufacturer no longer makes this part, and there's no substitute part

Holder DA3-6493-000
#2

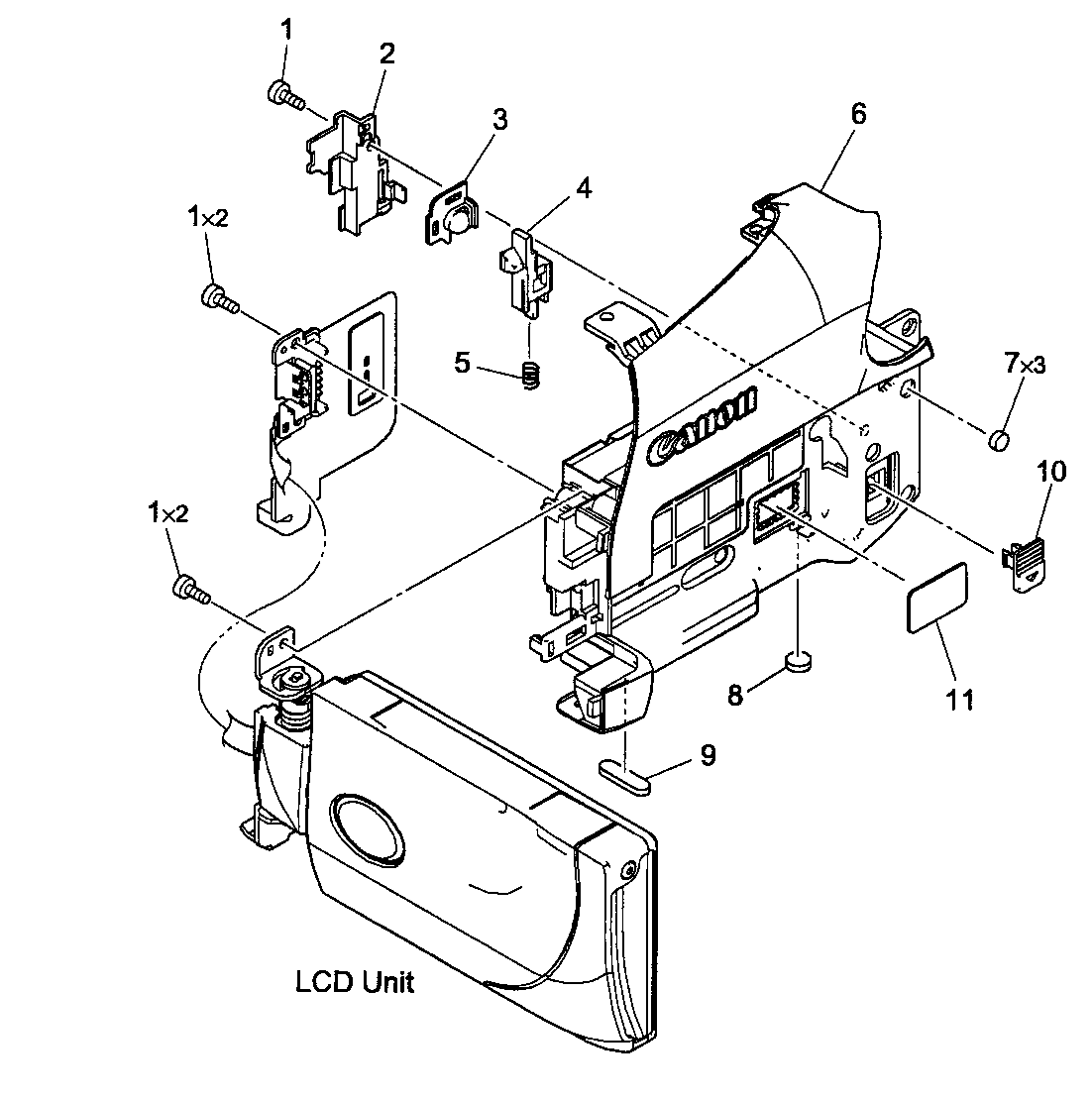

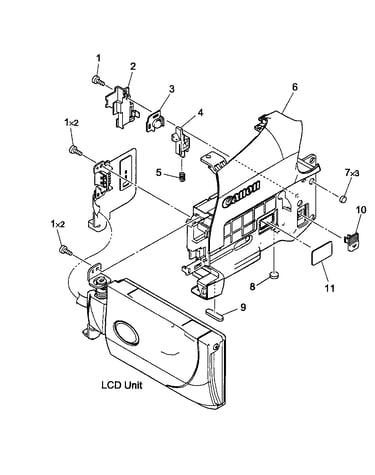

R-lcd unit diagram

Holder

Part #DA3-6493-000

The manufacturer no longer makes this part, and there's no substitute part

Zoom Assembly DG3-2043-000
#2

Casing parts 3 diagram

Zoom assembly

Part #DG3-2043-000

The manufacturer no longer makes this part, and there's no substitute part

Lens Assembly DG3-2111-000
#2

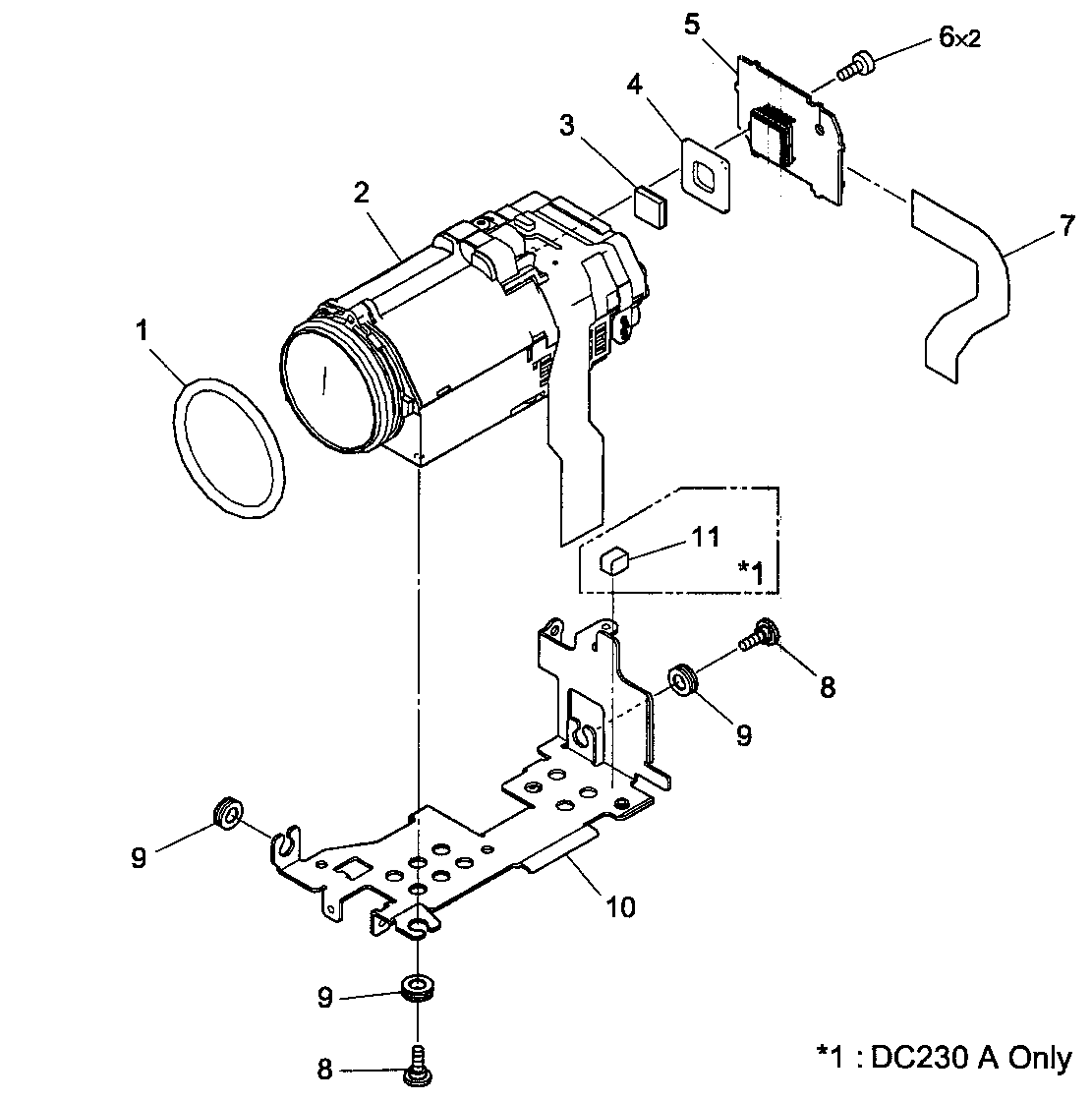

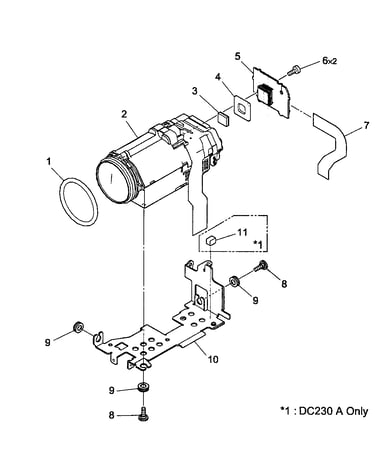

Camera unit diagram

Lens assembly

Part #DG3-2111-000

The manufacturer no longer makes this part, and there's no substitute part

Pcb Assembly DY1-9092-000
#13

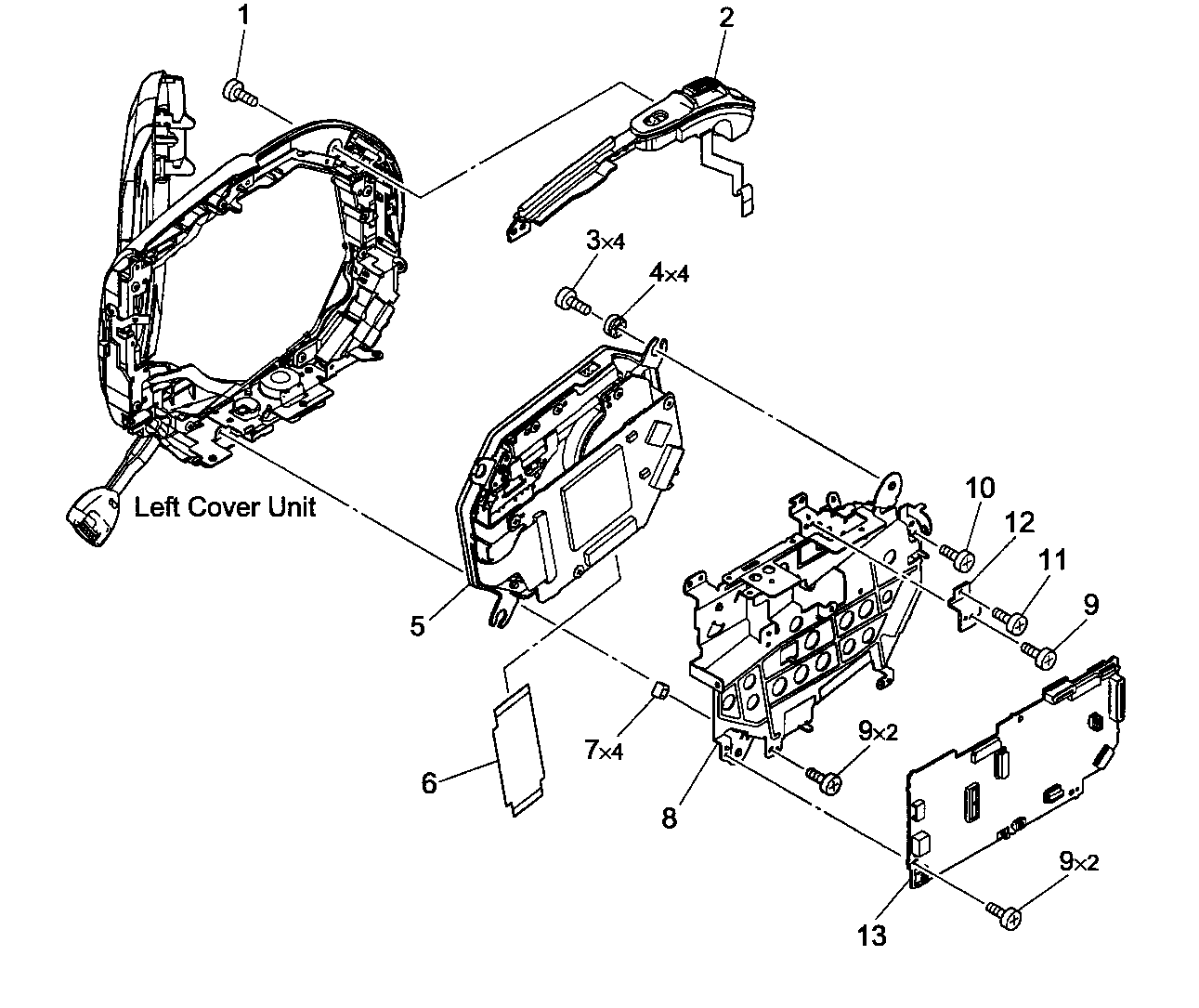

Casing parts 3 diagram

Pcb assembly

Part #DY1-9092-000

The manufacturer no longer makes this part, and there's no substitute part

Holder DA3-5146-000
#4

R-lcd unit diagram

Holder

Part #DA3-5146-000

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable DH2-5727-000
#14

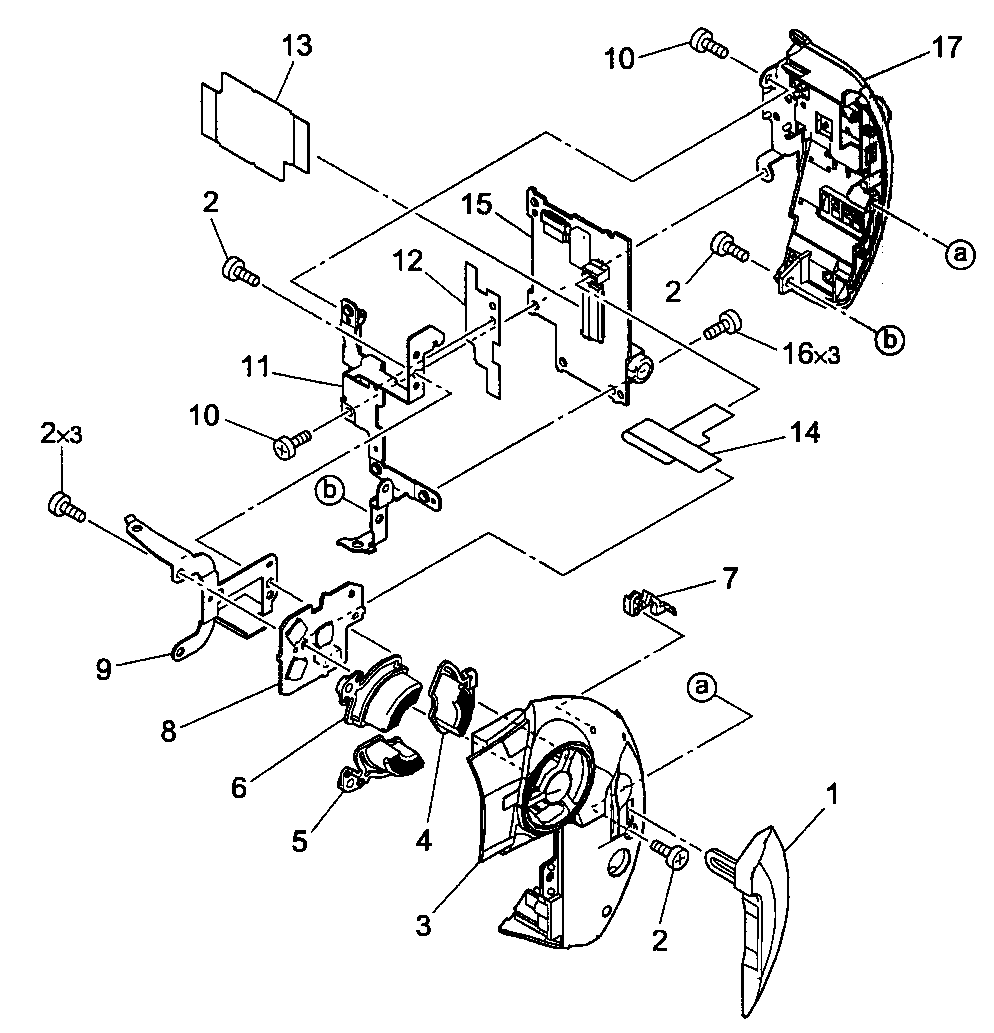

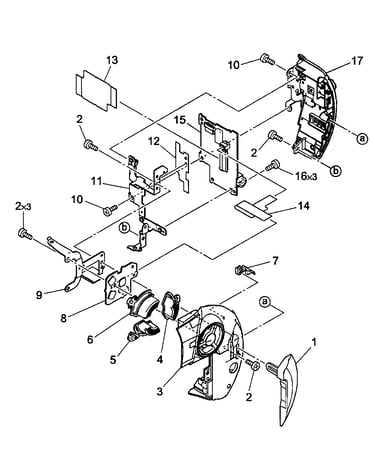

Rear cover unit diagram

Flex cable

Part #DH2-5727-000

The manufacturer no longer makes this part, and there's no substitute part

Lcd Cover DA3-6066-000
#11

Lcd unit diagram

Lcd cover

Part #DA3-6066-000

The manufacturer no longer makes this part, and there's no substitute part
