Amana
Room Air Conditioner

Model # ES6P-2SPMN/P54972-34R Official Amana portable room air conditioner

Here are the diagrams and repair parts for Official Amana ES6P-2SPMN-P54972-34R portable room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

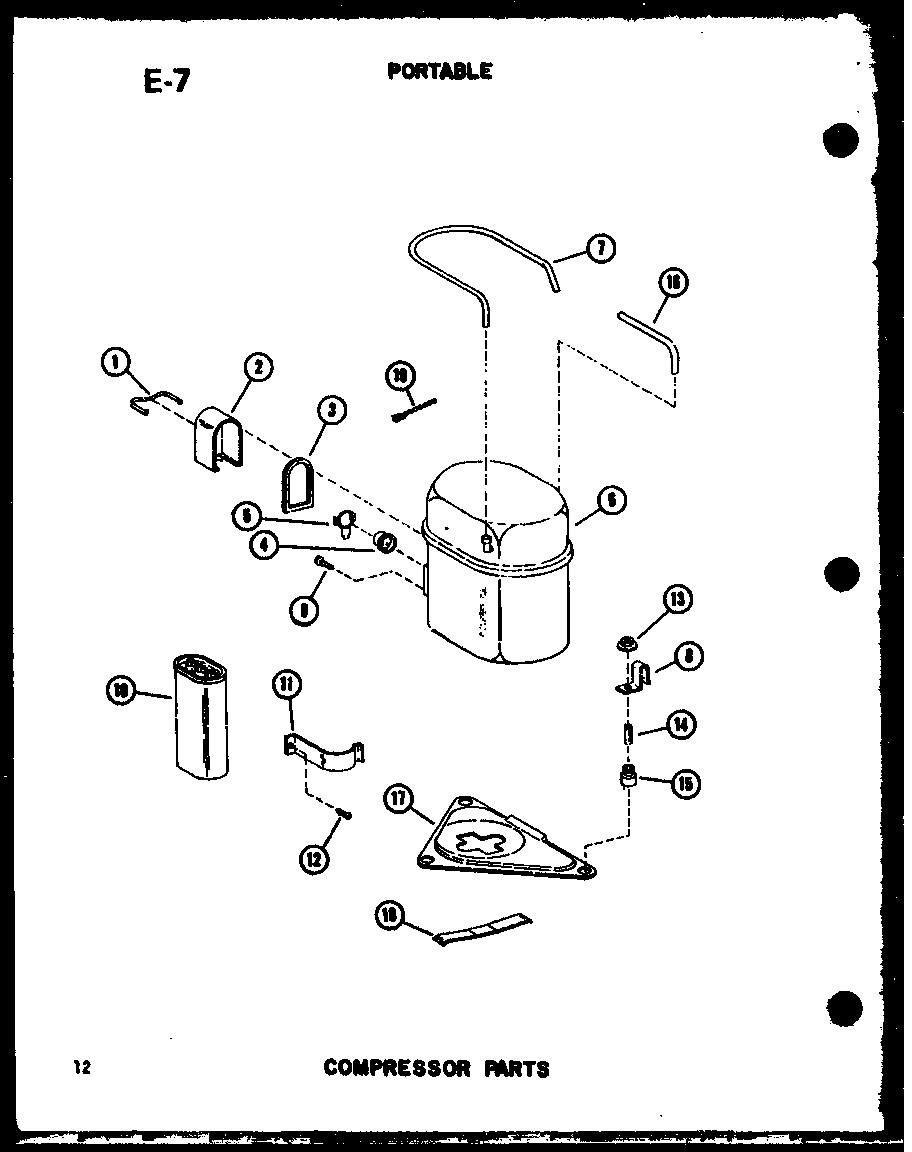

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Use 0077903 M0211631
Use 0077903

Part #M0211631

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0211631. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Use M0218231 M1250031
#8

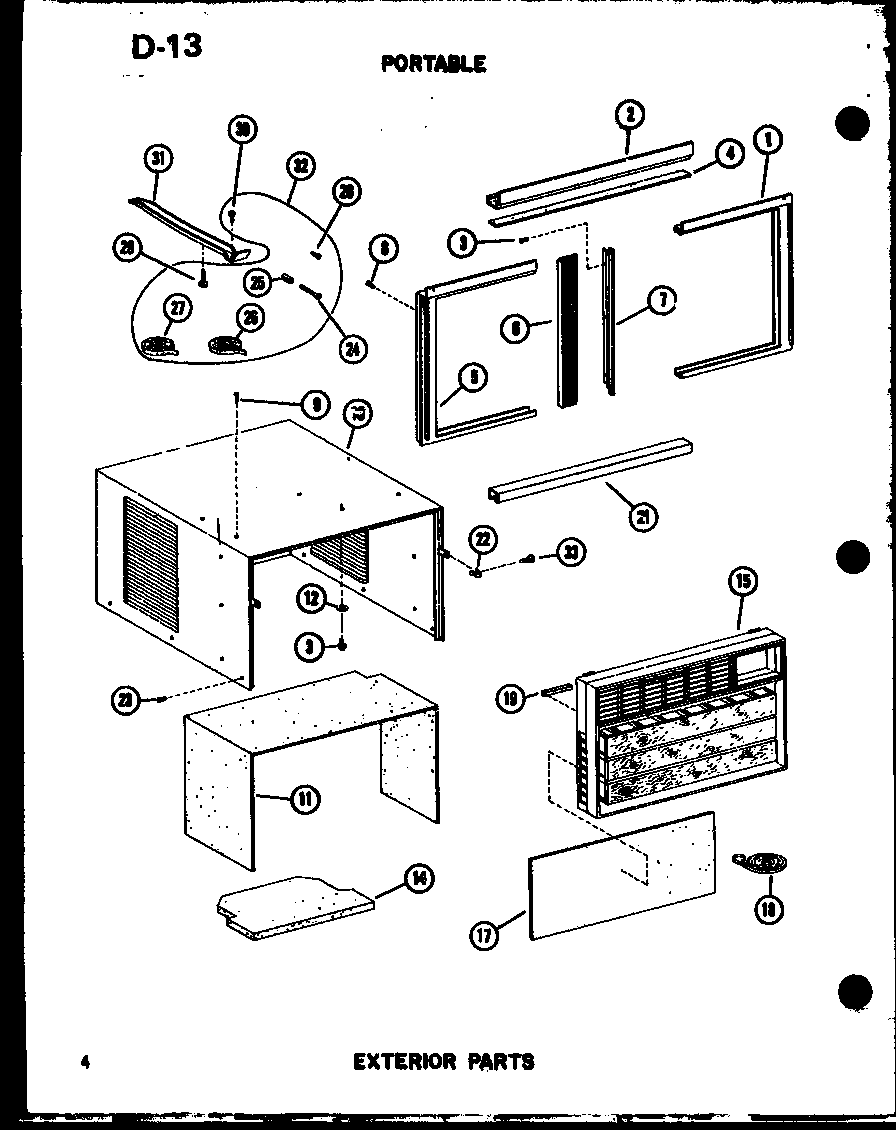

Exterior paris diagram

Use m0218231

Part #M1250031

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M1250031. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0216515
#3B

Exterior paris diagram

Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Terminal Nut A3436601
#5

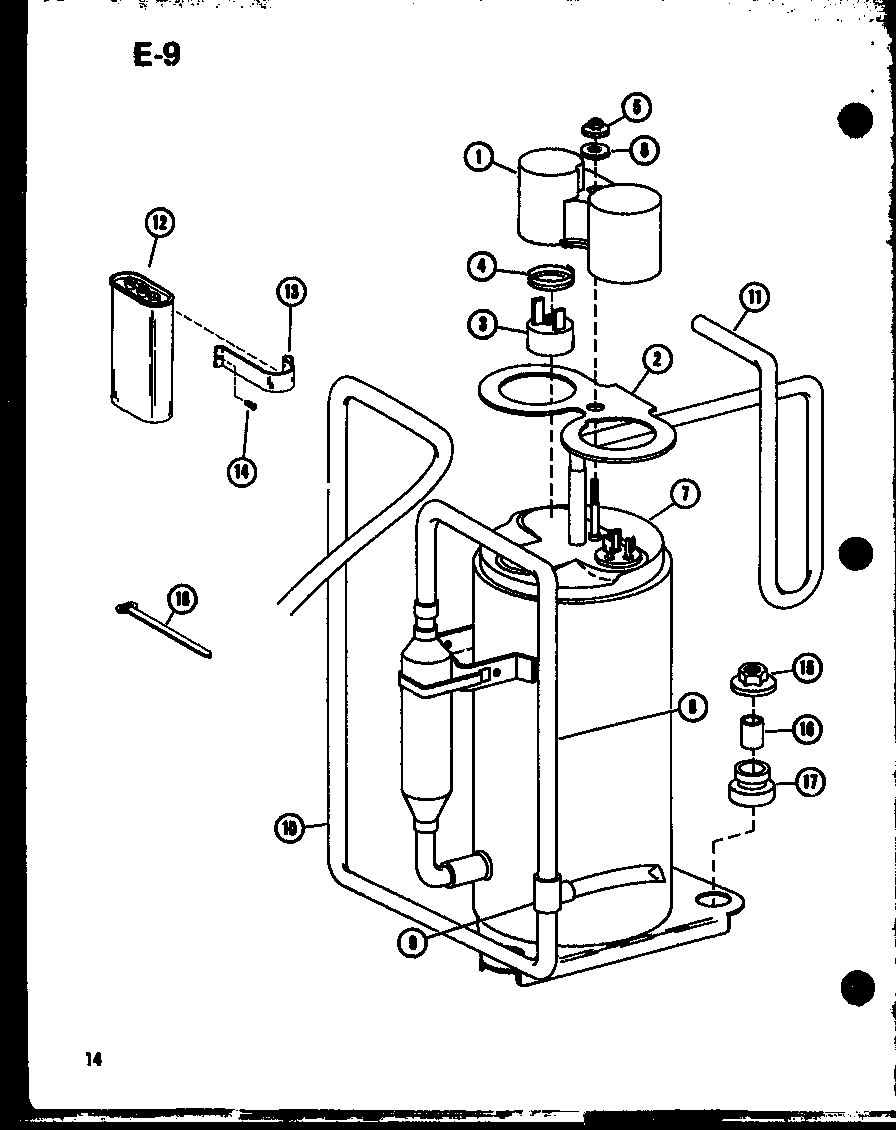

(es6p-2spmp/p54972-35r) diagram

Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
$11.34
In Stock
Use M2820-15 M0282013
Use m2820-15

Part #M0282013

Replaced by #WP487939

?
Manufacturer substitution
This part replaces M0282013. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Screw M0211016
Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Elbow A3320601
#16A

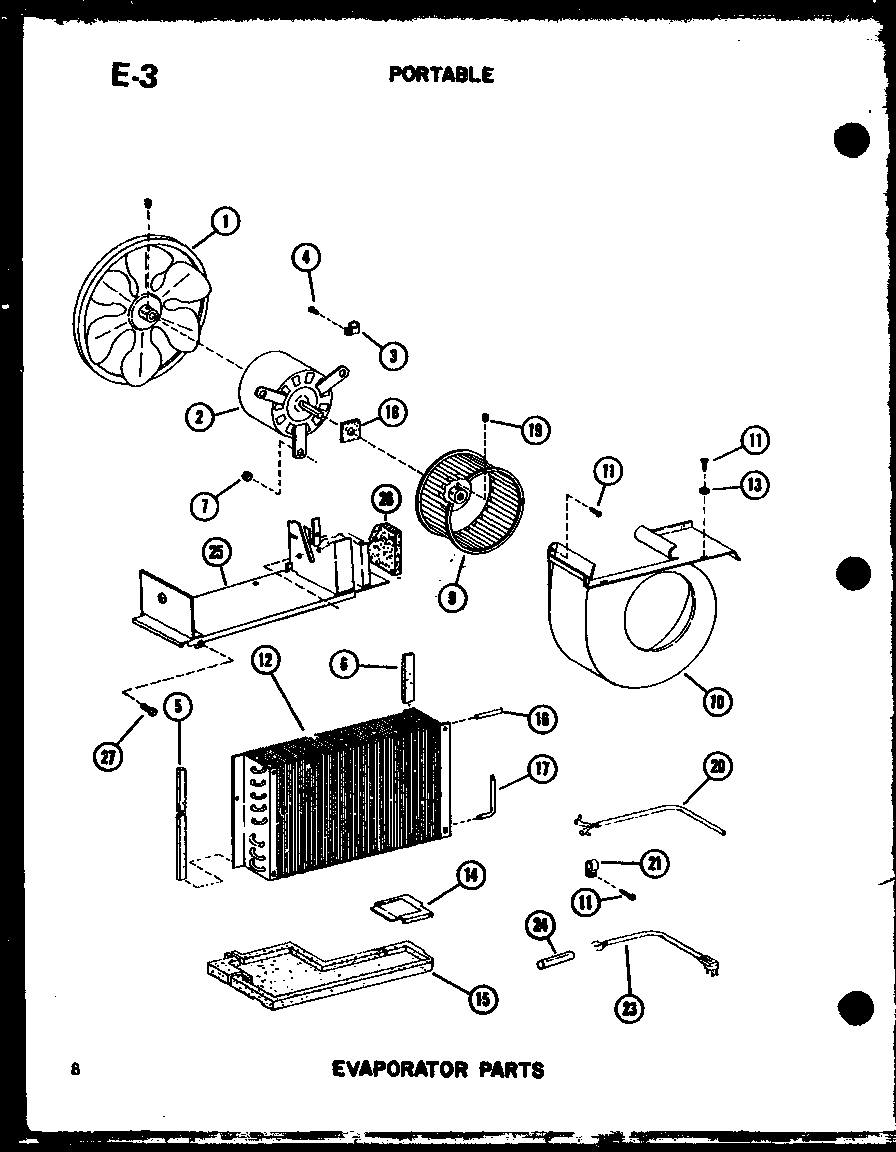

Evaporator parts diagram

Elbow

Part #A3320601

The manufacturer no longer makes this part, and there's no substitute part

Capillary Tube C5933701
#3A

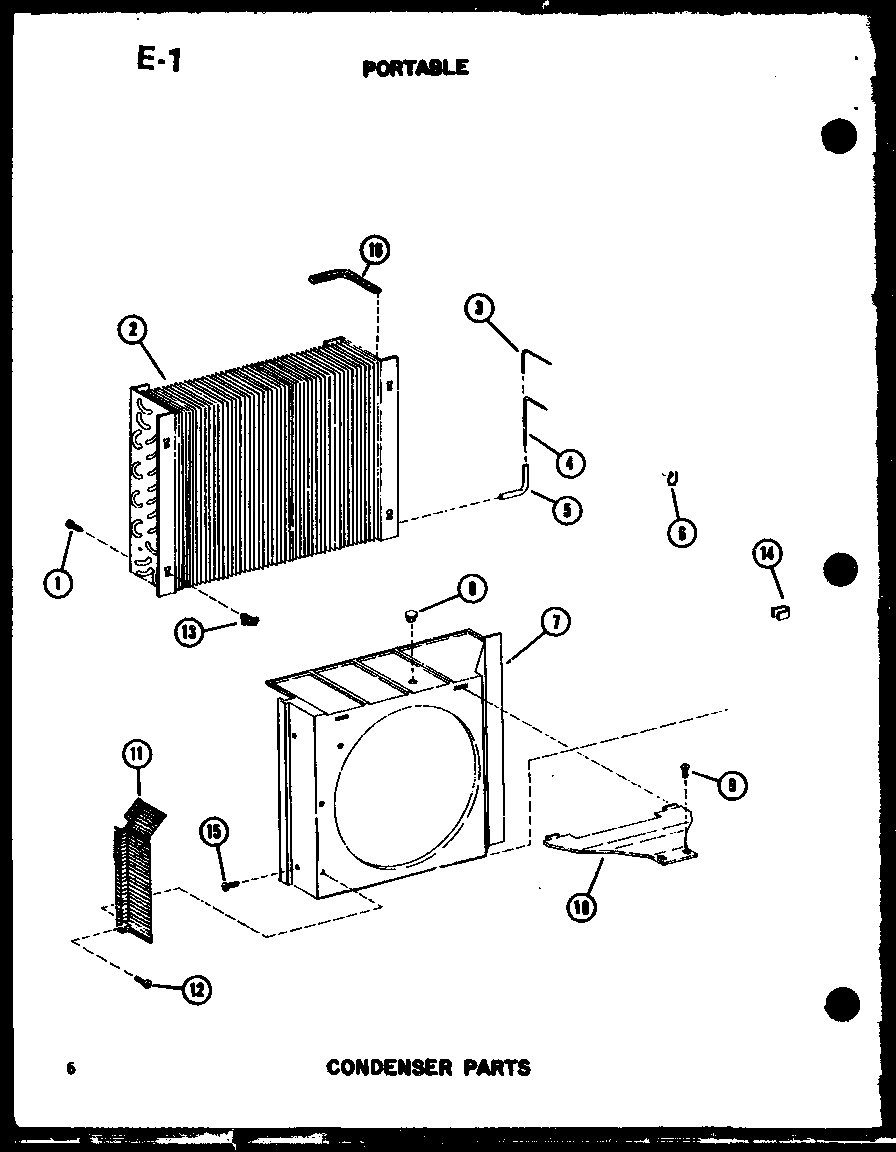

Condenser parts diagram

Capillary tube

Part #C5933701

The manufacturer no longer makes this part, and there's no substitute part

Gasket B5107608
#18

Evaporator parts diagram

Gasket

Part #B5107608

The manufacturer no longer makes this part, and there's no substitute part

Knob D7009803
#26

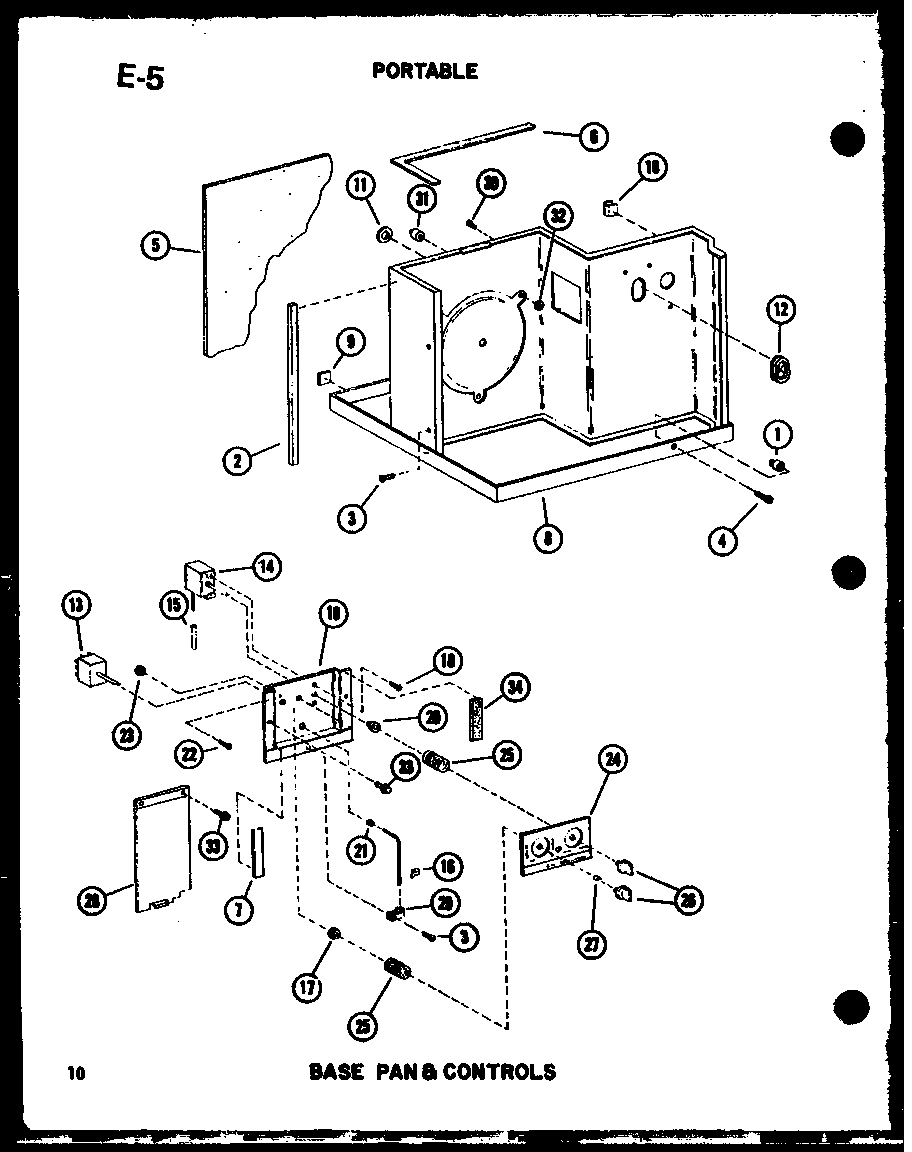

Base pan & controls diagram

Knob

Part #D7009803

The manufacturer no longer makes this part, and there's no substitute part
