Model # 867818290 Official Kenmore blower package

Here are the diagrams and repair parts for Official Kenmore 867818290 blower package, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Capacitor 706338
#10

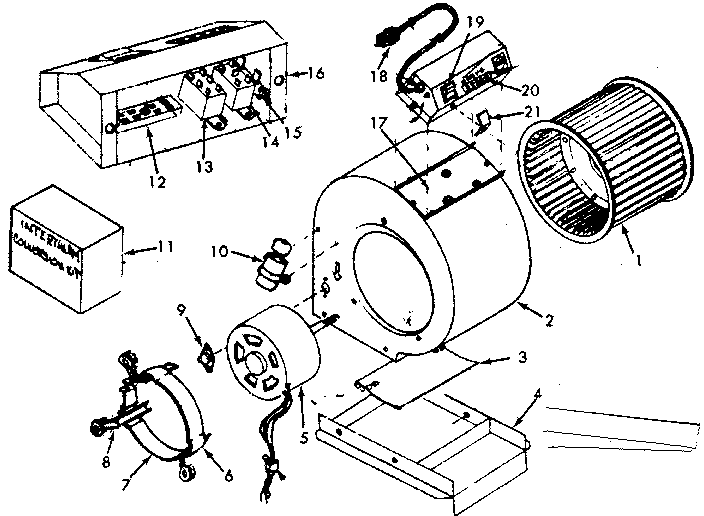

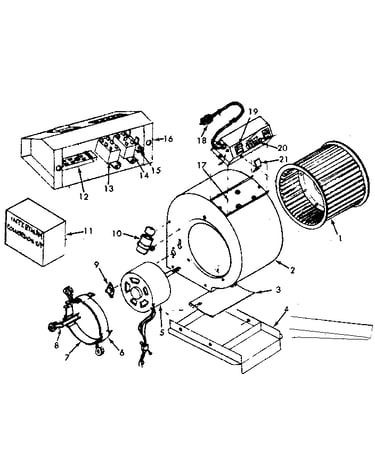

Blower assembly diagram

Capacitor

Part #706338

Replaced by #12907

?
Manufacturer substitution
This part replaces 706338. Substitute parts can look different from the original.
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Furnace Blower Fan Wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, H600587) 600587
#1

Blower assembly diagram

Furnace blower fan wheel (replaces 1149145, 1162422, 1645225, 1665008, 1680076, 1695012, 24020801, 600957, 601004, 72978, h600587)

Part #600587

$130.20 |
8% OFF Phone Price : $142.20
In Stock
Switch 638099
#19

Blower assembly diagram

Switch

Part #638099

Replaced by #607900

?
Manufacturer substitution
This part replaces 638099. Substitute parts can look different from the original.
$26.43 |
19% OFF Phone Price : $32.43
In Stock
Limit Auxlry 638019
#9

Blower assembly diagram

Limit auxlry

Part #638019

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Housing 638086
#2

Blower assembly diagram

Air conditioner blower housing

Part #638086

The manufacturer no longer makes this part, and there's no substitute part

Panl Cut-off 638092
#3

Blower assembly diagram

Panl cut-off

Part #638092

The manufacturer no longer makes this part, and there's no substitute part

Resistor 638020
#15

Blower assembly diagram

Resistor

Part #638020

The manufacturer no longer makes this part, and there's no substitute part

Board Term 638041
#20

Blower assembly diagram

Board term

Part #638041

The manufacturer no longer makes this part, and there's no substitute part

Relay, Blower Essex #184-20114-427 638022
#13

Blower assembly diagram

Relay, blower essex #184-20114-427

Part #638022

The manufacturer no longer makes this part, and there's no substitute part

Swtch Lckng 638098
#21

Blower assembly diagram

Swtch lckng

Part #638098

The manufacturer no longer makes this part, and there's no substitute part
