LG
Room Air Conditioner

Model # LT1030HR Official LG room air conditioner

Here are the diagrams and repair parts for Official LG LT1030HR room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 44 parts  |
Room Air Conditioner Fan Blade Clamp 3H02932B
#W486

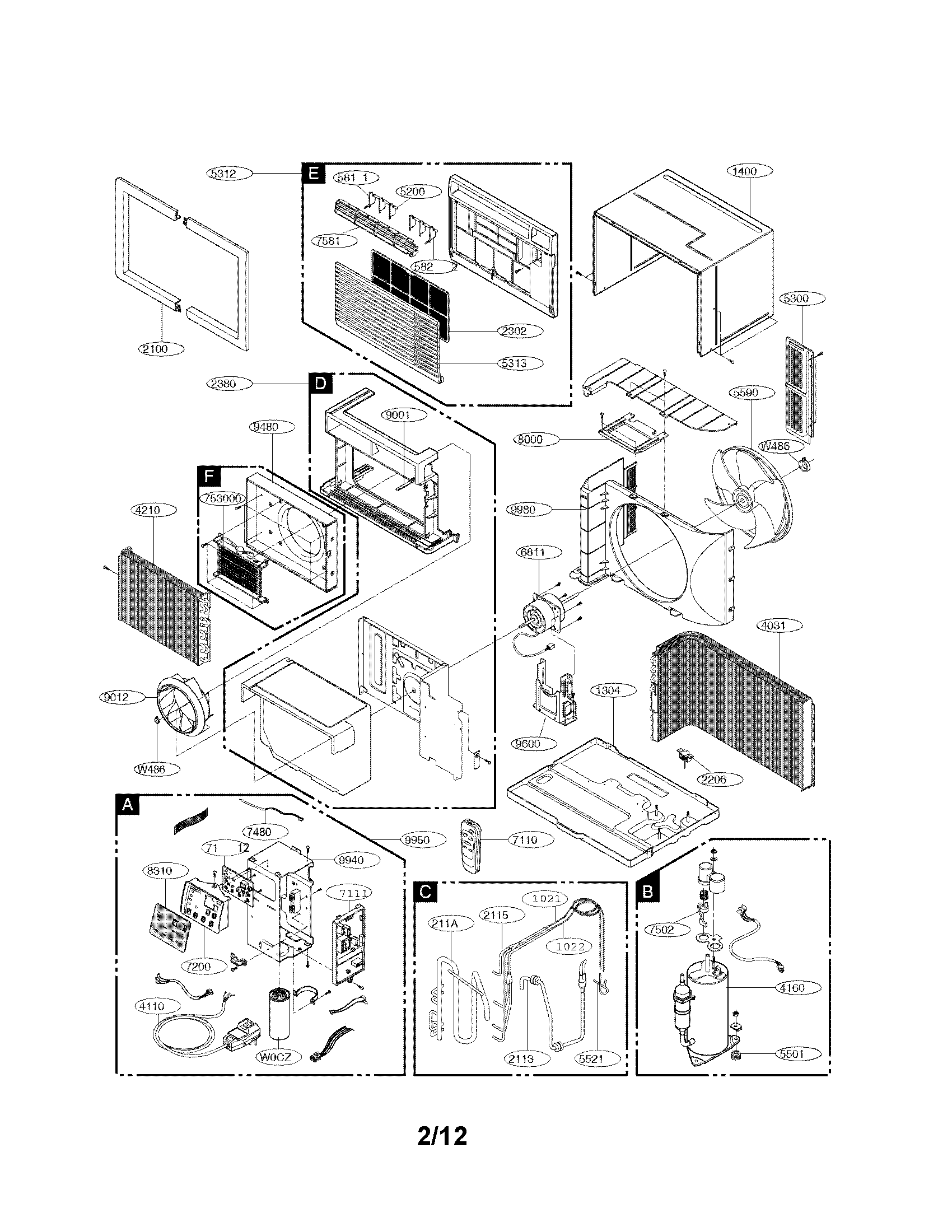

Exploded view parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Rear Grille 3530A20033B
#5300

Exploded view parts diagram

Room air conditioner rear grille

Part #3530A20033B

$18.62 |
10% OFF Phone Price : $20.62
In Stock
Room Air Conditioner Power Cord 6411A20056Q
#4110

Exploded view parts diagram

Room air conditioner power cord

Part #6411A20056Q

Replaced by #EAD63469507

?
Manufacturer substitution
This part replaces 6411A20056Q. Substitute parts can look different from the original.
$91.03 |
6% OFF Phone Price : $97.03
In Stock
Room Air Conditioner Heater Assembly (replaces 5301a30001a) 5300A20003A
#3000

Exploded view parts diagram

Room air conditioner heater assembly (replaces 5301a30001a)

Part #5300A20003A

$118.73 |
9% OFF Phone Price : $130.73
In Stock
Cabinet 3090A20003F
#1308

Exploded view parts diagram

Cabinet

Part #3090A20003F

$77.49
In Stock
Room Air Conditioner Electronic Control Board Assembly 3720A10305A
#7200

Exploded view parts diagram

Room air conditioner electronic control board assembly

Part #3720A10305A

$14.51
In Stock
Turbo Fan 5900A20009B
#9012

Exploded view parts diagram

Turbo fan

Part #5900A20009B

$46.60
In Stock
Tube Cap 5210A22592M
#1021

Exploded view parts diagram

Tube cap

Part #5210A22592M

This item is not returnable
$4.51
In Stock
Room Air Conditioner Front Trim 4918A20001A
#2100

Exploded view parts diagram

Room air conditioner front trim

Part #4918A20001A

This item is not returnable
$24.09
In Stock
Control Case Assembly ABQ32921701
#9950

Exploded view parts diagram

Control case assembly

Part #ABQ32921701

$215.29
In Stock
