Kenmore
Evaporative Cooler

Model # 565616101 Official Kenmore horizontal discharge evaporative air cooler

Here are the diagrams and repair parts for Official Kenmore 565616101 horizontal discharge evaporative air cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Washer STD551031
#36

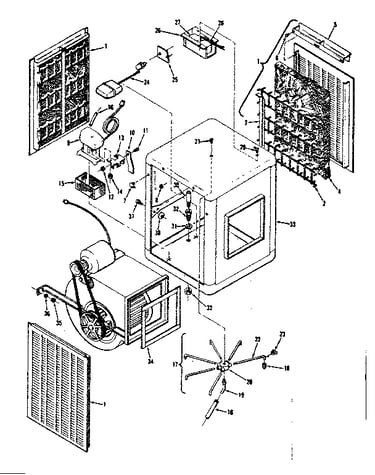

Functional replacement parts diagram

Washer

Part #STD551031

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut STD541431
#35

Functional replacement parts diagram

Lock nut

Part #STD541431

The manufacturer no longer makes this part, and there's no substitute part

Screw STD611005
#6

Functional replacement parts diagram

Screw

Part #STD611005

The manufacturer no longer makes this part, and there's no substitute part

Latch Pad P9-785-10
#7

Functional replacement parts diagram

Latch pad

Part #P9-785-10

The manufacturer no longer makes this part, and there's no substitute part

Pump A4-299-30
#9

Functional replacement parts diagram

Pump

Part #A4-299-30

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Housing A3-1112-1-085
#58A

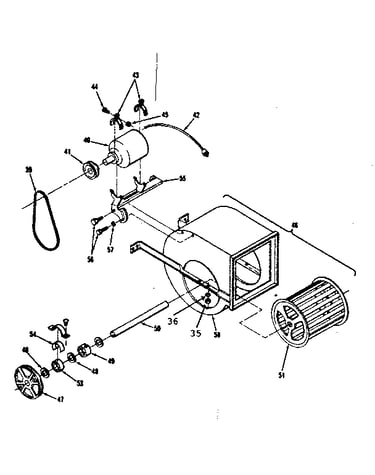

Blower assembly diagram

Air conditioner blower housing

Part #A3-1112-1-085

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Housing A3-1114-1-085
#58B

Blower assembly diagram

Air conditioner blower housing

Part #A3-1114-1-085

The manufacturer no longer makes this part, and there's no substitute part

Air Conditioner Blower Wheel A3-619-1
#51A

Blower assembly diagram

Air conditioner blower wheel

Part #A3-619-1

The manufacturer no longer makes this part, and there's no substitute part

Receptacle P2-905
#27

Functional replacement parts diagram

Receptacle

Part #P2-905

The manufacturer no longer makes this part, and there's no substitute part

Motor Support A3-564-085
#55B

Blower assembly diagram

Motor support

Part #A3-564-085

The manufacturer no longer makes this part, and there's no substitute part
