Model # 3U24EH2VHA Official Haier ductless split system

Here are the diagrams and repair parts for Official Haier 3U24EH2VHA ductless split system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 94 parts  |
Eev Coil WJ26X24364
#42

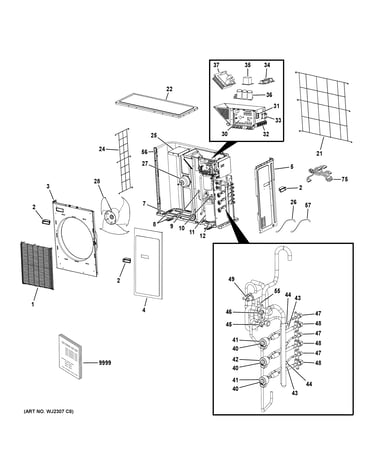

Room air conditioner diagram

Eev coil

Part #WJ26X24364

$43.38
In Stock
High Pressur WJ27X22646
#10

Room air conditioner diagram

High pressur

Part #WJ27X22646

$27.20
In Stock
Capacitor Power Control Board WJ20X25033
#36

Room air conditioner diagram

Capacitor power control board

Part #WJ20X25033

$198.22
In Stock
Ge Liquid Pipe Sensor WJ26X24077
#43

Room air conditioner diagram

Ge liquid pipe sensor

Part #WJ26X24077

$13.20
In Stock
Room Air Conditioner Heater WJ27X25052
#7

Room air conditioner diagram

Room air conditioner heater

Part #WJ27X25052

$106.58
In Stock
Gas Stop Valve WJ53X25050
#45

Room air conditioner diagram

Gas stop valve

Part #WJ53X25050

$57.93
In Stock
Right Side Panel WJ71X23737
#5

Room air conditioner diagram

Right side panel

Part #WJ71X23737

$62.09
In Stock
Liquid Pipe 1/4- 6,35 WJ53X25046
#47

Room air conditioner diagram

Liquid pipe 1/4- 6,35

Part #WJ53X25046

$31.04
In Stock
Levb Electro WJ26X22674
#40

Room air conditioner diagram

Levb electro

Part #WJ26X22674

$92.91
In Stock
Handel WJ65X25041
#2

Room air conditioner diagram

Handel

Part #WJ65X25041

$14.14 |
12% OFF Phone Price : $16.14
In Stock
