Model # AZ95E18DACK1 Official GE zoneline

Here are the diagrams and repair parts for Official GE AZ95E18DACK1 zoneline, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Scr Hxw 11/4 WR01X1757
#103

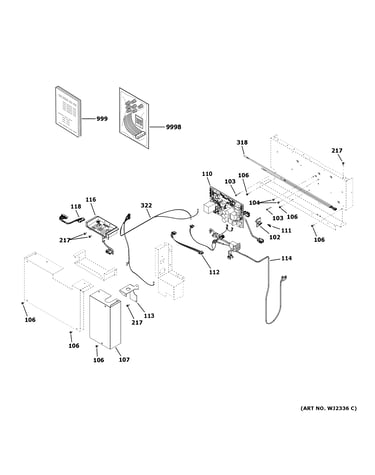

Control parts diagram

Scr hxw 11/4

Part #WR01X1757

Replaced by #WR01X10626

?
Manufacturer substitution
This part replaces WR01X1757. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Motor Bracket Screw WP01X28086
#223

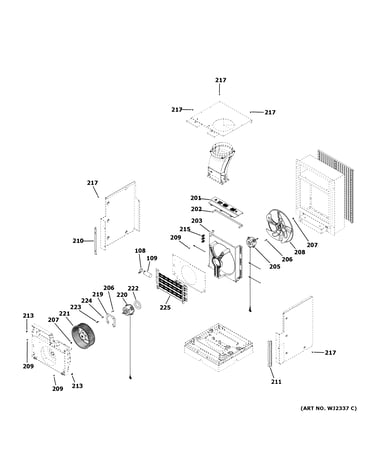

Motor & chassis parts diagram

Motor bracket screw

Part #WP01X28086

$11.40
In Stock
Bracket Basepan WP65X28353
#312

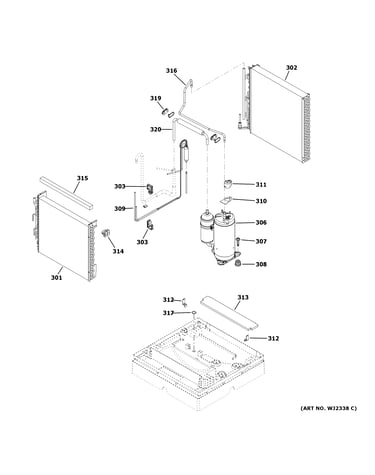

Sealed system diagram

Bracket basepan

Part #WP65X28353

$11.40
In Stock
Indoor Coil Foam WP43X28039
#315

Sealed system diagram

Indoor coil foam

Part #WP43X28039

$7.51
In Stock
Scr 8-18 Ab WP01X20879
Scr 8-18 ab

Part #WP01X20879

$7.51
In Stock
Capacitor WP20X28034
#109

Motor & chassis parts diagram

Capacitor

Part #WP20X28034

$28.20
In Stock
Outdoor Coil Foam WP43X28075
#313

Sealed system diagram

Outdoor coil foam

Part #WP43X28075

$16.20
In Stock
Discharge Tube WP53X28081
#316

Sealed system diagram

Discharge tube

Part #WP53X28081

$43.40
In Stock
Standoff Clip WP01X28070
#111

Control parts diagram

Standoff clip

Part #WP01X28070

$7.51
In Stock
Outdoor Fan Motor WP94X28056
#205

Motor & chassis parts diagram

Outdoor fan motor

Part #WP94X28056

$185.18
In Stock
