Model # SD-3780 Official Toshiba dvd system

Here are the diagrams and repair parts for Official Toshiba SD-3780 dvd system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 31 parts  |

Toshiba Deck Video 79097363
#A00

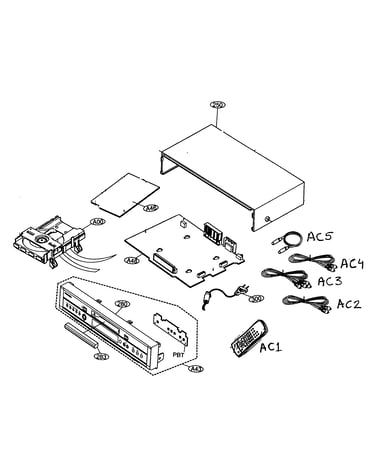

Cabinet parts diagram

Toshiba deck video

Part #79097363

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Base Assembly 79097322
#A02

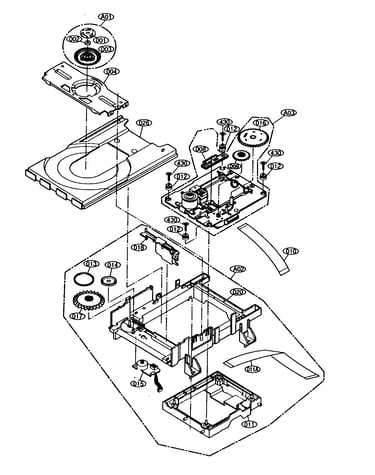

Base assy diagram

Toshiba base assembly

Part #79097322

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Clamp Assembly 79097334
#A01

Base assy diagram

Toshiba clamp assembly

Part #79097334

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Case, Upper 79097324
#250

Cabinet parts diagram

Toshiba case, upper

Part #79097324

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Pcb Assembly 79097367
#A46

Cabinet parts diagram

Toshiba pcb assembly

Part #79097367

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Panel 79097332
#280

Cabinet parts diagram

Toshiba panel

Part #79097332

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Transformer 79097343
#NI

Cabinet parts diagram

Toshiba transformer

Part #79097343

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Ac Cord 79097355
#300

Cabinet parts diagram

Toshiba ac cord

Part #79097355

The manufacturer no longer makes this part, and there's no substitute part

Varistor 79098795
#NI

Cabinet parts diagram

Varistor

Part #79098795

The manufacturer no longer makes this part, and there's no substitute part

Toshiba Cable Flap 79097365
#11A

Base assy diagram

Toshiba cable flap

Part #79097365

The manufacturer no longer makes this part, and there's no substitute part
