Model # 47224080250 Official LXI multiband portable radio

Here are the diagrams and repair parts for Official LXI 47224080250 multiband portable radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Ribbon 30-0345-1

#28

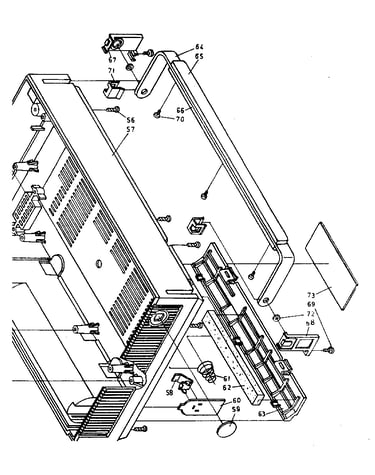

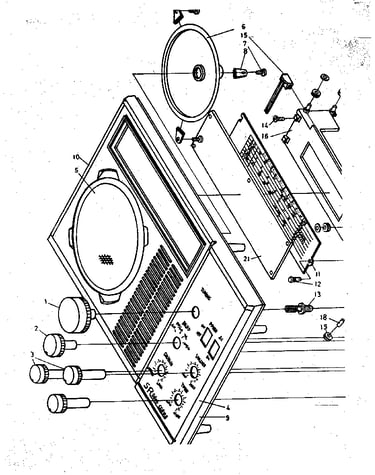

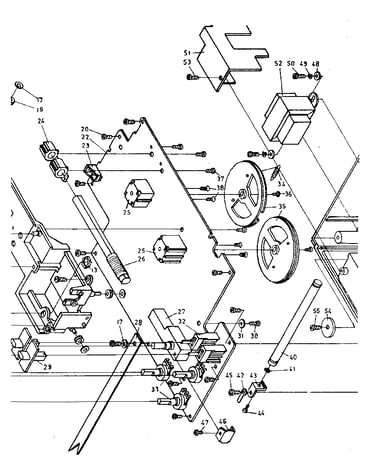

All parts diagram

Ribbon

Part #30-0345-1

The manufacturer no longer makes this part, and there's no substitute part

Screw 60-0012A-1

#45

All parts diagram

Screw

Part #60-0012A-1

The manufacturer no longer makes this part, and there's no substitute part

Tuning Capacitor 73-22006-10

#25

All parts diagram

Tuning capacitor

Part #73-22006-10

The manufacturer no longer makes this part, and there's no substitute part

Earphne Jack 87-10335-09

#23

All parts diagram

Earphne jack

Part #87-10335-09

The manufacturer no longer makes this part, and there's no substitute part

Dial Spring 20-0007-4

#34

All parts diagram

Dial spring

Part #20-0007-4

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer (for Transformer) 60-0015-2

#49

All parts diagram

Spring washer (for transformer)

Part #60-0015-2

The manufacturer no longer makes this part, and there's no substitute part

Screw 60-0008A-7

#36

All parts diagram

Screw

Part #60-0008A-7

The manufacturer no longer makes this part, and there's no substitute part

Fiber Washer 30-0450-1

#54

All parts diagram

Fiber washer

Part #30-0450-1

The manufacturer no longer makes this part, and there's no substitute part

Bracket 20-0782-1

#43

All parts diagram

Bracket

Part #20-0782-1

The manufacturer no longer makes this part, and there's no substitute part

Speaker Clip 20-0006-2

#8

All parts diagram

Speaker clip

Part #20-0006-2

The manufacturer no longer makes this part, and there's no substitute part
