Sharp
Countertop Microwave

Model # R-202EK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-202EK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

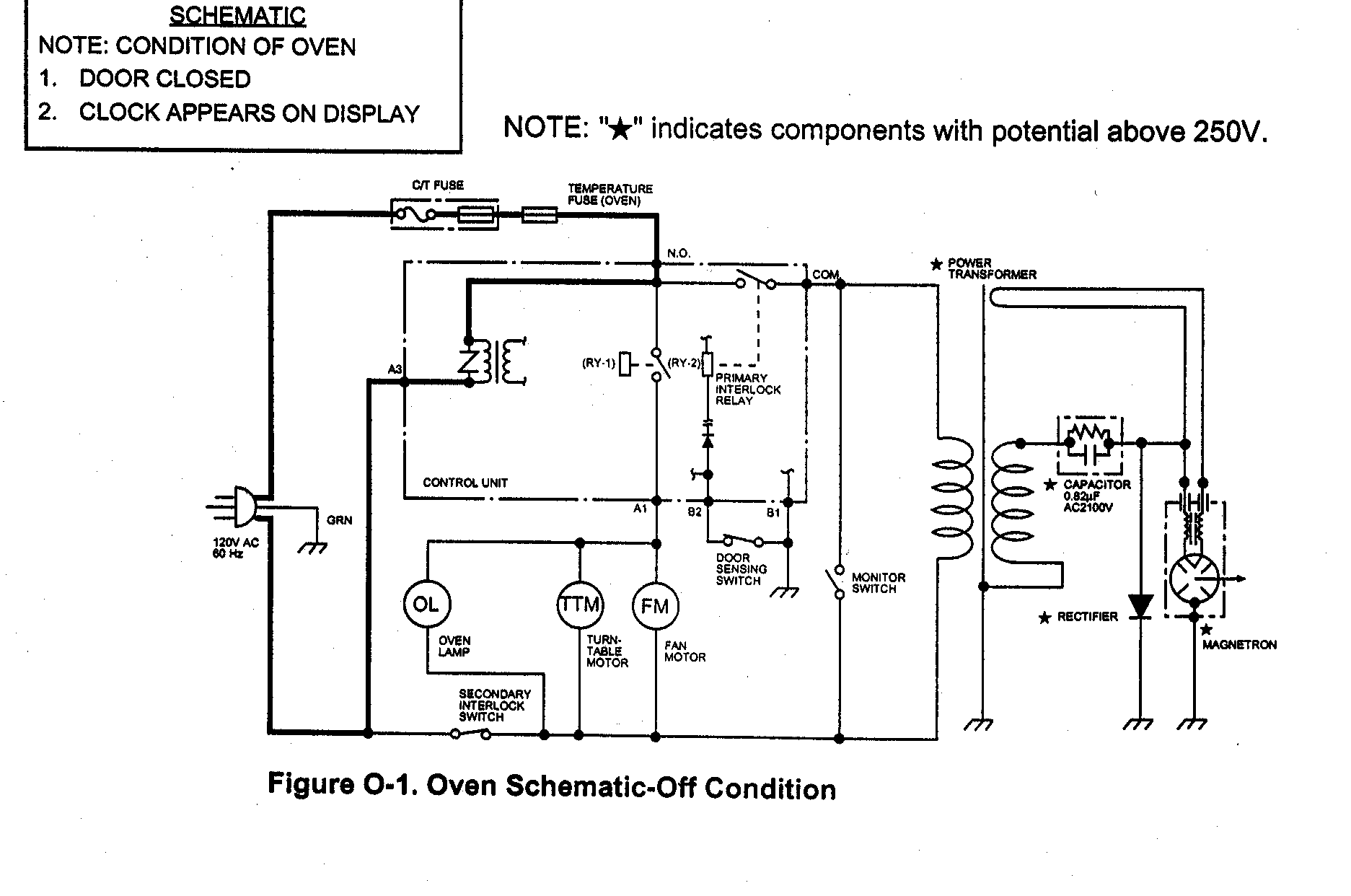

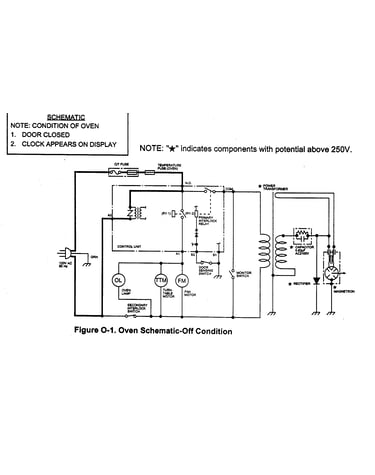

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Switch QSW-MA085WRE0
#1-1

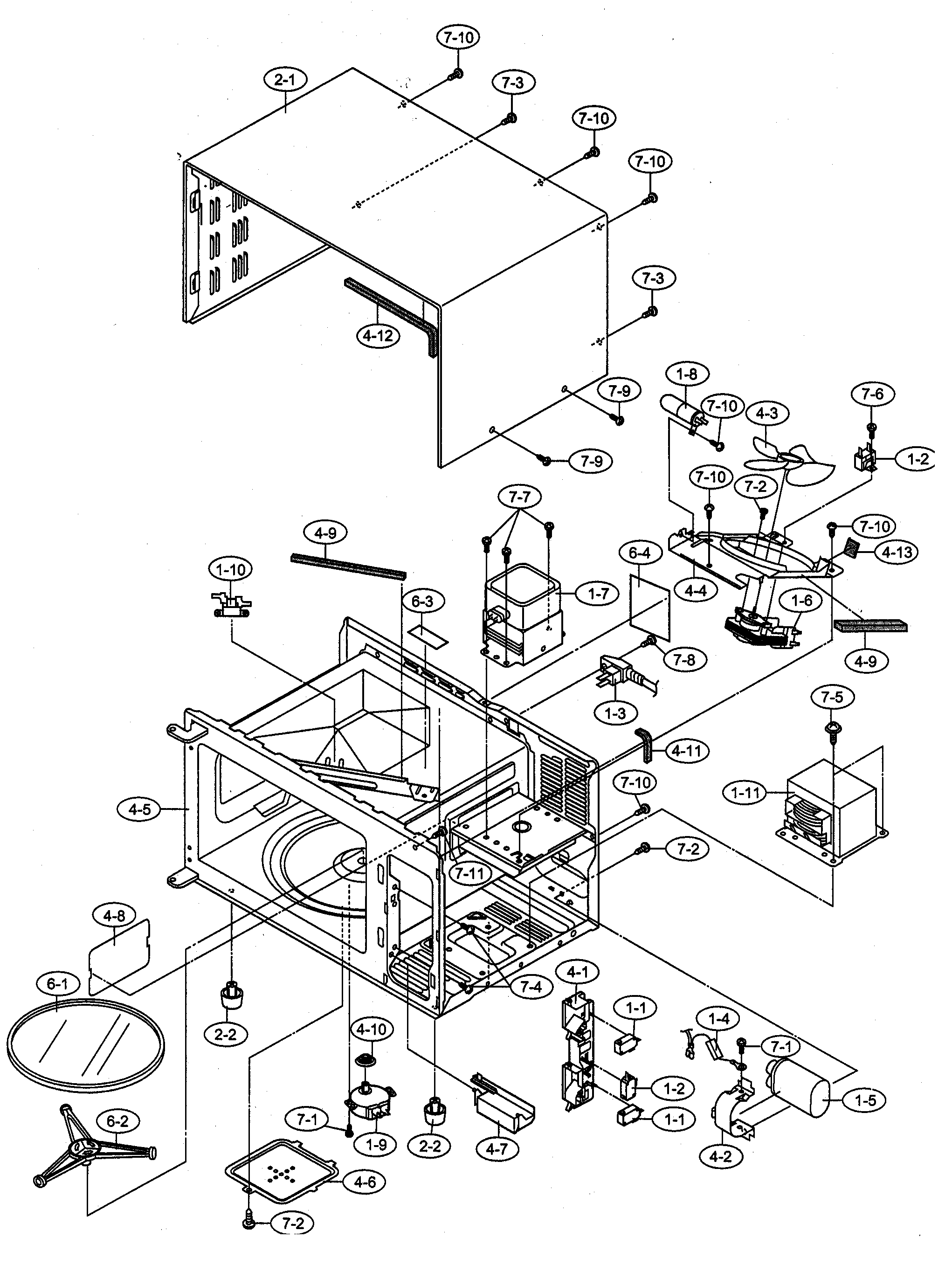

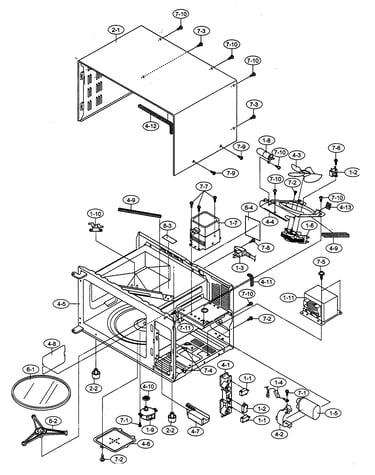

Oven cabinet parts diagram

Switch

Part #QSW-MA085WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Lamp RLMPTA082WRZZ
#1-8

Oven cabinet parts diagram

Microwave lamp

Part #RLMPTA082WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZA307WRZZ
#1-5

Oven cabinet parts diagram

Capacitor

Part #RC-QZA307WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Latch Head LSTPPA205WRFZ
#5-4

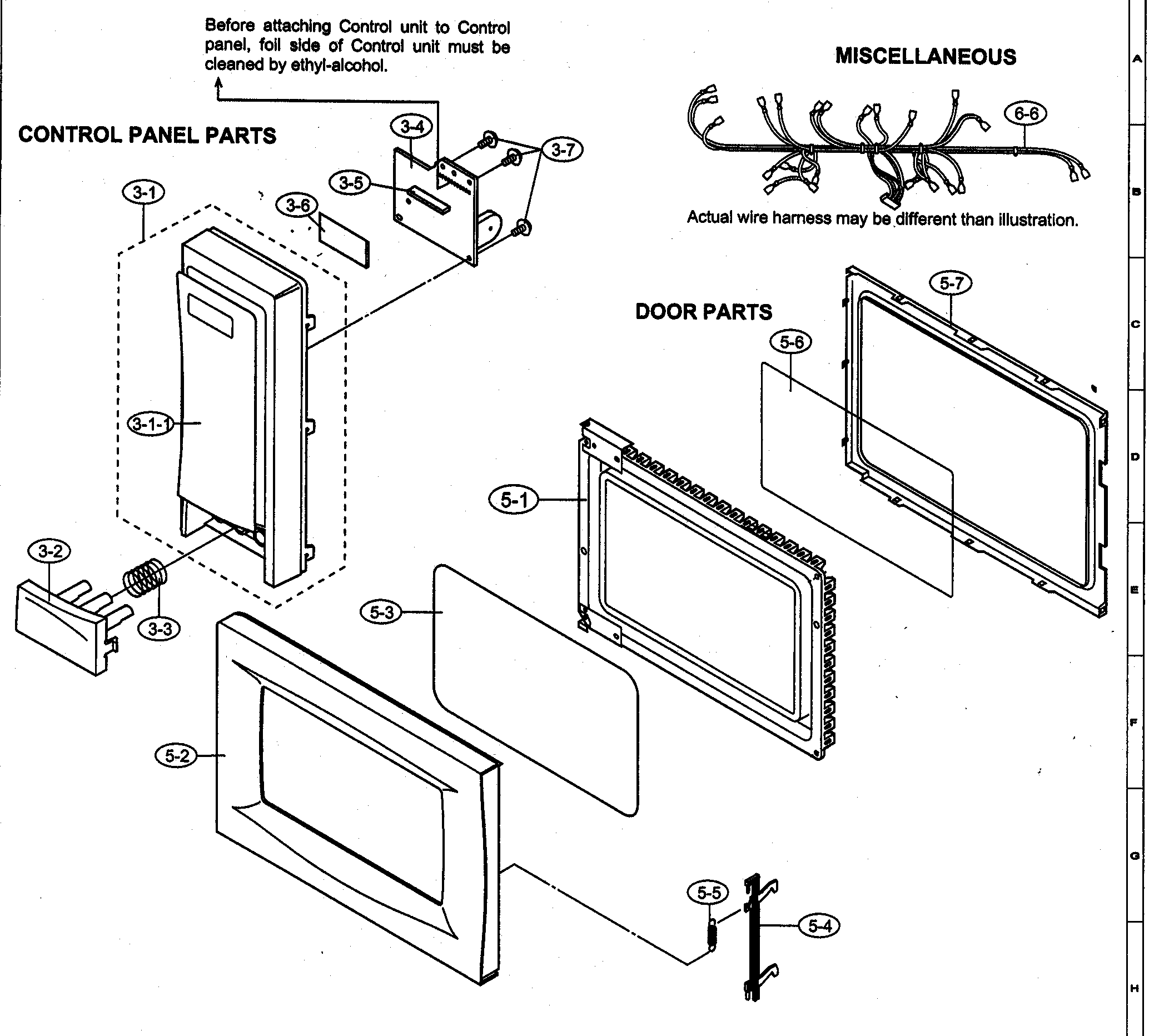

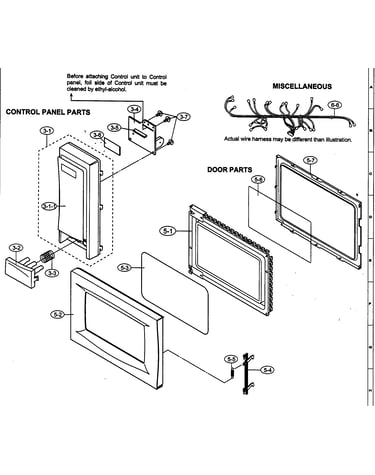

Control panel/door parts/miscellaneous diagram

Latch head

Part #LSTPPA205WRFZ

The manufacturer no longer makes this part, and there's no substitute part

Microwave Thermal Cut-off QFS-TA038WRE0
#1-10

Oven cabinet parts diagram

Microwave thermal cut-off

Part #QFS-TA038WRE0

The manufacturer no longer makes this part, and there's no substitute part

Transformer RTRN-A648WRZZ
#1-11

Oven cabinet parts diagram

Transformer

Part #RTRN-A648WRZZ

The manufacturer no longer makes this part, and there's no substitute part

Packing PPACGA176WREZ
#4-10

Oven cabinet parts diagram

Packing

Part #PPACGA176WREZ

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA187WRE0
#5-5

Control panel/door parts/miscellaneous diagram

Spring

Part #MSPRTA187WRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw XOTSD40P08000
#7-10

Oven cabinet parts diagram

Screw

Part #XOTSD40P08000

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor RMOTDA211WRE0
#1-9

Oven cabinet parts diagram

Microwave turntable motor

Part #RMOTDA211WRE0

The manufacturer no longer makes this part, and there's no substitute part
