Ryobi
Drill/Driver

Model # D-10PVR Official Ryobi electric drill

Here are the diagrams and repair parts for Official Ryobi D-10PVR electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 39 parts  |
Tapping Screw (b) M4 X 18 9060418
Tapping screw (b) m4 x 18

Part #9060418

The manufacturer no longer makes this part, and there's no substitute part

Intermediate Gear 6050038
#14

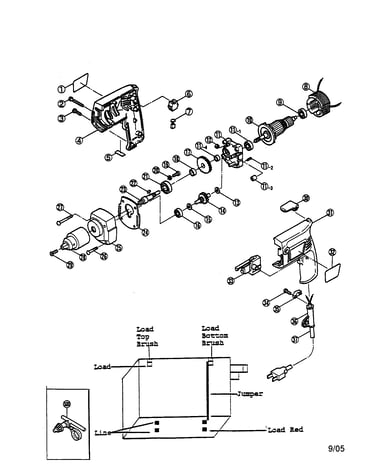

Electric drill diagram

Intermediate gear

Part #6050038

The manufacturer no longer makes this part, and there's no substitute part

Switch 6550088
#33

Electric drill diagram

Switch

Part #6550088

The manufacturer no longer makes this part, and there's no substitute part

10mm (3/8") Drill Chuck 6071573
#28

Electric drill diagram

10mm (3/8") drill chuck

Part #6071573

The manufacturer no longer makes this part, and there's no substitute part

Indication Label 6920387
#5

Electric drill diagram

Indication label

Part #6920387

The manufacturer no longer makes this part, and there's no substitute part

Gear Shaft 6100142
#23

Electric drill diagram

Gear shaft

Part #6100142

The manufacturer no longer makes this part, and there's no substitute part

Washer 9570400
#20

Electric drill diagram

Washer

Part #9570400

The manufacturer no longer makes this part, and there's no substitute part

Inner Cover 6080453
#11

Electric drill diagram

Inner cover

Part #6080453

The manufacturer no longer makes this part, and there's no substitute part

Packing 6930029
#24

Electric drill diagram

Packing

Part #6930029

The manufacturer no longer makes this part, and there's no substitute part

Tapping Screw (s) M4 X 45 (2) 9040445
#27

Electric drill diagram

Tapping screw (s) m4 x 45 (2)

Part #9040445

The manufacturer no longer makes this part, and there's no substitute part
