Model # T8MPL075F16B1 Official ICP 80+ single-stage gas furnace

Here are the diagrams and repair parts for Official ICP T8MPL075F16B1 80+ single-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Furnace Electronic Control Board 1172550
#8

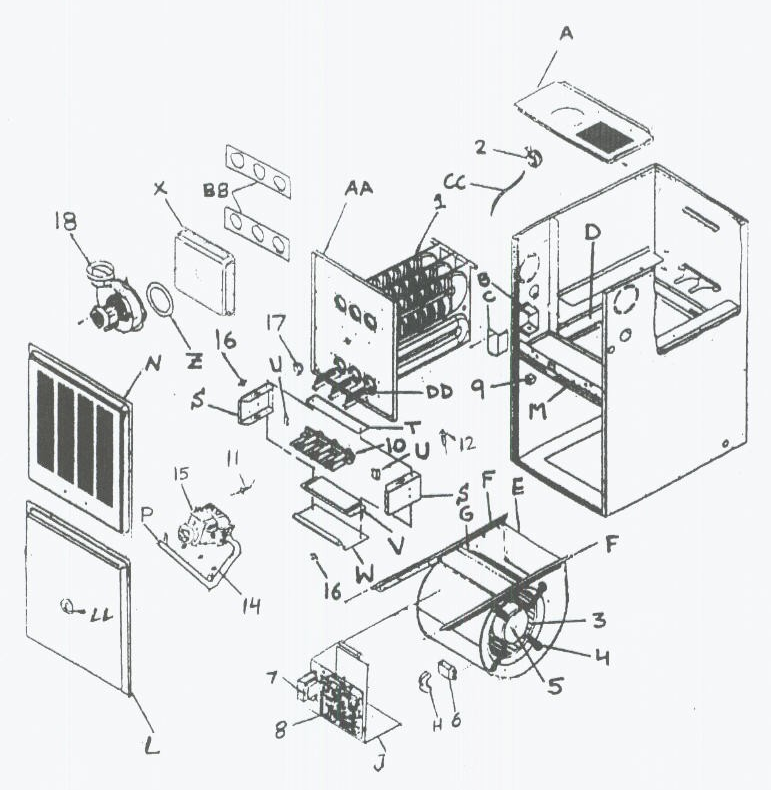

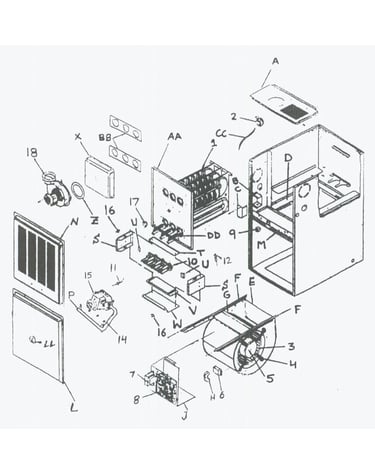

Furnace diagram

Furnace electronic control board

Part #1172550

$269.24 |
$12.00 OFF Phone Price : $281.24
In Stock
Switch 1013529
#2

Furnace diagram

Switch

Part #1013529

Replaced by #1174276

?
Manufacturer substitution
This part replaces 1013529. Substitute parts can look different from the original.
$62.55 |
9% OFF Phone Price : $68.55
In Stock
Gasket 1013540
#Z

Furnace diagram

Gasket

Part #1013540

This item is not returnable
$3.23
In Stock
Furnace Temperature Limit Switch 1008417
#17

Furnace diagram

Furnace temperature limit switch

Part #1008417

$38.90 |
13% OFF Phone Price : $44.90
In Stock
Bracket 1012377
#S

Furnace diagram

Bracket

Part #1012377

$341.23
In Stock
Icp Products Wire Harness 1172813
#NI

Furnace diagram

Icp products wire harness

Part #1172813

$109.64
In Stock
Furnace Door Switch 1171981
#9

Furnace diagram

Furnace door switch

Part #1171981

$16.66
In Stock
Gasket 1013992
#BB

Furnace diagram

Gasket

Part #1013992

This item is not returnable
$6.54
In Stock
Furnace Blower Fan Wheel (replaces 1009147) 1011420
#3

Furnace diagram

Furnace blower fan wheel (replaces 1009147)

Part #1011420

$160.43 |
7% OFF Phone Price : $172.43
In Stock
Furnace Burner Igniter 1172533
#12

Furnace diagram

Furnace burner igniter

Part #1172533

$54.54 |
10% OFF Phone Price : $60.54
In Stock
