Model # U8147-900 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U8147-900 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |

Vacuum Wheel, Front 38521009
#18C

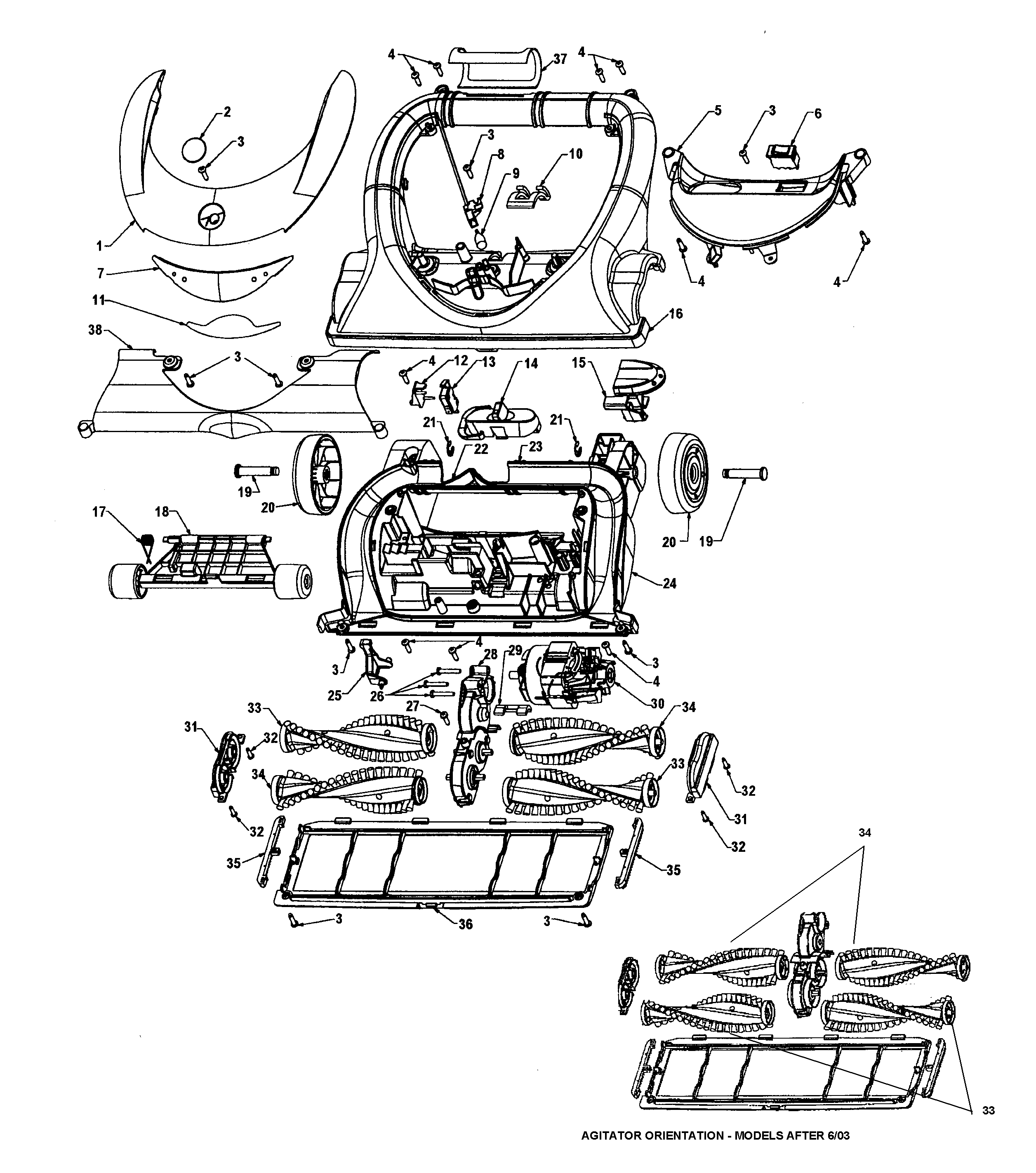

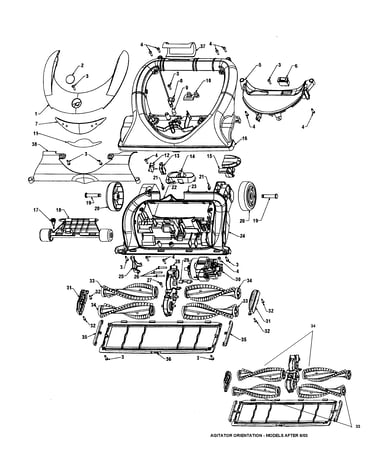

Agitator, mainbody, hood diagram

Vacuum wheel, front

Part #38521009

The manufacturer no longer makes this part, and there's no substitute part

Tool Holder 36433189
#23J

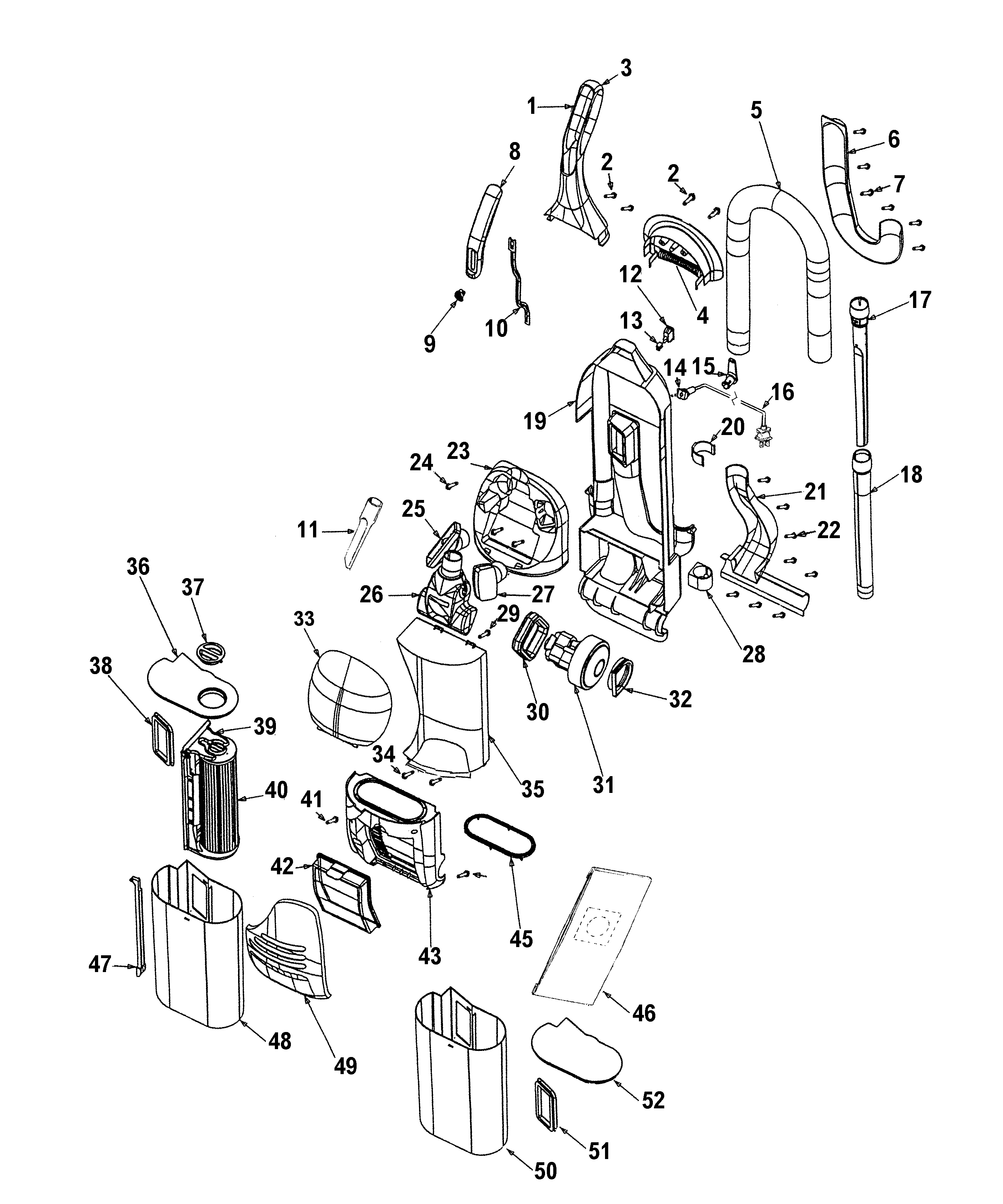

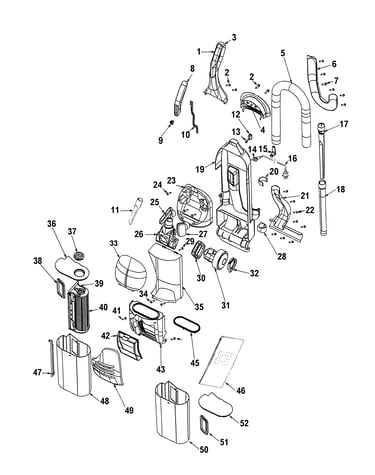

Motor, turbinehandtool, handle diagram

Tool holder

Part #36433189

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447072
#24

Motor, turbinehandtool, handle diagram

Regina vacuum screw

Part #21447072

The manufacturer no longer makes this part, and there's no substitute part

Foam 34163016
#60

Motor, turbinehandtool, handle diagram

Foam

Part #34163016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Power Cord Strain Relief 36215028
#14

Motor, turbinehandtool, handle diagram

Vacuum power cord strain relief

Part #36215028

The manufacturer no longer makes this part, and there's no substitute part

Lamp Socket 47173037
#8

Agitator, mainbody, hood diagram

Lamp socket

Part #47173037

The manufacturer no longer makes this part, and there's no substitute part

Grip 39454078
#8

Motor, turbinehandtool, handle diagram

Grip

Part #39454078

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw 21447236
#3

Motor, turbinehandtool, handle diagram

Vacuum screw

Part #21447236

The manufacturer no longer makes this part, and there's no substitute part

Motor Seal 38785018
#32

Motor, turbinehandtool, handle diagram

Motor seal

Part #38785018

The manufacturer no longer makes this part, and there's no substitute part

Bag Adapte 36424005
#60A

Motor, turbinehandtool, handle diagram

Bag adapte

Part #36424005

The manufacturer no longer makes this part, and there's no substitute part
