Model # MRC520S2-P1331420M Official Amana microwave

Here are the diagrams and repair parts for Official Amana MRC520S2-P1331420M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 17 parts  |
Set Screw M0208342
#12

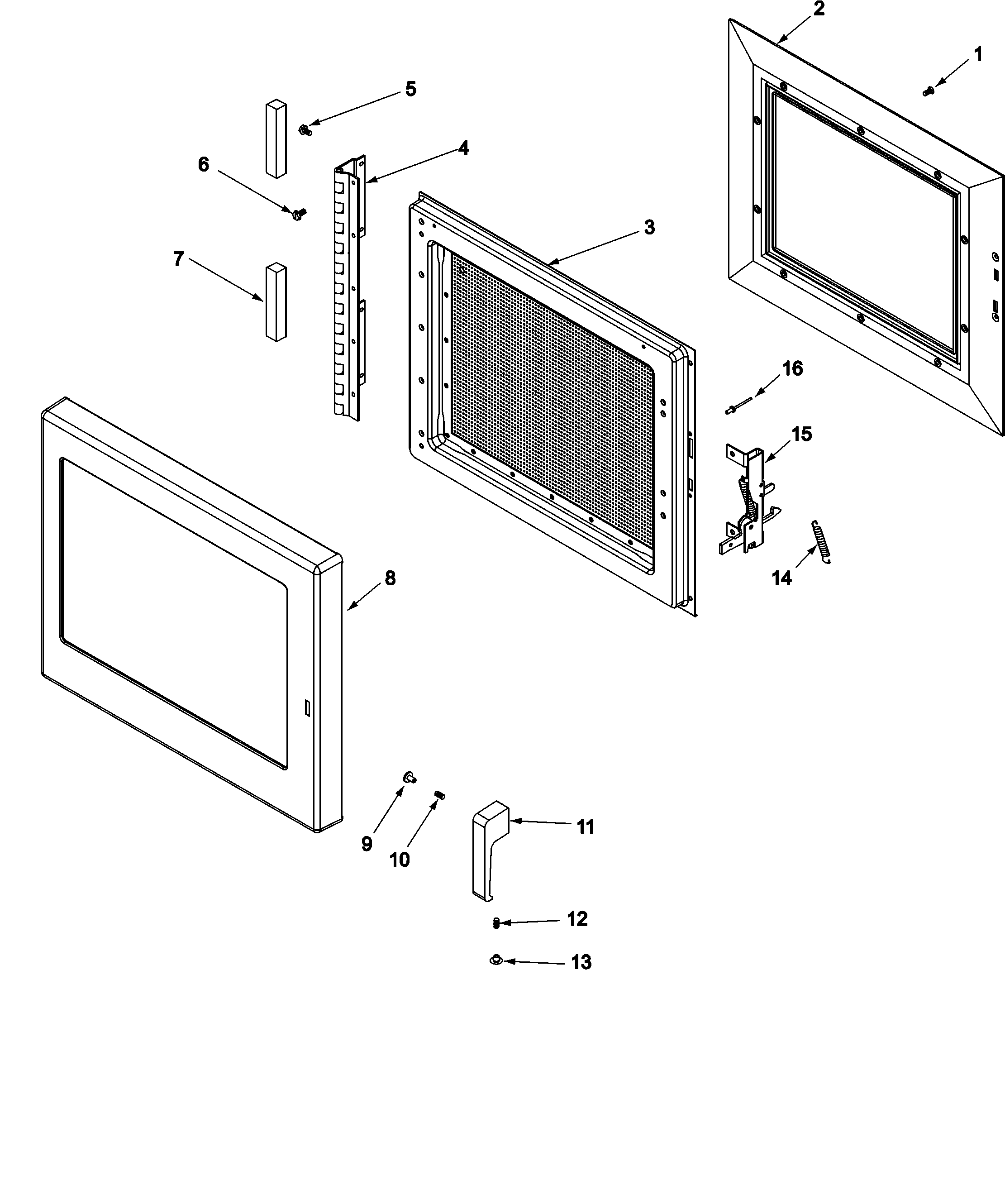

Door diagram

Set screw

Part #M0208342

This item is not returnable
$3.29
In Stock
Screw M0216703
#6

Door diagram

Screw

Part #M0216703

This item is not returnable
$3.40
In Stock
Button Plug M0310305
#13

Door diagram

Button plug

Part #M0310305

Replaced by #WP67001130

?
Manufacturer substitution
This part replaces M0310305. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Set Screw #1 5051032202
#10

Door diagram

Set screw #1

Part #5051032202

Replaced by #M0208943

?
Manufacturer substitution
This part replaces 5051032202. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Door Handle 12490901
#11

Door diagram

Door handle

Part #12490901

The manufacturer no longer makes this part, and there's no substitute part

Outer Door R0156918
#8

Door diagram

Outer door

Part #R0156918

The manufacturer no longer makes this part, and there's no substitute part

Screw (qty 2) M0216716
#5

Door diagram

Screw (qty 2)

Part #M0216716

The manufacturer no longer makes this part, and there's no substitute part

Hole Plug 12360701
#9

Door diagram

Hole plug

Part #12360701

The manufacturer no longer makes this part, and there's no substitute part

Drive Bit R0193574
#1A

Door diagram

Drive bit

Part #R0193574

The manufacturer no longer makes this part, and there's no substitute part

"screw,hi/lo" M0232218
#1

Door diagram

"screw,hi/lo"

Part #M0232218

The manufacturer no longer makes this part, and there's no substitute part
