Wine & Beverage Cooler

Model # E24WC48EBS0 Official Electrolux wine cooler

Here are the diagrams and repair parts for Official Electrolux E24WC48EBS0 wine cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

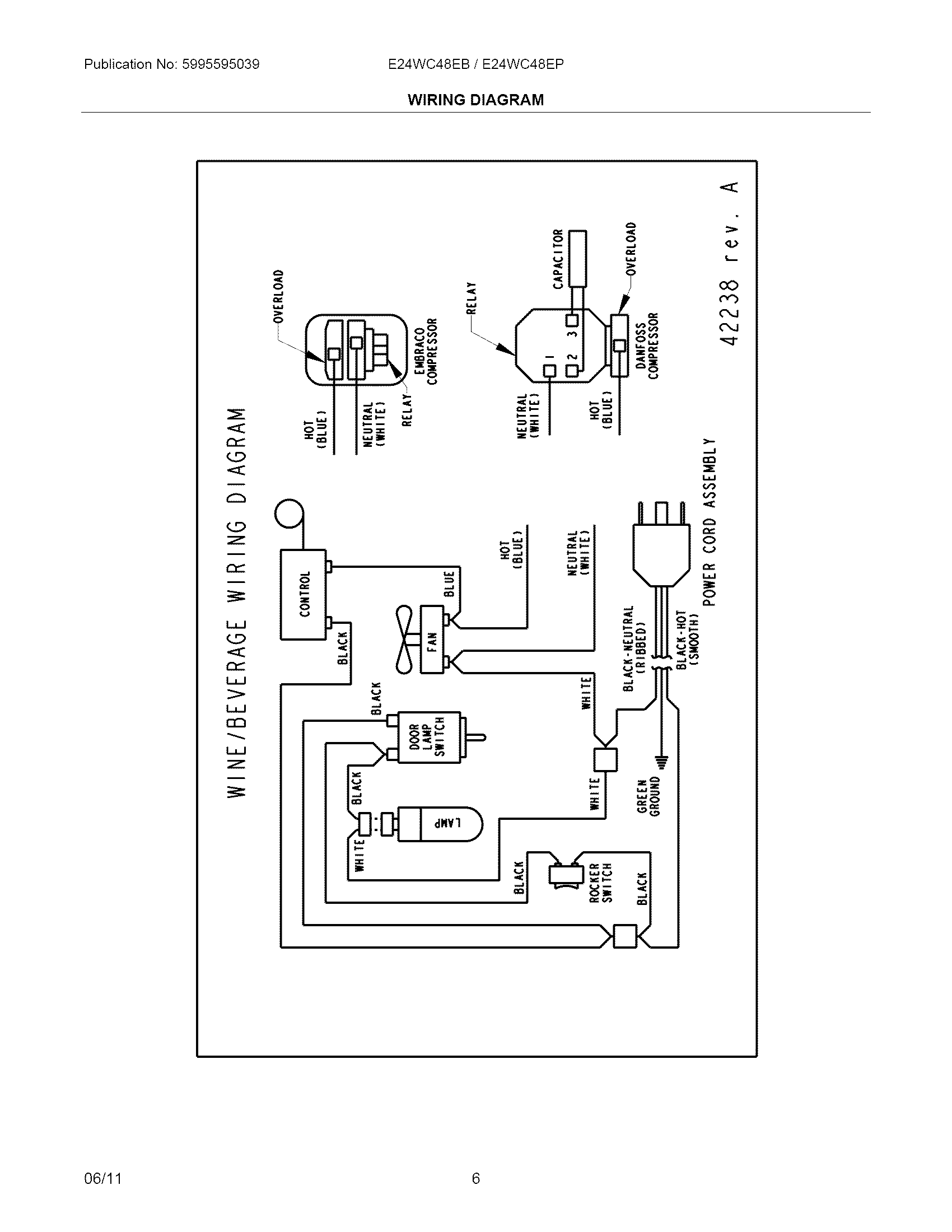

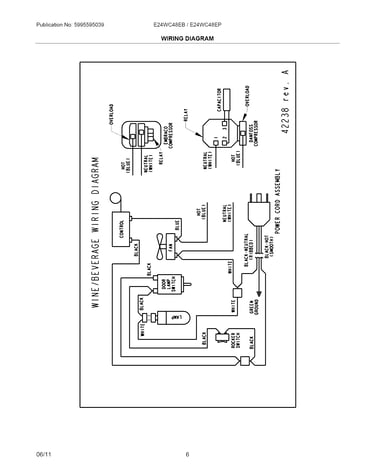

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 43 parts  |
Bracket 5304446614
#36

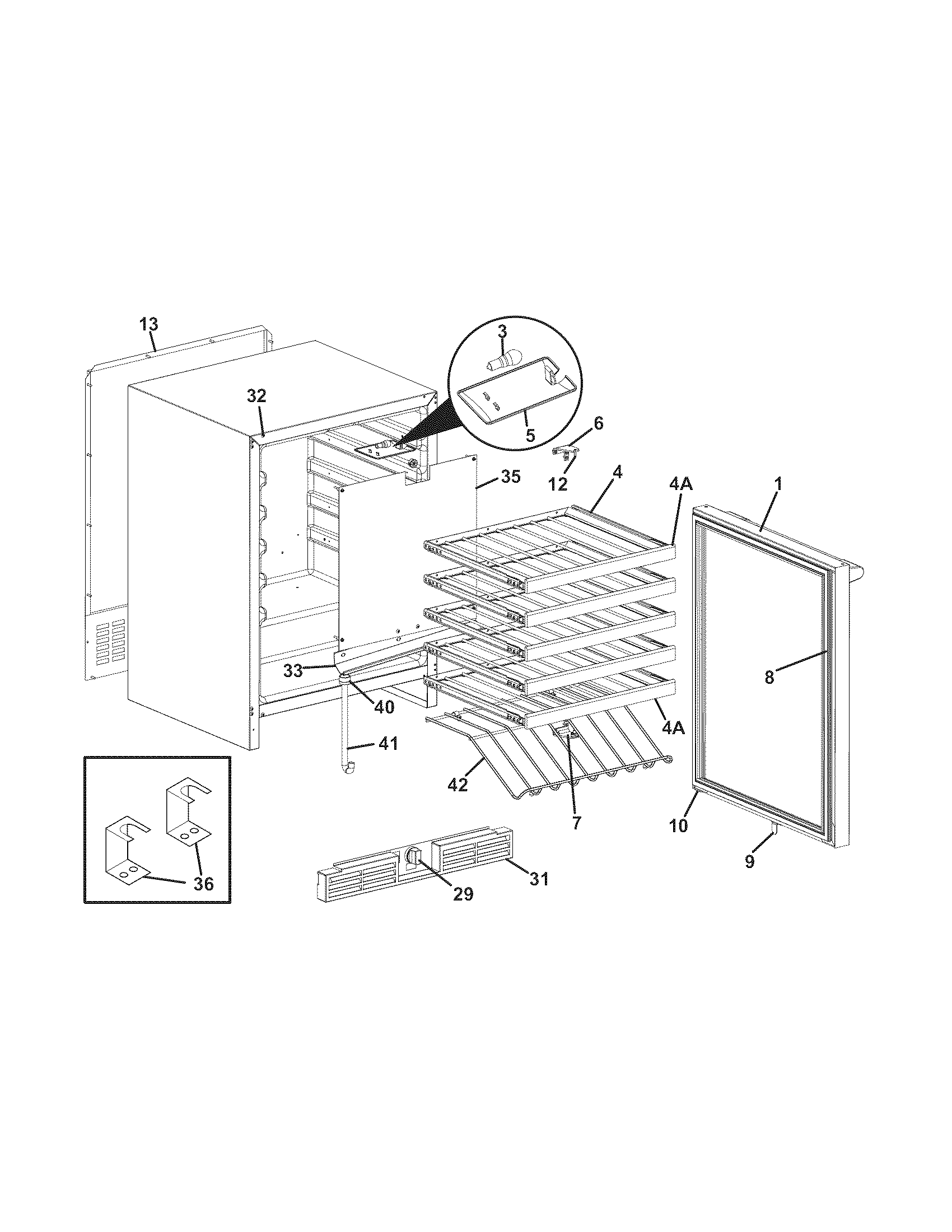

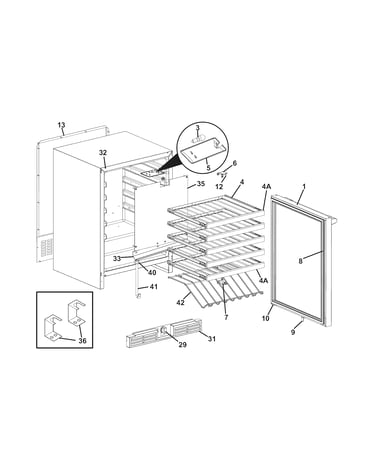

Cabinet diagram

Bracket

Part #5304446614

$74.20
In Stock
Relay 5304446681
#NI

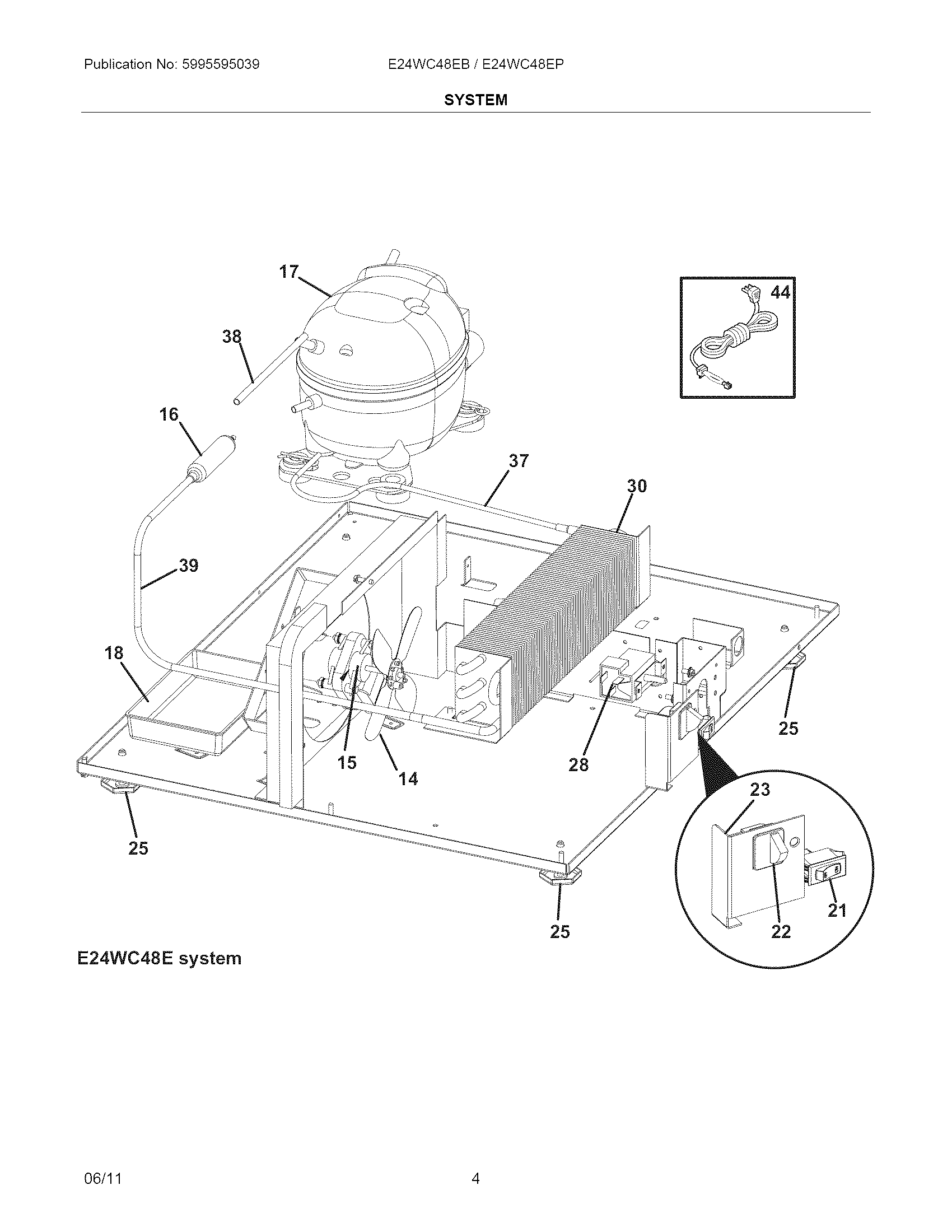

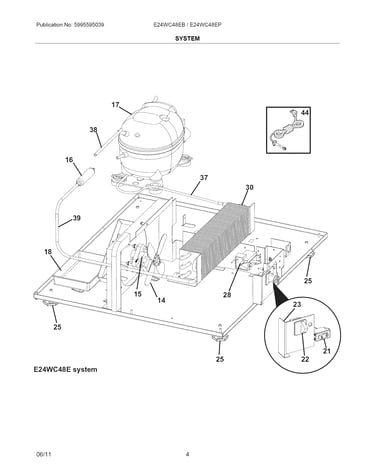

System diagram

Relay

Part #5304446681

$149.02
In Stock
Door Closure 5304446590
#NI

Cabinet diagram

Door closure

Part #5304446590

The manufacturer no longer makes this part, and there's no substitute part

Lamp 5304446585
#3

Cabinet diagram

Lamp

Part #5304446585

The manufacturer no longer makes this part, and there's no substitute part

Tube 5304446617
#39

System diagram

Tube

Part #5304446617

The manufacturer no longer makes this part, and there's no substitute part

Power Cord 5304446621
#44

System diagram

Power cord

Part #5304446621

The manufacturer no longer makes this part, and there's no substitute part

Plate 5304446593
#10

Cabinet diagram

Plate

Part #5304446593

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 5304446613
#35

Cabinet diagram

Evaporator

Part #5304446613

The manufacturer no longer makes this part, and there's no substitute part

Cover 5304446587
#5

Cabinet diagram

Cover

Part #5304446587

The manufacturer no longer makes this part, and there's no substitute part

Panel 5304446622
#4A

Cabinet diagram

Panel

Part #5304446622

The manufacturer no longer makes this part, and there's no substitute part
