Model # A05LE2E2 Official Frigidaire room air conditioner - lf34087210

Here are the diagrams and repair parts for Official Frigidaire A05LE2E2 room air conditioner - lf34087210, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

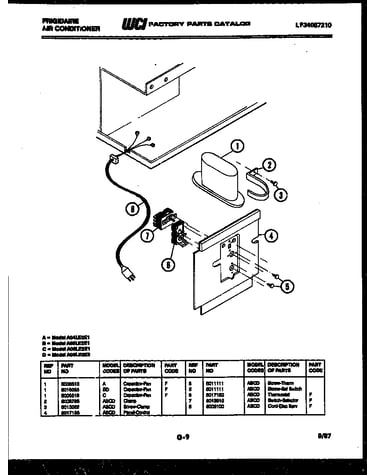

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Clip 8007490
#8

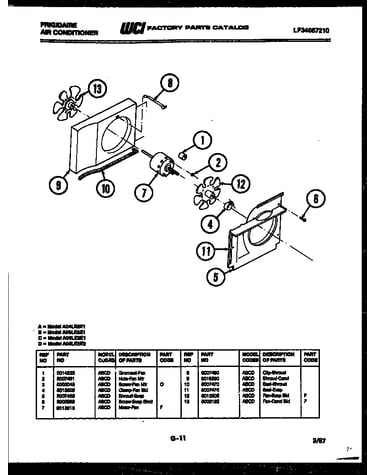

Air handling parts diagram

Clip

Part #8007490

The manufacturer no longer makes this part, and there's no substitute part

Nut 8013139
#14

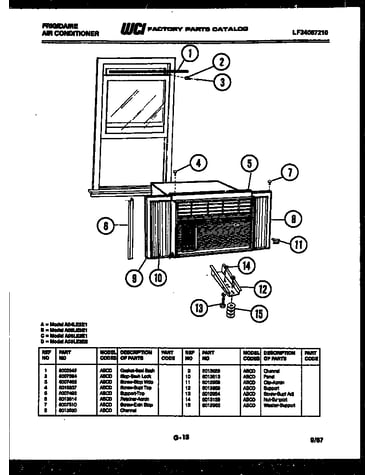

Window mounting parts diagram

Nut

Part #8013139

The manufacturer no longer makes this part, and there's no substitute part

Screw 8007510
#7

Window mounting parts diagram

Screw

Part #8007510

The manufacturer no longer makes this part, and there's no substitute part

Spacer (2) 8007489
#8

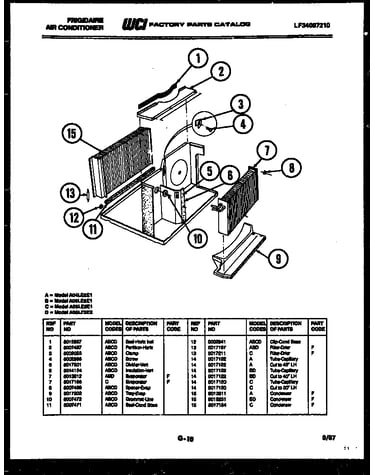

Unit parts diagram

Spacer (2)

Part #8007489

The manufacturer no longer makes this part, and there's no substitute part

Clamp 8009025
#3

Unit parts diagram

Clamp

Part #8009025

The manufacturer no longer makes this part, and there's no substitute part

Screw 8010919
#4

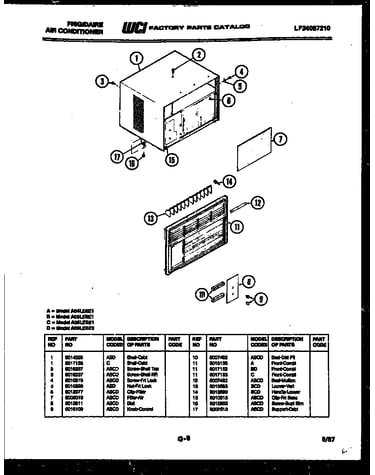

Cabinet parts diagram

Screw

Part #8010919

The manufacturer no longer makes this part, and there's no substitute part

Washer 8006896
#3

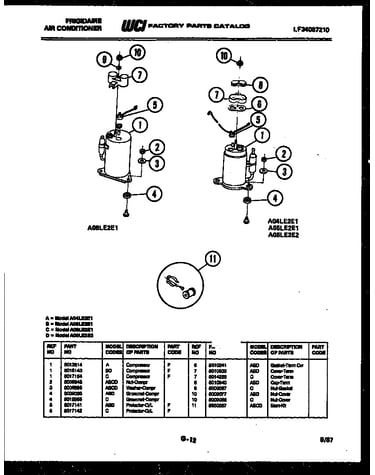

Compressor parts diagram

Washer

Part #8006896

The manufacturer no longer makes this part, and there's no substitute part

Nut 8009077
#10

Compressor parts diagram

Nut

Part #8009077

The manufacturer no longer makes this part, and there's no substitute part

Clip 8012955
#16

Cabinet parts diagram

Clip

Part #8012955

The manufacturer no longer makes this part, and there's no substitute part

Partition, Horiz. 8007487
#2

Unit parts diagram

Partition, horiz.

Part #8007487

The manufacturer no longer makes this part, and there's no substitute part
