Sharp
Countertop Microwave

Model # R-315EW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-315EW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Magnetron RV-MZA291WRE0
#1-8

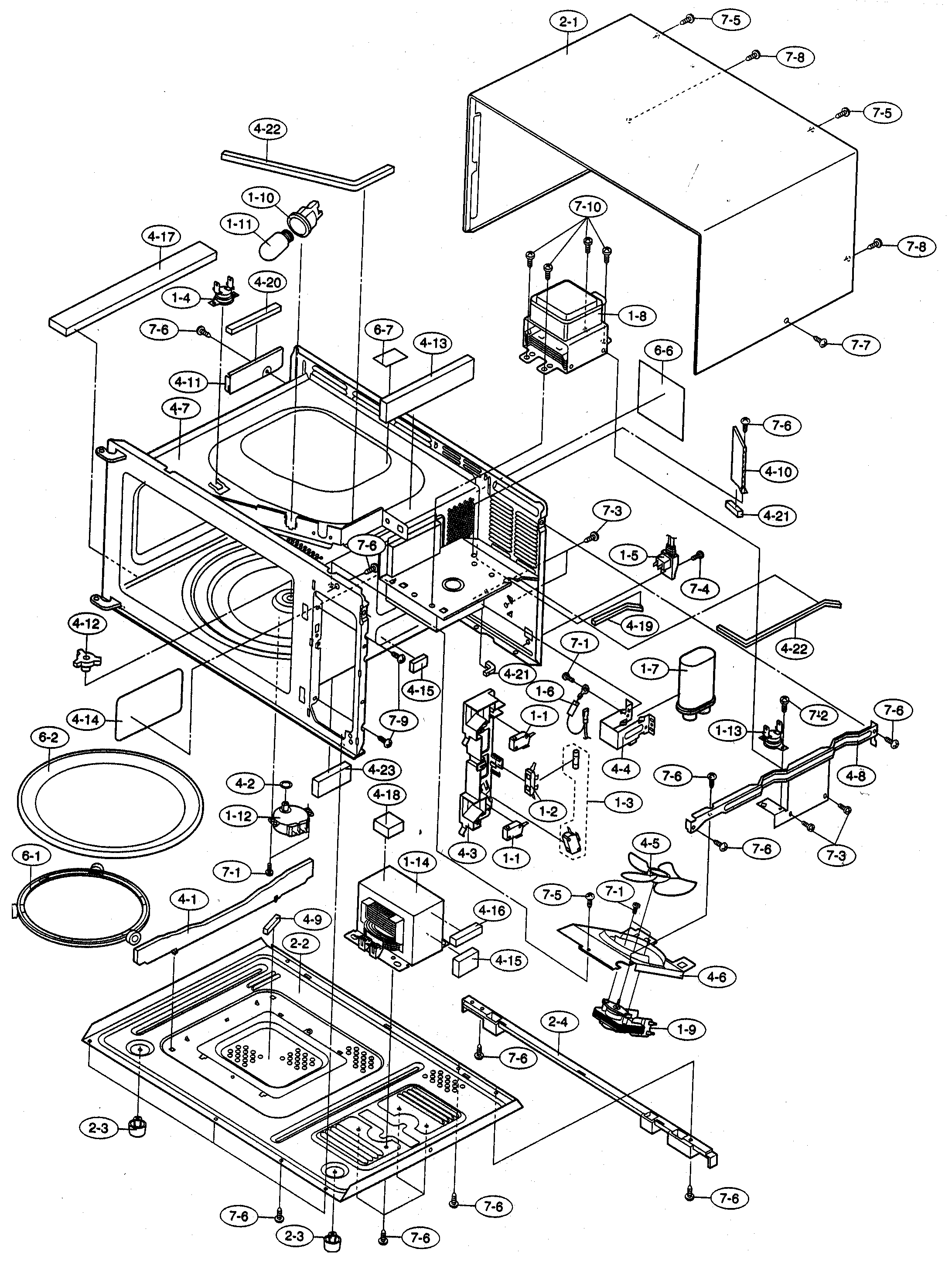

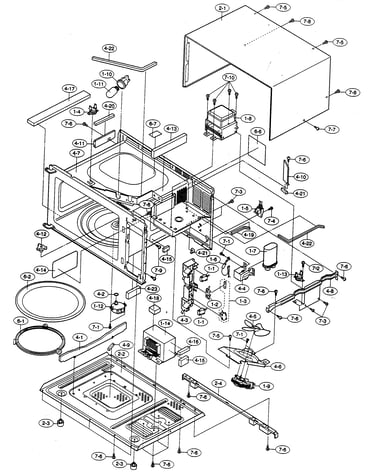

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA291WRE0

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDA083WRE0
#1-5A

Oven/cabinet parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Connector QCNCMA446DRE0
#3-1A

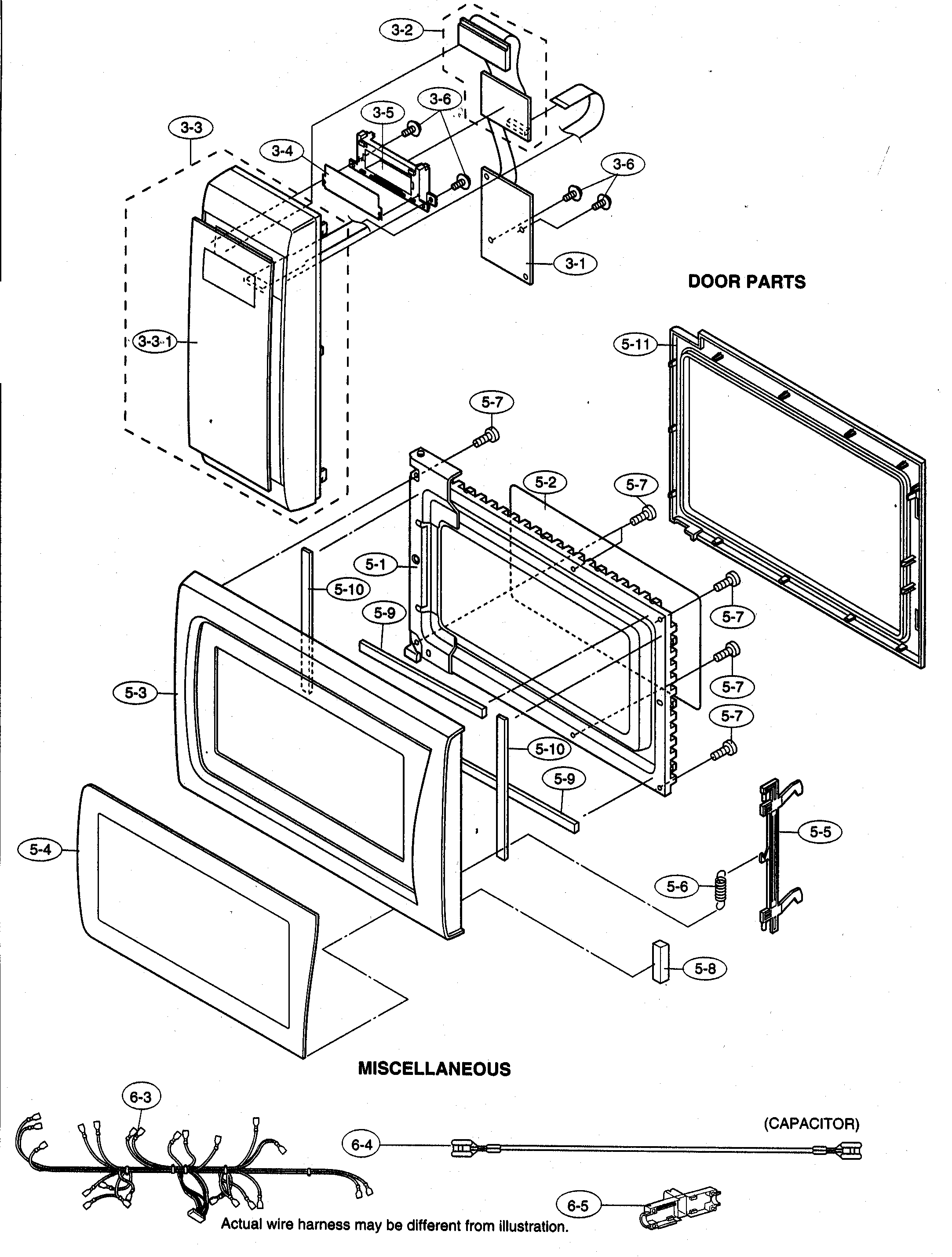

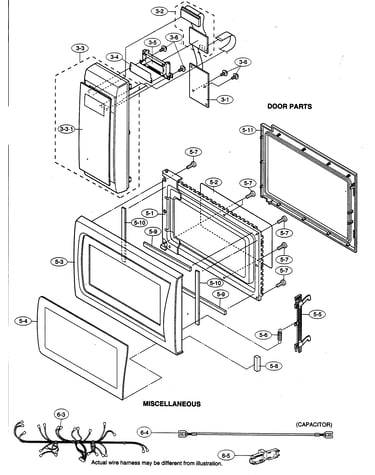

Control panel/door parts/miscellaneous diagram

Connector

Part #QCNCMA446DRE0

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDA009WRE0
#1-2

Oven/cabinet parts diagram

Fuse holder

Part #QFSHDA009WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Support FROLPA079WRK0
#6-1

Oven/cabinet parts diagram

Microwave turntable support

Part #FROLPA079WRK0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA137WRE0
#1-1A

Oven/cabinet parts diagram

Switch

Part #QSW-MA137WRE0

The manufacturer no longer makes this part, and there's no substitute part

Microwave Turntable Motor RMOTDA211WRE0
#112A

Oven/cabinet parts diagram

Microwave turntable motor

Part #RMOTDA211WRE0

The manufacturer no longer makes this part, and there's no substitute part

Socket QSOCLA021WRE0
#1-10

Oven/cabinet parts diagram

Socket

Part #QSOCLA021WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sheet PSHEPA382WRE0
#5-2

Control panel/door parts/miscellaneous diagram

Sheet

Part #PSHEPA382WRE0

The manufacturer no longer makes this part, and there's no substitute part

Magnetron RV-MZA295WRE0
#1-8A

Oven/cabinet parts diagram

Magnetron

Part #RV-MZA295WRE0

The manufacturer no longer makes this part, and there's no substitute part
