Model # 5656135 Official Kenmore blower-type down-discharge air cooler

Here are the diagrams and repair parts for Official Kenmore 5656135 blower-type down-discharge air cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Nut P8-121
#41

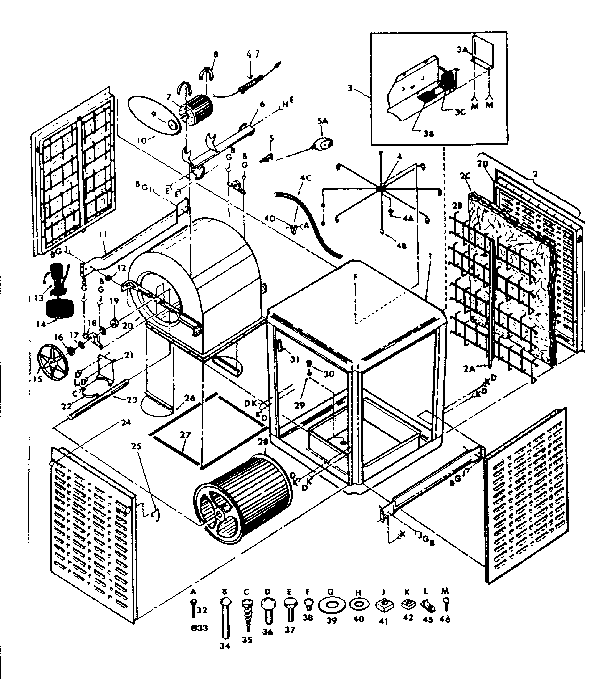

Blower assembly diagram

Nut

Part #P8-121

The manufacturer no longer makes this part, and there's no substitute part

Pump P1-710
#13

Blower assembly diagram

Pump

Part #P1-710

The manufacturer no longer makes this part, and there's no substitute part

Pump Bracket M11-313-85
#21

Blower assembly diagram

Pump bracket

Part #M11-313-85

The manufacturer no longer makes this part, and there's no substitute part

Bracket Strap M11-314-85
#22

Blower assembly diagram

Bracket strap

Part #M11-314-85

The manufacturer no longer makes this part, and there's no substitute part

Pad Frame A5-383-114
#2DA

Blower assembly diagram

Pad frame

Part #A5-383-114

The manufacturer no longer makes this part, and there's no substitute part

Pulley P5-227
#15A

Blower assembly diagram

Pulley

Part #P5-227

The manufacturer no longer makes this part, and there's no substitute part

Screw P8-321
#35

Blower assembly diagram

Screw

Part #P8-321

The manufacturer no longer makes this part, and there's no substitute part

Supprt Mount A3-518
#6B

Blower assembly diagram

Supprt mount

Part #A3-518

The manufacturer no longer makes this part, and there's no substitute part

Gasket P3-456
Gasket

Part #P3-456

The manufacturer no longer makes this part, and there's no substitute part

Drain Washer P3-306
#29

Blower assembly diagram

Drain washer

Part #P3-306

The manufacturer no longer makes this part, and there's no substitute part
