Model # 1631-1 Official Dremel sander

Here are the diagrams and repair parts for Official Dremel 1631-1 sander, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Dremel Motor 5296362
#45

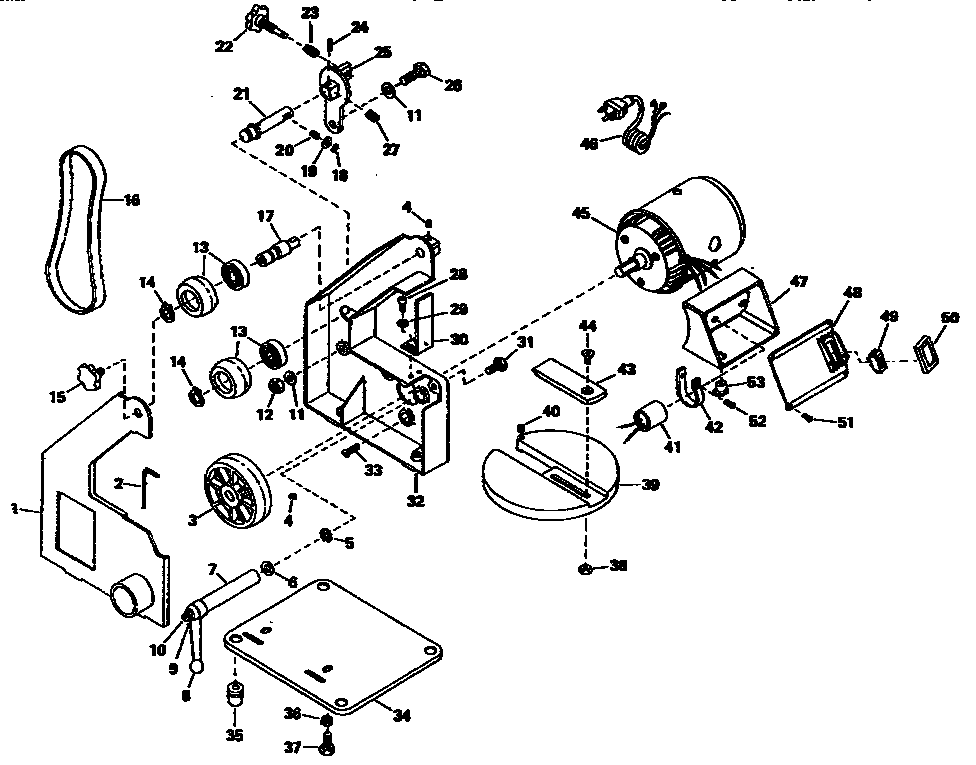

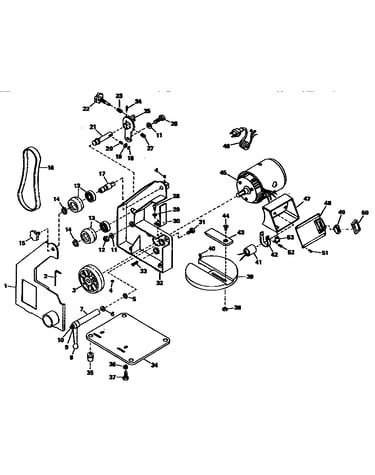

Unit parts diagram

Dremel motor

Part #5296362

The manufacturer no longer makes this part, and there's no substitute part

Platen 5296266
#30

Unit parts diagram

Platen

Part #5296266

The manufacturer no longer makes this part, and there's no substitute part

Dremel Base 5296257
#34

Unit parts diagram

Dremel base

Part #5296257

The manufacturer no longer makes this part, and there's no substitute part

Alln Wrnch 5296353
#2

Unit parts diagram

Alln wrnch

Part #5296353

The manufacturer no longer makes this part, and there's no substitute part

Dremel Star Washer 5296532
#5

Unit parts diagram

Dremel star washer

Part #5296532

The manufacturer no longer makes this part, and there's no substitute part

Spring 5296275
#9

Unit parts diagram

Spring

Part #5296275

The manufacturer no longer makes this part, and there's no substitute part

Dremel Rtng Ring 5296296
#18

Unit parts diagram

Dremel rtng ring

Part #5296296

The manufacturer no longer makes this part, and there's no substitute part

Lever 5296269
#8

Unit parts diagram

Lever

Part #5296269

The manufacturer no longer makes this part, and there's no substitute part

Dremel Washer 5296285
#11

Unit parts diagram

Dremel washer

Part #5296285

The manufacturer no longer makes this part, and there's no substitute part

Dremel Slf Tp Scrw 5296357
#51

Unit parts diagram

Dremel slf tp scrw

Part #5296357

The manufacturer no longer makes this part, and there's no substitute part
