Model # DF-1175-1 Official Empire duct furnace

Here are the diagrams and repair parts for Official Empire DF-1175-1 duct furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

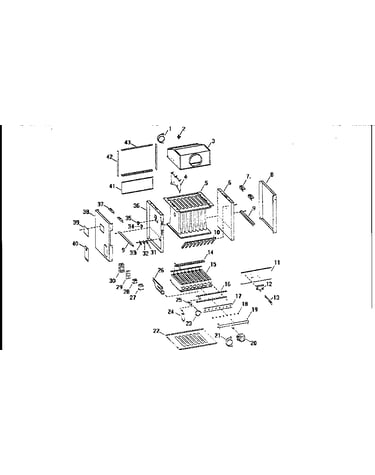

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Limit Electronic Oven Control 912036
#34

Functional replacement parts diagram

Limit electronic oven control

Part #912036

The manufacturer no longer makes this part, and there's no substitute part

Burner UH-019
#26

Functional replacement parts diagram

Burner

Part #UH-019

The manufacturer no longer makes this part, and there's no substitute part

Valve (2) Nat. 932143
#20B

Functional replacement parts diagram

Valve (2) nat.

Part #932143

The manufacturer no longer makes this part, and there's no substitute part

Lower Panel (front) UH-577
#41

Functional replacement parts diagram

Lower panel (front)

Part #UH-577

The manufacturer no longer makes this part, and there's no substitute part

Lower Panel (rear) UH-561
#11

Functional replacement parts diagram

Lower panel (rear)

Part #UH-561

The manufacturer no longer makes this part, and there's no substitute part

Burner Orifice (nat.)(uh-1000 Series Only)(3) 742120
#18

Functional replacement parts diagram

Burner orifice (nat.)(uh-1000 series only)(3)

Part #742120

The manufacturer no longer makes this part, and there's no substitute part

Tube Baffle UH-198
#4

Functional replacement parts diagram

Tube baffle

Part #UH-198

The manufacturer no longer makes this part, and there's no substitute part

Access Plate UH-142
#39

Functional replacement parts diagram

Access plate

Part #UH-142

The manufacturer no longer makes this part, and there's no substitute part

Side Plate (right) UH-159
#36

Functional replacement parts diagram

Side plate (right)

Part #UH-159

The manufacturer no longer makes this part, and there's no substitute part

Pilot Bracket UH-114
#16

Functional replacement parts diagram

Pilot bracket

Part #UH-114

The manufacturer no longer makes this part, and there's no substitute part
