Model # ZGG48L31C2SS Official GE gas grill

Here are the diagrams and repair parts for Official GE ZGG48L31C2SS gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 79 parts  |
Gas Grill Radiant Tray WB02X10661
#160

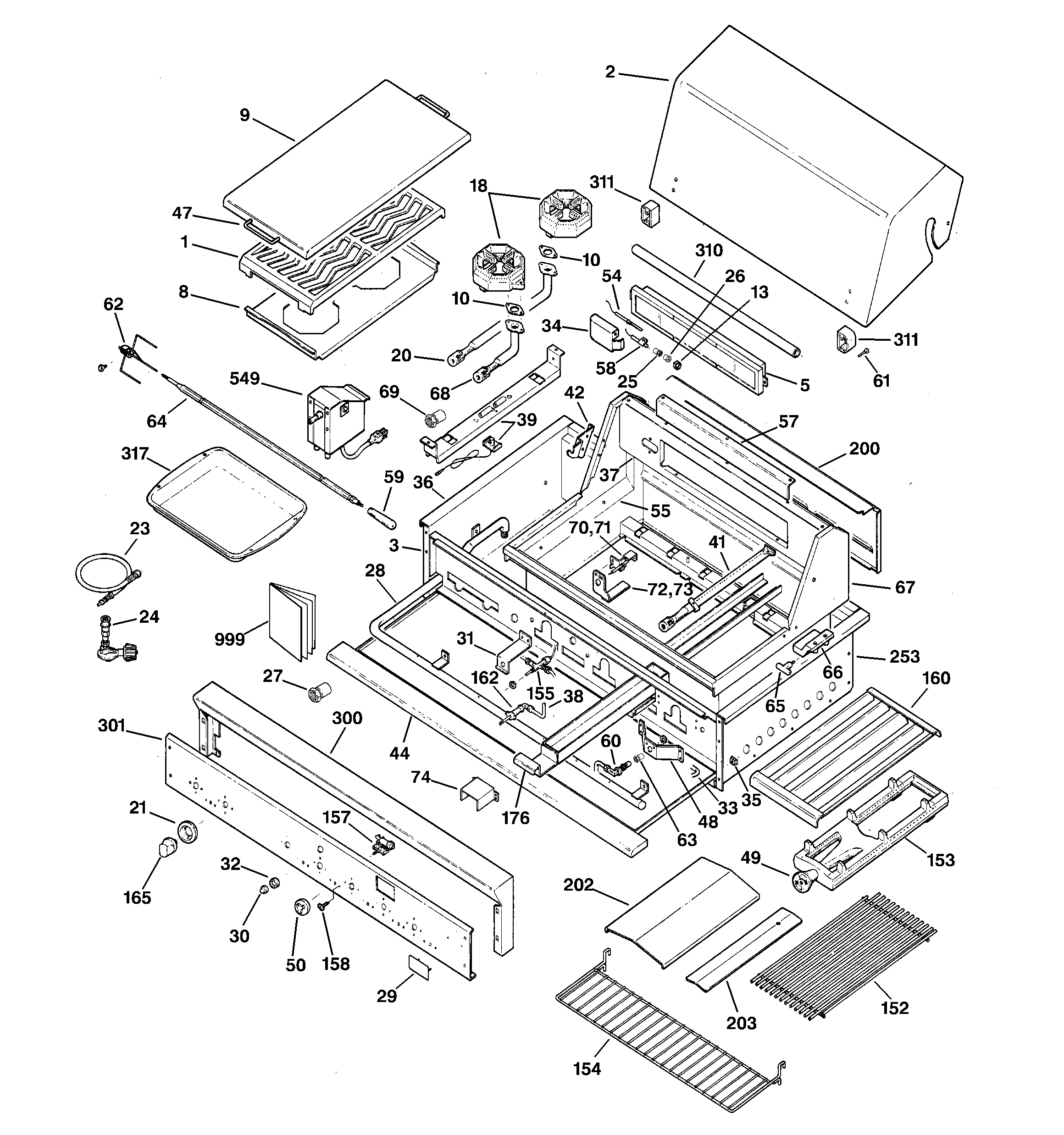

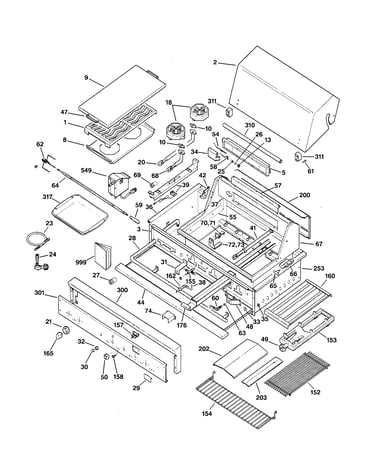

Gas grill parts diagram

Gas grill radiant tray

Part #WB02X10661

$272.22 |
$12.00 OFF Phone Price : $284.22
In Stock
Monogram Logo WB02X10349
#29

Gas grill parts diagram

Monogram logo

Part #WB02X10349

$21.49
In Stock
Gas Grill H-burner WB28X10021
#153

Gas grill parts diagram

Gas grill h-burner

Part #WB28X10021

$249.52 |
5% OFF Phone Price : $261.52
In Stock
Zgg24+ Outdo 49-8965
#999

Gas grill parts diagram

Zgg24+ outdo

Part #49-8965

Replaced by #049-80376

?
Manufacturer substitution
This part replaces 49-8965. Substitute parts can look different from the original.
$17.99
In Stock
Bracket WB02X10663
#73

Gas grill parts diagram

Bracket

Part #WB02X10663

The manufacturer no longer makes this part, and there's no substitute part

Safety Bezel WB07X10041
#32

Gas grill parts diagram

Safety bezel

Part #WB07X10041

The manufacturer no longer makes this part, and there's no substitute part

Venturi WB38X10006
#20

Gas grill parts diagram

Venturi

Part #WB38X10006

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Smoker Drawer WB32X10002
#176

Gas grill parts diagram

Gas grill smoker drawer

Part #WB32X10002

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Rotisserie Motor WB26X10014
#549

Gas grill parts diagram

Gas grill rotisserie motor

Part #WB26X10014

The manufacturer no longer makes this part, and there's no substitute part

Screw WB01X10217
#158

Gas grill parts diagram

Screw

Part #WB01X10217

The manufacturer no longer makes this part, and there's no substitute part
