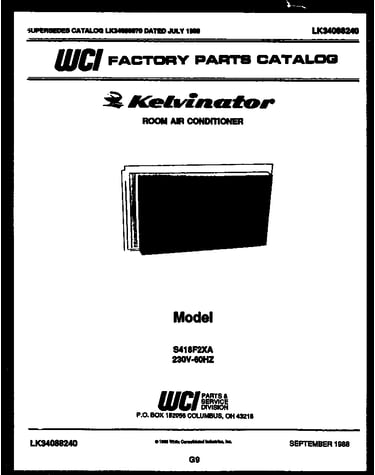

Model # S418F2XA Official Kelvinator room air conditioner - lk34088240

Here are the diagrams and repair parts for Official Kelvinator S418F2XA room air conditioner - lk34088240, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Filter Drier 3017429

#NI

All parts diagram

Filter drier

Part #3017429

Replaced by #5300265301

?
Manufacturer substitution
This part replaces 3017429. Substitute parts can look different from the original.
$212.62
In Stock
Divider 3015321
#7

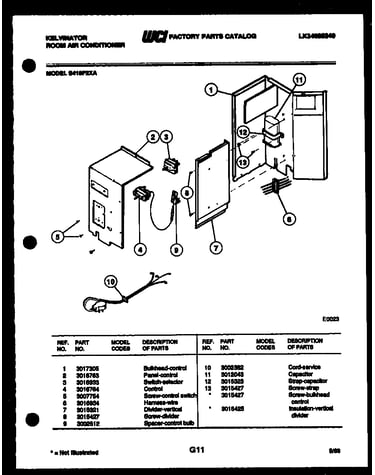

Cabinet and installation parts diagram

Divider

Part #3015321

This item is not returnable
$4.79
In Stock
Cover 3002067
#4

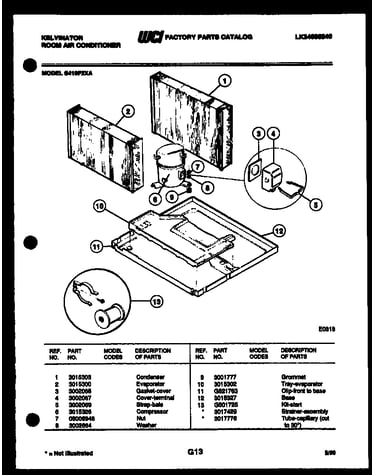

System parts diagram

Cover

Part #3002067

Replaced by #5303002067

?
Manufacturer substitution
This part replaces 3002067. Substitute parts can look different from the original.
$14.32
In Stock
Compressor 3015326
#6

System parts diagram

Compressor

Part #3015326

Replaced by #5304429203

?
Manufacturer substitution
This part replaces 3015326. Substitute parts can look different from the original.
$323.33
In Stock
Screw 3015294
#1A

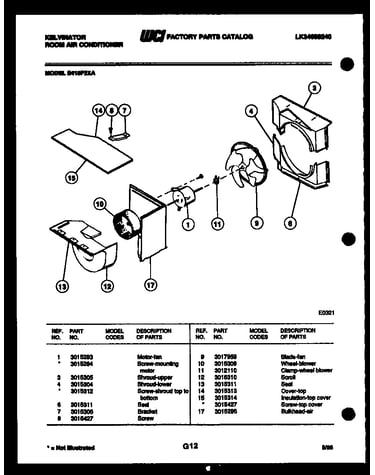

Air handling parts diagram

Screw

Part #3015294

Replaced by #5303015294

?
Manufacturer substitution
This part replaces 3015294. Substitute parts can look different from the original.
This item is not returnable
$2.34
In Stock
Screw 3015427
Screw

Part #3015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 3015427. Substitute parts can look different from the original.
$14.69
In Stock
Bracket Screw 3015312
#4A

Air handling parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Spacer 3002512
#9

Cabinet and installation parts diagram

Spacer

Part #3002512

Replaced by #5303211009

?
Manufacturer substitution
This part replaces 3002512. Substitute parts can look different from the original.
This item is not returnable
$3.24
In Stock
Washer 3002664
#8

System parts diagram

Washer

Part #3002664

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 3015315
#1

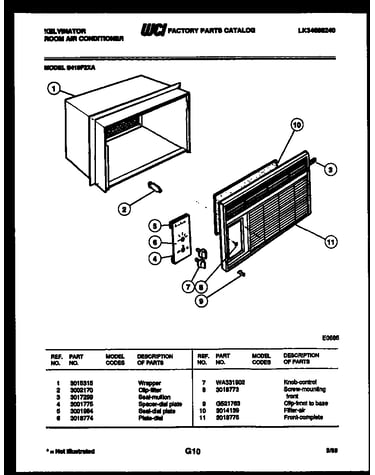

Cabinet parts diagram

Wrapper

Part #3015315

The manufacturer no longer makes this part, and there's no substitute part
