Model # AJ807FMP1 Official GE air conditioner

Here are the diagrams and repair parts for Official GE AJ807FMP1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 147 parts  |
Screw WZ4X288
#959

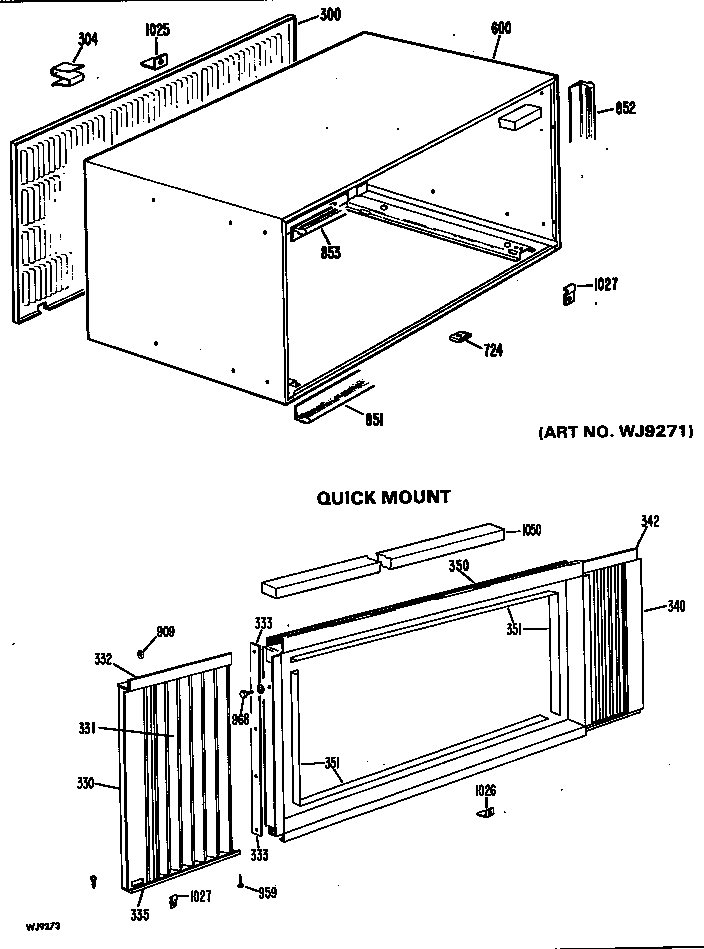

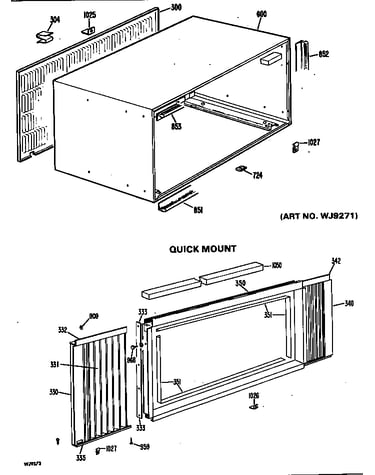

Cabinets diagram

Screw

Part #WZ4X288

This item is not returnable
$3.49
In Stock
Screw WZ5X153

#NI

All parts diagram

Screw

Part #WZ5X153

This item is not returnable
$2.49
In Stock
Clamp WJ3X284
#181

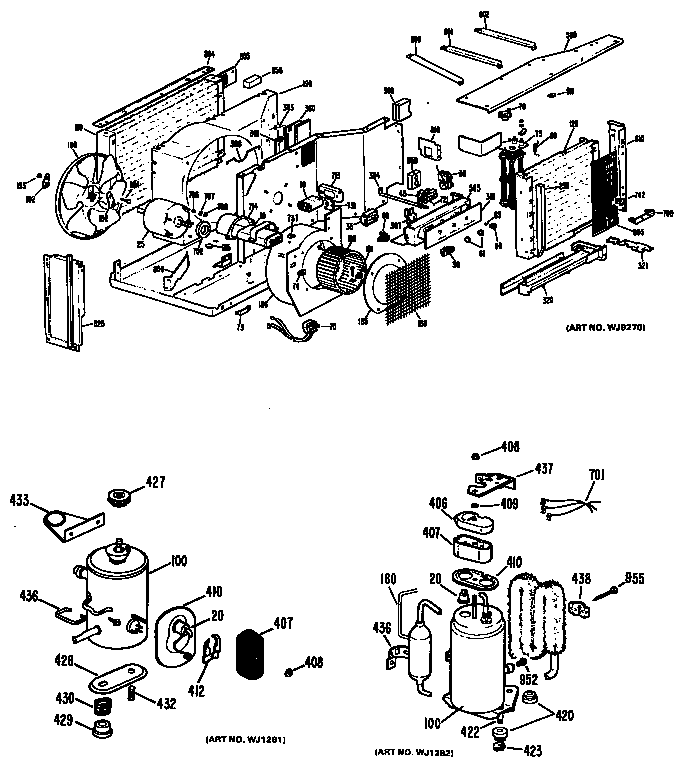

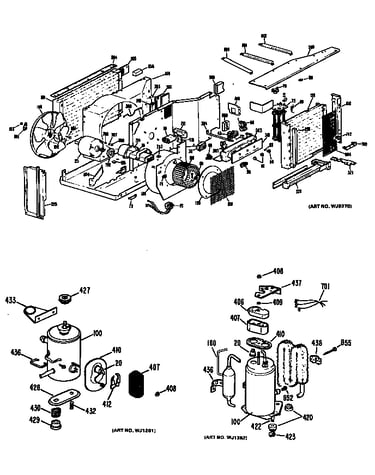

Chassis assembly diagram

Clamp

Part #WJ3X284

This item is not returnable
$3.99
In Stock
Louver Vert WJ71X232
#207B

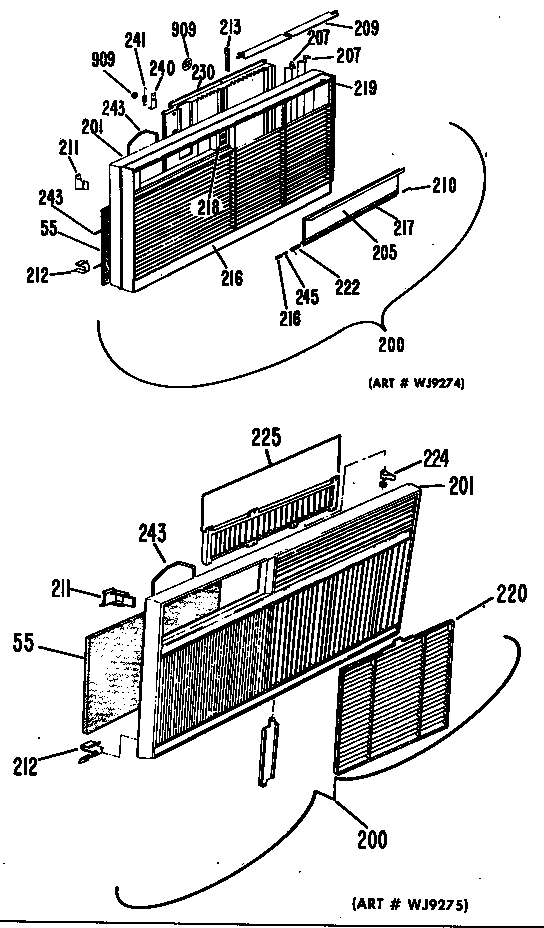

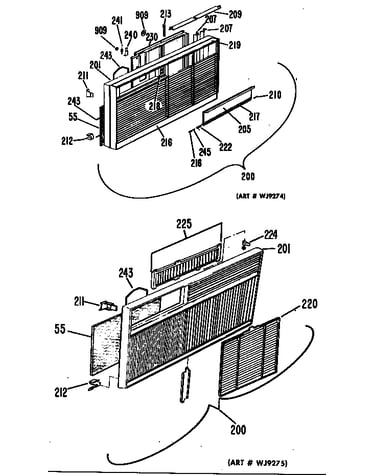

Grille diagram

Louver vert

Part #WJ71X232

This item is not returnable
$2.49
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Retaining Ring WJ2X281
Retaining ring

Part #WJ2X281

This item is not returnable
$2.29
In Stock
Rear Grille WJ71X172
#300

Cabinets diagram

Rear grille

Part #WJ71X172

Replaced by #RAG13A

?
Manufacturer substitution
This part replaces WJ71X172. Substitute parts can look different from the original.
$37.79 |
14% OFF Phone Price : $43.79
In Stock
Clip WJ2X360
#423

Chassis assembly diagram

Clip

Part #WJ2X360

The manufacturer no longer makes this part, and there's no substitute part

Grille Frame WJ71X795
#201

Grille diagram

Grille frame

Part #WJ71X795

The manufacturer no longer makes this part, and there's no substitute part

Deflector WJ65X266
#806

Chassis assembly diagram

Deflector

Part #WJ65X266

The manufacturer no longer makes this part, and there's no substitute part
