Model # ZR600A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon ZR600A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 74 parts  |
Reflector DA3-3936-000
#2

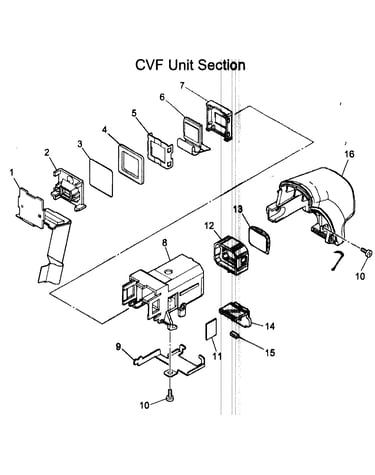

Cvf assy diagram

Reflector

Part #DA3-3936-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA3-3909-000
#2

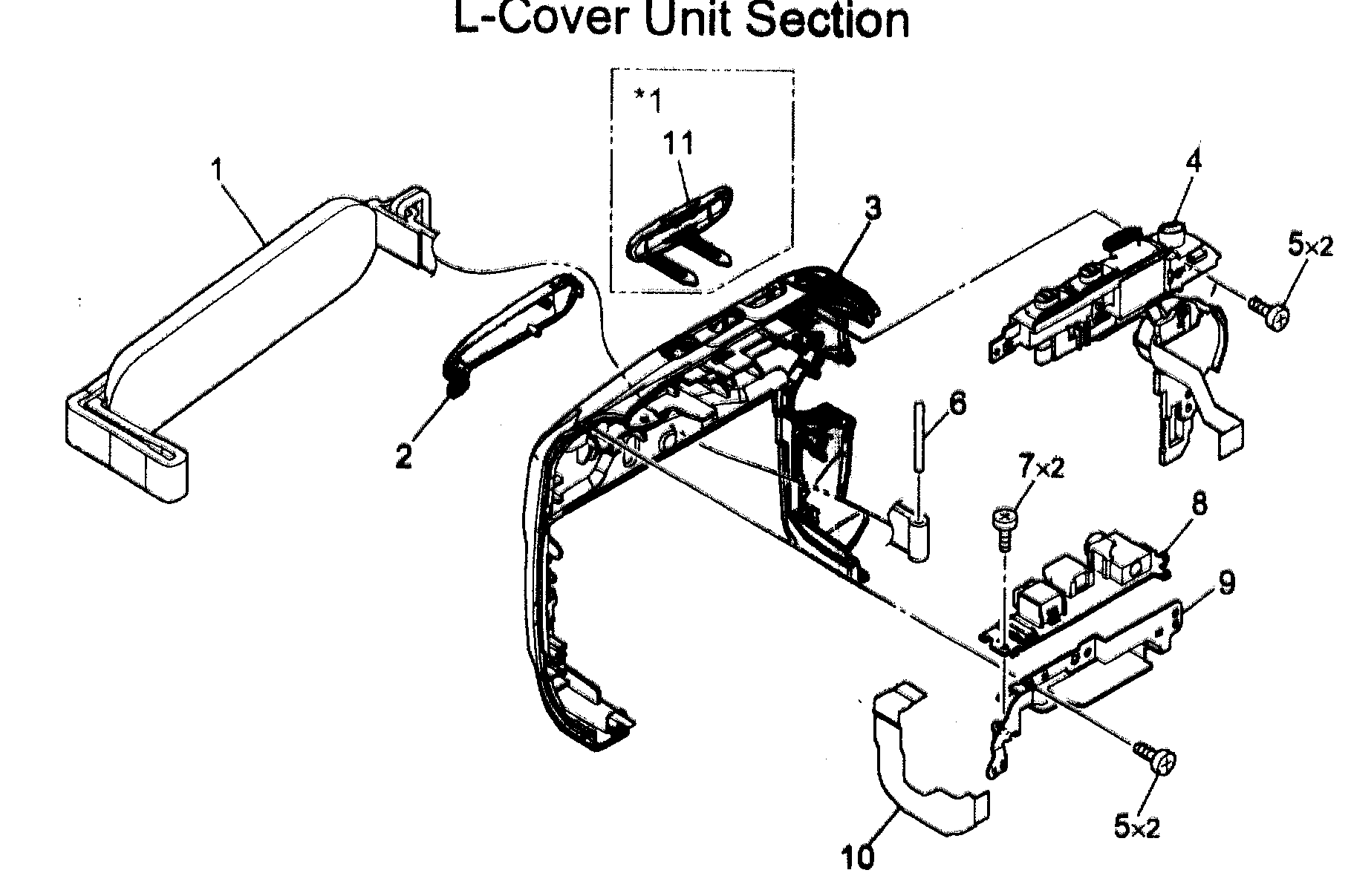

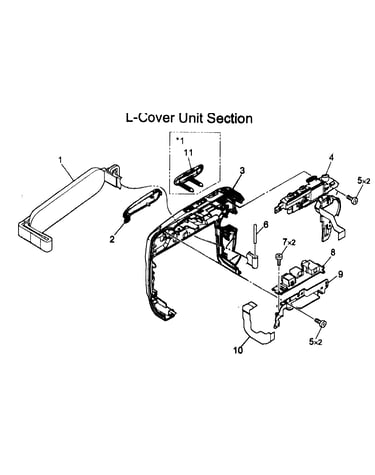

L-cover parts diagram

Canon cover

Part #DA3-3909-000

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly DG3-1440-000
#14

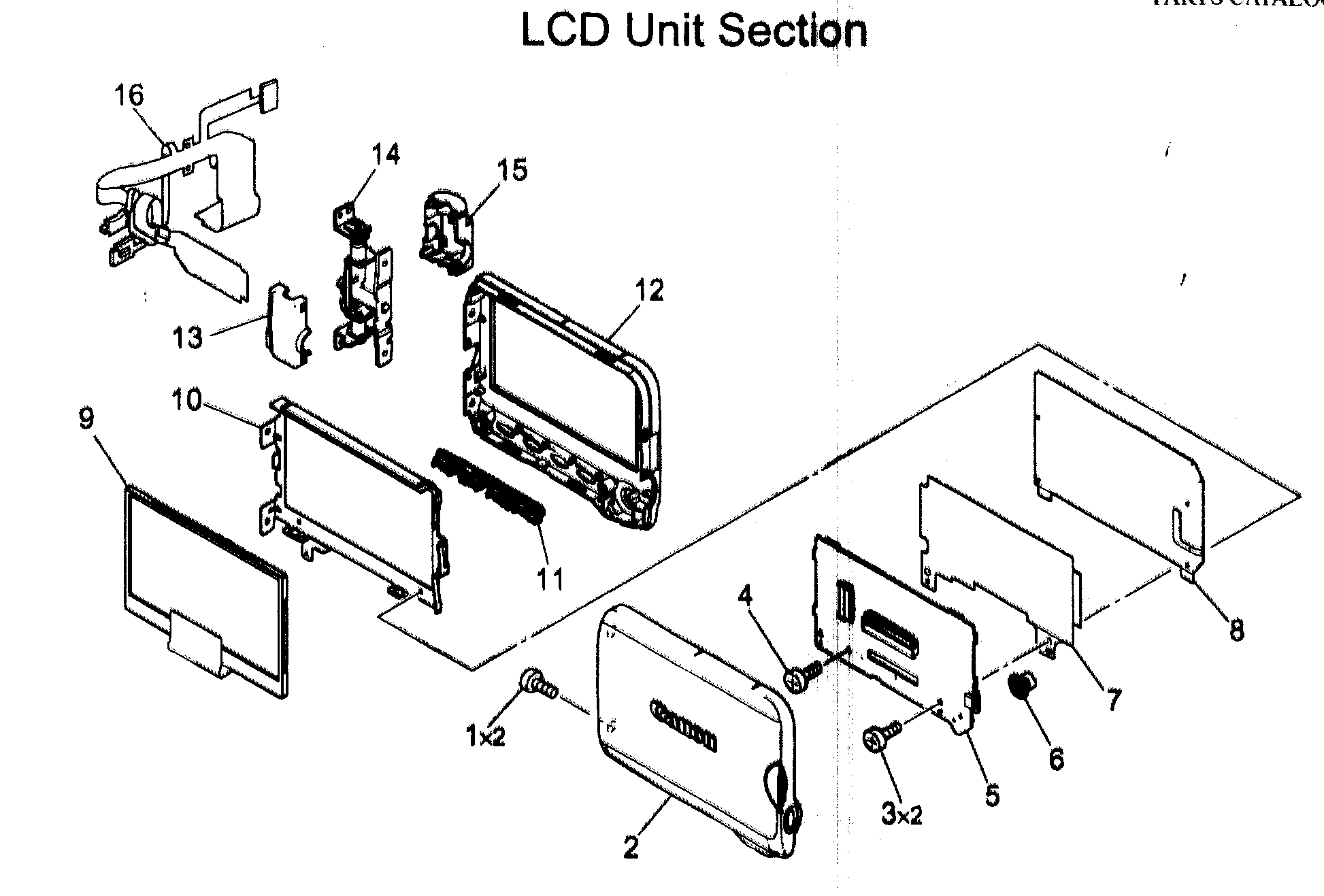

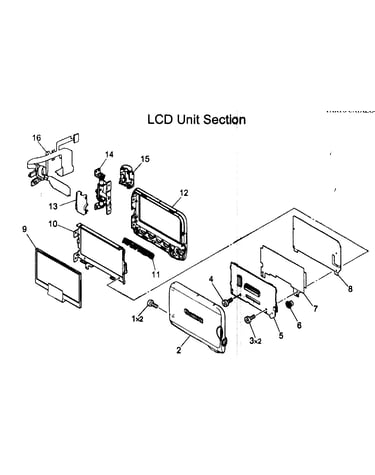

Lcd unit diagram

Hinge assembly

Part #DG3-1440-000

The manufacturer no longer makes this part, and there's no substitute part

Idler Assembly DF1-1703-000
#NI

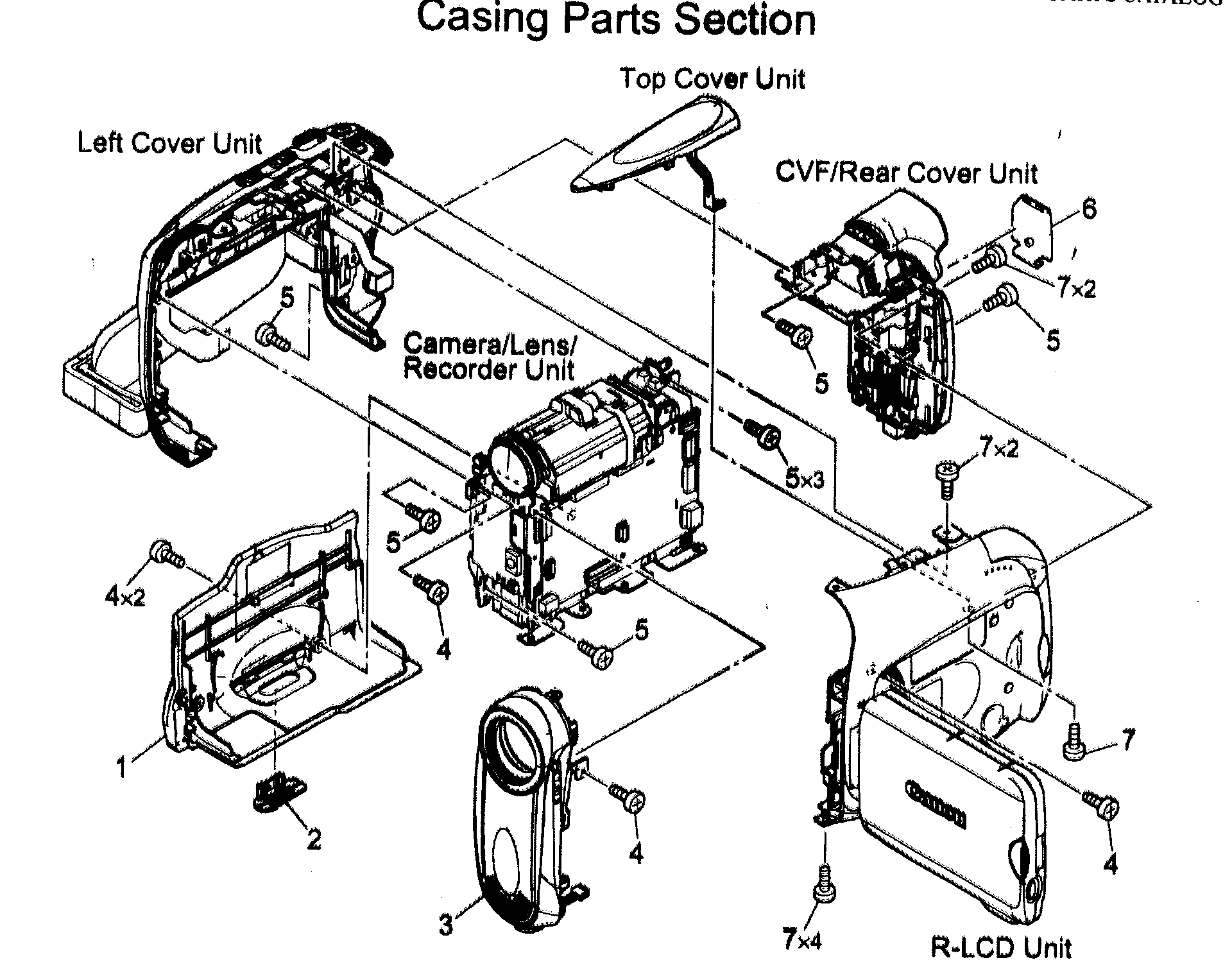

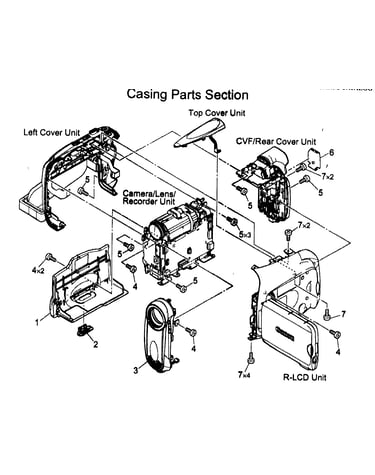

Casing parts diagram

Idler assembly

Part #DF1-1703-000

The manufacturer no longer makes this part, and there's no substitute part

Base DA3-4003-000
#4

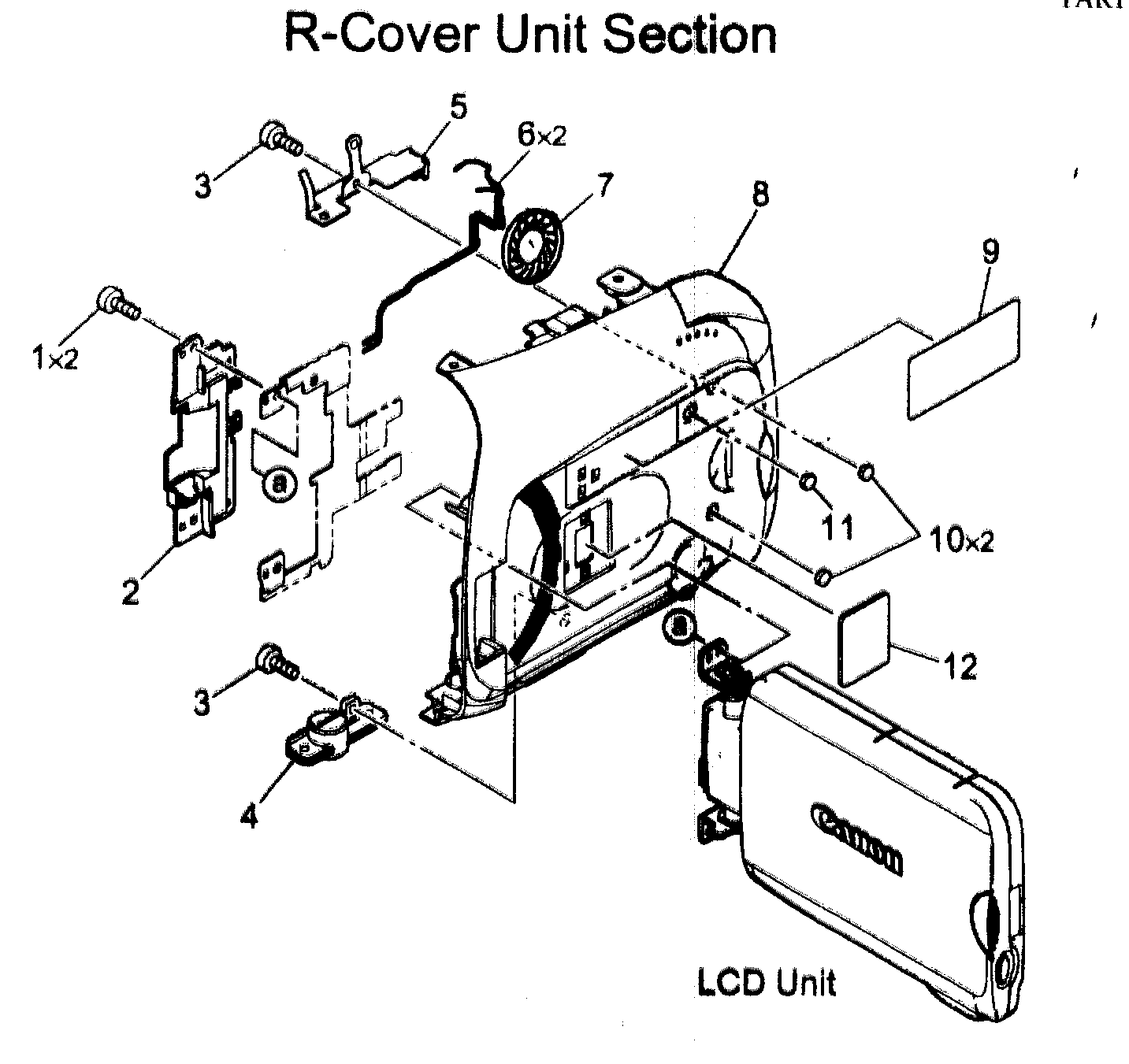

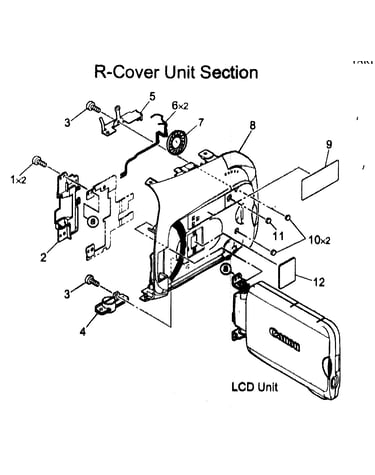

R-cover parts diagram

Base

Part #DA3-4003-000

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly DG3-1446-000
#5

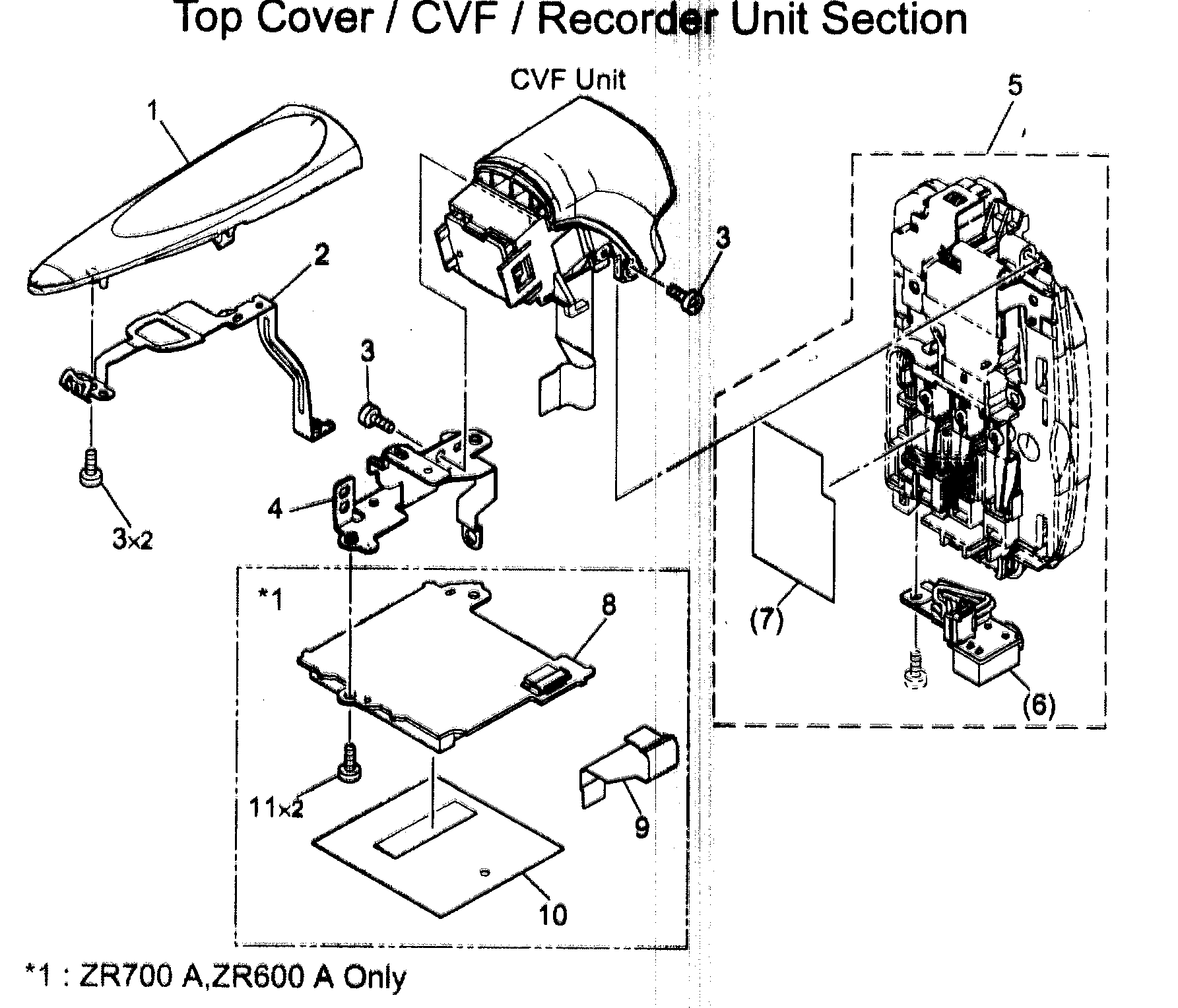

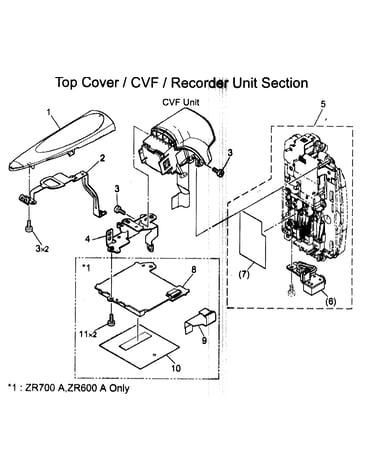

Top assy diagram

Cover assembly

Part #DG3-1446-000

The manufacturer no longer makes this part, and there's no substitute part

Lcd Dsp WG2-5292-000
#9A

Lcd unit diagram

Lcd dsp

Part #WG2-5292-000

The manufacturer no longer makes this part, and there's no substitute part

Cover DA3-4019-000
#2

Top assy diagram

Cover

Part #DA3-4019-000

The manufacturer no longer makes this part, and there's no substitute part

Reel Assembly DG1-4505-000
#NI

Casing parts diagram

Reel assembly

Part #DG1-4505-000

The manufacturer no longer makes this part, and there's no substitute part

Fpc Cable DH2-5497-000
#7

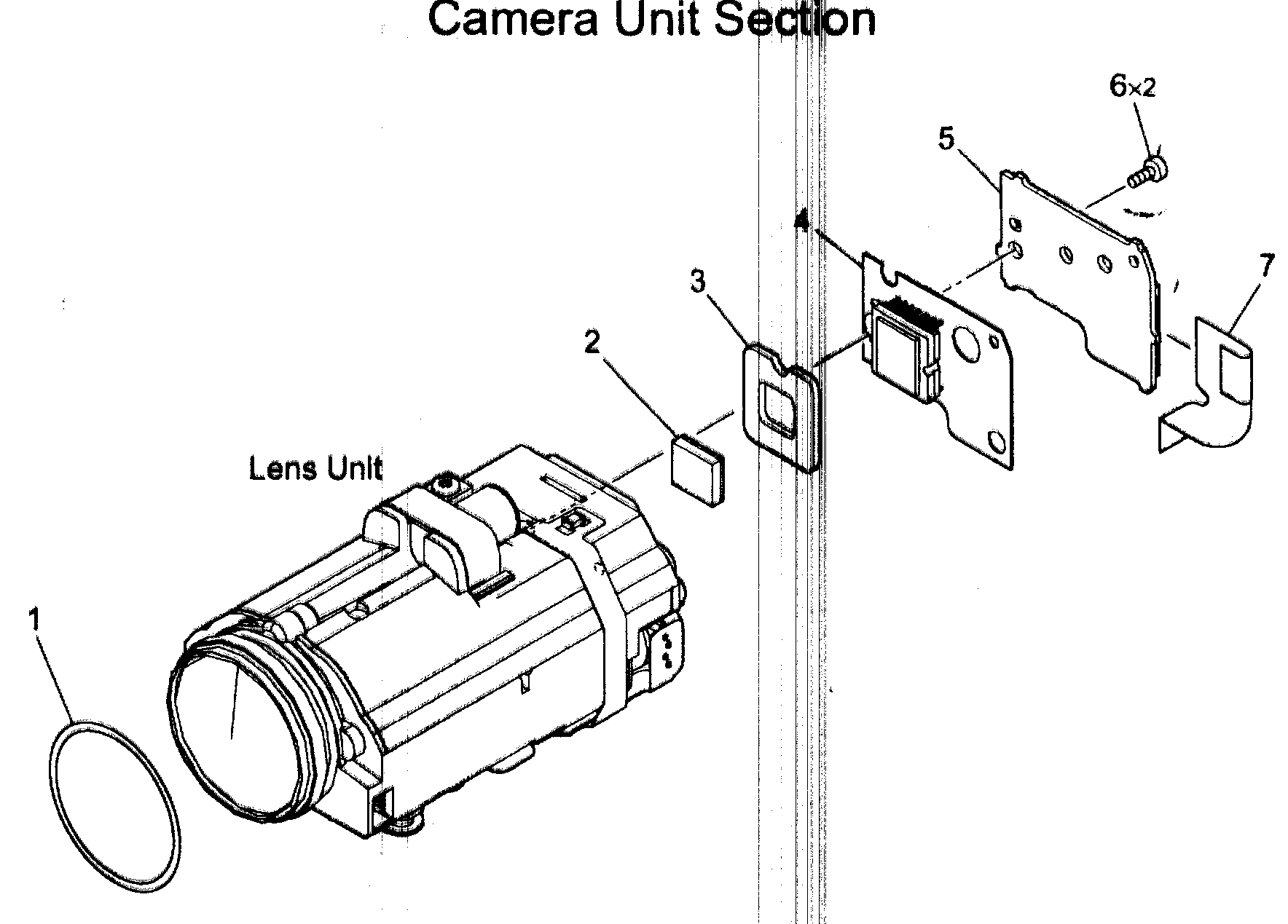

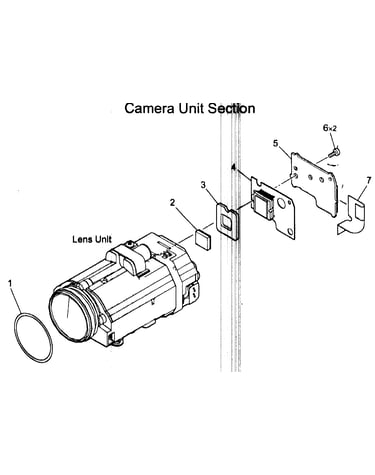

Camera assy diagram

Fpc cable

Part #DH2-5497-000

The manufacturer no longer makes this part, and there's no substitute part
