Sharp
Upright Vacuum

Model # EC-14TWT9 Official Sharp vacuum cleaner

Here are the diagrams and repair parts for Official Sharp EC-14TWT9 vacuum cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

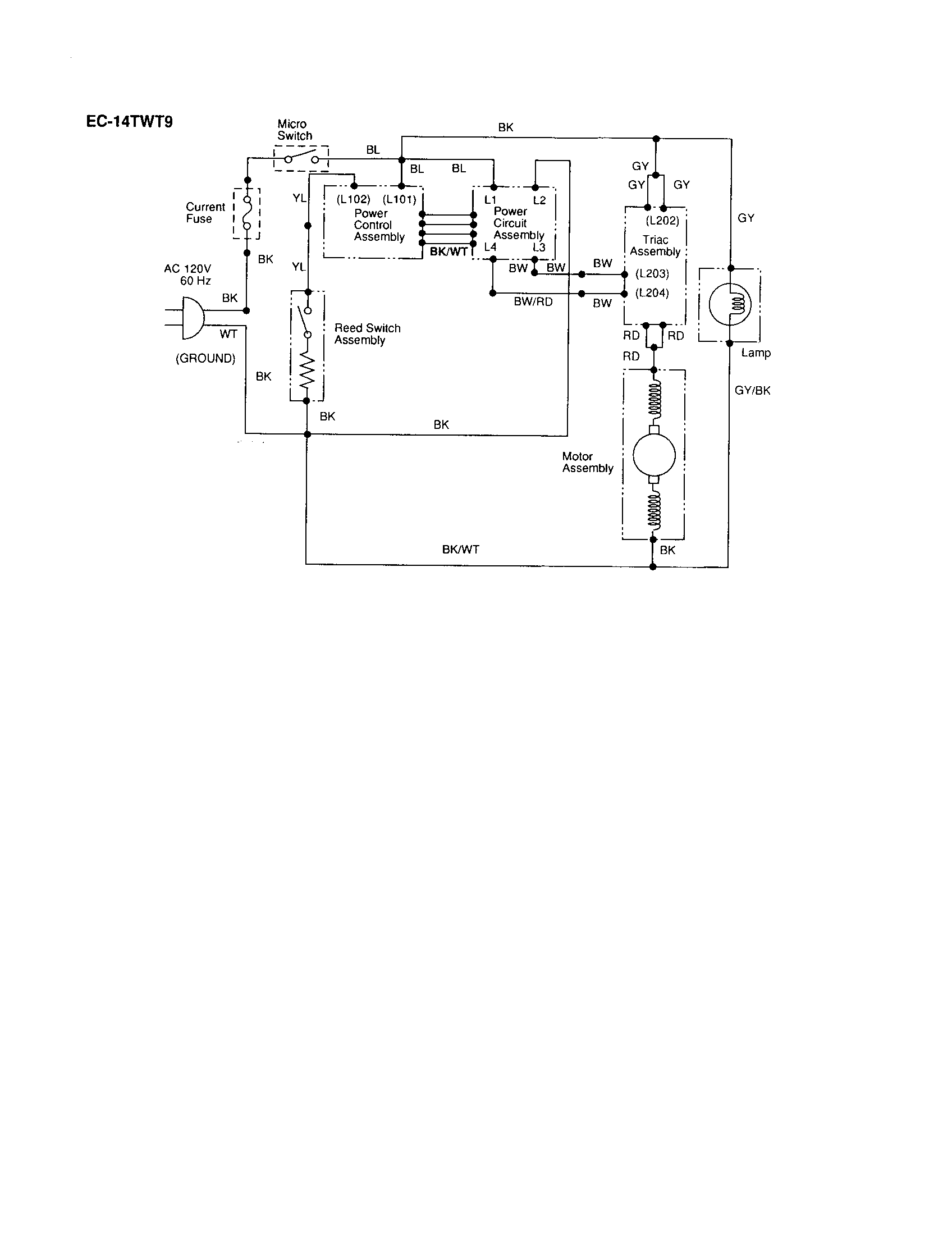

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 173 parts  |
Hanger (bottom) PHAG-A013VBFA
#3-05

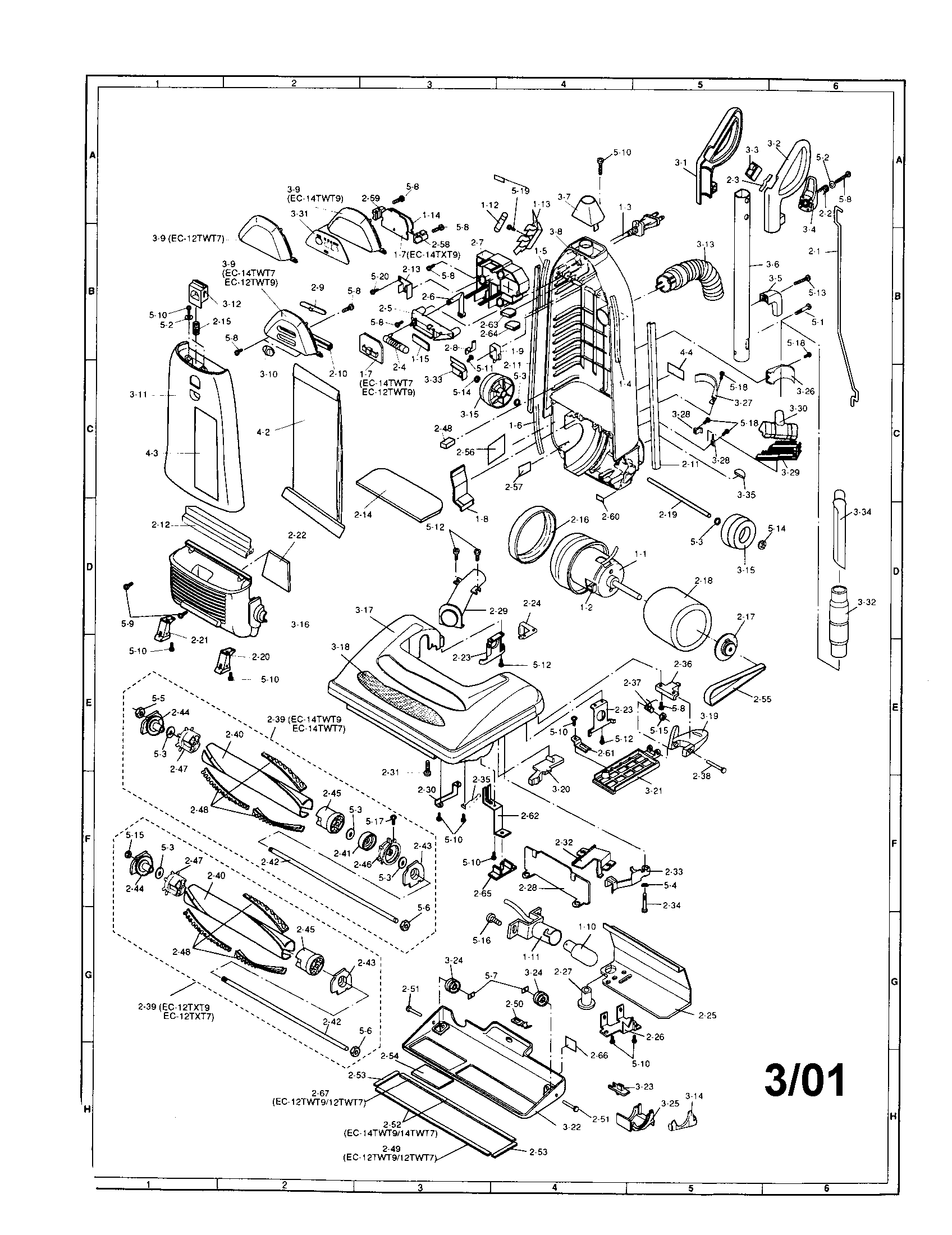

Upright vac diagram

Hanger (bottom)

Part #PHAG-A013VBFA

The manufacturer no longer makes this part, and there's no substitute part

Speed Washer LX-WZA012VBE0
#5-04

Upright vac diagram

Speed washer

Part #LX-WZA012VBE0

The manufacturer no longer makes this part, and there's no substitute part

Paper Bag PBAGSA021VBE0
#4-02

Upright vac diagram

Paper bag

Part #PBAGSA021VBE0

The manufacturer no longer makes this part, and there's no substitute part

Support FSTY-A003VBK0
#2-43

Upright vac diagram

Support

Part #FSTY-A003VBK0

The manufacturer no longer makes this part, and there's no substitute part

Body Seal PTPEHA007VBE0
#2-57

Upright vac diagram

Body seal

Part #PTPEHA007VBE0

The manufacturer no longer makes this part, and there's no substitute part

Screw; 4mm X 35mm XCBSD40P35000
#5-13

Upright vac diagram

Screw; 4mm x 35mm

Part #XCBSD40P35000

The manufacturer no longer makes this part, and there's no substitute part

Hose FHOS-A007VBKA
#3-13

Upright vac diagram

Hose

Part #FHOS-A007VBKA

The manufacturer no longer makes this part, and there's no substitute part

Belt EC-02BU3
#1

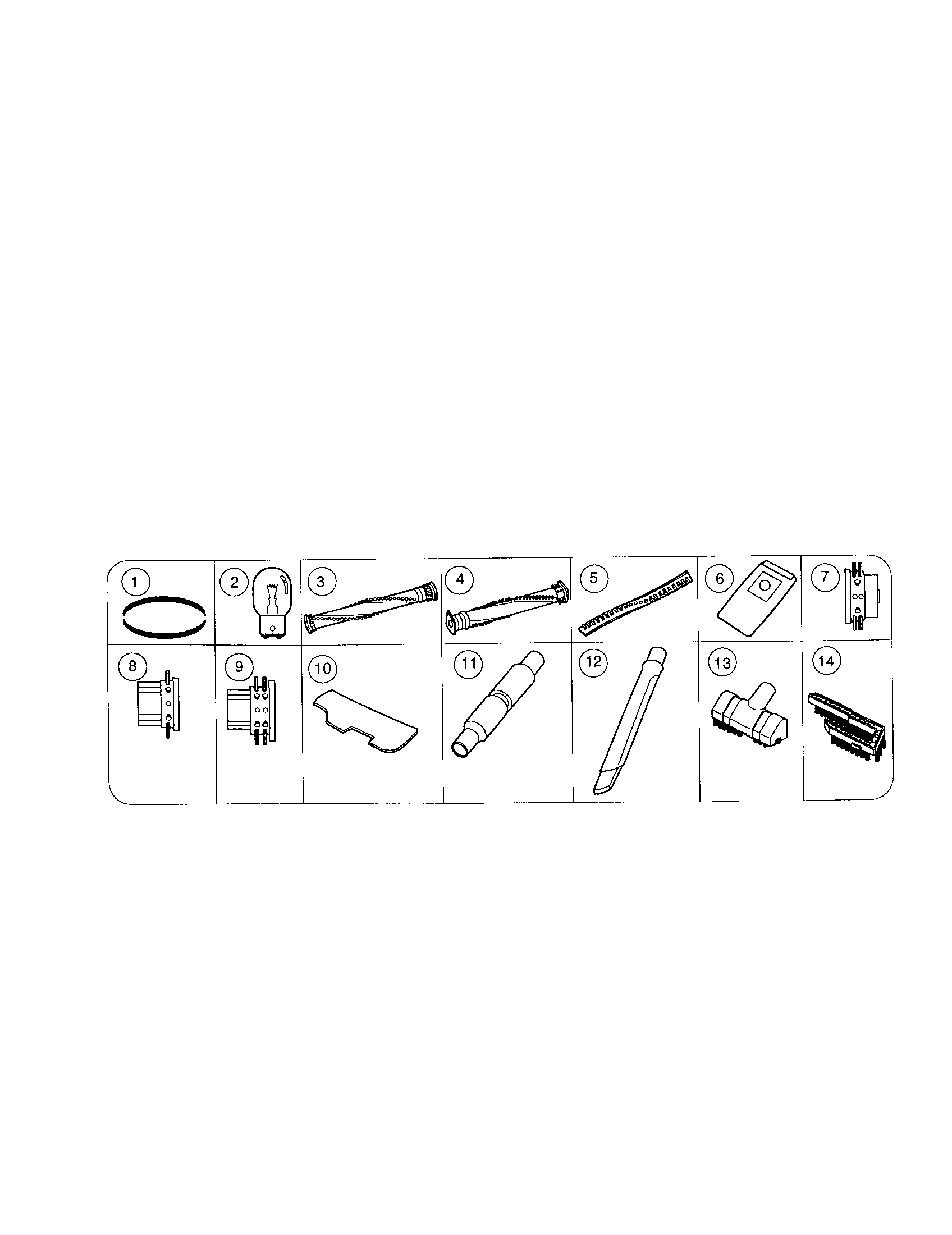

Accessories diagram

Belt

Part #EC-02BU3

The manufacturer no longer makes this part, and there's no substitute part

Knob JKNB-A031VBFA
#3-23

Upright vac diagram

Knob

Part #JKNB-A031VBFA

The manufacturer no longer makes this part, and there's no substitute part

Agitator S LSTY-A007VBF0
#2-44

Upright vac diagram

Agitator s

Part #LSTY-A007VBF0

The manufacturer no longer makes this part, and there's no substitute part
