Dynasty
Gas Grill

Model # WSBQ42FBT Official Dynasty outdoor grill

Here are the diagrams and repair parts for Official Dynasty WSBQ42FBT outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Broiler Pan 70001090
#3

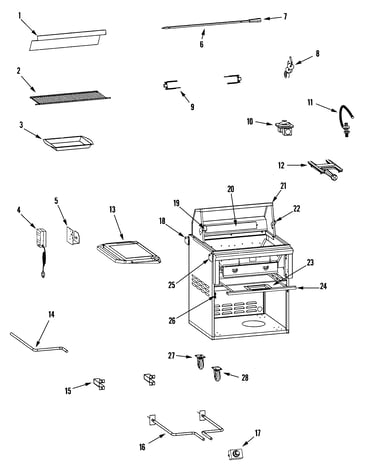

Burner tank diagram

Broiler pan

Part #70001090

Replaced by #4396923

?
Manufacturer substitution
This part replaces 70001090. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Drawer 70002303
#24

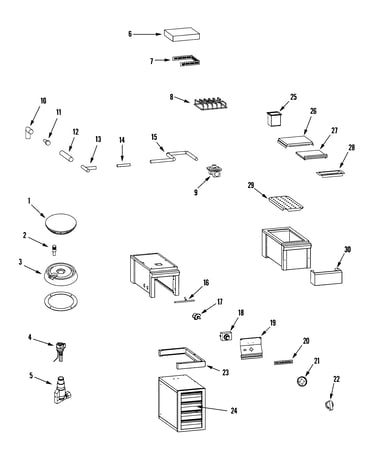

Side burner & bartender diagram

Drawer

Part #70002303

The manufacturer no longer makes this part, and there's no substitute part

Bracket Support 70002194
#6

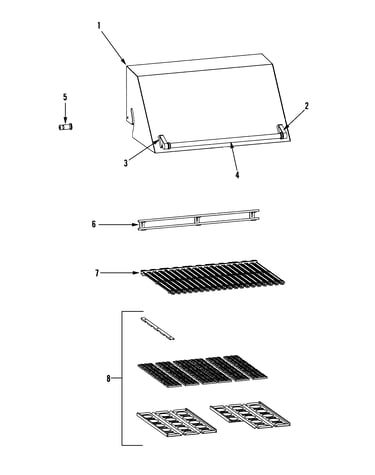

Hood & rack diagram

Bracket support

Part #70002194

The manufacturer no longer makes this part, and there's no substitute part

Line, Flex G 70001753
#1

Panel & door diagram

Line, flex g

Part #70001753

The manufacturer no longer makes this part, and there's no substitute part

Panel 70002245
#5A

Panel & door diagram

Panel

Part #70002245

The manufacturer no longer makes this part, and there's no substitute part

Tray, Radian 70002798
#8C

Hood & rack diagram

Tray, radian

Part #70002798

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Burner 70002056
#12

Burner tank diagram

Gas grill burner

Part #70002056

The manufacturer no longer makes this part, and there's no substitute part

Infrared Burner 70001717
#20

Burner tank diagram

Infrared burner

Part #70001717

The manufacturer no longer makes this part, and there's no substitute part

Pivot 70002187
#5

Hood & rack diagram

Pivot

Part #70002187

The manufacturer no longer makes this part, and there's no substitute part

Hood Front A 70002191
#1A

Hood & rack diagram

Hood front a

Part #70002191

The manufacturer no longer makes this part, and there's no substitute part
