Model # R51/P7311701M Official Amana microwave

Here are the diagrams and repair parts for Official Amana R51-P7311701M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Nut M0282005
Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Head Screw M0211217
Head screw

Part #M0211217

Replaced by #WP489464

?
Manufacturer substitution
This part replaces M0211217. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Screw M0229916
#5

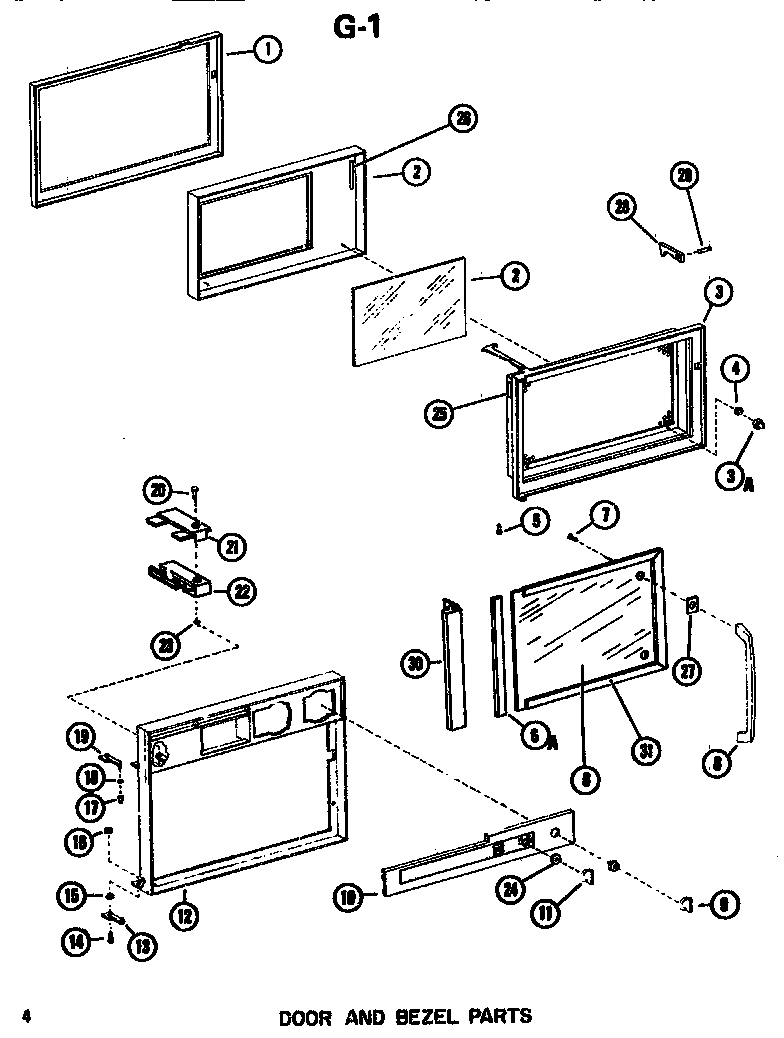

Door & bezel diagram

Screw

Part #M0229916

Replaced by #M0229916

?
Manufacturer substitution
This part replaces M0229916. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Blower Motor M0306702
#2

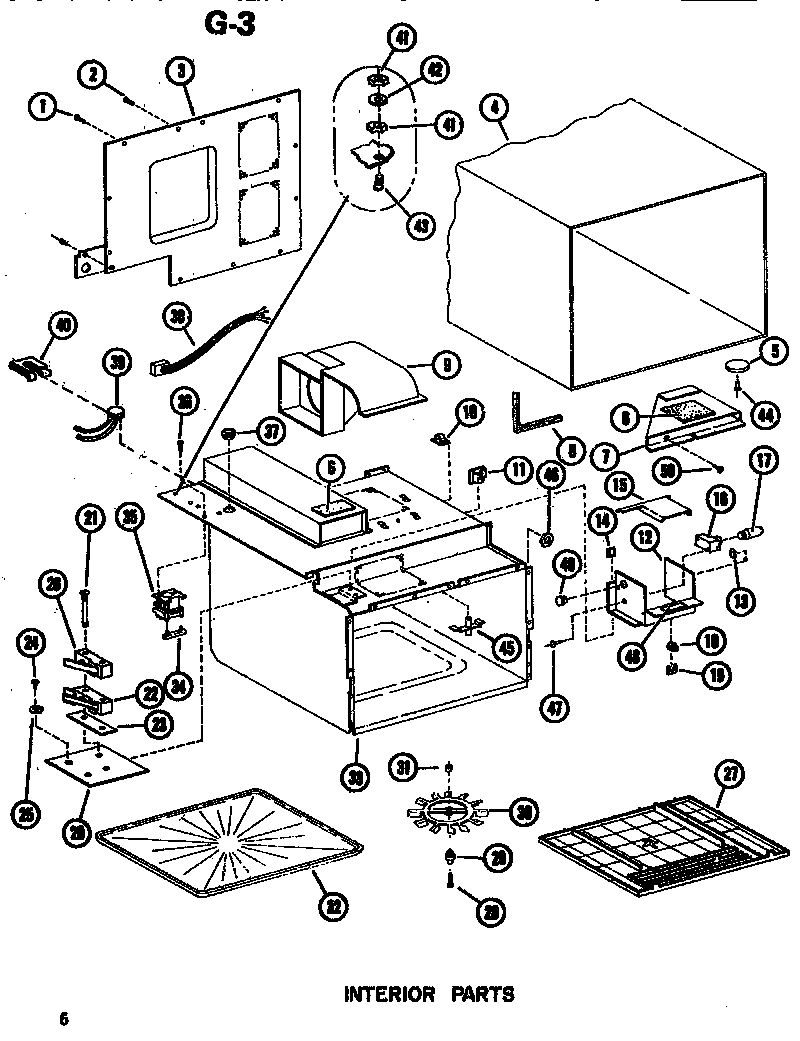

Interior diagram

Blower motor

Part #M0306702

The manufacturer no longer makes this part, and there's no substitute part

Blade, Blower Motor Cooling B5661801
#1

Interior diagram

Blade, blower motor cooling

Part #B5661801

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer M0272503
#25

Interior diagram

Lock washer

Part #M0272503

The manufacturer no longer makes this part, and there's no substitute part

Screw #6-20 X 1/2", Bracket M0230017
#5

Interior diagram

Screw #6-20 x 1/2", bracket

Part #M0230017

The manufacturer no longer makes this part, and there's no substitute part

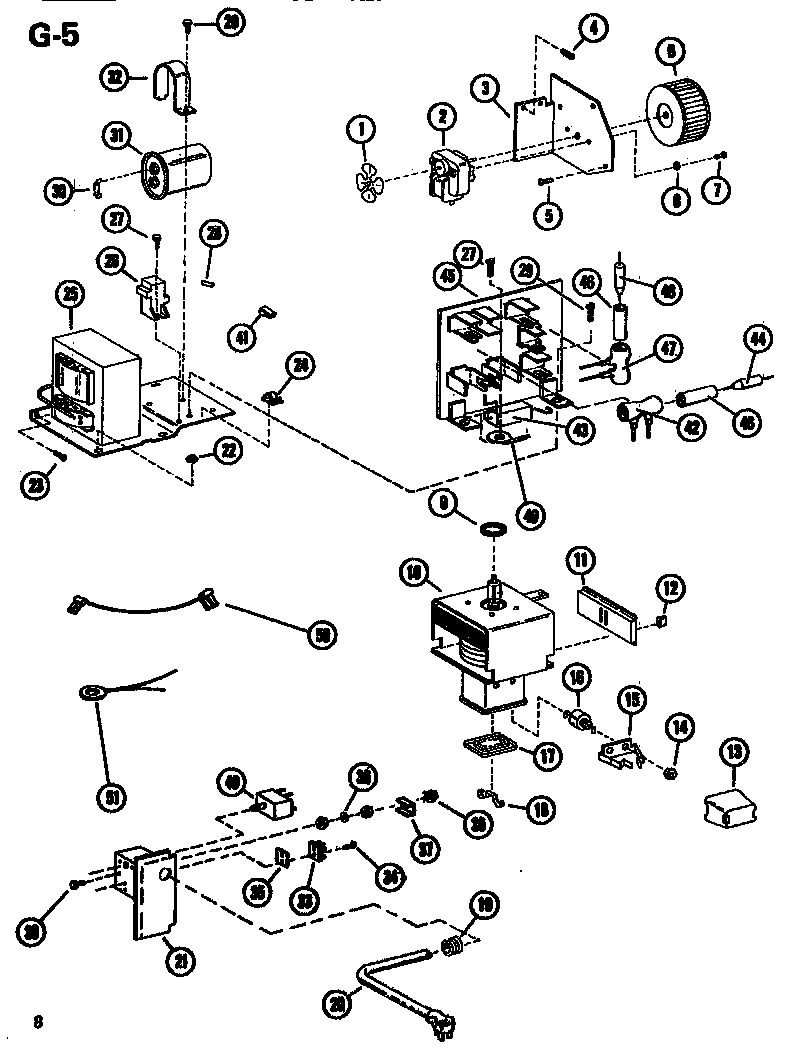

Insert, Button A3266308
#13

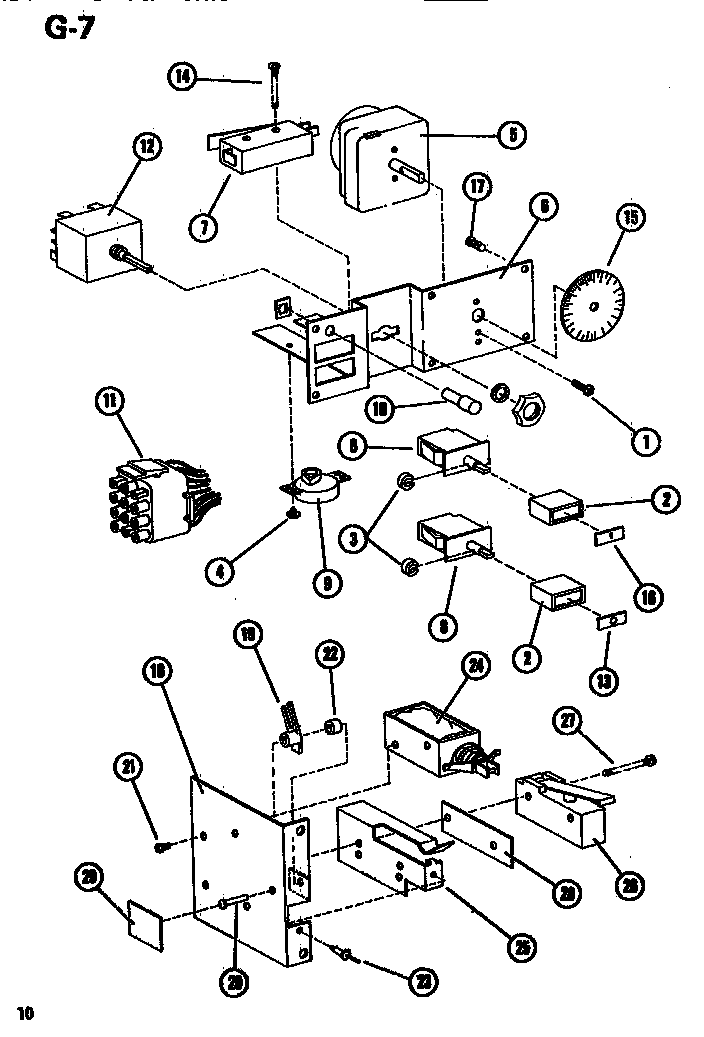

Electrical diagram

Insert, button

Part #A3266308

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Weldment Air C8758201
#7

Interior diagram

Baffle, weldment air

Part #C8758201

The manufacturer no longer makes this part, and there's no substitute part

Bushing, Bottom C8710901
#22

Door & bezel diagram

Bushing, bottom

Part #C8710901

The manufacturer no longer makes this part, and there's no substitute part
