Model # DCR-DVD850 Official Sony digital camcorder

Here are the diagrams and repair parts for Official Sony DCR-DVD850 digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

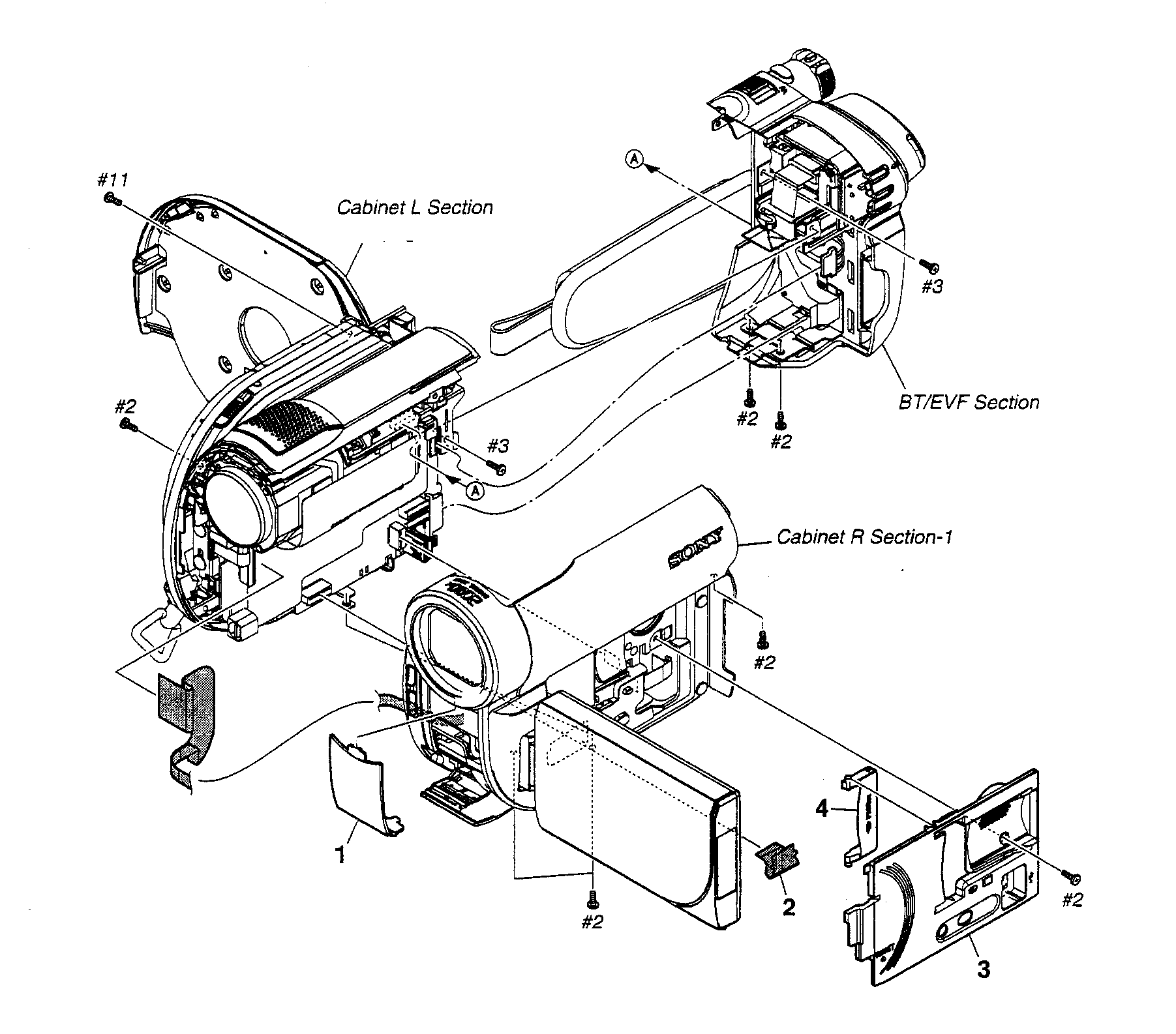

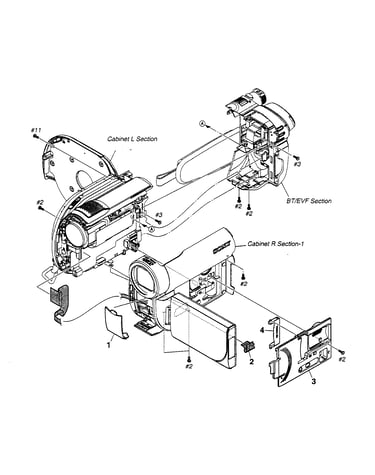

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 89 parts  |
Frame 269451601
#160

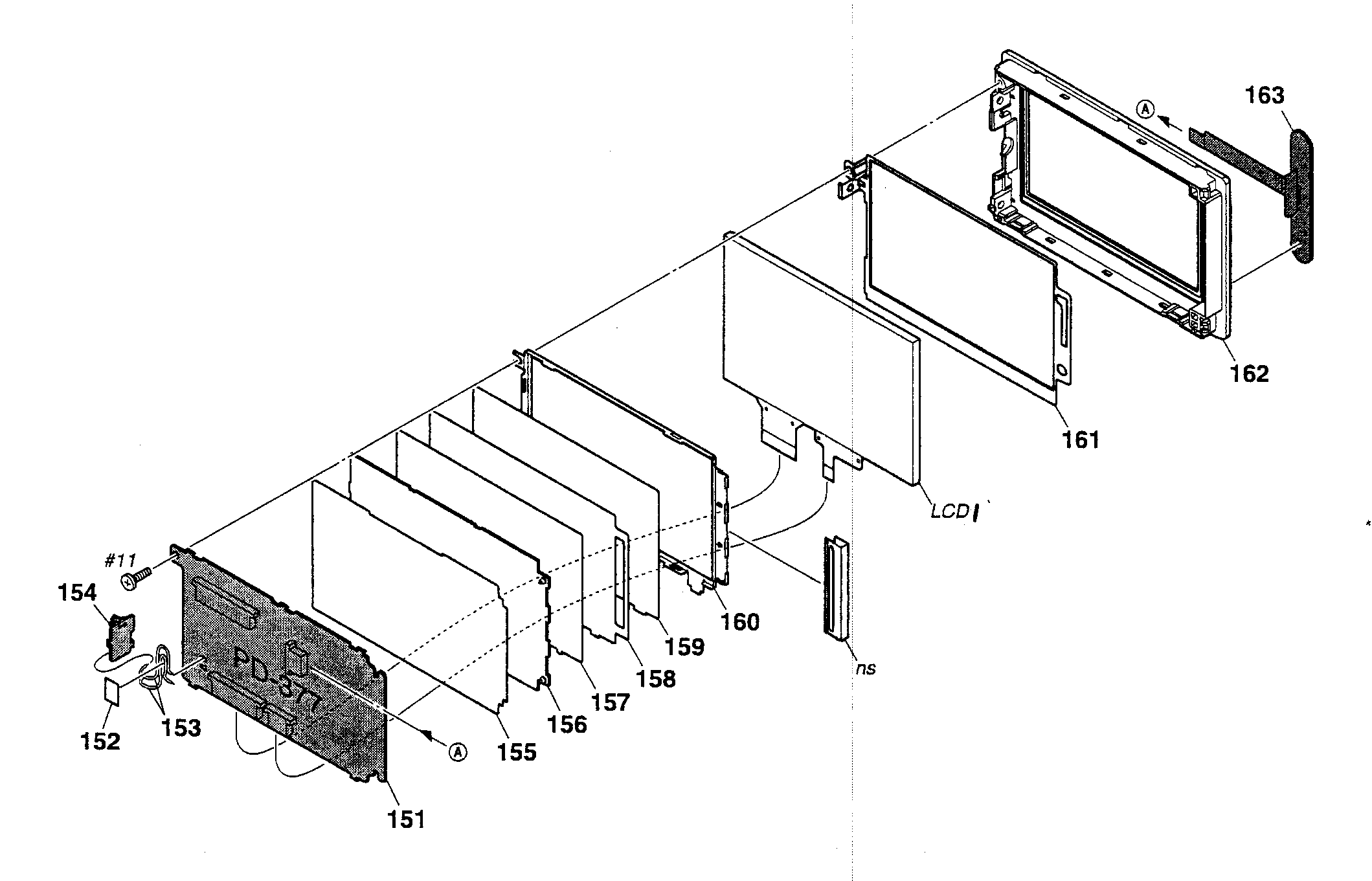

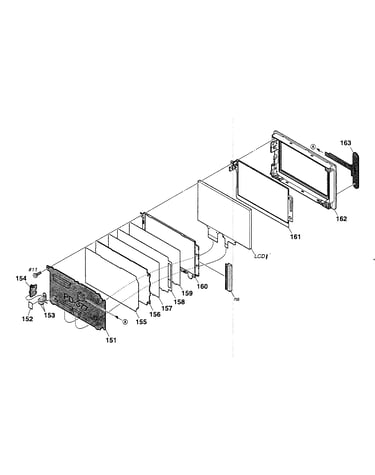

Lcd assy diagram

Frame

Part #269451601

The manufacturer no longer makes this part, and there's no substitute part

Inner Capacitor 289965801
#208

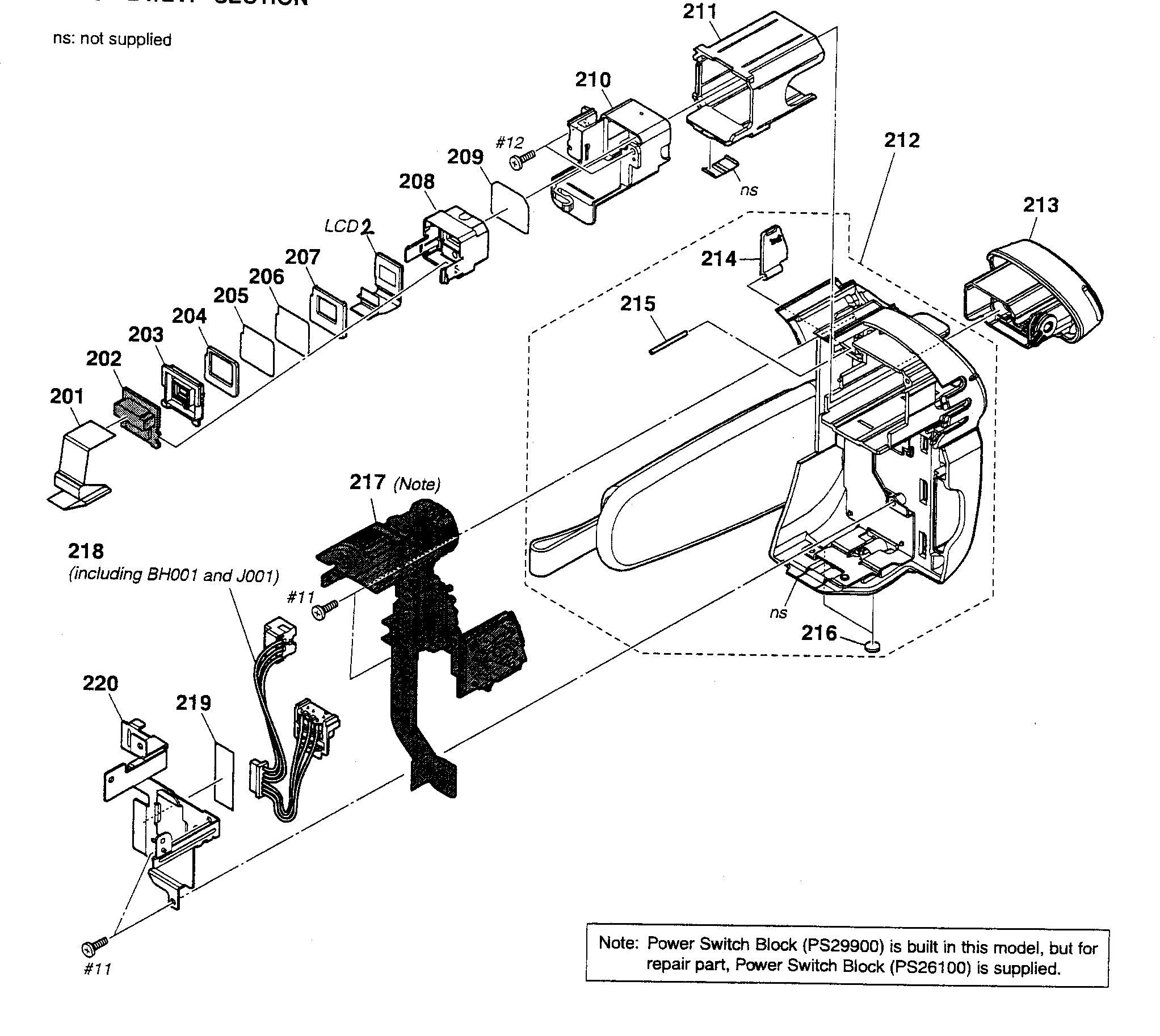

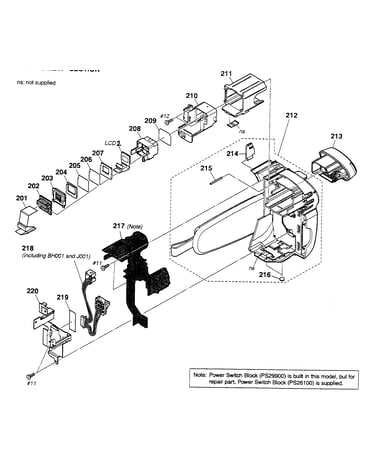

Evf assy diagram

Inner capacitor

Part #289965801

The manufacturer no longer makes this part, and there's no substitute part

Holder Microphone 328180801
#361

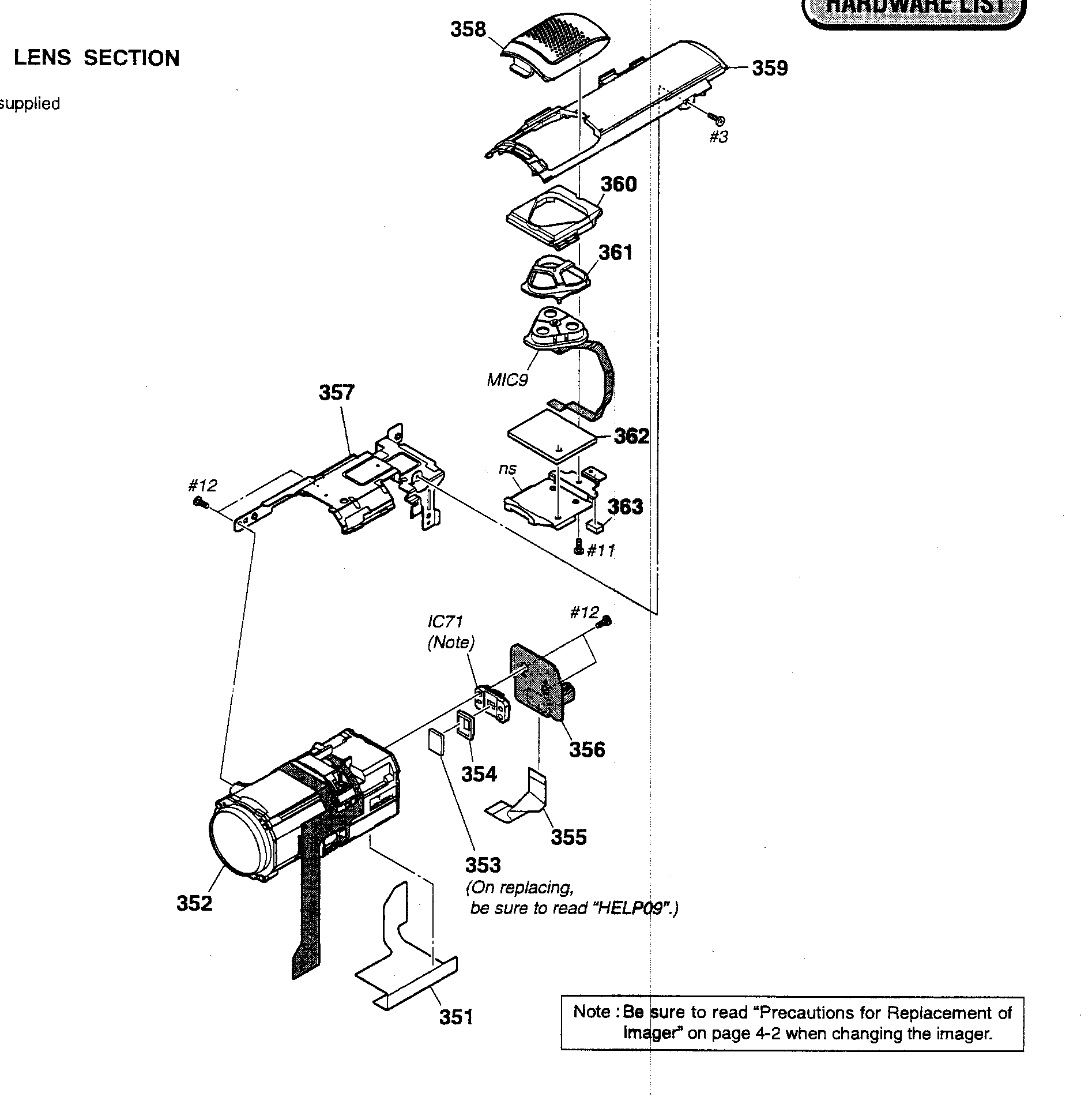

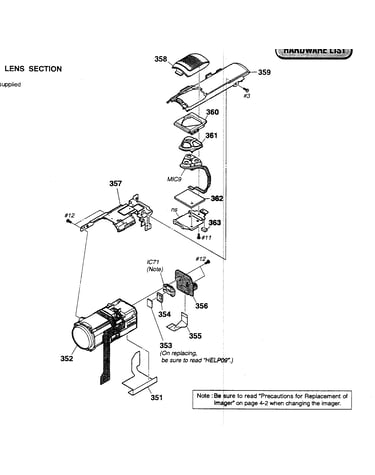

Lens assy diagram

Holder microphone

Part #328180801

The manufacturer no longer makes this part, and there's no substitute part

Flexible Pcb A1228528A
#254

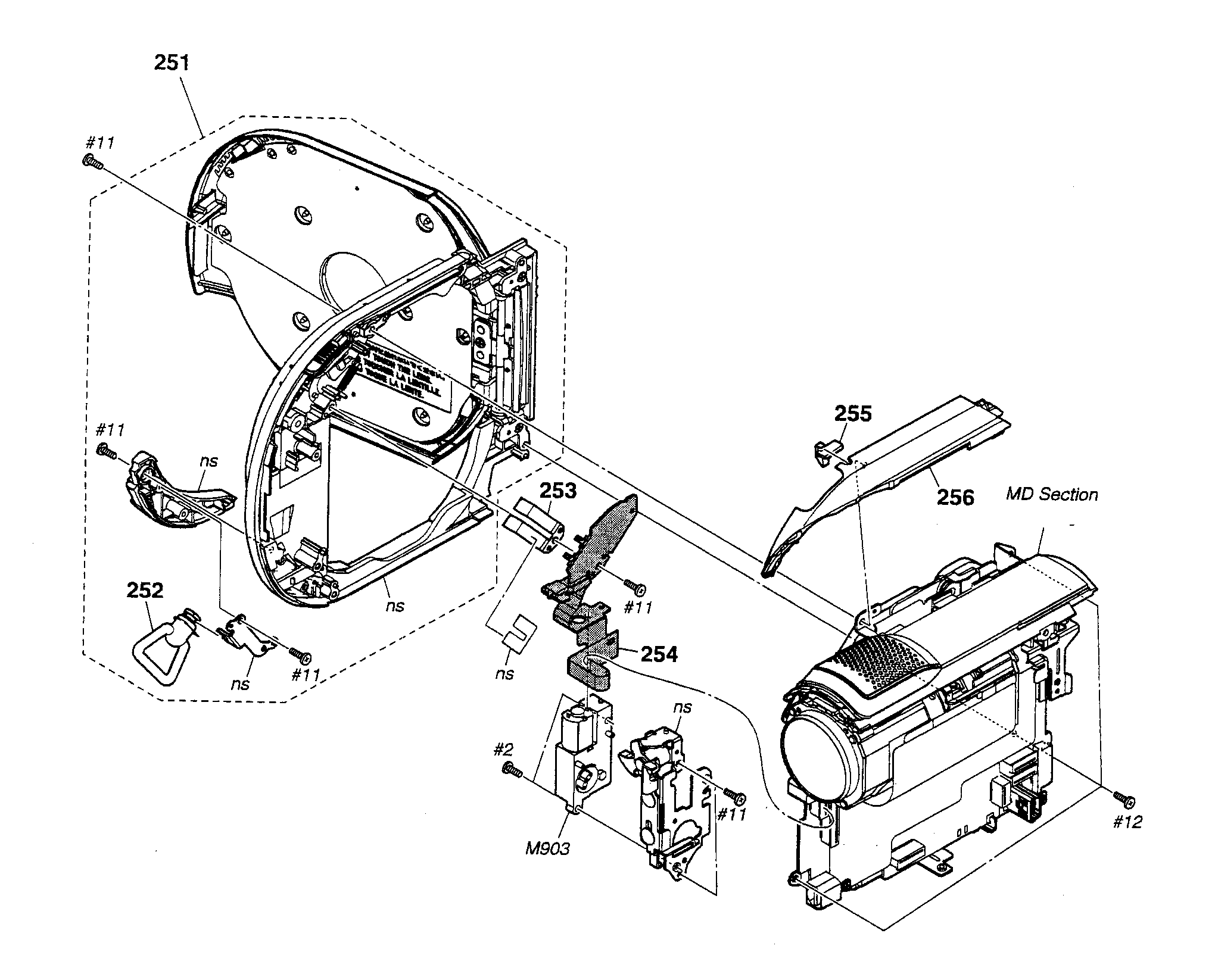

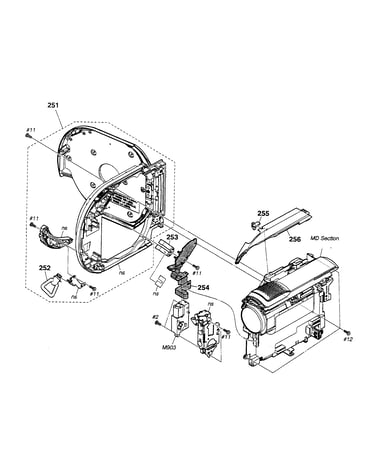

Left cabinet diagram

Flexible pcb

Part #A1228528A

The manufacturer no longer makes this part, and there's no substitute part

Panel-cf 289966001
#209

Evf assy diagram

Panel-cf

Part #289966001

The manufacturer no longer makes this part, and there's no substitute part

Screw 307889011
Screw

Part #307889011

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly A1563099A
#53

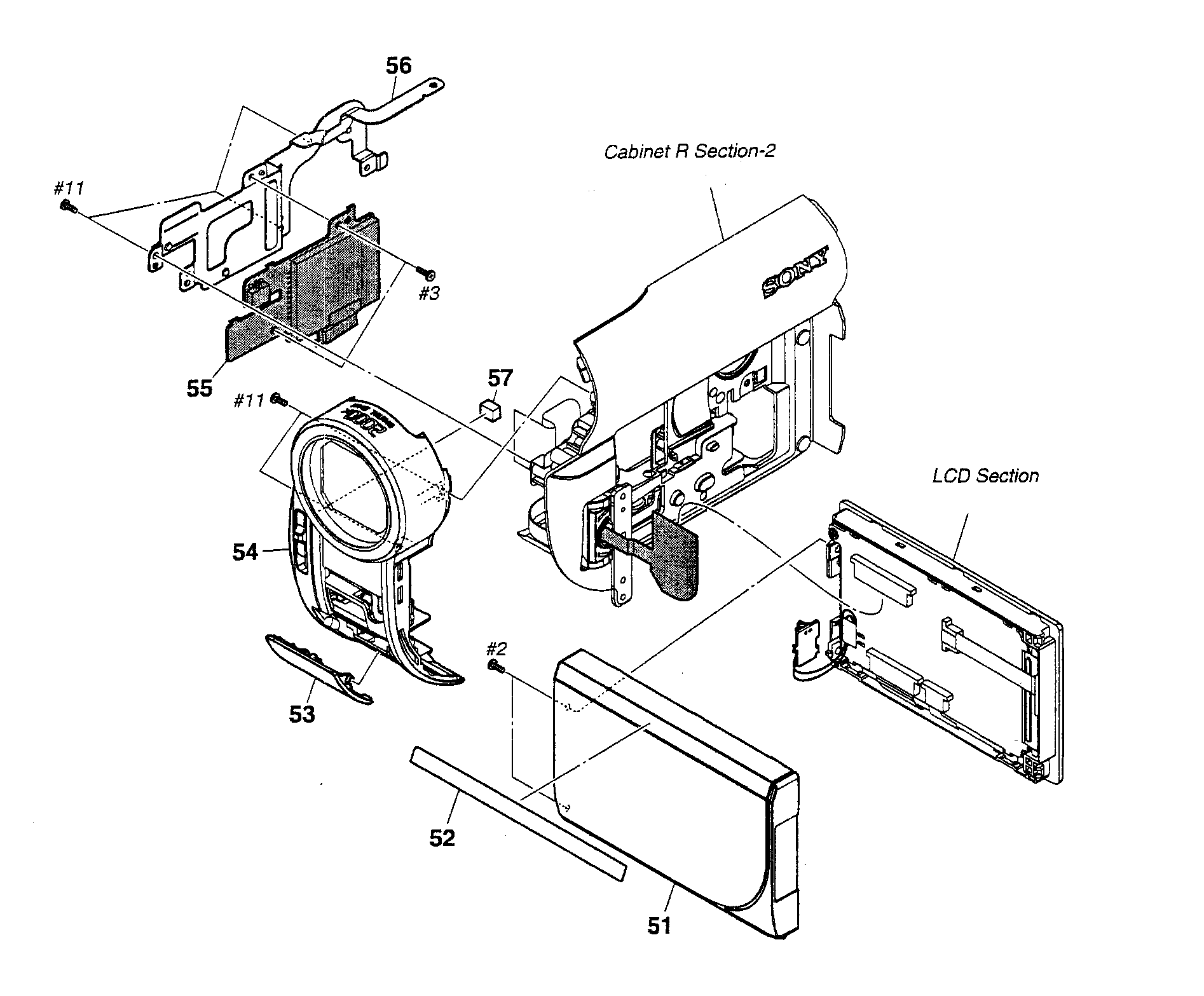

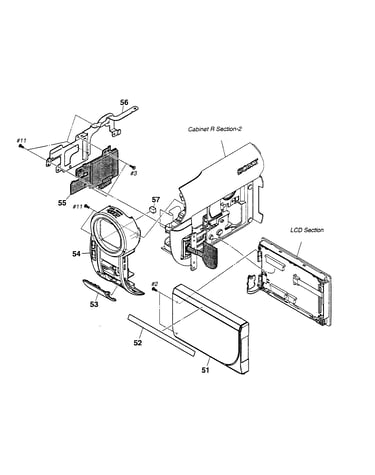

Right cabinet 1 diagram

Cover assembly

Part #A1563099A

The manufacturer no longer makes this part, and there's no substitute part

Screw,md 258633701
#S16

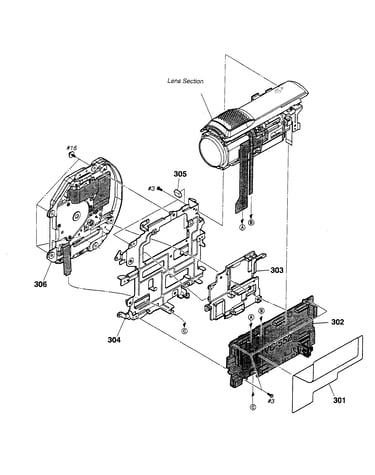

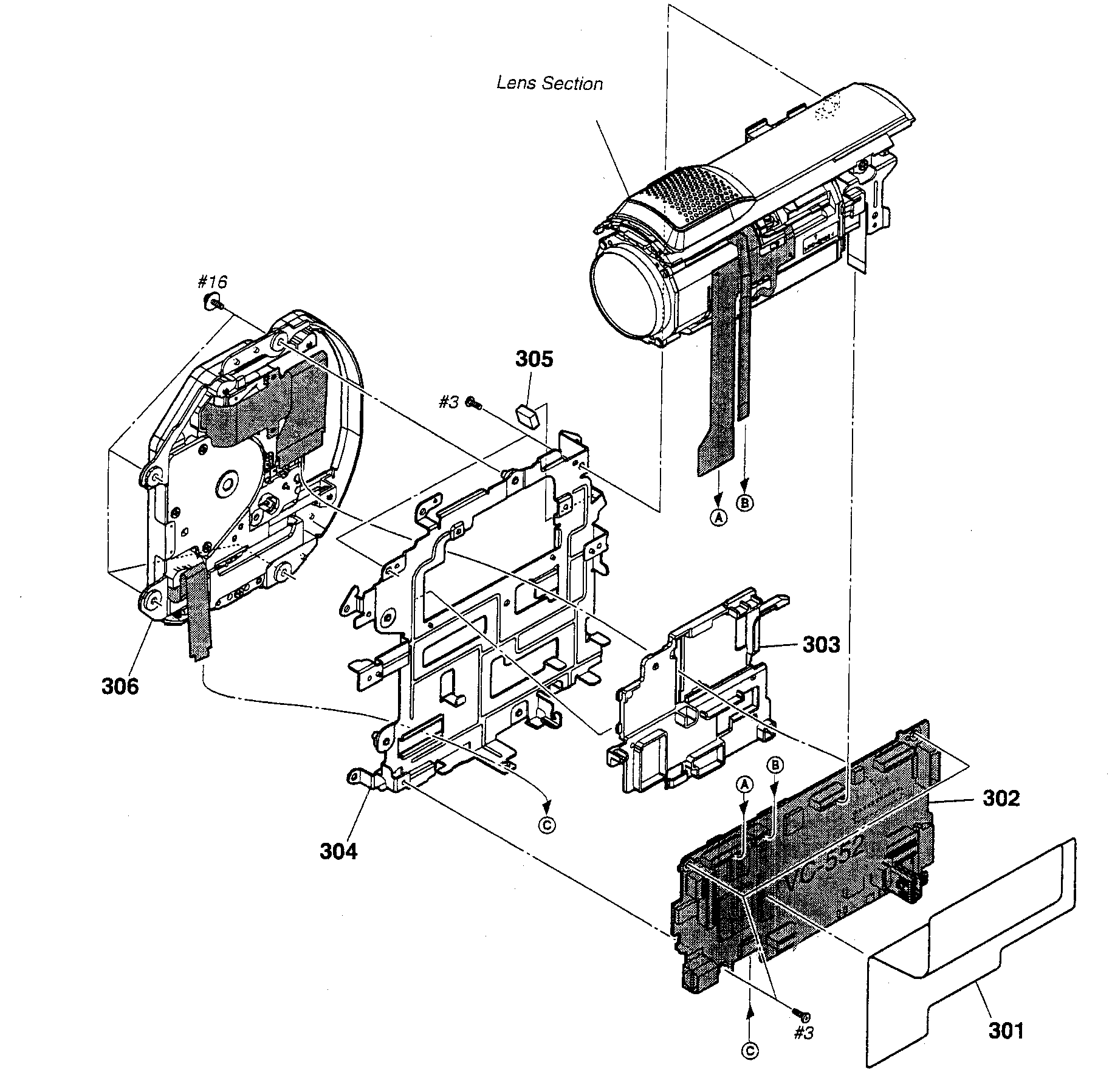

Mid section diagram

Screw,md

Part #258633701

The manufacturer no longer makes this part, and there's no substitute part

Cabinet-r A1563515A
#101

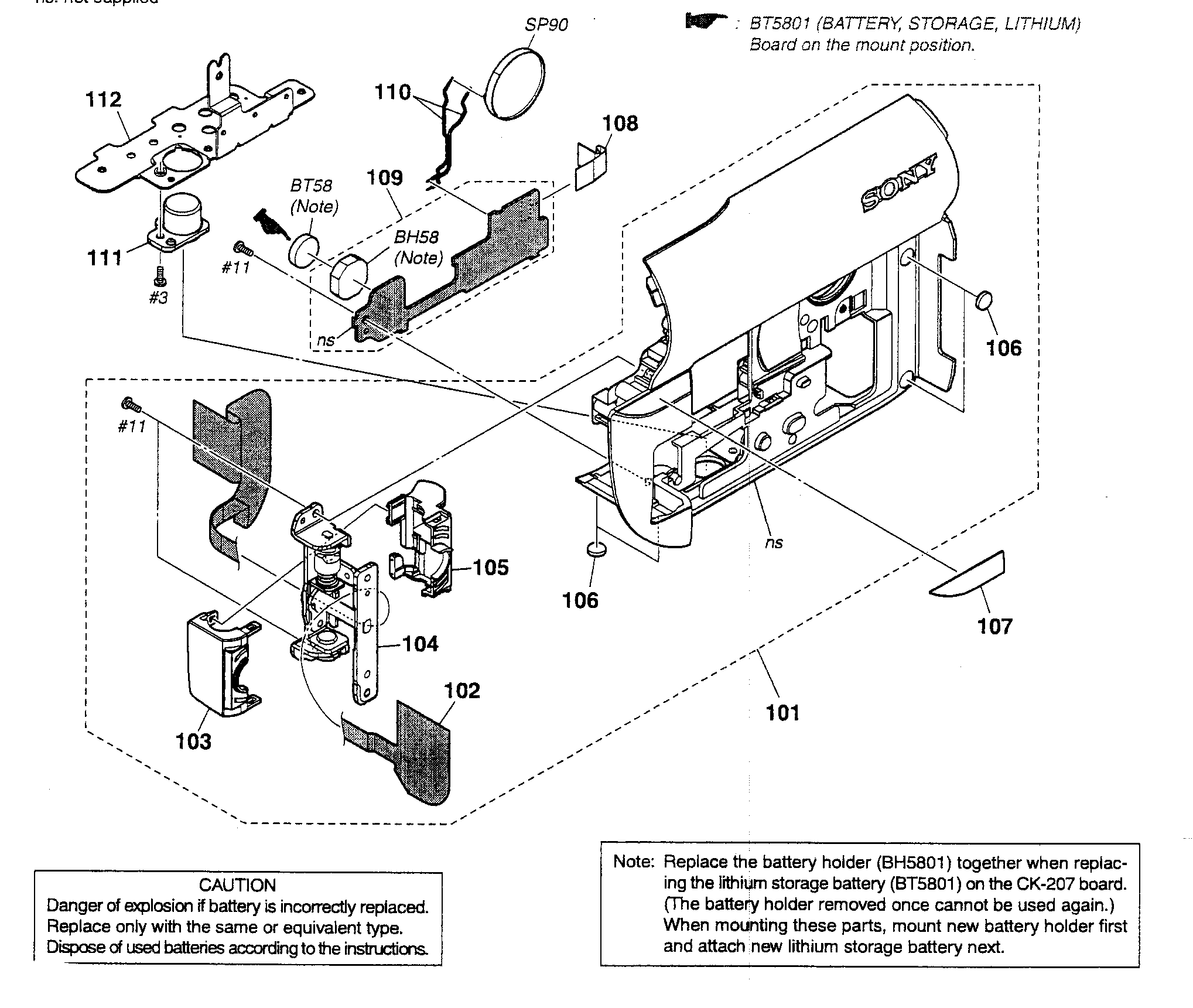

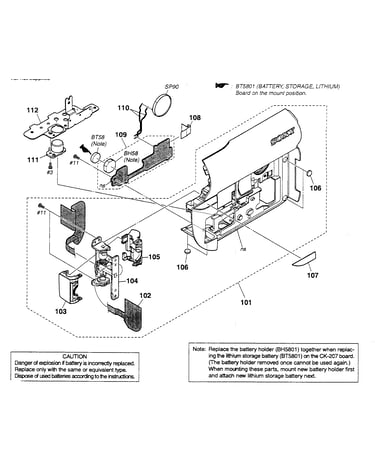

Right cabinet 2 diagram

Cabinet-r

Part #A1563515A

The manufacturer no longer makes this part, and there's no substitute part

Flex Cable 183486811
#201

Evf assy diagram

Flex cable

Part #183486811

The manufacturer no longer makes this part, and there's no substitute part
