Kenmore
Gas Grill

Model # 41515850 Official Kenmore outdoor grill

Here are the diagrams and repair parts for Official Kenmore 41515850 outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

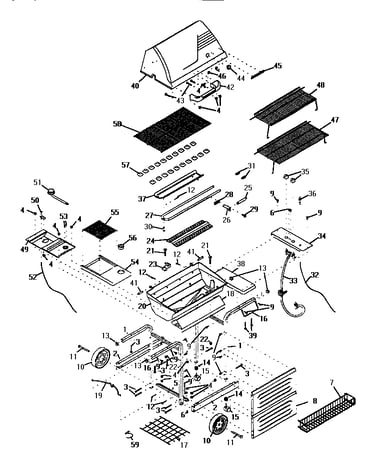

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Wire 4153720
#32

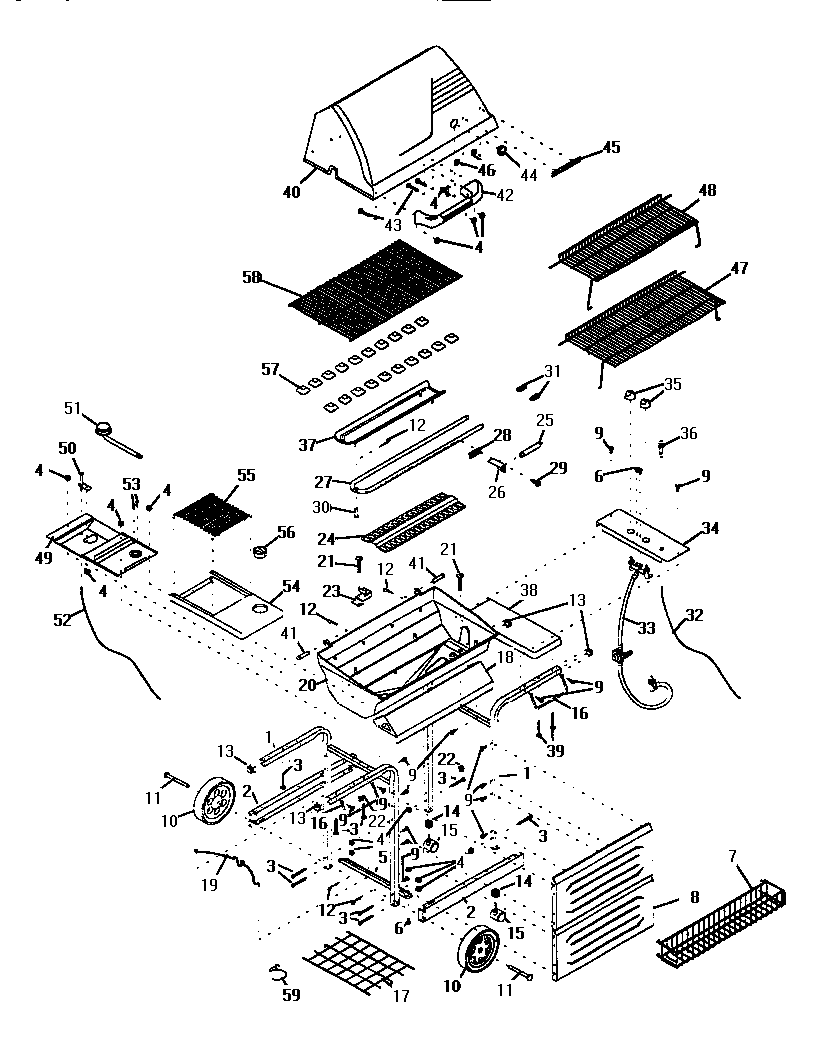

Replacement parts diagram

Wire

Part #4153720

Replaced by #4153196

?
Manufacturer substitution
This part replaces 4153720. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Ken-ran Gas Grill Lid Hinge Pin 4156513
#41

Replacement parts diagram

Ken-ran gas grill lid hinge pin

Part #4156513

This item is not returnable
$2.16
In Stock
Ken-ran Gas Grill Axle Bolt 4080155
#11

Replacement parts diagram

Ken-ran gas grill axle bolt

Part #4080155

This item is not returnable
$2.16
In Stock
Grease Clip 4156894
#59

Replacement parts diagram

Grease clip

Part #4156894

Replaced by #80011874

?
Manufacturer substitution
This part replaces 4156894. Substitute parts can look different from the original.
This item is not returnable
$8.54
In Stock
Burner 4068208
#27

Replacement parts diagram

Burner

Part #4068208

The manufacturer no longer makes this part, and there's no substitute part

Tank Support 4154195
#19

Replacement parts diagram

Tank support

Part #4154195

The manufacturer no longer makes this part, and there's no substitute part

Shelf 4156536
#17

Replacement parts diagram

Shelf

Part #4156536

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4502733
#5

Replacement parts diagram

Bracket

Part #4502733

The manufacturer no longer makes this part, and there's no substitute part

Towel Bar 4156839
#16

Replacement parts diagram

Towel bar

Part #4156839

The manufacturer no longer makes this part, and there's no substitute part

Burner 4068164
#51

Replacement parts diagram

Burner

Part #4068164

The manufacturer no longer makes this part, and there's no substitute part
