Model # RC-10SD/P75750-4M Official Amana radarange microwave - rc-10sd

Here are the diagrams and repair parts for Official Amana RC-10SD-P75750-4M radarange microwave - rc-10sd, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

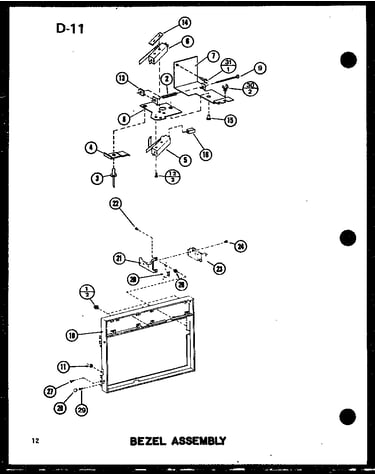

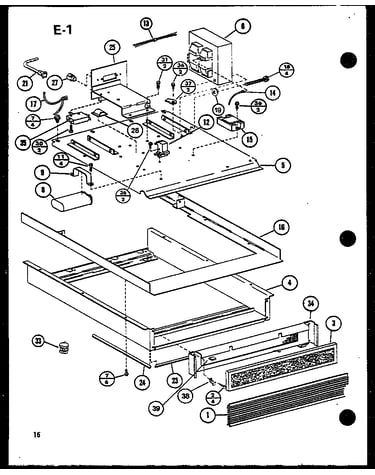

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 158 parts  |
Fuse M0805101
#28

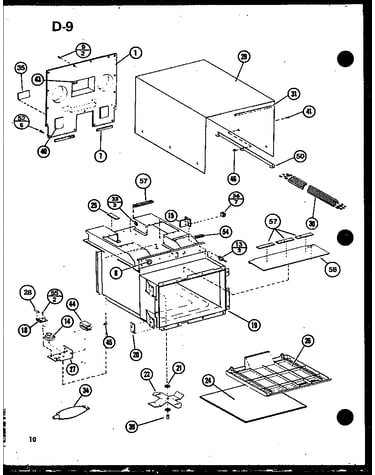

Outer case diagram

Fuse

Part #M0805101

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces M0805101. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Screw M0216515
Screw

Part #M0216515

Replaced by #WP489349

?
Manufacturer substitution
This part replaces M0216515. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Screw M0234030
#25

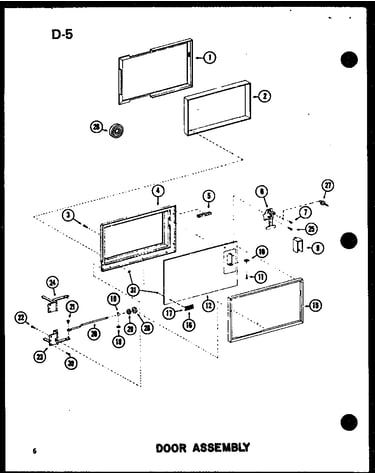

Door assembly diagram

Screw

Part #M0234030

Replaced by #M0234030

?
Manufacturer substitution
This part replaces M0234030. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Support M0590602
#12

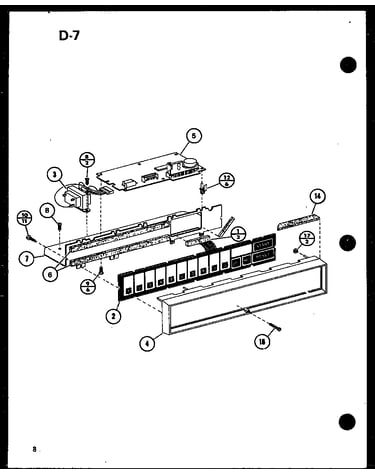

Switch assembly diagram

Support

Part #M0590602

Replaced by #M0590602

?
Manufacturer substitution
This part replaces M0590602. Substitute parts can look different from the original.
This item is not returnable
$4.19 |
19% OFF Phone Price : $5.19
In Stock
Screw M0234403
#10

Switch assembly diagram

Screw

Part #M0234403

Replaced by #M0234403

?
Manufacturer substitution
This part replaces M0234403. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw M0216703
#52

Outer case diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Kep Nut M0282010
#46

Outer case diagram

Kep nut

Part #M0282010

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces M0282010. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Screw M0234029
#7

Door assembly diagram

Screw

Part #M0234029

Replaced by #WPW10068250

?
Manufacturer substitution
This part replaces M0234029. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Thermal Fuse Assembly B8353201
#29

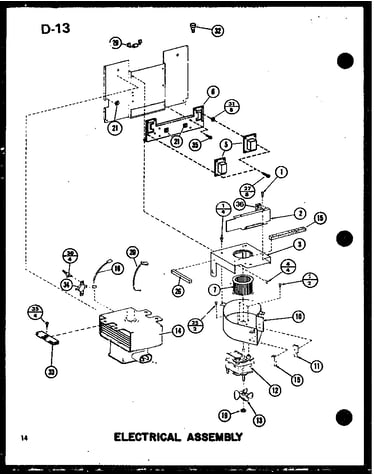

Electrical assembly diagram

Thermal fuse assembly

Part #B8353201

The manufacturer no longer makes this part, and there's no substitute part

Speed Clip M0114002
#39

Outer case diagram

Speed clip

Part #M0114002

The manufacturer no longer makes this part, and there's no substitute part
