Countertop Microwave

Model # 72168101890 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72168101890 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

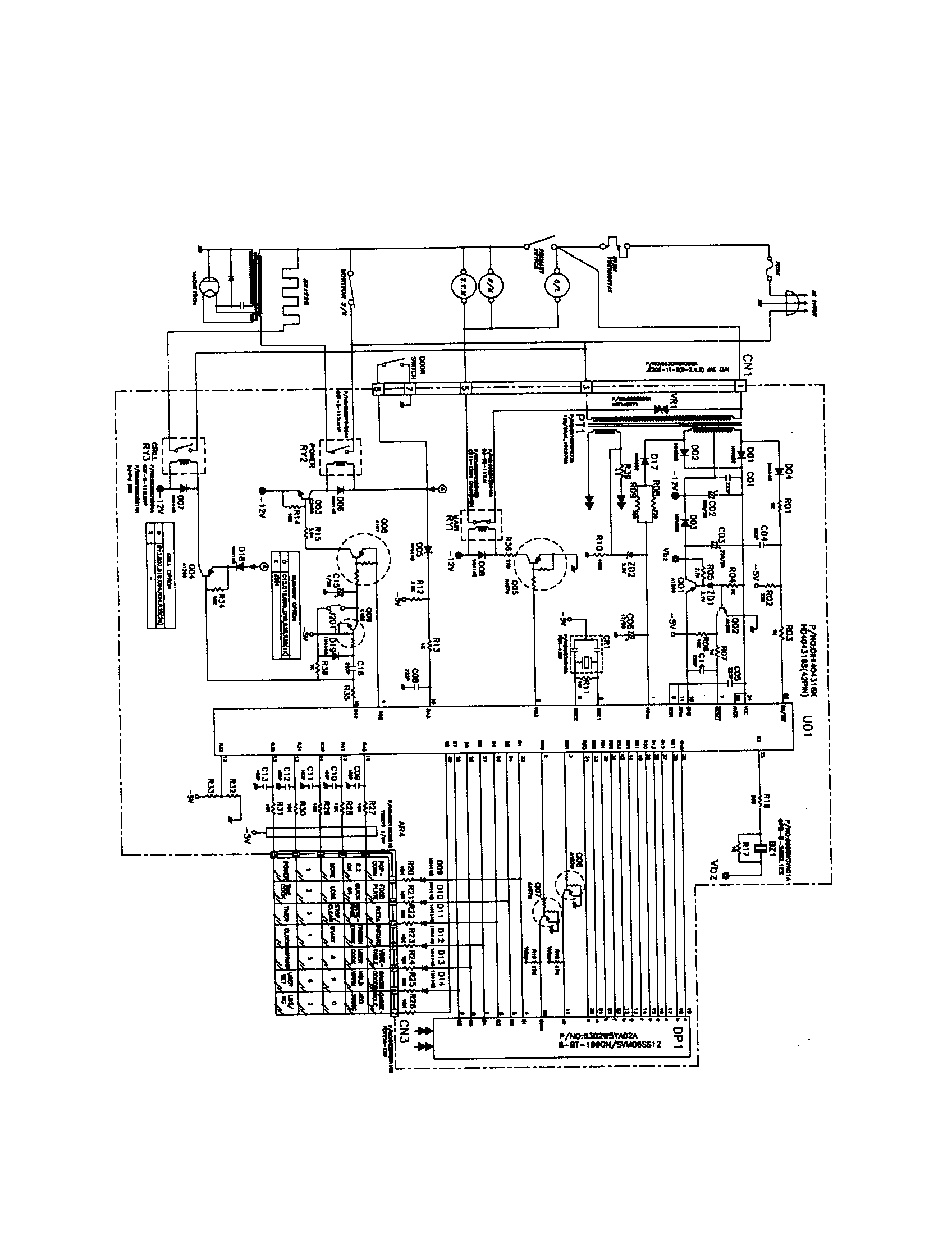

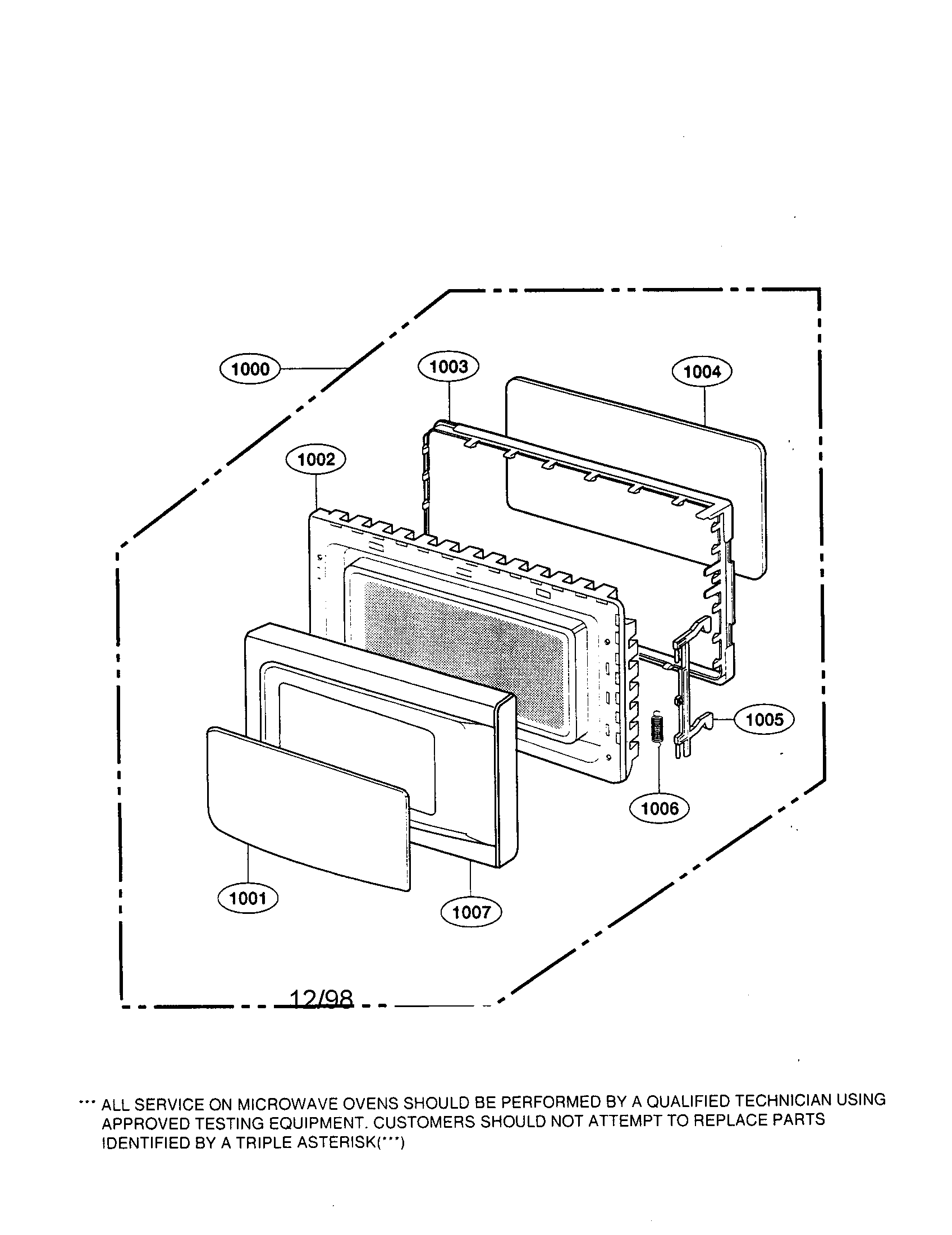

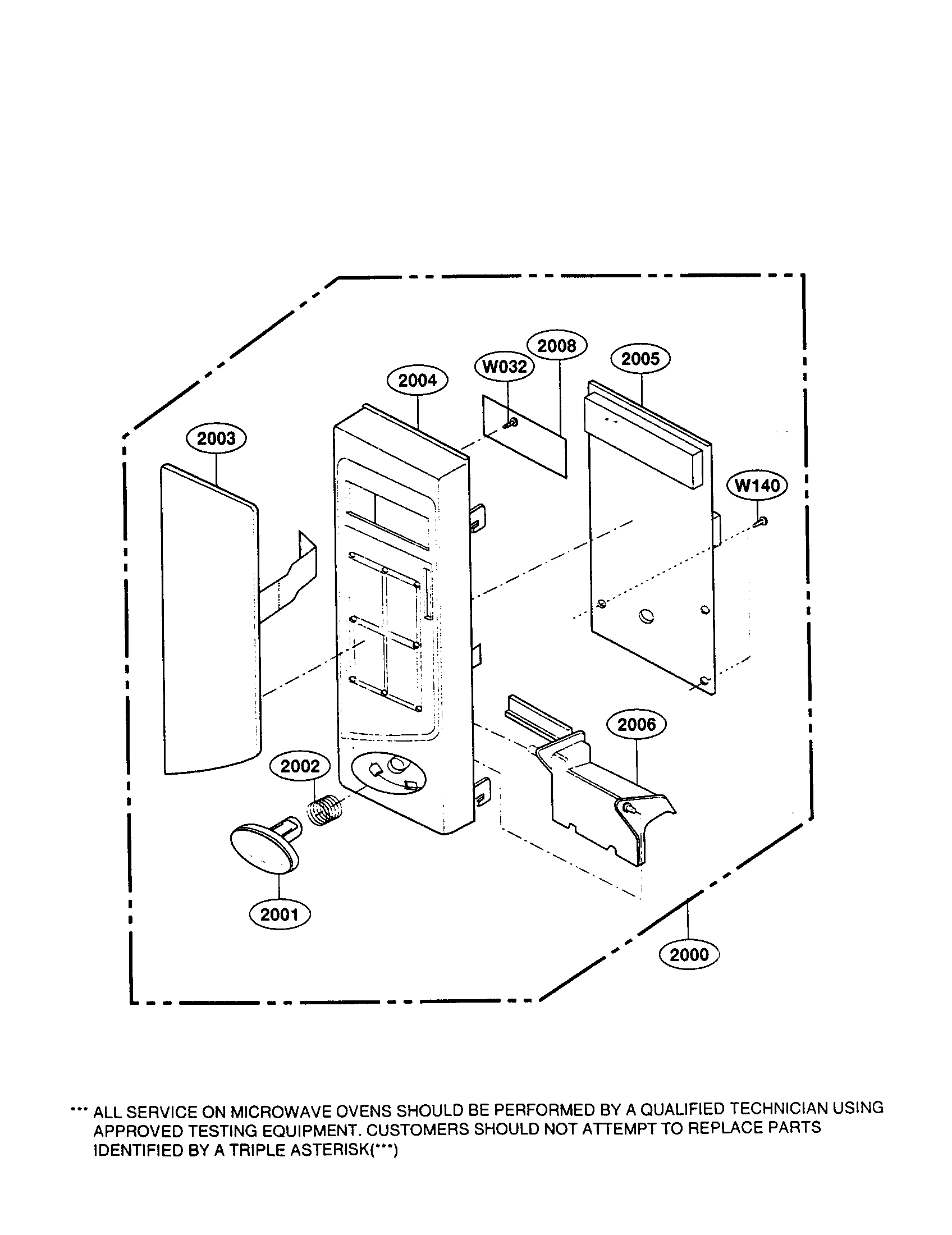

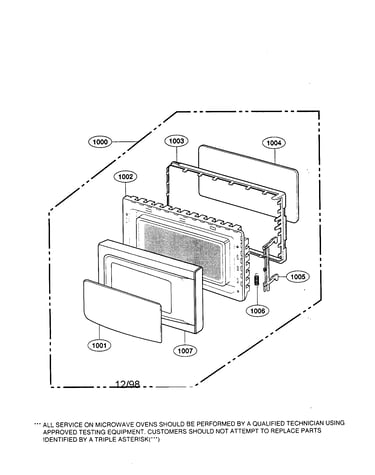

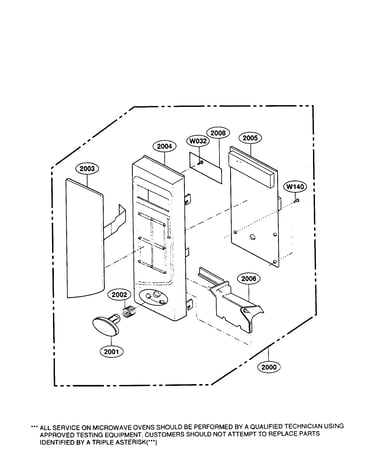

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 93 parts  |
High-voltage Diode 6021W3B001K
#6006

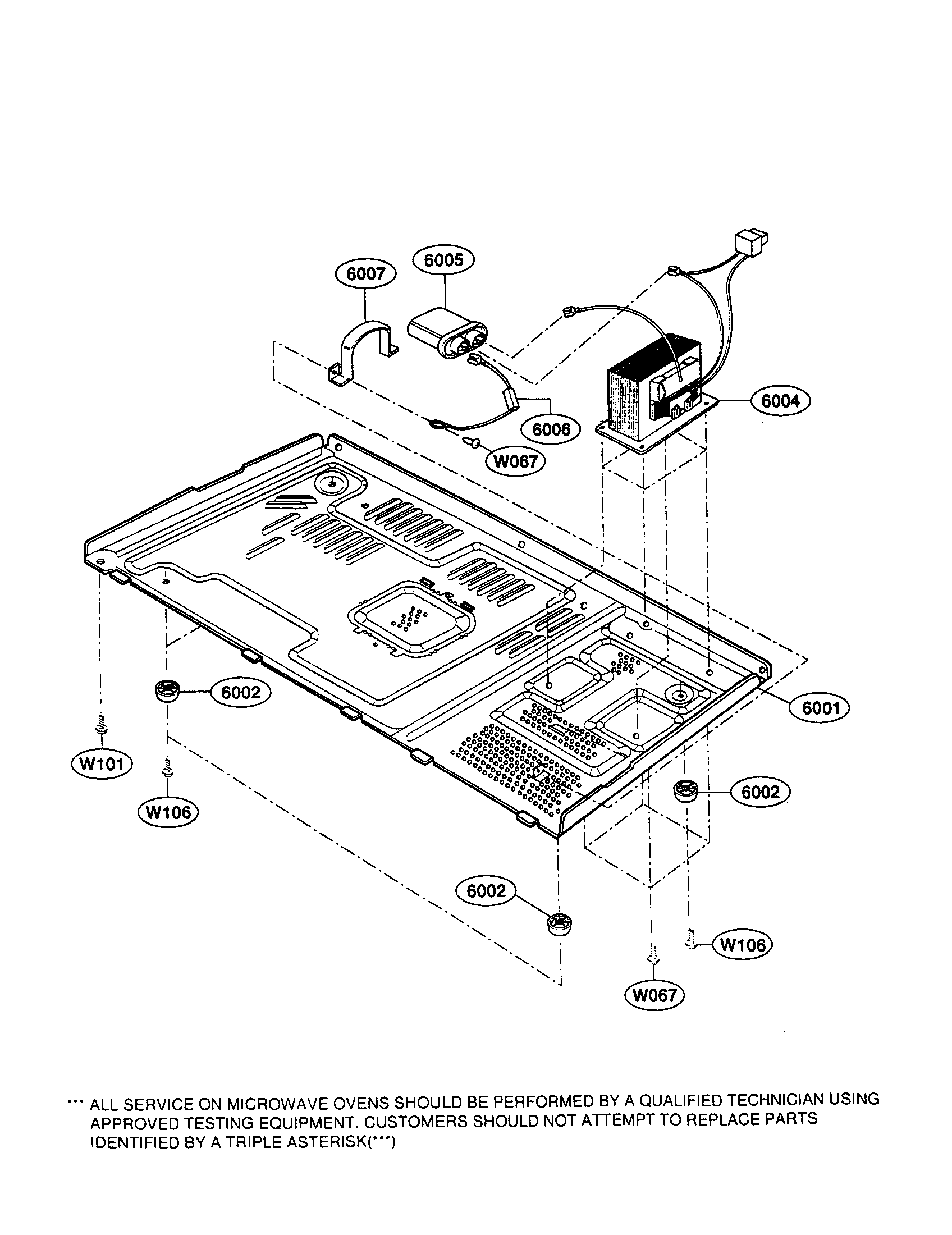

Base plate diagram

High-voltage diode

Part #6021W3B001K

Replaced by #6851W1A002E

?
Manufacturer substitution
This part replaces 6021W3B001K. Substitute parts can look different from the original.
BEST SELLER
$9.57 |
9% OFF Phone Price : $10.57
In Stock
Lamp 6912W3B002G
#4008

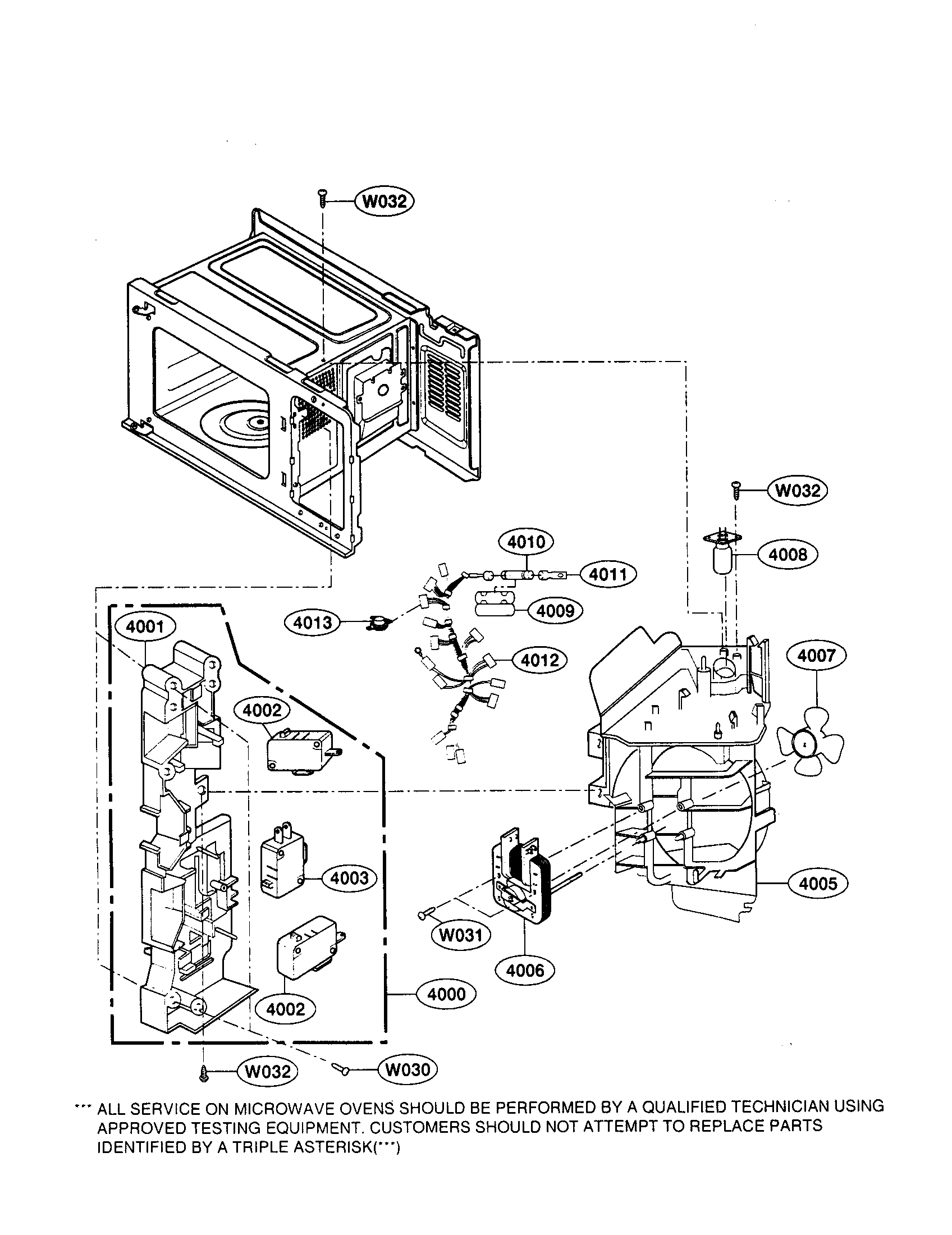

Suction guide parts diagram

Lamp

Part #6912W3B002G

Replaced by #6912W3B002L

?
Manufacturer substitution
This part replaces 6912W3B002G. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Microwave Waveguide Cover Rivet 4051W3A001A
#3004

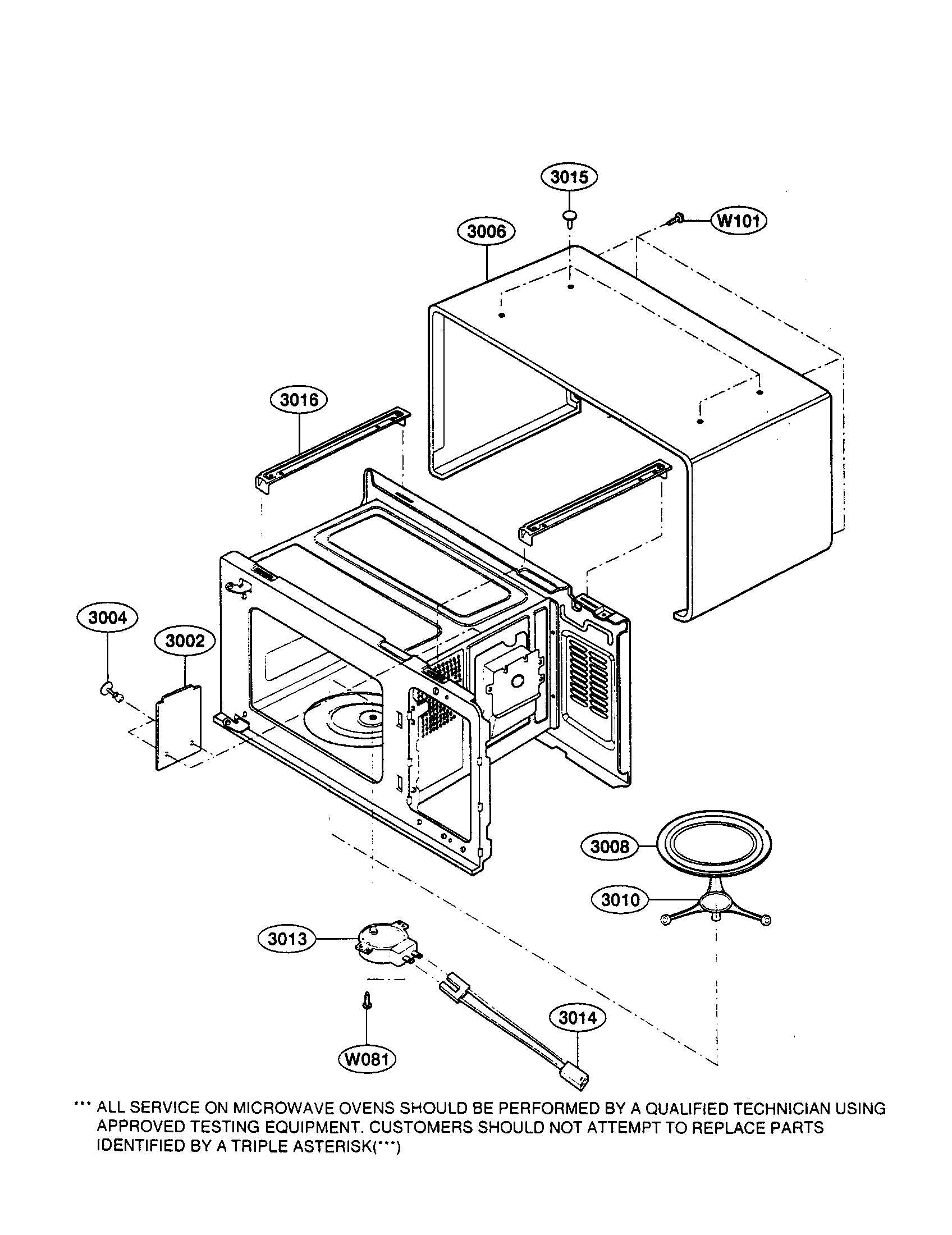

Oven cavity parts diagram

Microwave waveguide cover rivet

Part #4051W3A001A

This item is not returnable
$2.75 |
27% OFF Phone Price : $3.75
In Stock
Glass Tray 3390W1G005A
#3008

Oven cavity parts diagram

Glass tray

Part #3390W1G005A

Replaced by #3390W1G005D

?
Manufacturer substitution
This part replaces 3390W1G005A. Substitute parts can look different from the original.
This item is not returnable
$15.95 |
11% OFF Phone Price : $17.95
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Us Pressed Steel Microwave Screw 4B70188C
#W030

Suction guide parts diagram

Us pressed steel microwave screw

Part #4B70188C

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Magnetron 2B71732B
#5002

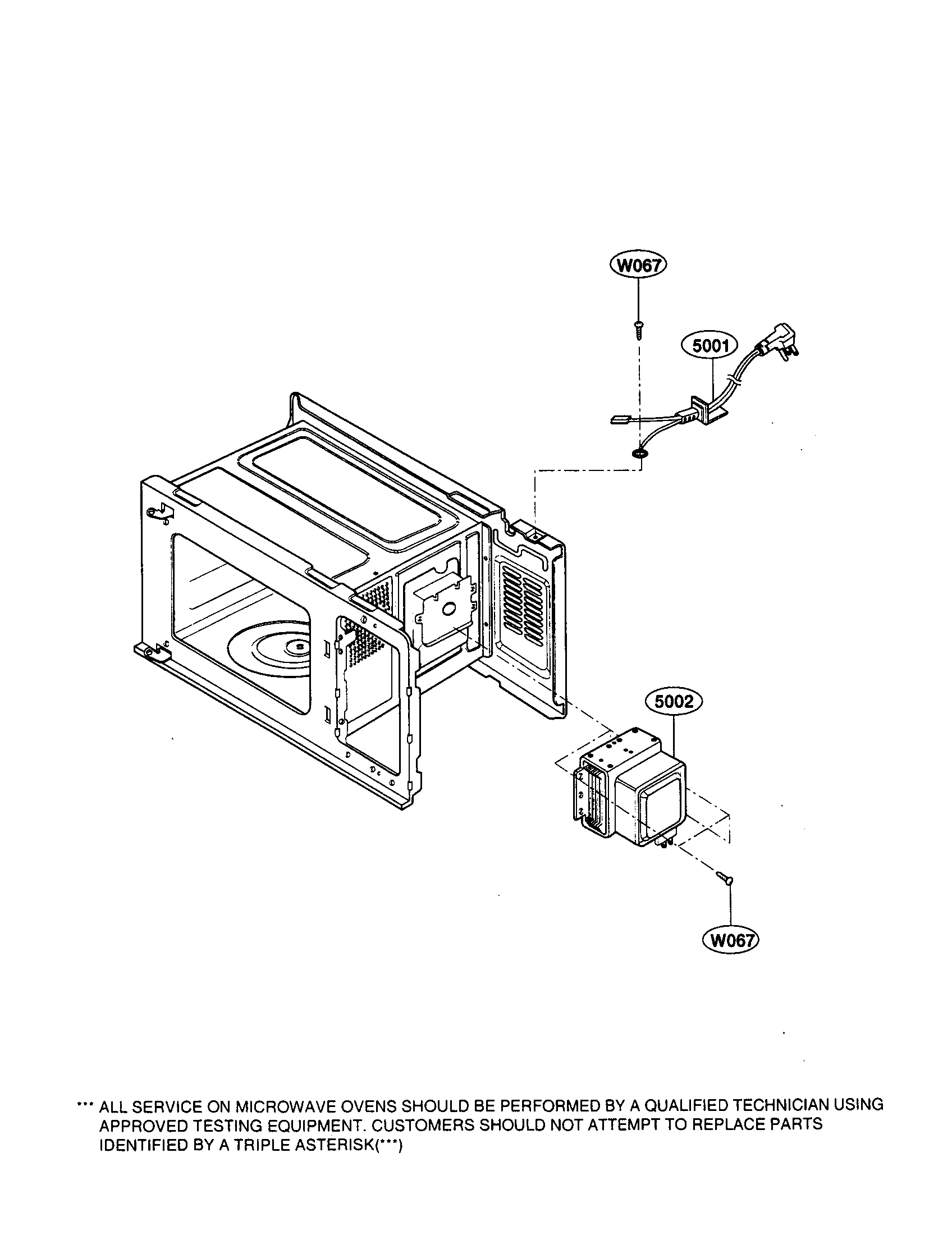

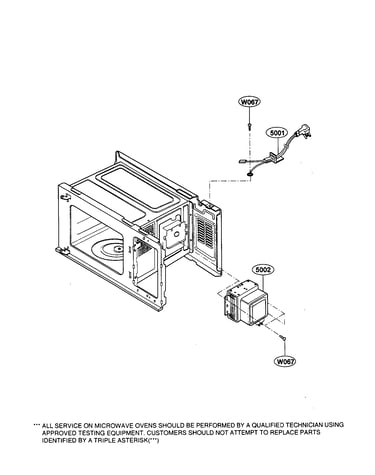

Oven interior diagram

Magnetron

Part #2B71732B

The manufacturer no longer makes this part, and there's no substitute part

Cushion 4850W4C001A
#CU4

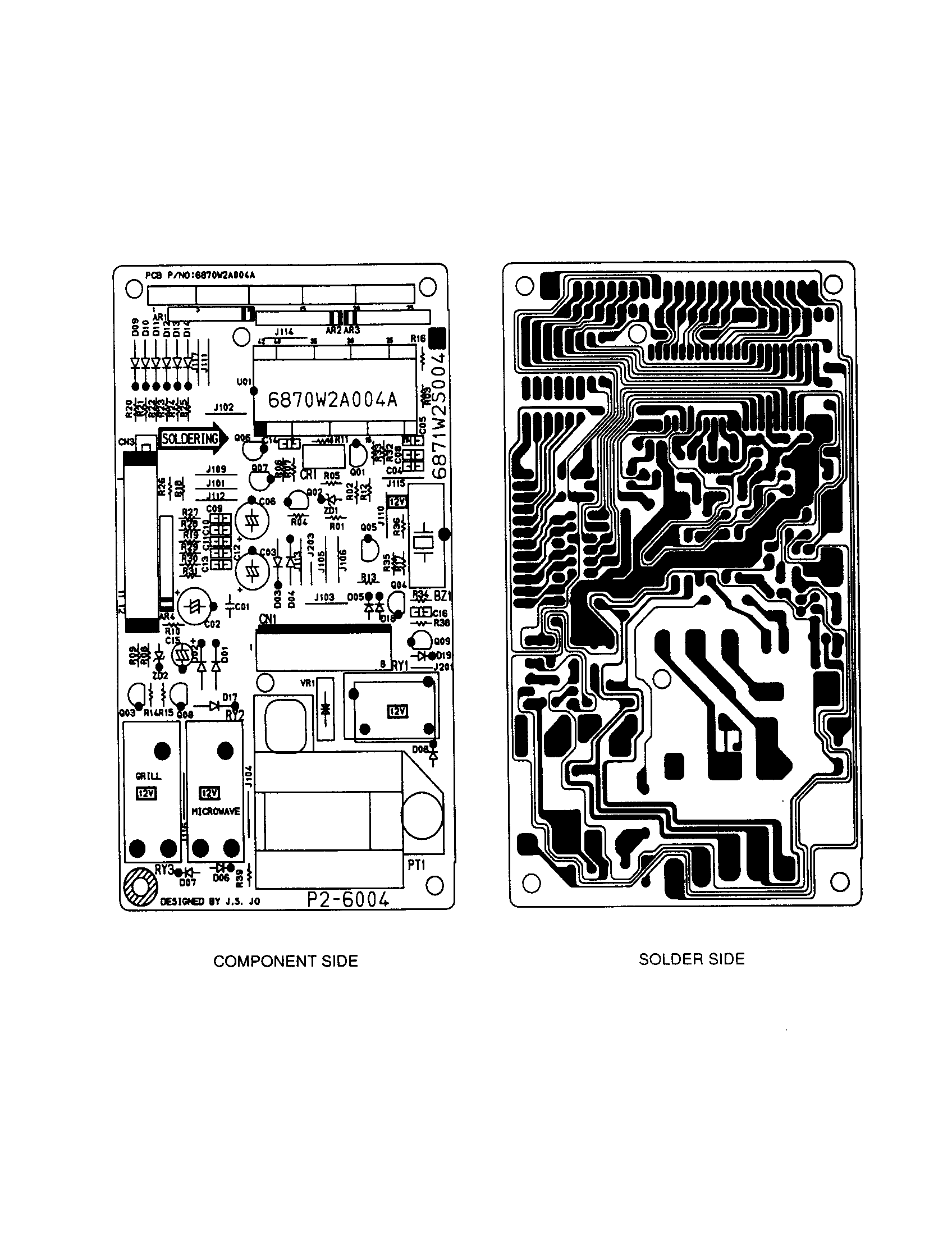

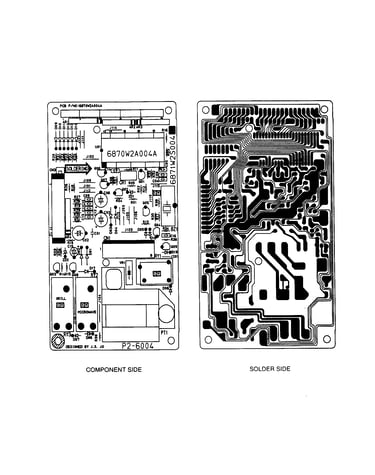

Power and control ciruit board diagram

Cushion

Part #4850W4C001A

$8.29
In Stock
Goldstar Blower Fan 2B72279B
#4007

Suction guide parts diagram

Goldstar blower fan

Part #2B72279B

This item is not returnable
$6.47 |
13% OFF Phone Price : $7.47
In Stock
Connector 6630W5YA19D
#CN3

Power and control ciruit board diagram

Connector

Part #6630W5YA19D

$8.29
In Stock
