Model # AHW12NT2E1 Official Frigidaire room air conditioner - lf34087220

Here are the diagrams and repair parts for Official Frigidaire AHW12NT2E1 room air conditioner - lf34087220, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
Seal, Cabinet, R.h. 8009359
#11

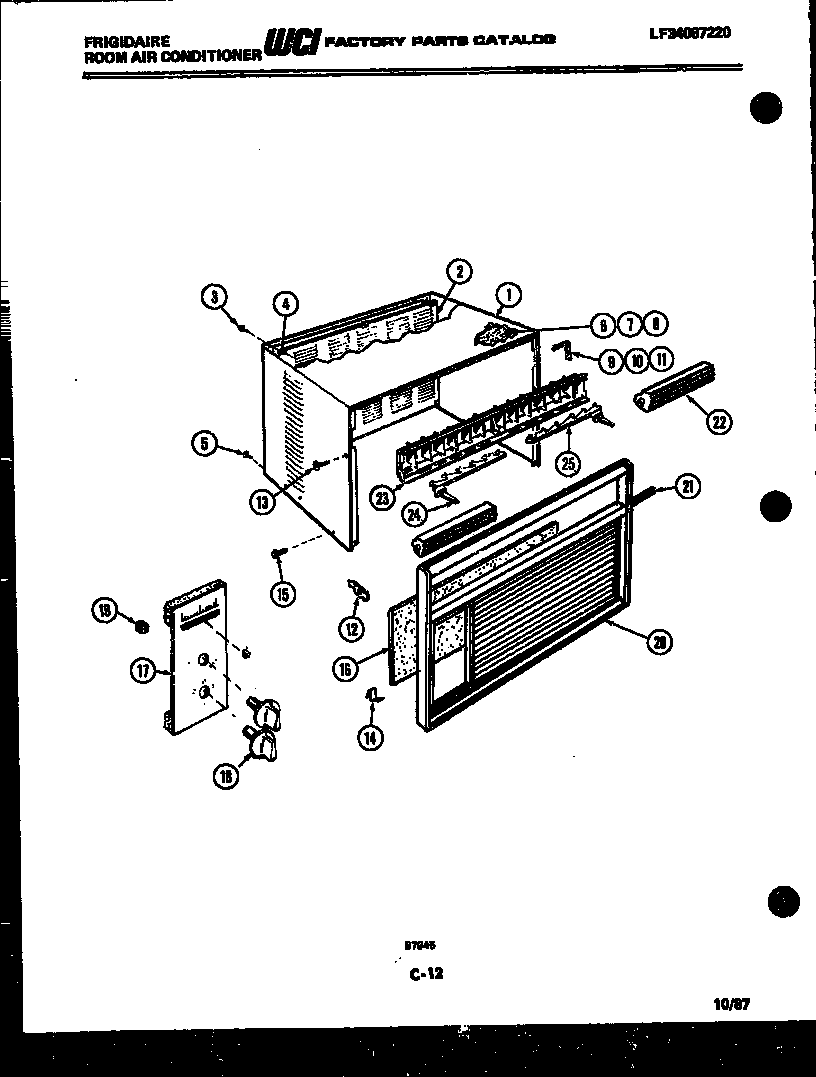

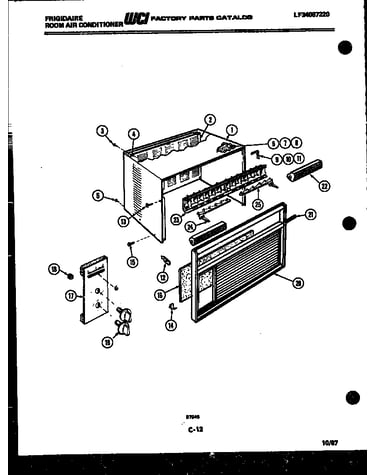

Cabinet parts diagram

Seal, cabinet, r.h.

Part #8009359

The manufacturer no longer makes this part, and there's no substitute part

Cover 8009073
#7

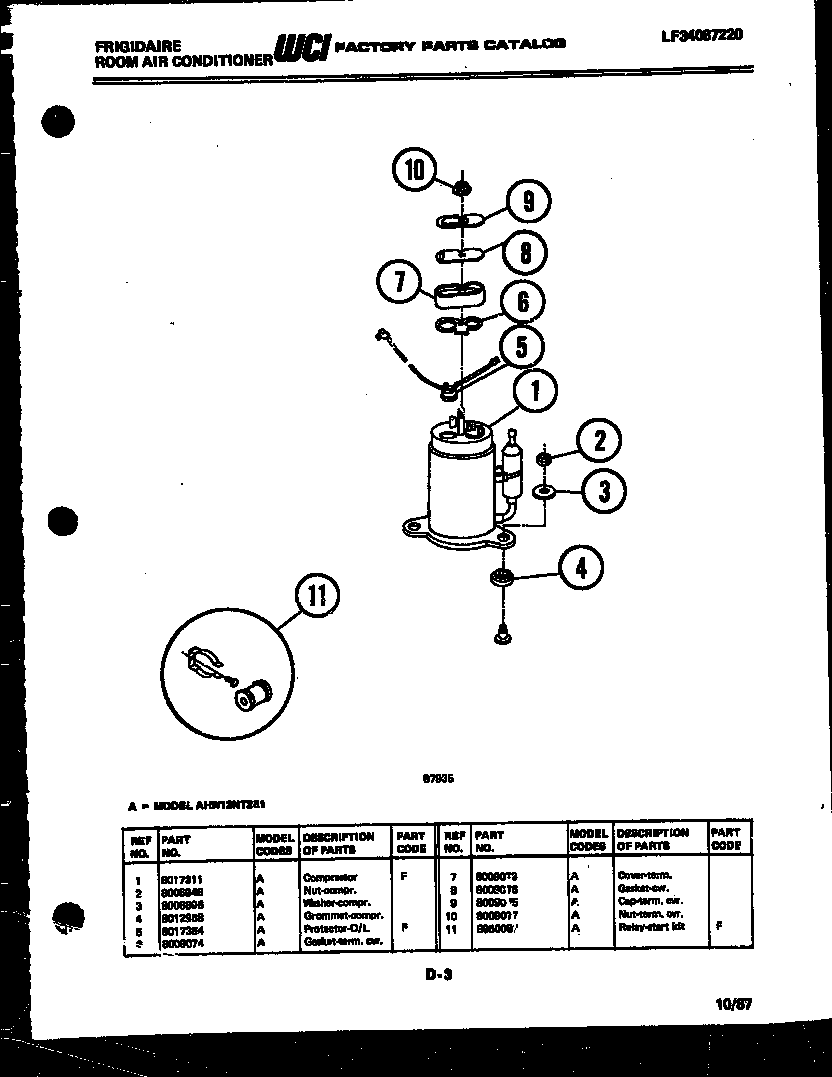

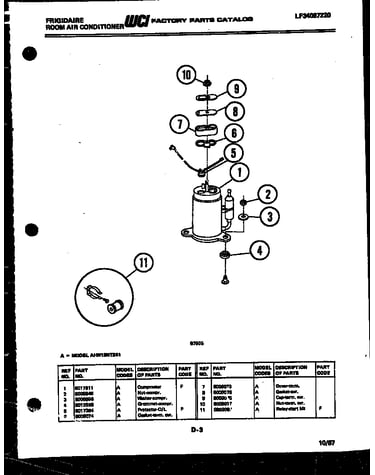

Compressor parts diagram

Cover

Part #8009073

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 8016142
#9

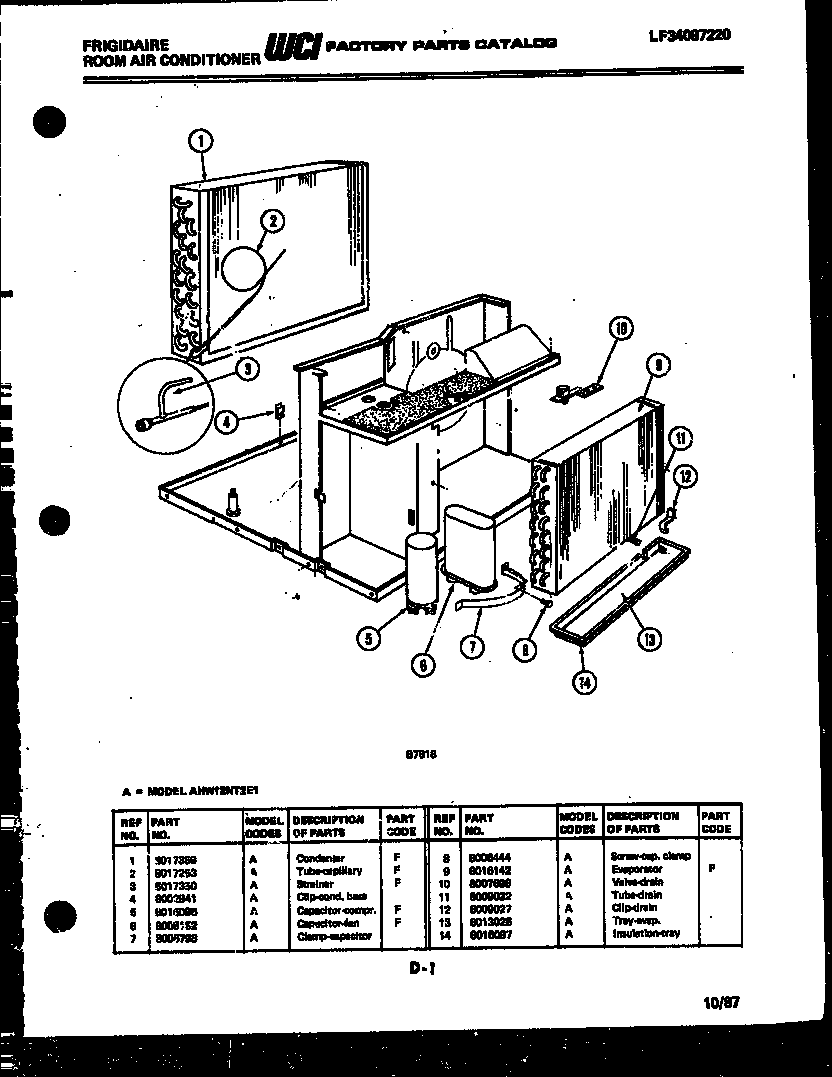

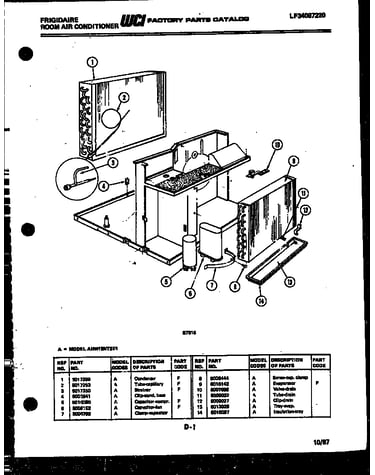

Unit parts diagram

Evaporator

Part #8016142

The manufacturer no longer makes this part, and there's no substitute part

Clamp-drain Tube 8009027
#12

Unit parts diagram

Clamp-drain tube

Part #8009027

The manufacturer no longer makes this part, and there's no substitute part

Screw 8010921
#5

Cabinet parts diagram

Screw

Part #8010921

The manufacturer no longer makes this part, and there's no substitute part

Drain Tube 8009022
#11

Unit parts diagram

Drain tube

Part #8009022

The manufacturer no longer makes this part, and there's no substitute part

Link Rh 8017240
#24

Cabinet parts diagram

Link rh

Part #8017240

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Clamp 8006798
#7

Unit parts diagram

Capacitor clamp

Part #8006798

The manufacturer no longer makes this part, and there's no substitute part

Blade 8006458
#5

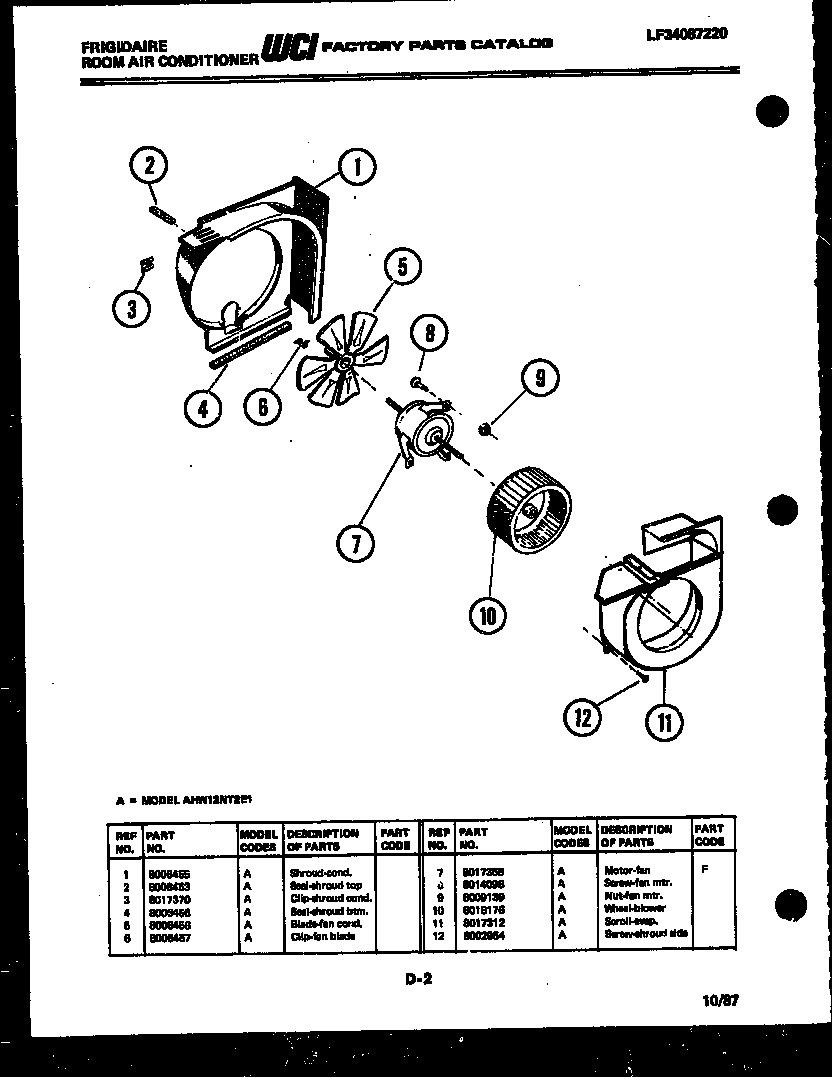

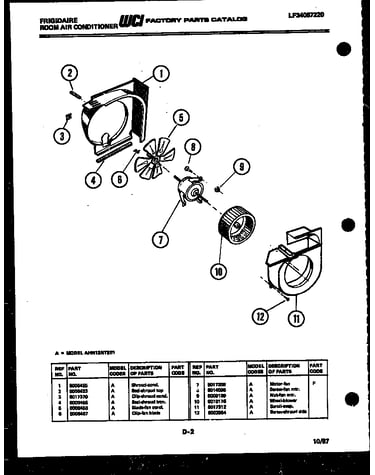

Air handling parts diagram

Blade

Part #8006458

The manufacturer no longer makes this part, and there's no substitute part

Actuator 8016323
#6

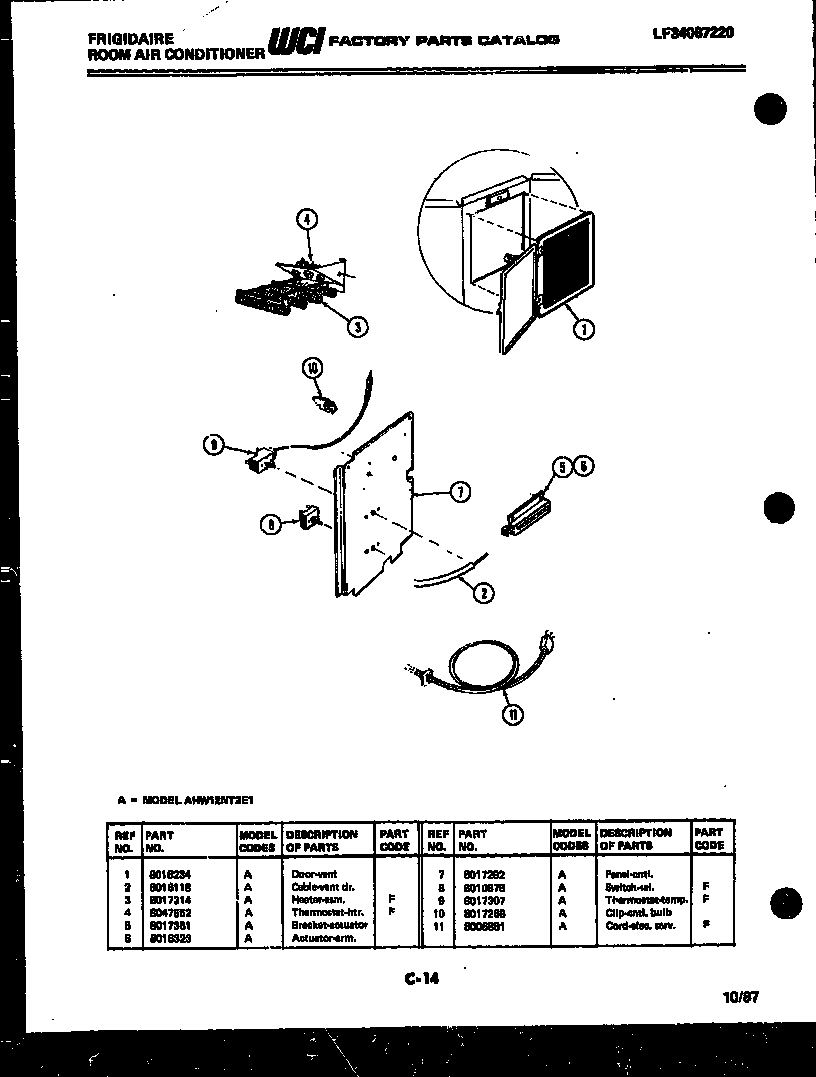

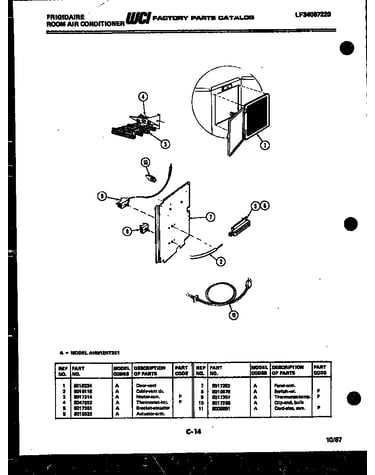

Electrical parts diagram

Actuator

Part #8016323

The manufacturer no longer makes this part, and there's no substitute part
