Amana
Wall Oven/Microwave Combo

Model # 874.301 Official Amana generation ii wall oven/microwave combo

Here are the diagrams and repair parts for Official Amana 874301 generation ii wall oven/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Right Side Trim M75D107
#9

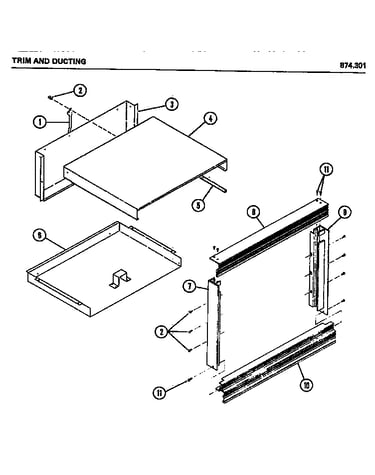

Trim and ducting diagram

Right side trim

Part #M75D107

The manufacturer no longer makes this part, and there's no substitute part

Screw, Cord Grounding M1D888
#19C

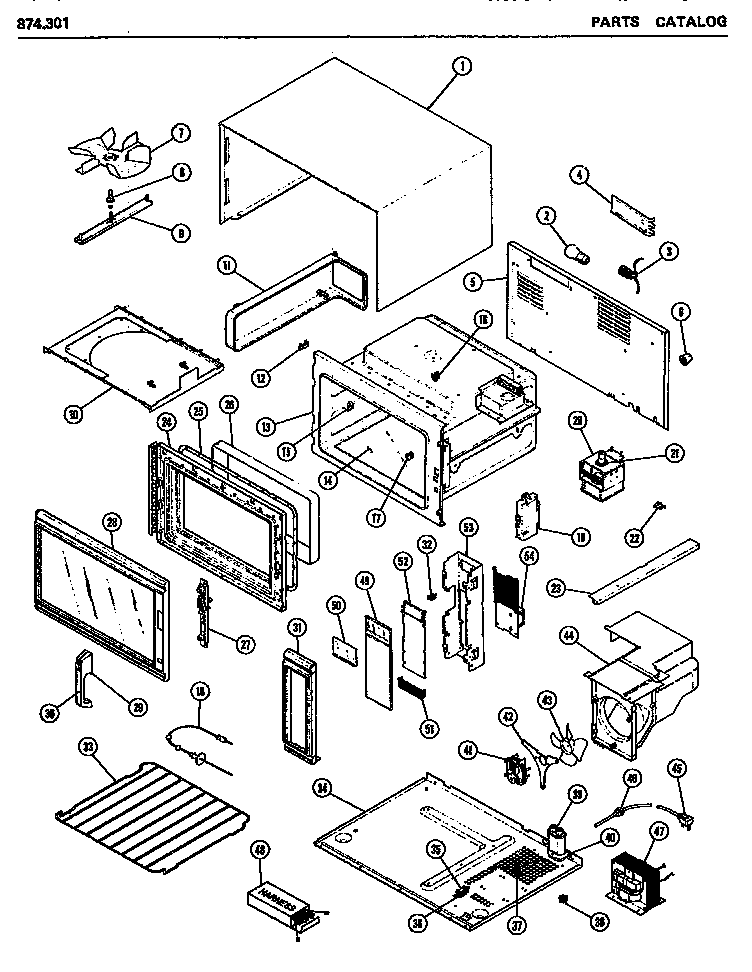

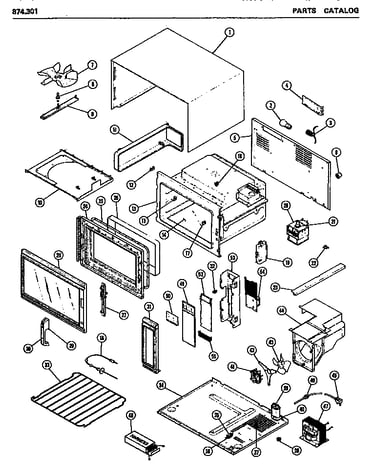

Microwave oven module diagram

Screw, cord grounding

Part #M1D888

The manufacturer no longer makes this part, and there's no substitute part

Screw, Handle Mounting M1D901
#29B

Microwave oven module diagram

Screw, handle mounting

Part #M1D901

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (includes Ref. Nos. 14, 15, 17) M27D124
#13

Microwave oven module diagram

Cavity assembly (includes ref. nos. 14, 15, 17)

Part #M27D124

The manufacturer no longer makes this part, and there's no substitute part

Screw, Cord Cording M1D368
#46B

Microwave oven module diagram

Screw, cord cording

Part #M1D368

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade M35D40
#43

Microwave oven module diagram

Fan blade

Part #M35D40

The manufacturer no longer makes this part, and there's no substitute part

Rack M67D32
#33

Microwave oven module diagram

Rack

Part #M67D32

The manufacturer no longer makes this part, and there's no substitute part

Clamp, Harness To Cavity M1D75
#1

Trim and ducting diagram

Clamp, harness to cavity

Part #M1D75

The manufacturer no longer makes this part, and there's no substitute part

Clip, Cover Mounting M2D575
#19B

Microwave oven module diagram

Clip, cover mounting

Part #M2D575

The manufacturer no longer makes this part, and there's no substitute part

Nut M1D615
#16D

Microwave oven module diagram

Nut

Part #M1D615

The manufacturer no longer makes this part, and there's no substitute part
