Kenmore
Canister Vacuum

Model # 1165567590C Official Kenmore powermate attachment

Here are the diagrams and repair parts for Official Kenmore 1165567590C powermate attachment, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |

Muskin Gasket 742968
#41

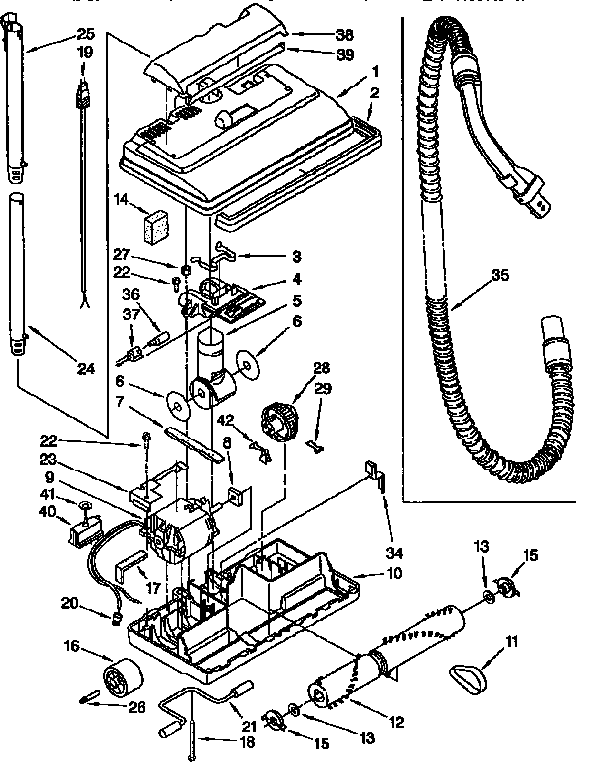

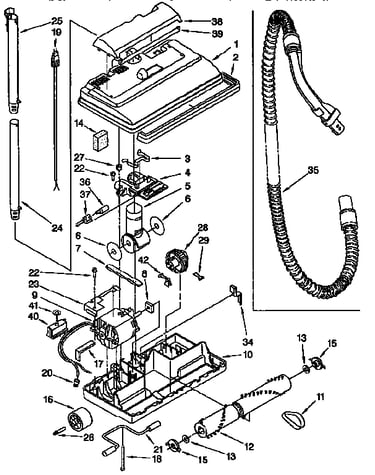

Power-mate diagram

Muskin gasket

Part #742968

The manufacturer no longer makes this part, and there's no substitute part

Muskin Yoke Bearing Seal 741423
#6

Power-mate diagram

Muskin yoke bearing seal

Part #741423

The manufacturer no longer makes this part, and there's no substitute part

Protector 742332
#40

Power-mate diagram

Protector

Part #742332

The manufacturer no longer makes this part, and there's no substitute part

Power-mate Parts List 4369793

#NI

All parts diagram

Power-mate parts list

Part #4369793

The manufacturer no longer makes this part, and there's no substitute part

(not Serviced, Use Old ) Screw, Motor  Brush N/P
(not serviced, use old ) screw, motor brush

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 4369872
#1

Power-mate diagram

Nozzle

Part #4369872

The manufacturer no longer makes this part, and there's no substitute part

Lifter 742013
#42

Power-mate diagram

Lifter

Part #742013

The manufacturer no longer makes this part, and there's no substitute part

Washer, 12 X 5 681424
#13

Power-mate diagram

Washer, 12 x 5

Part #681424

The manufacturer no longer makes this part, and there's no substitute part

Indicator Cam 4147437
#28

Power-mate diagram

Indicator cam

Part #4147437

The manufacturer no longer makes this part, and there's no substitute part

Swivel Cap 4154956
#4

Power-mate diagram

Swivel cap

Part #4154956

The manufacturer no longer makes this part, and there's no substitute part
