Model # B1HA036A46 Official York heat pump

Here are the diagrams and repair parts for Official York B1HA036A46 heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

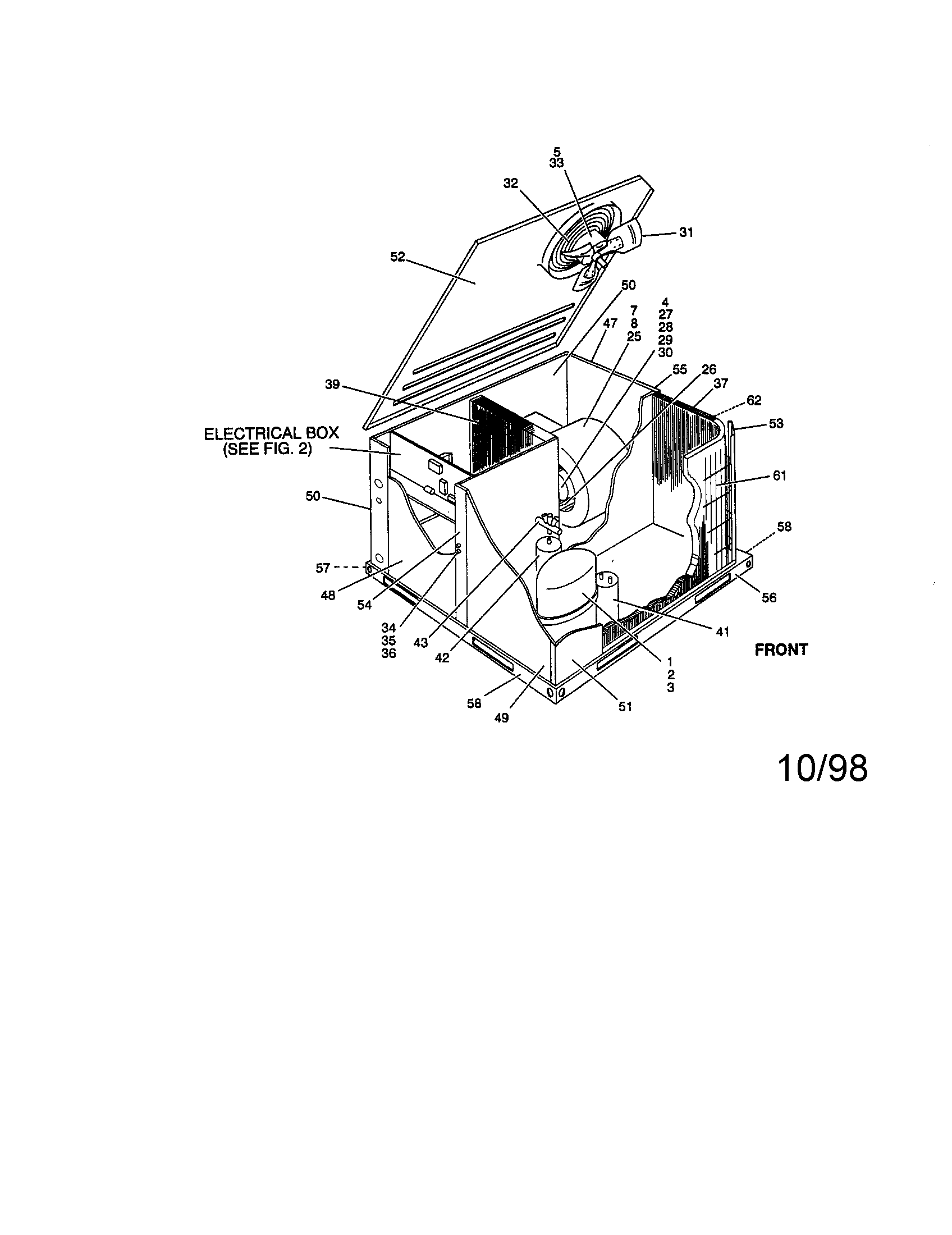

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

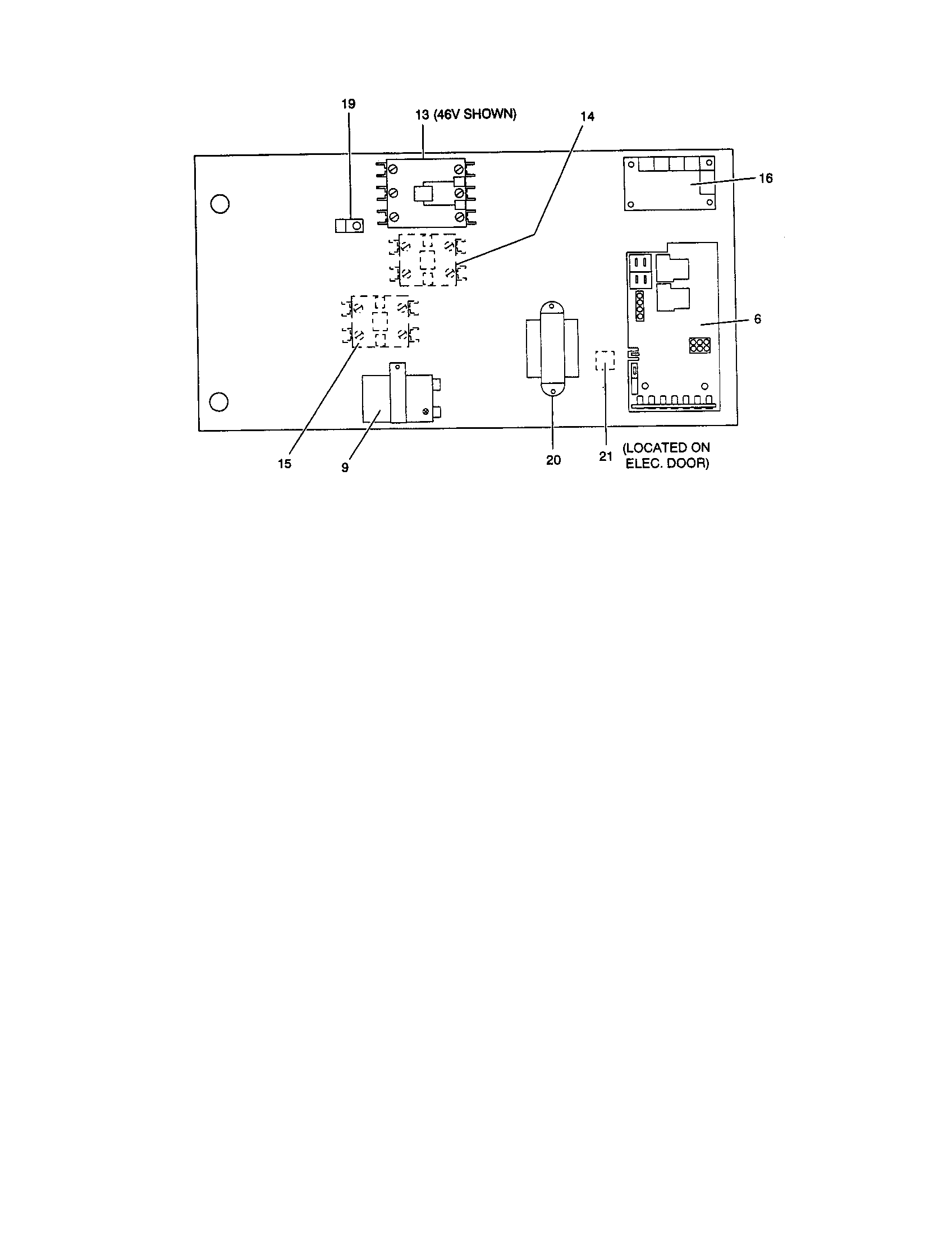

Central Air Conditioner Electronic Control Board 031-01264-002

#6

All parts diagram

Central air conditioner electronic control board

Part #031-01264-002

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 024-20043-000

#10

All parts diagram

Capacitor

Part #024-20043-000

Replaced by #12005

?
Manufacturer substitution
This part replaces 024-20043-000. Substitute parts can look different from the original.
$16.49 |
11% OFF Phone Price : $18.49
In Stock
Rail, Base (front) 073-14855-000

#57

All parts diagram

Rail, base (front)

Part #073-14855-000

The manufacturer no longer makes this part, and there's no substitute part

Wiring Reference Label 035-14758-000

#18

All parts diagram

Wiring reference label

Part #035-14758-000

The manufacturer no longer makes this part, and there's no substitute part

Crankcase Heater (47 Watt) 025-32895-000

#1A

All parts diagram

Crankcase heater (47 watt)

Part #025-32895-000

The manufacturer no longer makes this part, and there's no substitute part

Motor, Blower (3/4 Hp) 024-25987-001

#4

All parts diagram

Motor, blower (3/4 hp)

Part #024-25987-001

The manufacturer no longer makes this part, and there's no substitute part

Panel Access (compressor) 073-16330-001

#49

All parts diagram

Panel access (compressor)

Part #073-16330-001

The manufacturer no longer makes this part, and there's no substitute part

Bolt 021-16803-000

#3

All parts diagram

Bolt

Part #021-16803-000

The manufacturer no longer makes this part, and there's no substitute part

Guard, Coil (front) 026-34644-000

#61

All parts diagram

Guard, coil (front)

Part #026-34644-000

The manufacturer no longer makes this part, and there's no substitute part

Lug Ground 025-21798-000

#19

All parts diagram

Lug ground

Part #025-21798-000

The manufacturer no longer makes this part, and there's no substitute part
