Model # D21007 TYPE 1 Official DeWalt drill/driver

Here are the diagrams and repair parts for Official DeWalt D21007-TYPE-1 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 25 parts  |
Black & Decker Leadwire 606200-01
#32

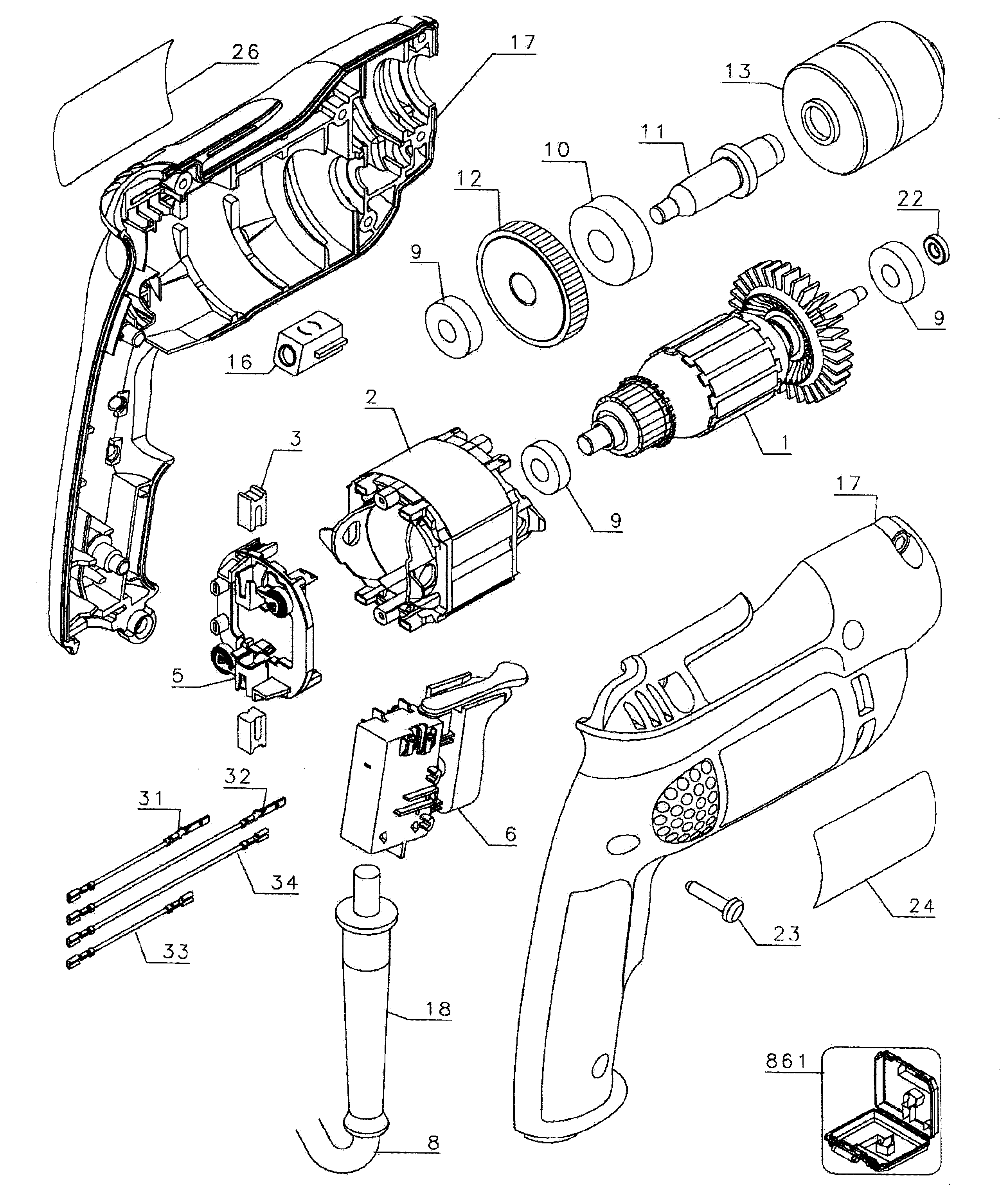

Drill assy diagram

Black & decker leadwire

Part #606200-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Brush Ring 605517-00
#5

Drill assy diagram

Black & decker brush ring

Part #605517-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Switch 605600-00
#6

Drill assy diagram

Black & decker switch

Part #605600-00

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 330072-98
#8

Drill assy diagram

Power tool power cord

Part #330072-98

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Leadwire 606200-03
#33

Drill assy diagram

Dewalt leadwire

Part #606200-03

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Leadwire 606200-02
#34

Drill assy diagram

Dewalt leadwire

Part #606200-02

The manufacturer no longer makes this part, and there's no substitute part

Spindle 605505-01
#11

Drill assy diagram

Spindle

Part #605505-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Id Label 605523-00
#26

Drill assy diagram

Black & decker id label

Part #605523-00

The manufacturer no longer makes this part, and there's no substitute part

Drill/driver Motor Brush 176846-04
#3

Drill assy diagram

Drill/driver motor brush

Part #176846-04

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Leadwire 606200-00
#31

Drill assy diagram

Dewalt leadwire

Part #606200-00

The manufacturer no longer makes this part, and there's no substitute part
