Panasonic
DVD Player

Model # DMP-BDT500P Official Panasonic dvd player

Here are the diagrams and repair parts for Official Panasonic DMP-BDT500P dvd player, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 63 parts  |
Sen Pcb-fl VEE1L88
Sen pcb-fl

Part #VEE1L88

The manufacturer no longer makes this part, and there's no substitute part

Nut Piece VMD6551
#120

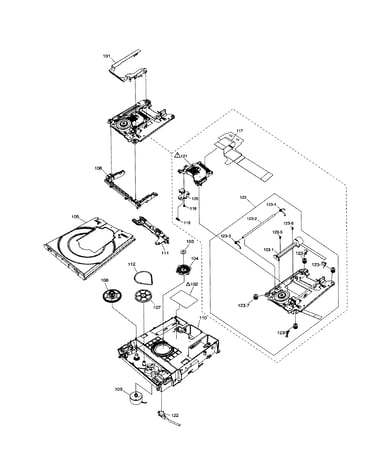

Dvd mechanism diagram

Nut piece

Part #VMD6551

The manufacturer no longer makes this part, and there's no substitute part

Tray VMD6548
#105

Dvd mechanism diagram

Tray

Part #VMD6548

The manufacturer no longer makes this part, and there's no substitute part

Stepping M L6KAYYYH0008
#1231

Dvd mechanism diagram

Stepping m

Part #L6KAYYYH0008

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Operating VQT3V91
#NI

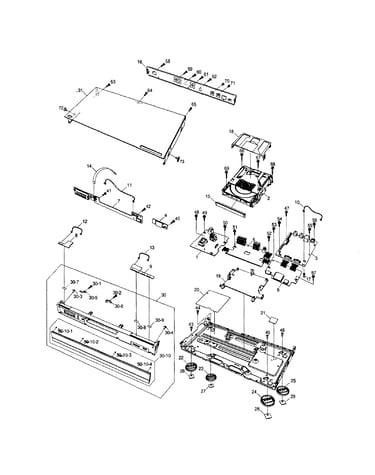

Cabinet parts diagram

Panasonic operating

Part #VQT3V91

The manufacturer no longer makes this part, and there's no substitute part

Shaft VMS8199
#1232

Dvd mechanism diagram

Shaft

Part #VMS8199

The manufacturer no longer makes this part, and there's no substitute part

Adhesive T RMQ2048
Adhesive t

Part #RMQ2048

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Panel RGR0397J-A
#16

Cabinet parts diagram

Panasonic panel

Part #RGR0397J-A

The manufacturer no longer makes this part, and there's no substitute part

Yoke VMA0V86
#103

Dvd mechanism diagram

Yoke

Part #VMA0V86

The manufacturer no longer makes this part, and there's no substitute part

Panasonic Remote Control N2QAYB000766
#NI

Cabinet parts diagram

Panasonic remote control

Part #N2QAYB000766

The manufacturer no longer makes this part, and there's no substitute part
