Model # ZR900A Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon ZR900A digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

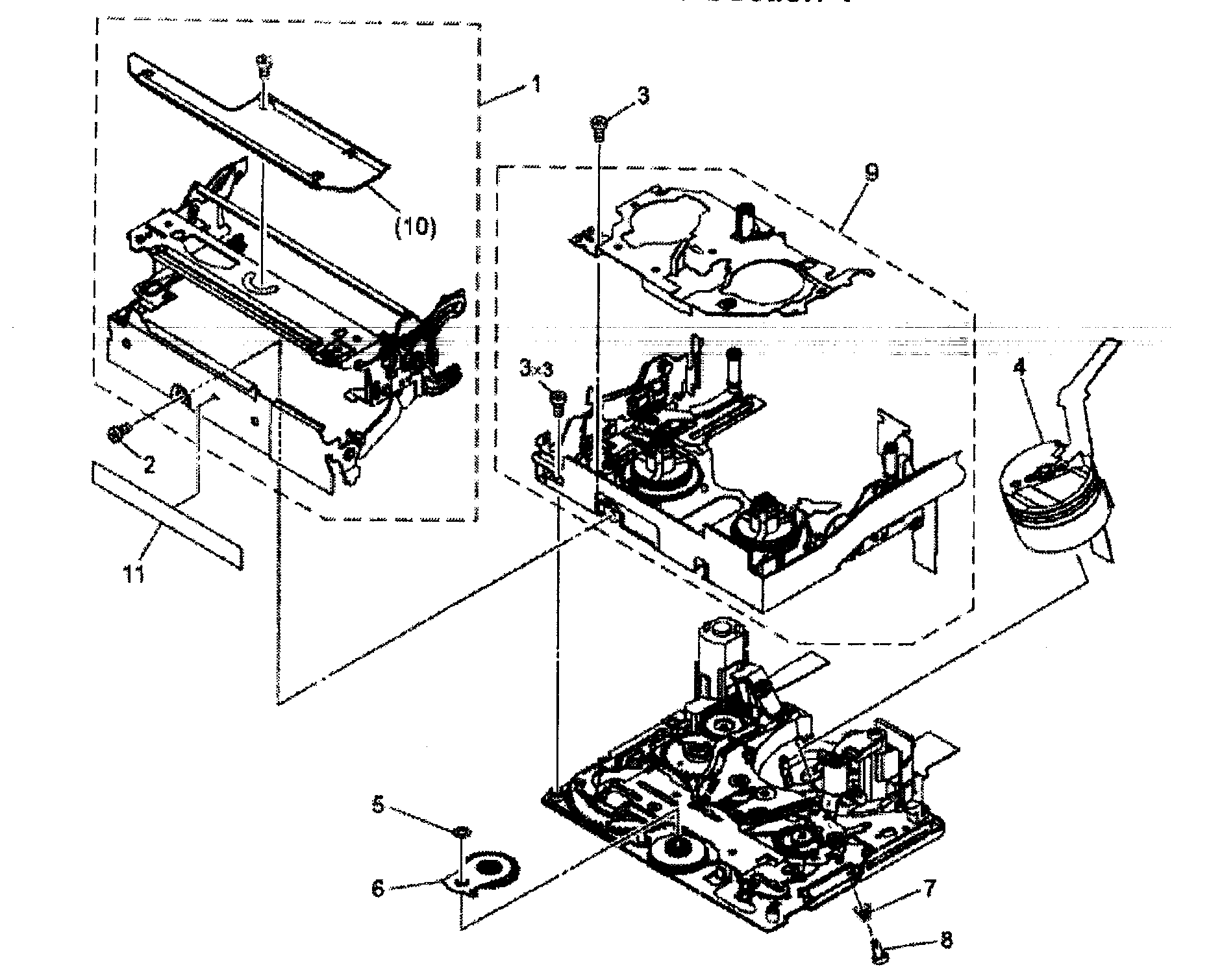

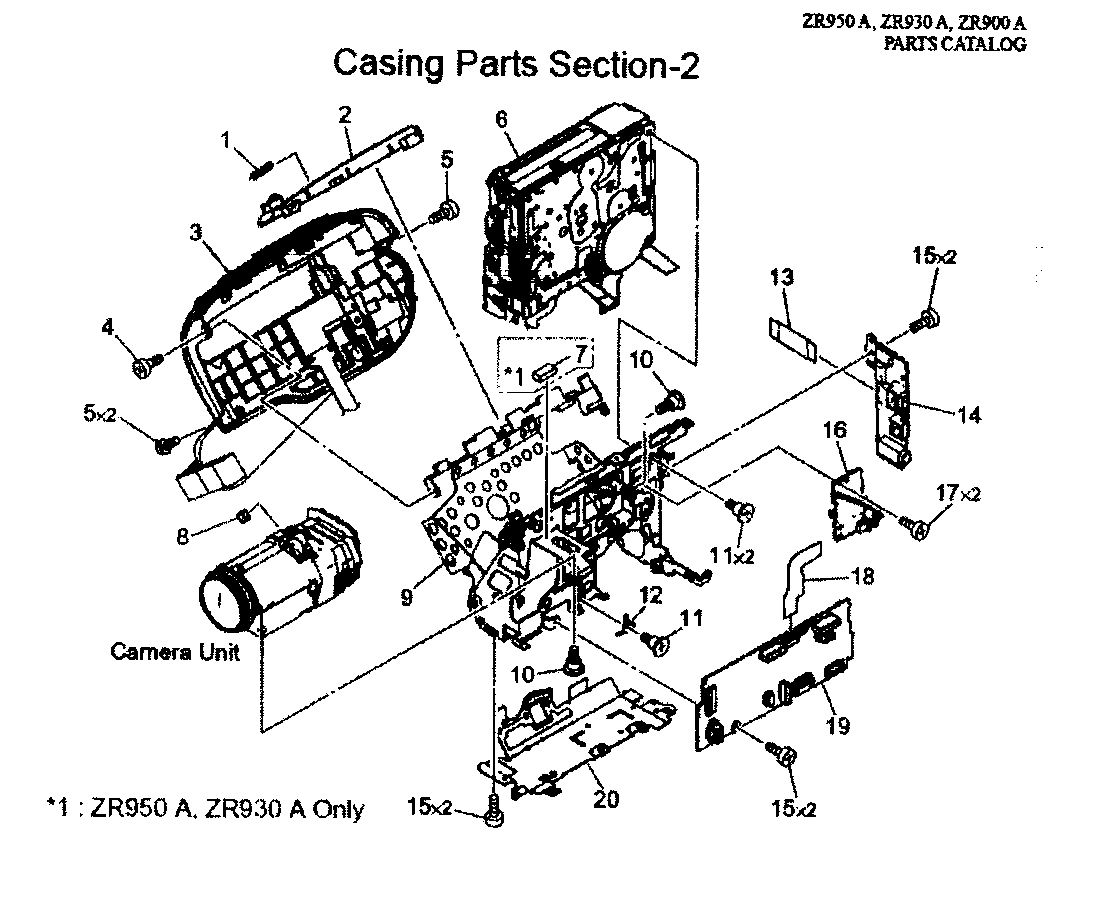

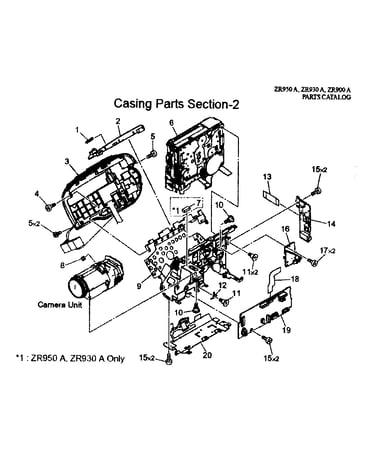

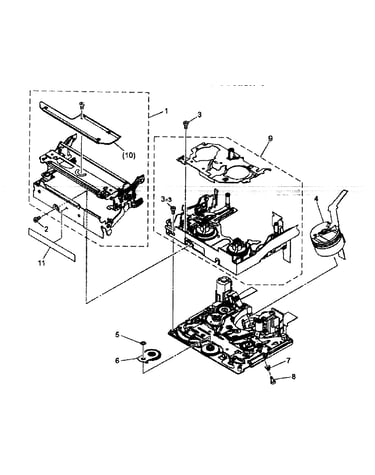

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Canon Cover DY1-9144-000
#8

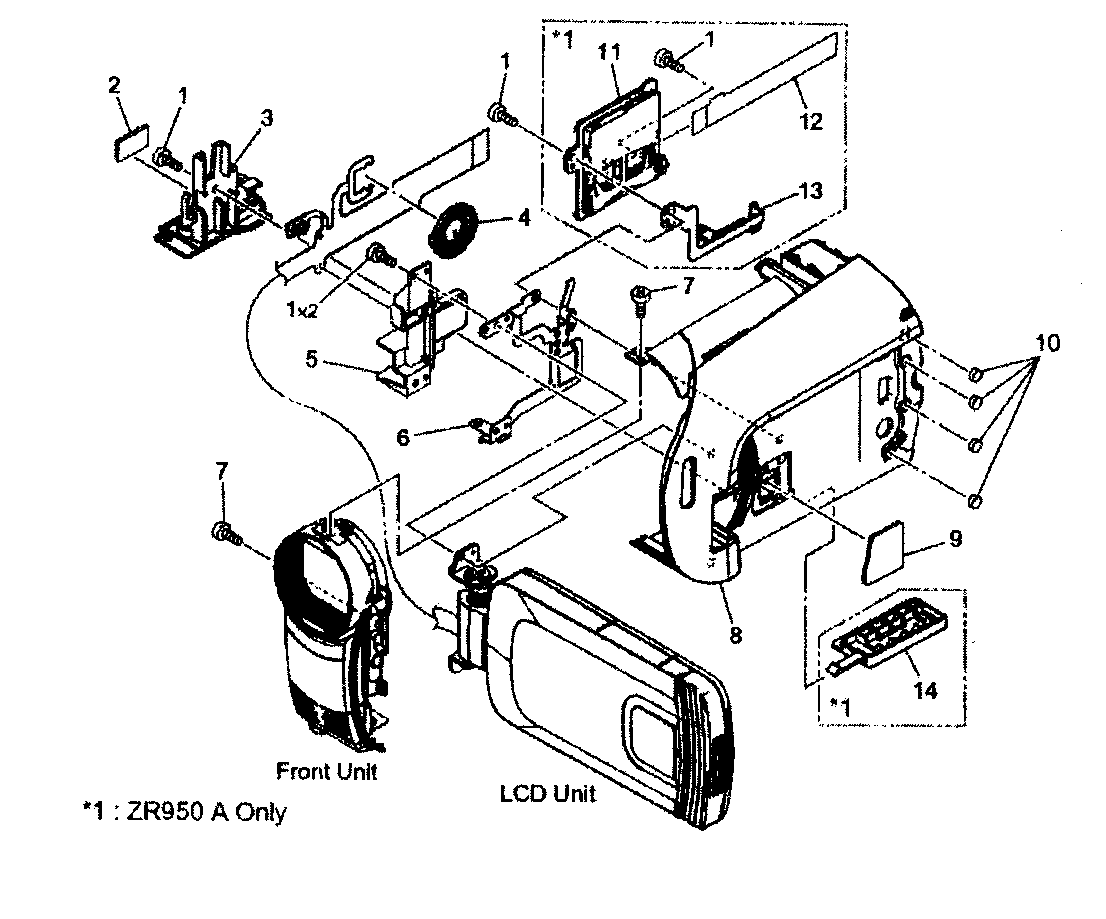

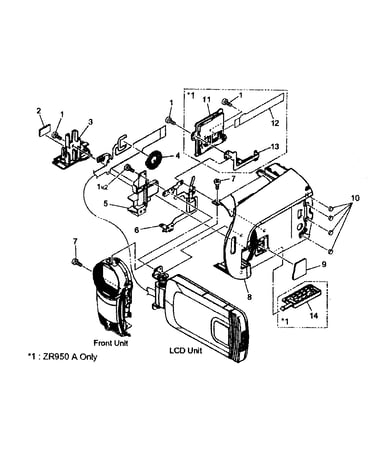

F-r lcd unit diagram

Canon cover

Part #DY1-9144-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Camcorder Assembly DY1-9138-000
#5

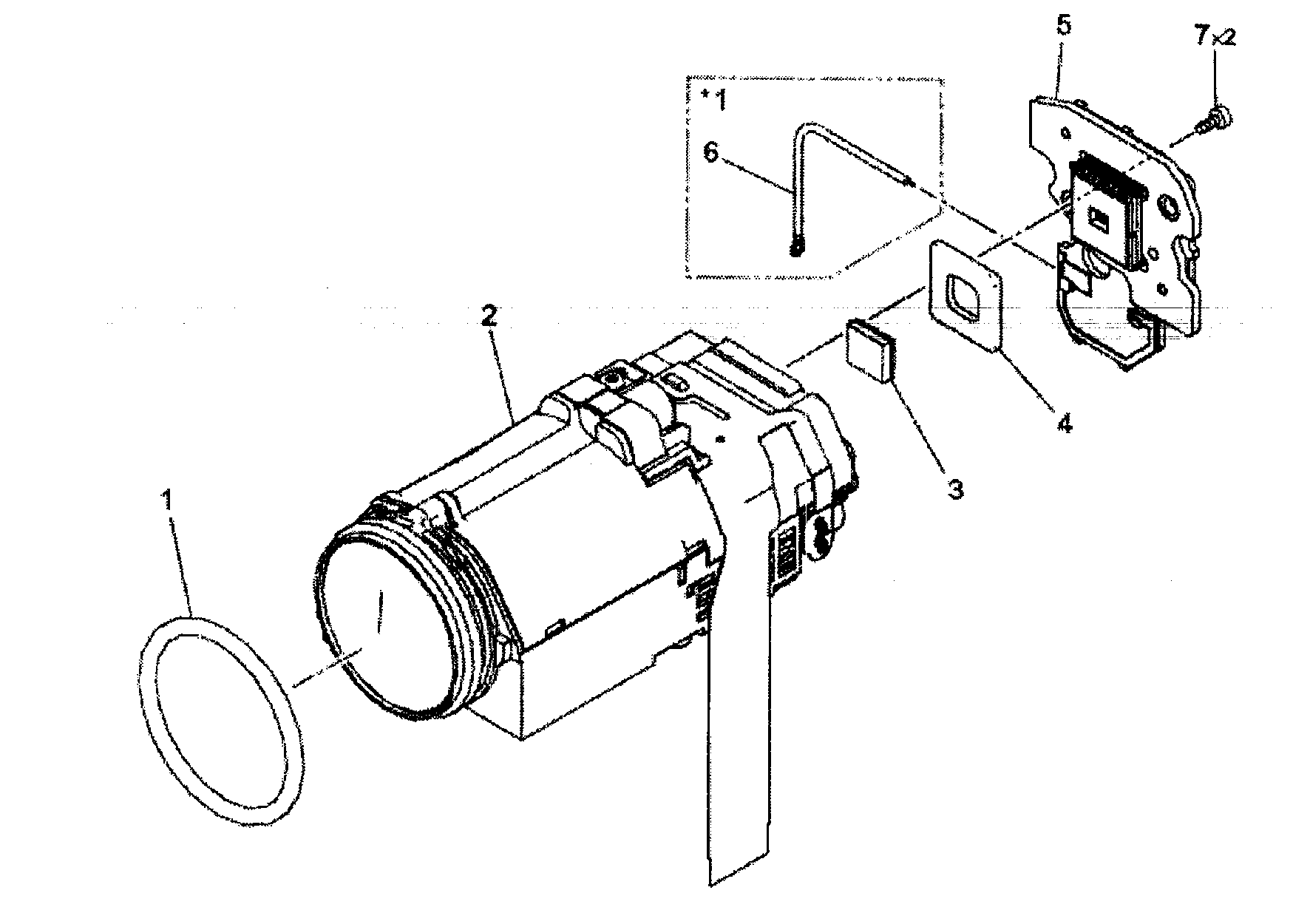

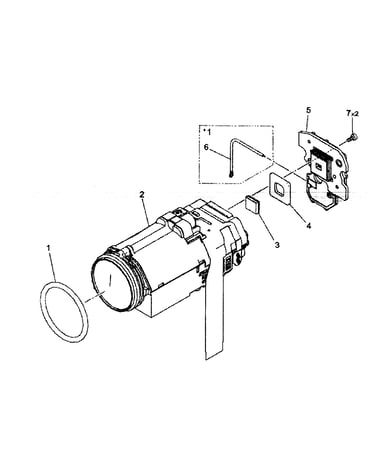

Camera unit diagram

Canon camcorder assembly

Part #DY1-9138-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA3-7040-000
#1

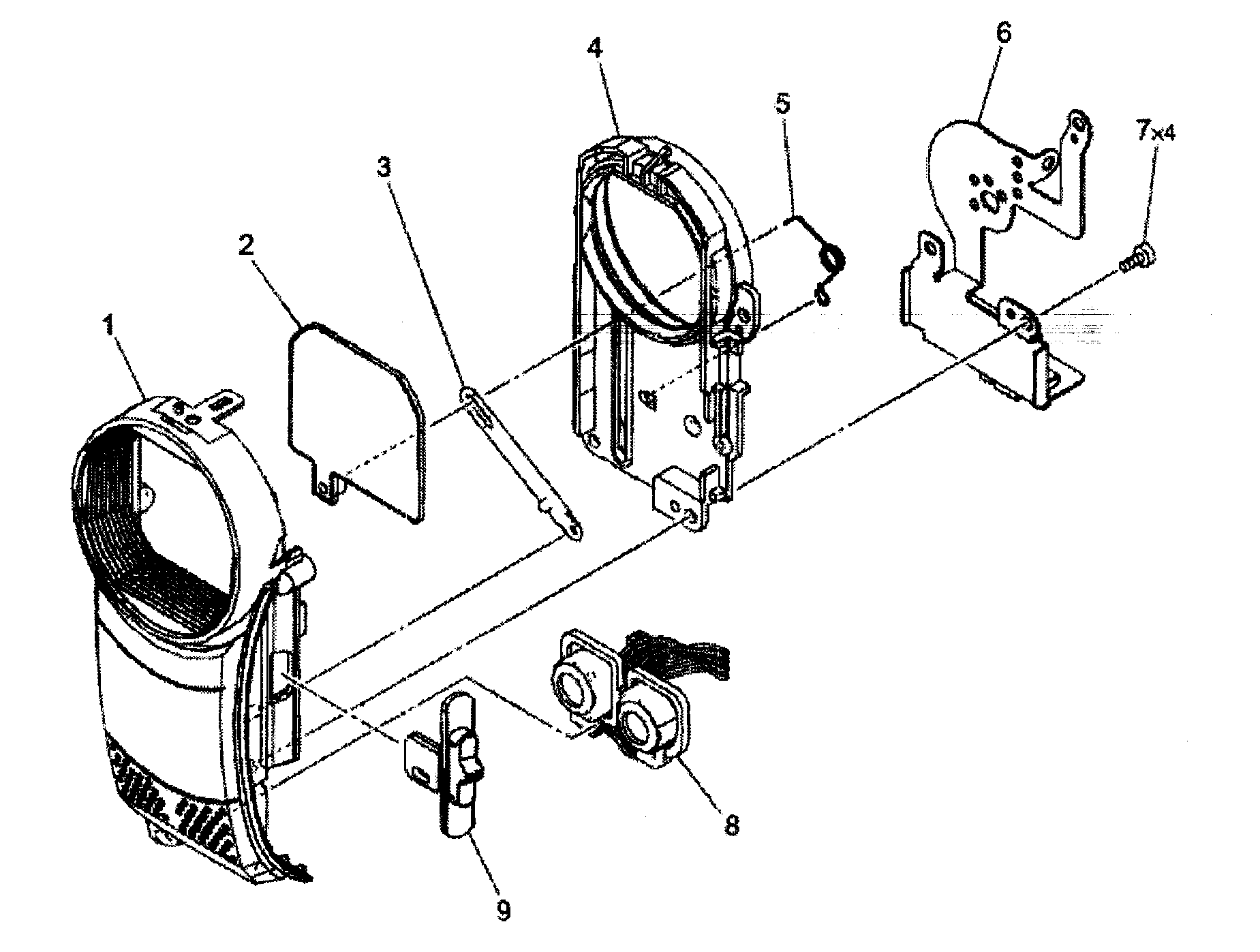

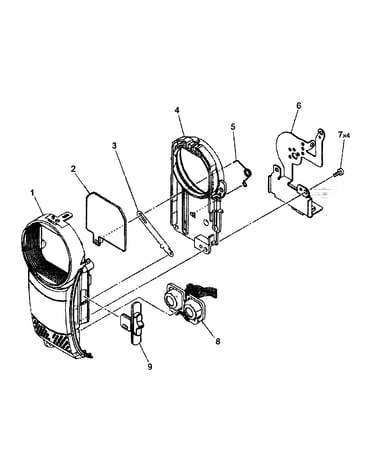

Front unit diagram

Canon cover

Part #DA3-7040-000

The manufacturer no longer makes this part, and there's no substitute part

Filter,opt DH9-3065-000
#3

Camera unit diagram

Filter,opt

Part #DH9-3065-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Knob DA3-7044-000
#9

Front unit diagram

Canon knob

Part #DA3-7044-000

The manufacturer no longer makes this part, and there's no substitute part

Camcorder Speaker WR1-5142-000
#4

F-r lcd unit diagram

Camcorder speaker

Part #WR1-5142-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA3-7141-000
#7

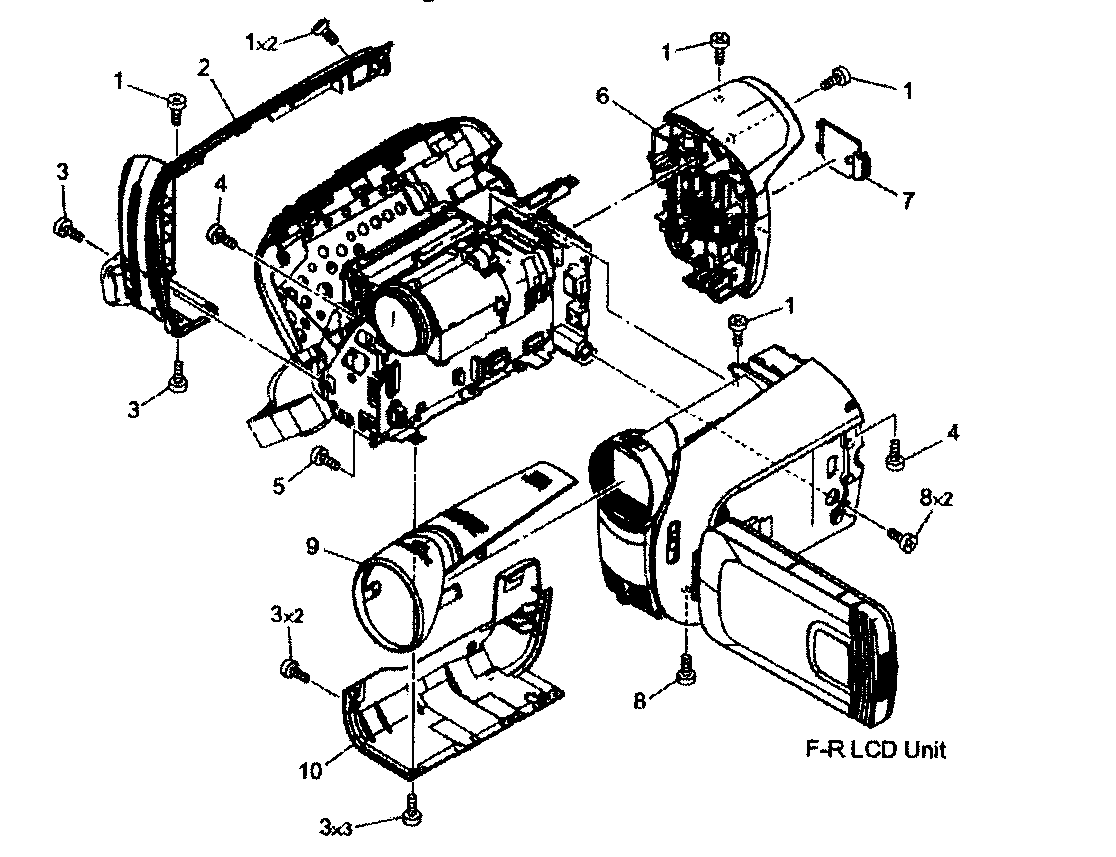

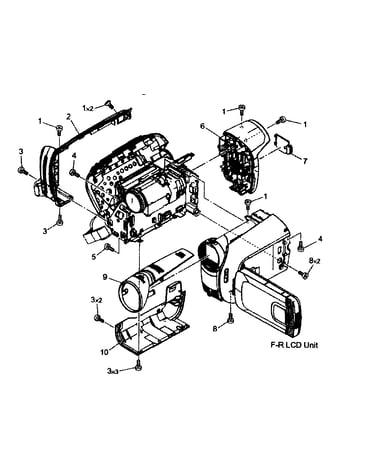

Casing parts 1 diagram

Canon cover

Part #DA3-7141-000

The manufacturer no longer makes this part, and there's no substitute part

Belt DA2-2196-000
#NI

Casing parts 1 diagram

Belt

Part #DA2-2196-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Lcd Cover DA3-7088-000
#2

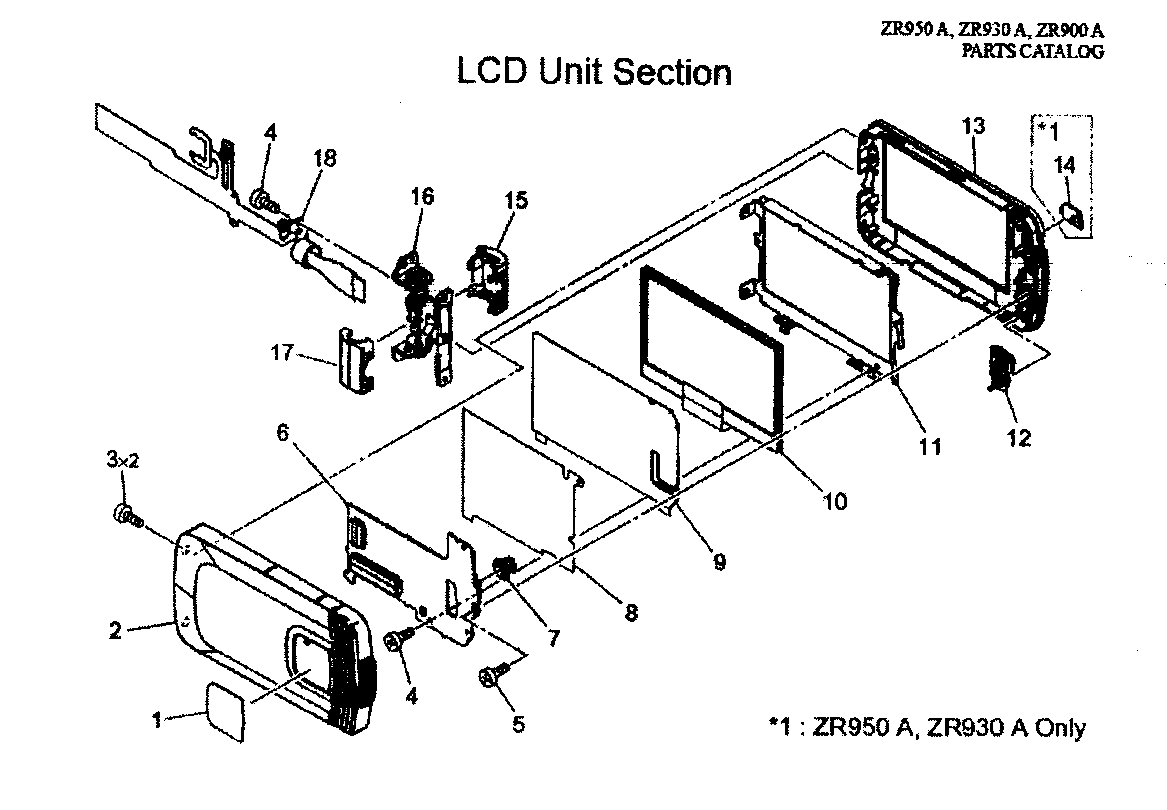

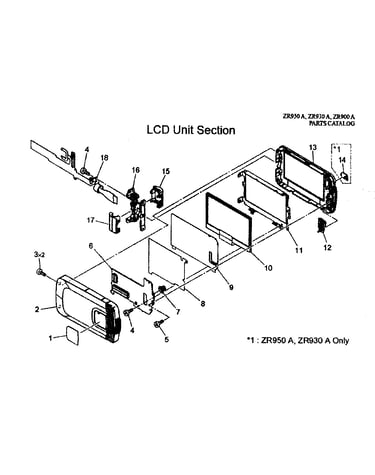

Lcd unit diagram

Canon lcd cover

Part #DA3-7088-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Pcb Assembly DG3-2283-000
#6

Lcd unit diagram

Canon pcb assembly

Part #DG3-2283-000

The manufacturer no longer makes this part, and there's no substitute part
