Here are the diagrams and repair parts for Official Kenmore 1067762190 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic

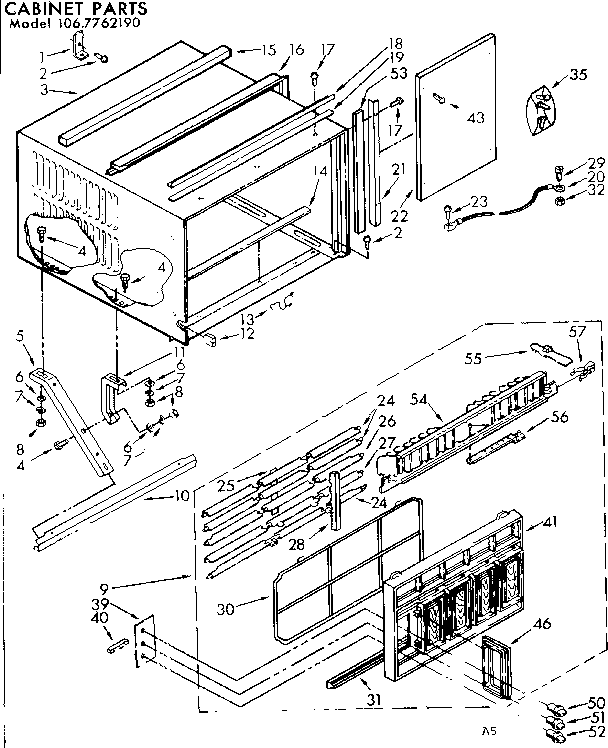

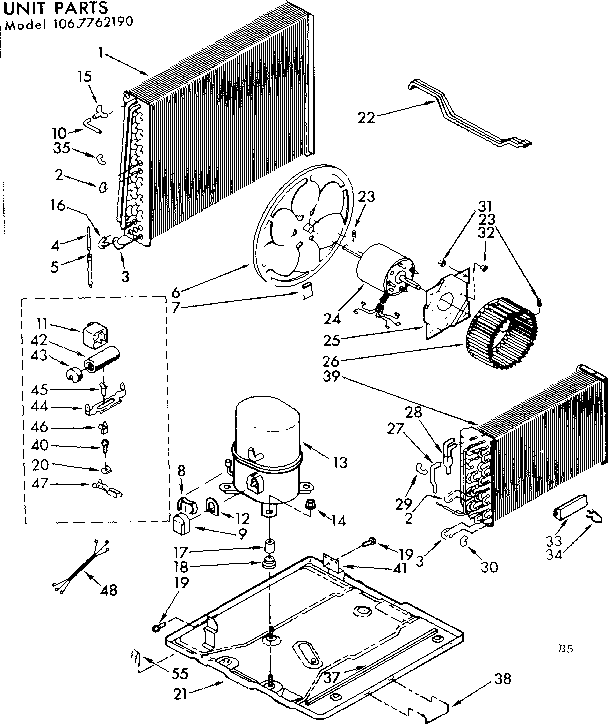

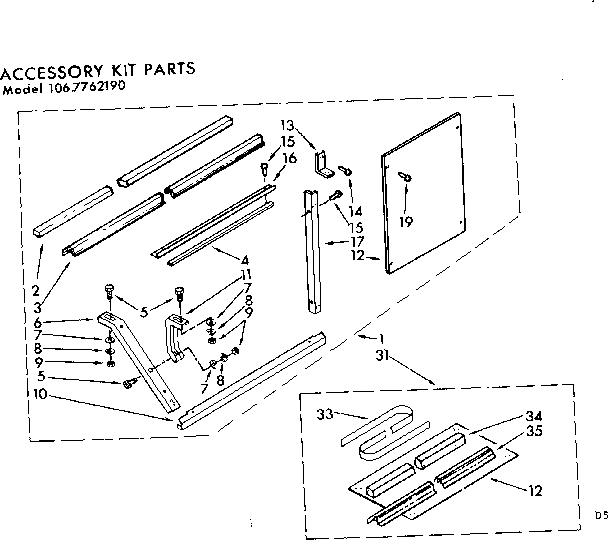

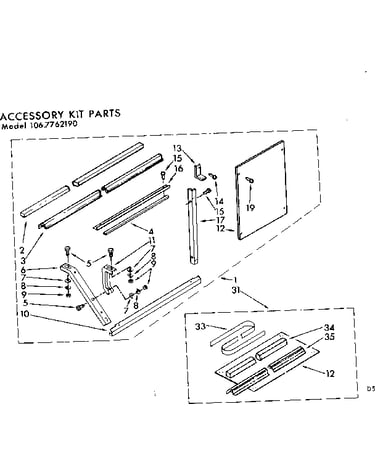

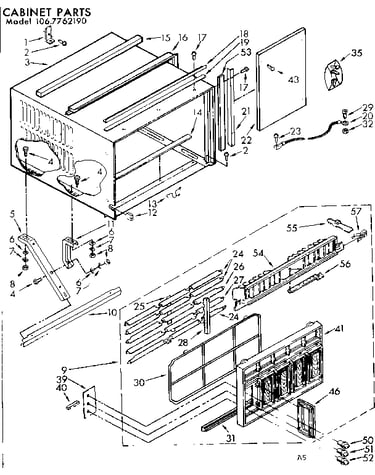

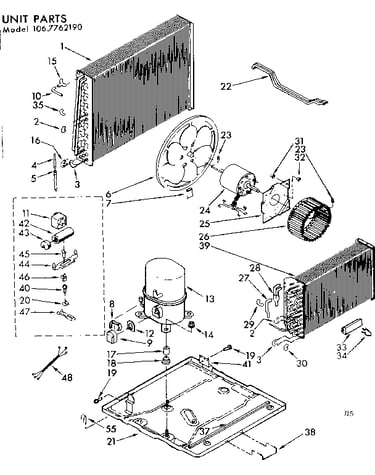

SELECT DIAGRAM

Browse Parts for1067762190 Air Conditioner

#6

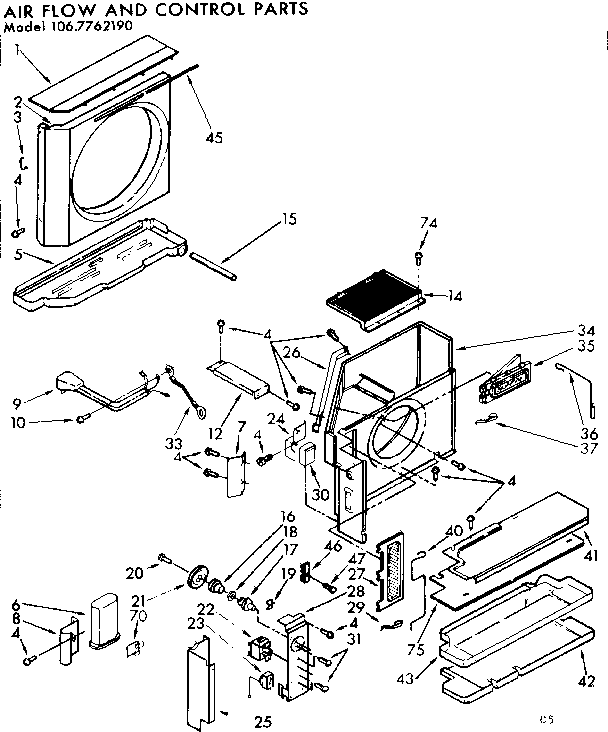

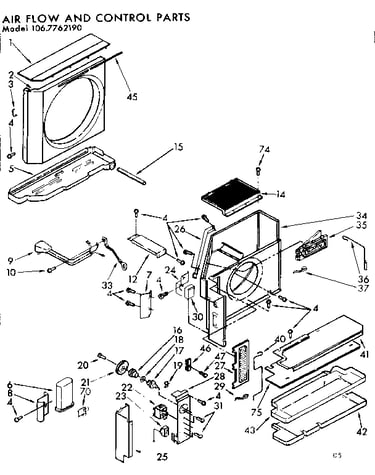

Air flow & control parts diagram
Capacitor
Part #852833
Replaced by #12885
?
Manufacturer substitution
This part replaces 852833. Substitute parts can look different from the original.
$22.44
In Stock
Qty
Screw
Part #488861
Replaced by #WP308685
?
Manufacturer substitution
This part replaces 488861. Substitute parts can look different from the original.
This item is not returnable
$4.36 |
19% OFF Phone Price : $5.36
In Stock
Qty
Screw
Part #488720
Replaced by #WP308685
?
Manufacturer substitution
This part replaces 488720. Substitute parts can look different from the original.
This item is not returnable
$4.36 |
19% OFF Phone Price : $5.36
In Stock
Qty
#4A
Air flow & control parts diagram
Screw, 8 x 1
Part #488480
Replaced by #WP489069
?
Manufacturer substitution
This part replaces 488480. Substitute parts can look different from the original.
This item is not returnable
$4.33 |
19% OFF Phone Price : $5.33
In Stock
Qty
#NI
All parts diagram
Valve kit
Part #978025
Replaced by #WP978025
?
Manufacturer substitution
This part replaces 978025. Substitute parts can look different from the original.
$35.04 |
15% OFF Phone Price : $41.04
In Stock
Qty
#NI
All parts diagram
Valve kit
Part #978027
$97.41
In Stock
Qty
#NI
All parts diagram
Valve kit
Part #978030
$99.66
In Stock
Qty
#NI
All parts diagram
Valve kit
Part #978026
$95.10
In Stock
Qty
#10
Air flow & control parts diagram
Screw
Part #487871
Replaced by #WPW10141604
?
Manufacturer substitution
This part replaces 487871. Substitute parts can look different from the original.
This item is not returnable
$5.56 |
15% OFF Phone Price : $6.56
In Stock
Qty
Screw
Part #488017
Replaced by #WP965173
?
Manufacturer substitution
This part replaces 488017. Substitute parts can look different from the original.
$28.64
In Stock
Qty
