Model # DW888 TYPE3 Official DeWalt die grinder

Here are the diagrams and repair parts for Official DeWalt DW888-TYPE3 die grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 49 parts  |

Terminal 395716-00
#50

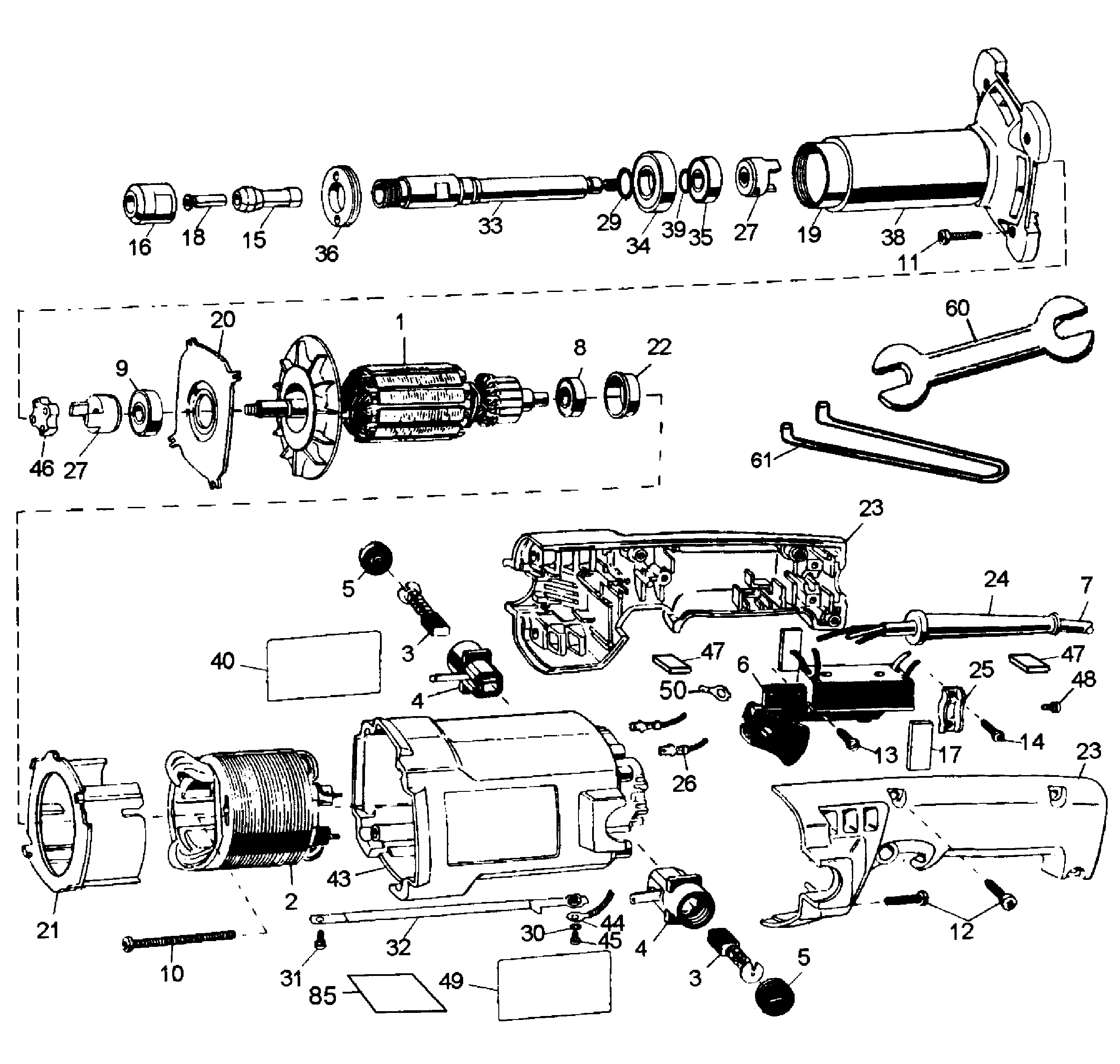

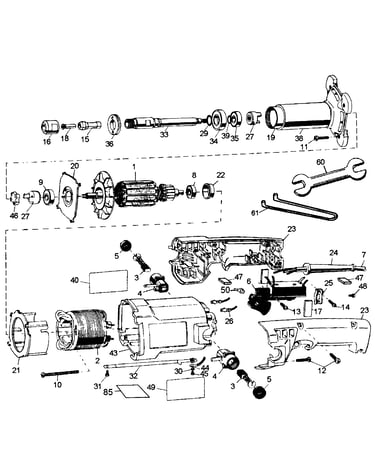

Die grinder diagram

Terminal

Part #395716-00

The manufacturer no longer makes this part, and there's no substitute part

Wrench 703131-00
#61

Die grinder diagram

Wrench

Part #703131-00

The manufacturer no longer makes this part, and there's no substitute part

Torx Screw 330019-01
#13

Die grinder diagram

Torx screw

Part #330019-01

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Retainer Ring 144803-00
#39

Die grinder diagram

Power tool retainer ring

Part #144803-00

The manufacturer no longer makes this part, and there's no substitute part

Pad 150844-03
#47

Die grinder diagram

Pad

Part #150844-03

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Nameplate 651231-00
#40

Die grinder diagram

Dewalt nameplate

Part #651231-00

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 021955-00
#18

Die grinder diagram

Sleeve

Part #021955-00

The manufacturer no longer makes this part, and there's no substitute part

Strap-grou 450852-00SV
#32

Die grinder diagram

Strap-grou

Part #450852-00SV

The manufacturer no longer makes this part, and there's no substitute part

Washer 001991-00
#30

Die grinder diagram

Washer

Part #001991-00

The manufacturer no longer makes this part, and there's no substitute part

Wrench 020285-00
#60

Die grinder diagram

Wrench

Part #020285-00

The manufacturer no longer makes this part, and there's no substitute part
