Model # MPS229-10/P1104401M Official Caloric microwave

Here are the diagrams and repair parts for Official Caloric MPS229-10-P1104401M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Strain Relief 90549
#1

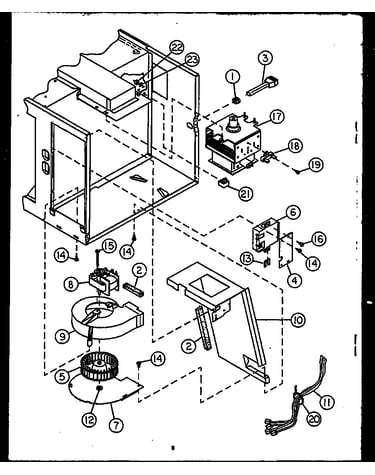

Blower/magnetron diagram

Strain relief

Part #90549

The manufacturer no longer makes this part, and there's no substitute part

Receptacle, Probe 53959
#21

Blower/magnetron diagram

Receptacle, probe

Part #53959

The manufacturer no longer makes this part, and there's no substitute part

Door Glass Assembly (includes Items 6 And 11) 54126
#28

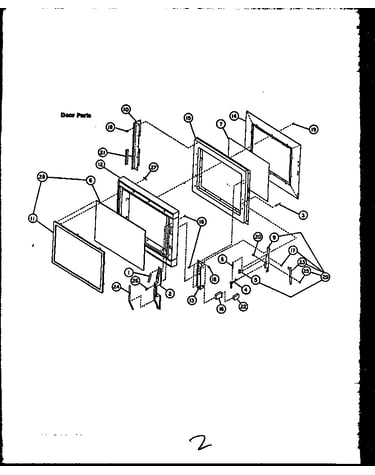

Door parts diagram

Door glass assembly (includes items 6 and 11)

Part #54126

The manufacturer no longer makes this part, and there's no substitute part

Window, Oven Light 53960
#5

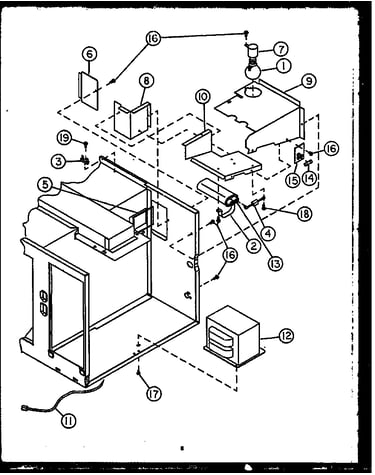

Capacitor/transformer diagram

Window, oven light

Part #53960

The manufacturer no longer makes this part, and there's no substitute part

Nut - Self-thread 54118
#18

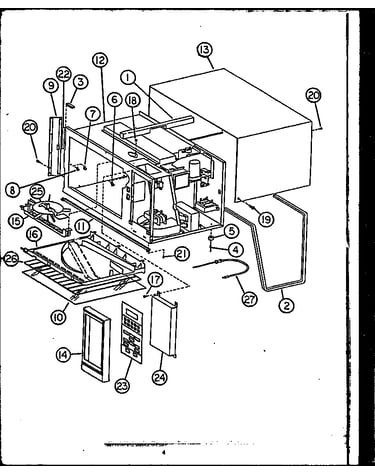

Control panel diagram

Nut - self-thread

Part #54118

The manufacturer no longer makes this part, and there's no substitute part

Speed Clip 53941
#27

Door parts diagram

Speed clip

Part #53941

The manufacturer no longer makes this part, and there's no substitute part

Pop Rivet 89901
#3

Door parts diagram

Pop rivet

Part #89901

The manufacturer no longer makes this part, and there's no substitute part

Pad, Door Button 54133
#22

Door parts diagram

Pad, door button

Part #54133

The manufacturer no longer makes this part, and there's no substitute part

Tube, Magnetron 53971
#17

Blower/magnetron diagram

Tube, magnetron

Part #53971

The manufacturer no longer makes this part, and there's no substitute part

Fuse, 20 Amp 54121
#14

Capacitor/transformer diagram

Fuse, 20 amp

Part #54121

The manufacturer no longer makes this part, and there's no substitute part
