Hotpoint
Countertop Microwave

Model # REM4H01 Official Hotpoint microwave

Here are the diagrams and repair parts for Official Hotpoint REM4H01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

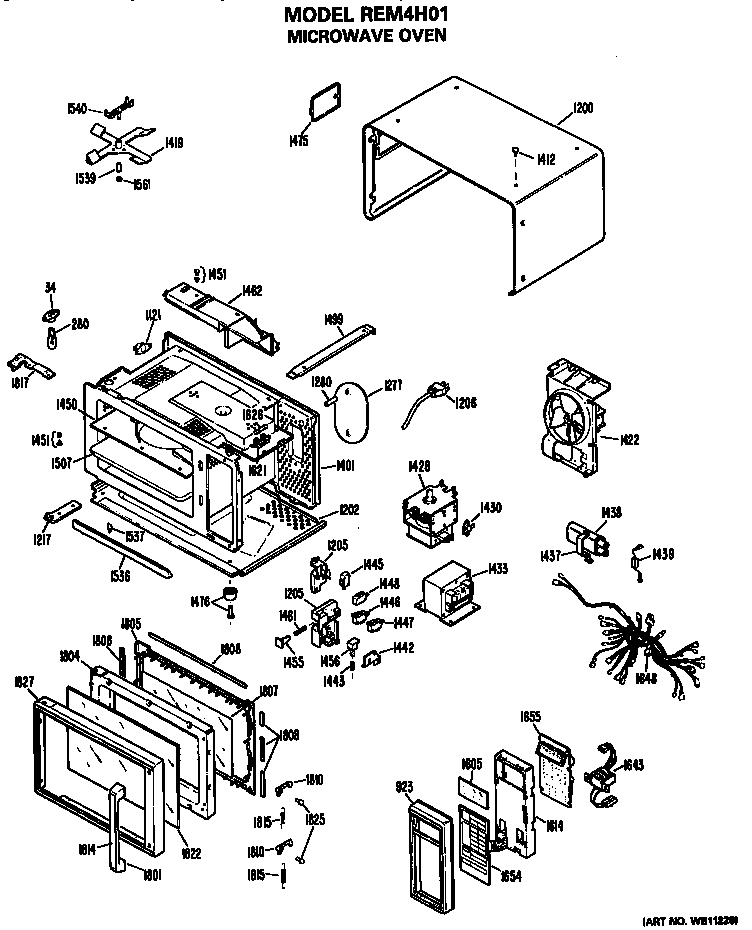

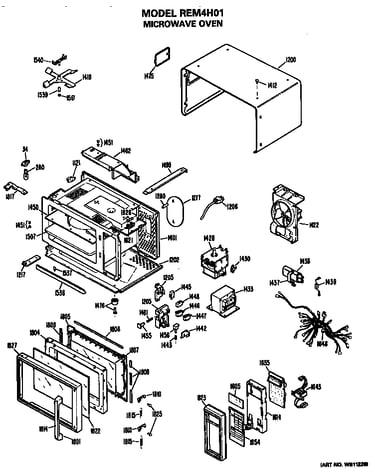

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Motor Switch WB24X441

#1445

All parts diagram

Motor switch

Part #WB24X441

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X441. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Pri Switc WB24X445

#1447

All parts diagram

Pri switc

Part #WB24X445

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X445. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Diode WB27X286

#1439

All parts diagram

Diode

Part #WB27X286

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X286. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Flame Sensor WB20X141

#1121

All parts diagram

Flame sensor

Part #WB20X141

Replaced by #WB27X10195

?
Manufacturer substitution
This part replaces WB20X141. Substitute parts can look different from the original.
$24.89 |
19% OFF Phone Price : $30.89
In Stock
Magnetron NOT AVAIL

#1428

All parts diagram

Magnetron

Part #NOT AVAIL

The manufacturer no longer makes this part, and there's no substitute part

Latch Body WB2X4678

#1205

All parts diagram

Latch body

Part #WB2X4678

The manufacturer no longer makes this part, and there's no substitute part

Stop Tray WB2X4690

#1536

All parts diagram

Stop tray

Part #WB2X4690

The manufacturer no longer makes this part, and there's no substitute part

Hand Trim WB7X1653

#1801

All parts diagram

Hand trim

Part #WB7X1653

The manufacturer no longer makes this part, and there's no substitute part

Magnetron WB27X348

#1428

All parts diagram

Magnetron

Part #WB27X348

The manufacturer no longer makes this part, and there's no substitute part

Door Frame WB55X594

#1805

All parts diagram

Door frame

Part #WB55X594

The manufacturer no longer makes this part, and there's no substitute part
