Model # AJCQ06LCBM1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AJCQ06LCBM1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Special Screw WP01X10021
#1440

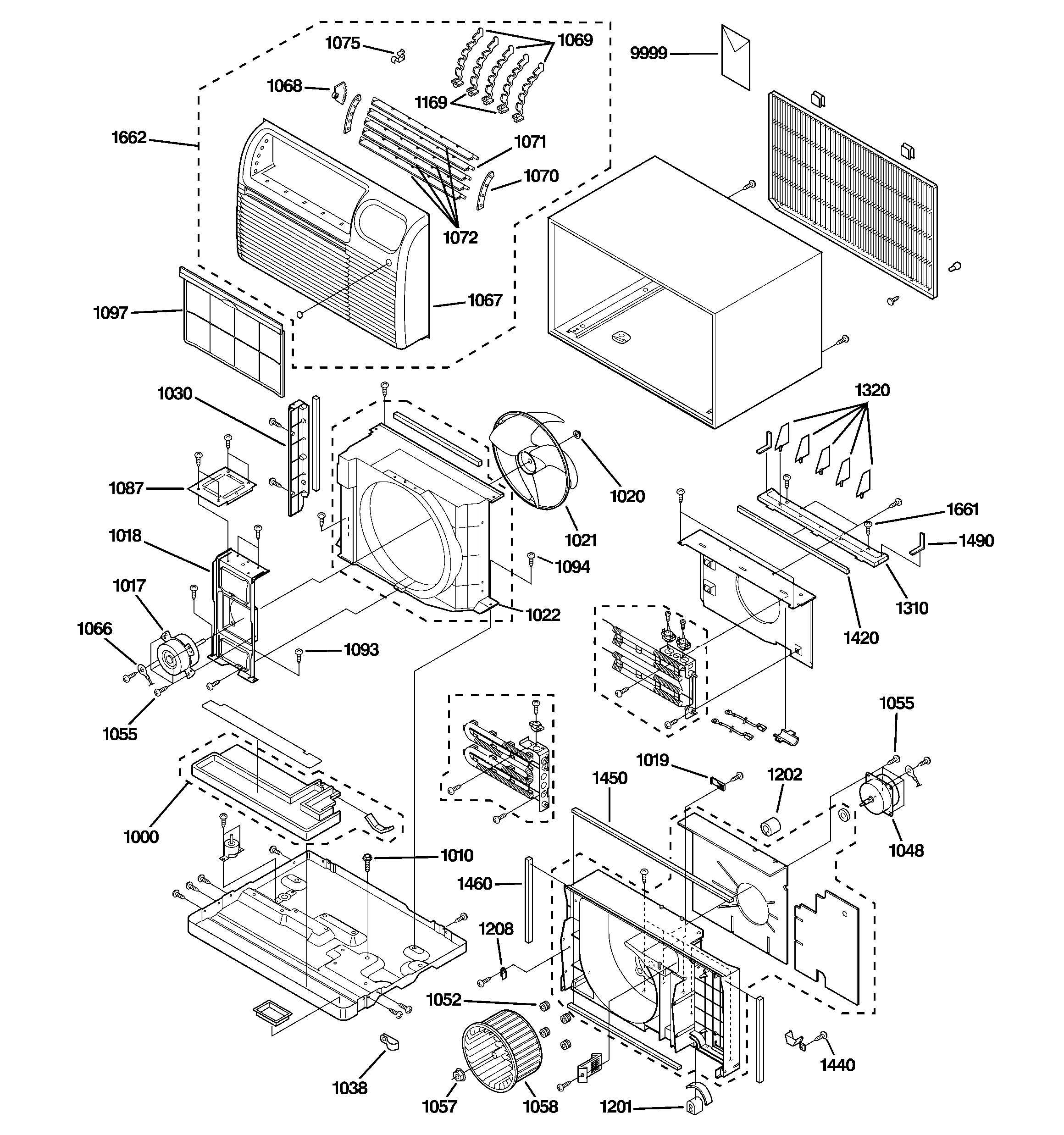

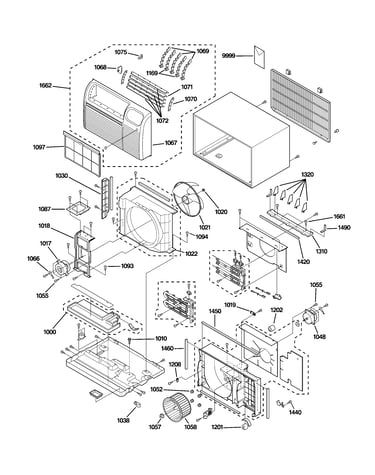

Cabinet & components diagram

Special screw

Part #WP01X10021

$8.11
In Stock
Room Air Conditioner Air Filter WJ85X10041
#1097

Cabinet & components diagram

Room air conditioner air filter

Part #WJ85X10041

$32.44 |
16% OFF Phone Price : $38.44
In Stock
Complete Cushion WJ01X10002
#1084

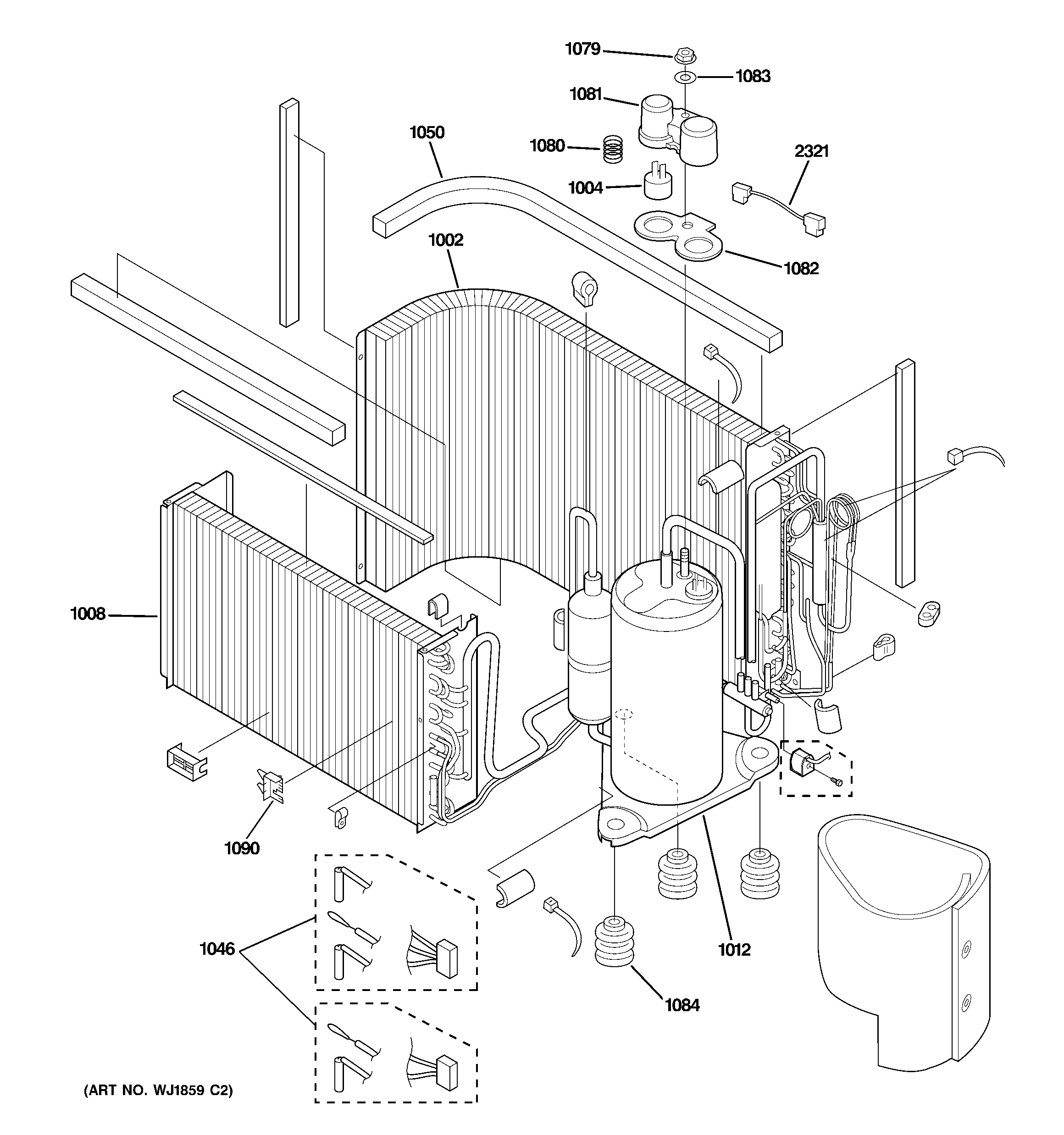

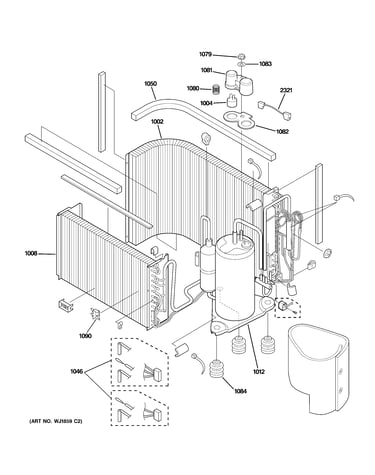

Sealed system & components diagram

Complete cushion

Part #WJ01X10002

This item is not returnable
$11.37 |
15% OFF Phone Price : $13.37
In Stock
Louver Holder WJ01X10142
#1169

Cabinet & components diagram

Louver holder

Part #WJ01X10142

This item is not returnable
$5.00
In Stock
Special Nut WP01X10015
#1079

Sealed system & components diagram

Special nut

Part #WP01X10015

This item is not returnable
$4.35
In Stock
Power Cord WJ35X10096
#1042

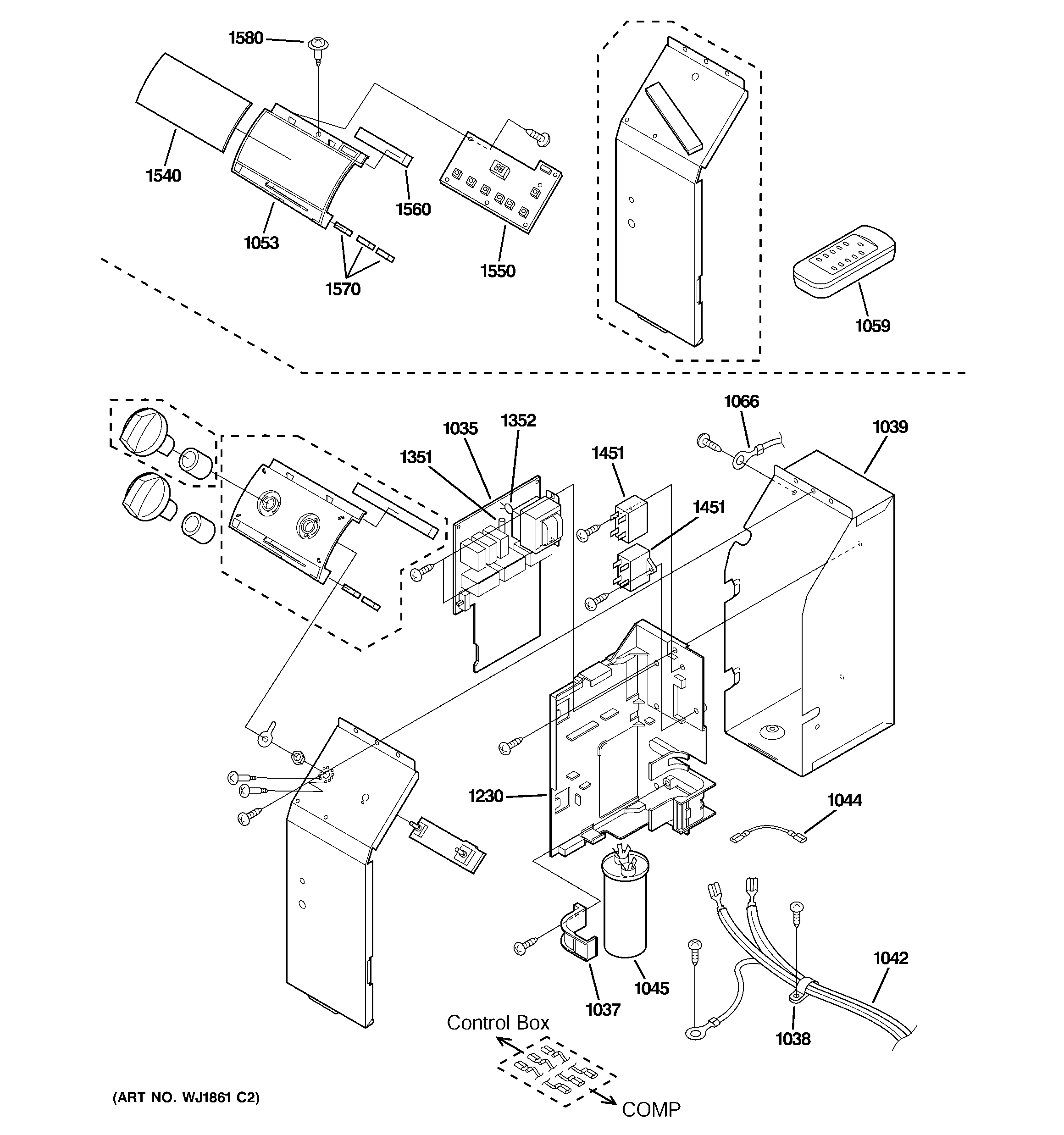

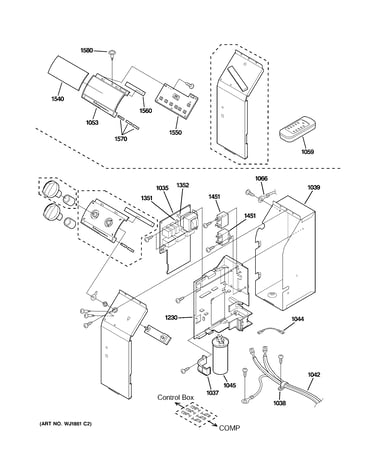

Control parts diagram

Power cord

Part #WJ35X10096

Replaced by #WJ35X10128

?
Manufacturer substitution
This part replaces WJ35X10096. Substitute parts can look different from the original.
$143.58
In Stock
Special Nut WJ01X0981
#1020

Cabinet & components diagram

Special nut

Part #WJ01X0981

Replaced by #WJ01X10041

?
Manufacturer substitution
This part replaces WJ01X0981. Substitute parts can look different from the original.
This item is not returnable
$8.50 |
11% OFF Phone Price : $9.50
In Stock
Operation Unit WJ29X10015
#1550

Control parts diagram

Operation unit

Part #WJ29X10015

The manufacturer no longer makes this part, and there's no substitute part

Louver Base WJ71X10460
#1310

Cabinet & components diagram

Louver base

Part #WJ71X10460

The manufacturer no longer makes this part, and there's no substitute part

Special Screw WJ01X10037
#1093

Cabinet & components diagram

Special screw

Part #WJ01X10037

The manufacturer no longer makes this part, and there's no substitute part
