Canon
Digital Camcorder

Model # ELURA40MCA Official Canon digital camcorder

Here are the diagrams and repair parts for Official Canon ELURA40MCA digital camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

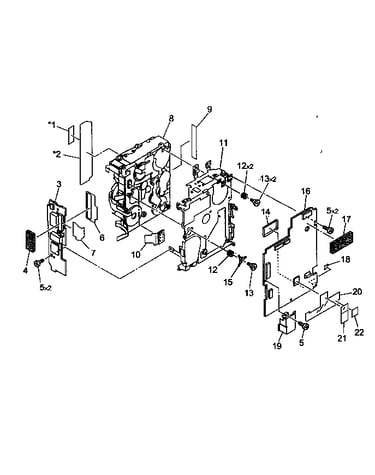

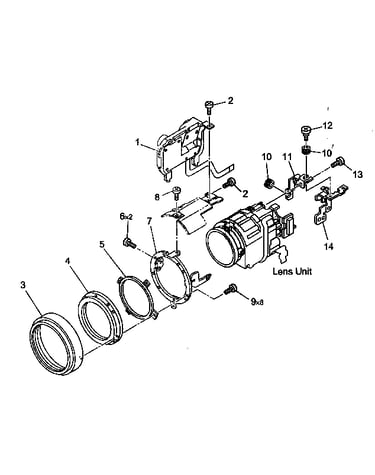

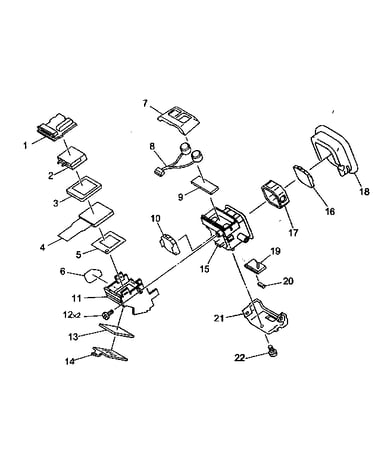

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 88 parts  |
Cover DA2-1789-000
#2

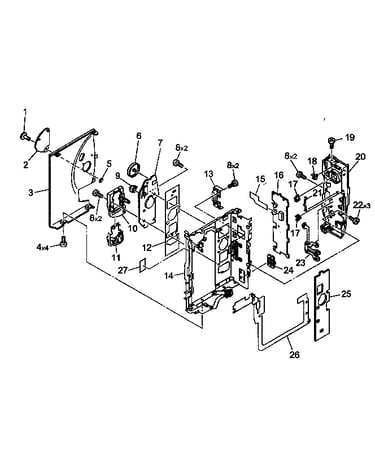

Left cover assy diagram

Cover

Part #DA2-1789-000

The manufacturer no longer makes this part, and there's no substitute part

Light DG1-4199-000
#17

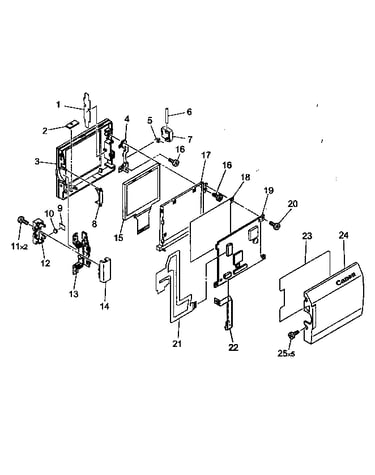

Lcd assy diagram

Light

Part #DG1-4199-000

The manufacturer no longer makes this part, and there's no substitute part

Motor YH7-0213-000
#7

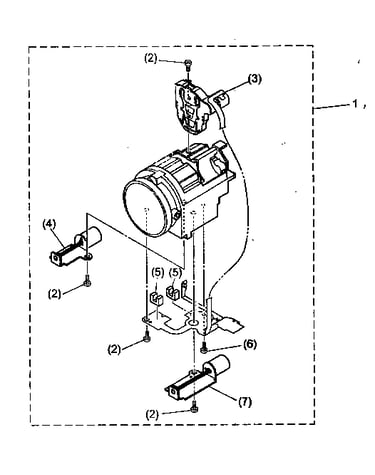

Lens assy diagram

Motor

Part #YH7-0213-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA2-1766-000
#3

Left cover assy diagram

Canon cover

Part #DA2-1766-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Microphone Cover DA2-1817-000
#9

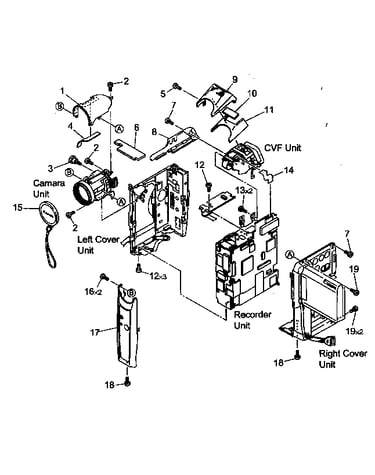

Casing parts diagram

Canon microphone cover

Part #DA2-1817-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA2-1734-000
#14

Lcd assy diagram

Canon cover

Part #DA2-1734-000

The manufacturer no longer makes this part, and there's no substitute part

Fpc Asy DH2-2274-000
#21

Lcd assy diagram

Fpc asy

Part #DH2-2274-000

The manufacturer no longer makes this part, and there's no substitute part

Knob DA2-0908-000
#7

Lcd assy diagram

Knob

Part #DA2-0908-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Flex Cable DH2-2275-000
#15

Left cover assy diagram

Canon flex cable

Part #DH2-2275-000

The manufacturer no longer makes this part, and there's no substitute part

Canon Cover DA2-1753-000
#21

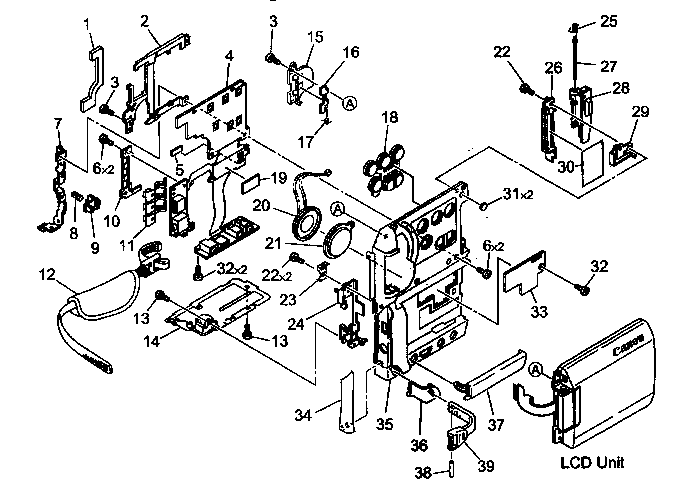

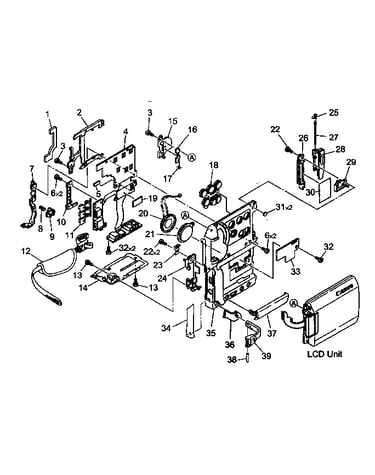

Right cover assy diagram

Canon cover

Part #DA2-1753-000

The manufacturer no longer makes this part, and there's no substitute part
