Model # 917270051 Official Craftsman 6-hp shredder/bagger

Here are the diagrams and repair parts for Official Craftsman 917270051 6-hp shredder/bagger, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

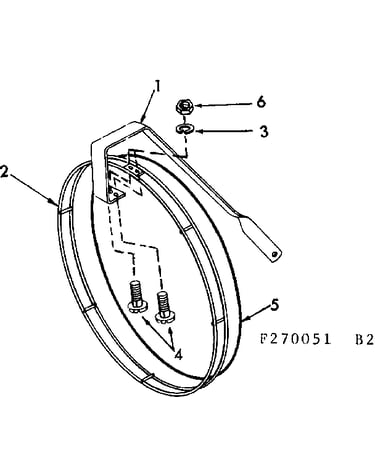

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Flat Washer 1506P
#54

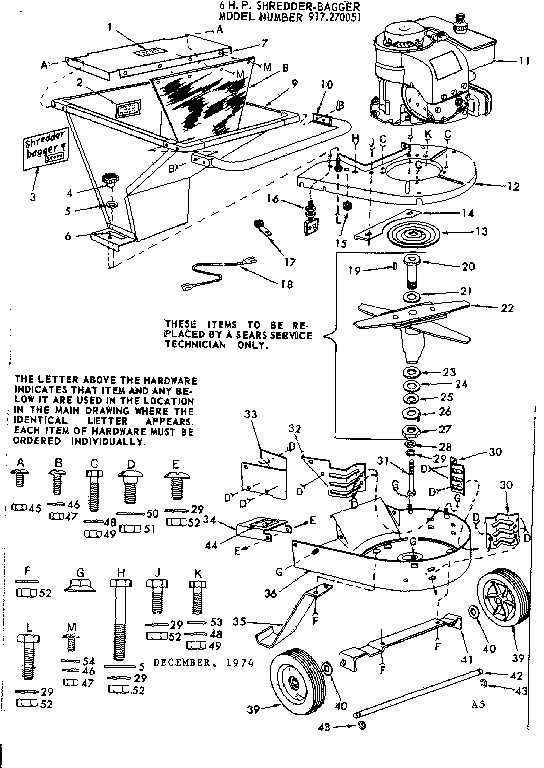

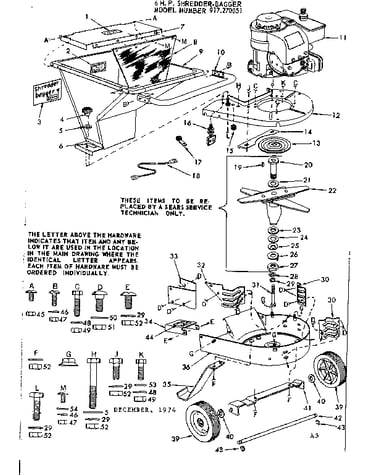

Replacement parts diagram

Flat washer

Part #1506P

The manufacturer no longer makes this part, and there's no substitute part

Bolt 3252P
#55L

Replacement parts diagram

Bolt

Part #3252P

Replaced by #874930624

?
Manufacturer substitution
This part replaces 3252P. Substitute parts can look different from the original.
$11.97
In Stock
Lock Nut 1605H
#45

Replacement parts diagram

Lock nut

Part #1605H

The manufacturer no longer makes this part, and there's no substitute part

Nut 5394H
#51

Replacement parts diagram

Nut

Part #5394H

The manufacturer no longer makes this part, and there's no substitute part

Breaker Plate 1402R
#30

Replacement parts diagram

Breaker plate

Part #1402R

The manufacturer no longer makes this part, and there's no substitute part

Washer 2942R
#24

Replacement parts diagram

Washer

Part #2942R

The manufacturer no longer makes this part, and there's no substitute part

Clip 2521R
#17

Replacement parts diagram

Clip

Part #2521R

The manufacturer no longer makes this part, and there's no substitute part

Mandrel Washer 1404R
#28

Replacement parts diagram

Mandrel washer

Part #1404R

The manufacturer no longer makes this part, and there's no substitute part

Scotchcal 3450R
#6

Replacement parts diagram

Scotchcal

Part #3450R

The manufacturer no longer makes this part, and there's no substitute part

Axle 1375R
#42

Replacement parts diagram

Axle

Part #1375R

The manufacturer no longer makes this part, and there's no substitute part
